What Size Pipe Should I Use for Air Compressor Lines?

Choosing the correct pipe size for your air compressor lines is crucial for system performance. The right diameter ensures maximum airflow, consistent pressure, and efficient operation of your pneumatic tools.

Using an undersized pipe can cause significant pressure drop, reducing tool power and increasing energy costs. This guide solves that problem with clear, actionable advice.

Best Pipes for Air Compressor Lines – Detailed Comparison

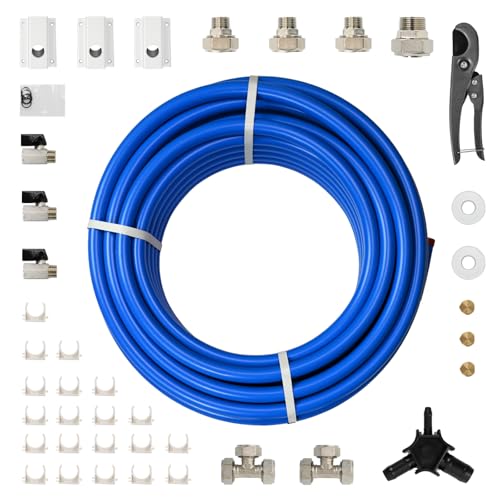

Maxline M7500 Master Kit, 3/4-Inch by 100-Feet – Best Overall System

This complete aluminum piping kit is the professional-grade standard for workshops. Its 3/4-inch diameter handles high CFM demands with minimal pressure drop. The push-to-connect fittings make installation tool-free and leak-proof. Ideal for permanent shop installations requiring reliability and easy expansion.

Maxline Air Pipe (ML100-3/4) – Best for Large Systems

Maxline’s anodized aluminum piping offers superior corrosion resistance and a 50-year warranty. The 3/4-inch size is perfect for long runs in industrial settings or large garages. Its lightweight design and pre-flared ends simplify assembly, making it the best option for demanding, high-volume applications.

Flexzilla Hybrid Air Hose (1/2″ x 50′) – Best Flexible Alternative

When rigid piping isn’t feasible, this flexible hose is the recommended solution. Its 1/2-inch internal diameter provides excellent airflow with extreme flexibility in cold weather. The lightweight, kink-resistant design is ideal for temporary setups, drop lines to tools, or connecting stationary lines to movable equipment.

How to Determine the Correct Air Line Pipe Size

Selecting your air compressor pipe size requires analyzing your specific needs. The correct diameter depends on three key factors. Ignoring these will lead to poor system performance and tool failure.

CFM Requirements and Pipe Diameter

Your compressor’s CFM (Cubic Feet per Minute) output is the primary driver. You must match the pipe’s capacity to your highest air demand. A larger diameter pipe reduces friction and maintains pressure over distance.

Use this general CFM to pipe size guideline:

• 0-50 CFM: Use a 1/2-inch diameter pipe for small shops.
• 50-100 CFM: Upgrade to a 3/4-inch diameter pipe for medium-duty use.
• 100+ CFM: A 1-inch diameter pipe is necessary for industrial applications.

Calculating for Distance and Pressure Drop

Longer pipe runs require larger diameters to prevent pressure loss. Friction inside the pipe reduces the pressure that reaches your tools. This pressure drop can render expensive tools useless.

Follow this simple rule: for every 50 feet of pipe, consider increasing the diameter by 1/4 inch. A 100-foot run at 100 CFM likely needs a 1-inch pipe, not 3/4-inch. Always size for your furthest tool’s requirement.

Key Takeaway: Always size your piping for your highest CFM tool and your longest run distance. Undersizing is the most common and costly mistake in air system design.

Future-Proofing Your Air System

Your current air tools may not be your future tools. Installing a slightly larger pipe now saves major costs later. It is much cheaper to upsize during initial installation than to replace the entire system.

Consider your shop’s growth potential. If you plan to add a sandblaster or large impact wrench, factor in their higher CFM needs. A 3/4-inch pipe offers a safe, versatile baseline for most expanding home shops.

Comparing Air Compressor Line Materials: Pros and Cons

Your pipe material choice impacts cost, durability, and air quality. Each option has distinct advantages for different workshop environments. The right material prevents corrosion and ensures long-term reliability.

Black Iron Pipe: Traditional and Durable

Black iron is the traditional choice for permanent industrial installations. It is extremely strong and handles high pressure with ease. However, it requires significant labor and skill to install properly.

• Pros: High strength, excellent heat dissipation, long lifespan.
• Cons: Prone to internal rust, heavy, requires threading and sealing.
• Best For: Large, permanent industrial shops where internal rust contamination is less critical.

Aluminum Pipe Kits: Modern and Corrosion-Resistant

Aluminum piping kits, like RapidAir, are the modern standard for most shops. They are lightweight and will not rust internally, protecting your tools. The push-to-connect design makes DIY installation straightforward.

• Pros: No internal corrosion, lightweight, easy DIY installation.
• Cons: Higher upfront material cost, can be damaged by impact.
• Best For: Home workshops, auto shops, and any system where clean, dry air is a priority.

Copper Pipe: High-Performance and Clean

Copper offers excellent corrosion resistance and a professional look. It is easy to solder and provides smooth internal walls for optimal airflow. The primary drawback is its very high material cost.

Material	Cost	Installation Difficulty	Corrosion Resistance
Black Iron	Low	High (Professional)	Poor
Aluminum Kit	Medium-High	Low (DIY)	Excellent
Copper	Very High	Medium (DIY with skill)	Excellent

Expert Recommendation: For most users, aluminum piping kits provide the best balance of performance, clean air, and DIY-friendly installation. They eliminate rust problems common with black iron.

Installation Tips and Layout Best Practices

Proper installation is as critical as choosing the right pipe size. A good layout maximizes efficiency and minimizes pressure loss. Follow these professional guidelines for a reliable system.

Creating an Efficient Air Line Layout

Design your main line to slope downward slightly from the compressor. This allows moisture to drain toward drop legs and drains. Always run the main line around the perimeter of your shop above head height.

Use drop legs at regular intervals to feed tools below. Each vertical drop leg should have a drain valve at the bottom. This setup efficiently removes condensation before it reaches your tools.

Essential Fittings and Connection Methods

Use the correct fittings to prevent leaks, which waste energy and reduce pressure. For threaded systems, always apply proper sealant like Teflon tape or pipe dope. Avoid using too many elbows and tees, as each fitting increases restriction.

• Use Sweep Elbows: Choose long-radius elbows over sharp 90-degree fittings to reduce turbulence.
• Install Shut-Off Valves: Place a valve at each drop leg to isolate tools for maintenance.
• Include a Main Shut-Off: Install a ball valve right after the compressor tank for safety.

Step-by-Step Installation Checklist

1. Plan Your Route: Map the main line and all drop legs on paper first.
2. Mount Securely: Use sturdy pipe straps or hangers every 6-8 feet to prevent sagging.
3. Assemble Sections: Pre-assemble long sections on the ground before mounting.
4. Test for Leaks: Pressurize the system and use soapy water on every connection.

Pro Tip: Install a drip leg with a drain valve immediately after your compressor’s outlet. This catches the bulk of moisture and oil before it enters your main piping, protecting your entire system.

Common Sizing Mistakes and How to Avoid Them

Many DIY installations suffer from avoidable errors that cripple performance. Recognizing these common pitfalls will save you time, money, and frustration. A proactive approach ensures your air system meets all your tool demands.

Undersizing for Future Expansion

The most frequent mistake is installing piping that only meets current needs. Adding a high-CFM tool later requires a complete system overhaul. This is far more expensive than installing a slightly larger pipe initially.

Always calculate for your potential future tools, not just the ones you own today. If your compressor has capacity for growth, size your piping to match it. A 3/4-inch main line is a wise minimum for any expanding home shop.

Ignoring the Impact of Hose Length

Users often forget that the flexible hose to their tool is part of the system. A long, small-diameter hose creates a major bottleneck. This negates the benefits of properly sized rigid piping.

• Match Hose Diameter: Use a 3/8-inch or 1/2-inch ID hose if your pipe is 3/4-inch.
• Minimize Hose Length: Keep air hoses as short as practically possible for the task.
• Use Reels Strategically: Mount reels centrally to reduce the need for excessively long hoses.

Neglecting Moisture Control in Line Sizing

Larger pipes not only improve airflow but also help manage condensation. Air cools as it travels, causing water to drop out. A larger pipe slows the air velocity, allowing more moisture to fall out before reaching your tools.

Mistake	Consequence	Prevention Tip
Undersized Main Line	Pressure drop at all tools, weak performance.	Size for your highest CFM tool + 20% future capacity.
Oversized Drops	Wasted material cost, increased condensation in drops.	Use 1/2-inch or 3/8-inch drops from a 3/4-inch main.
Too Many Elbows	Increased friction, significant pressure loss.	Plan a layout with gentle, sweeping turns where possible.

Final Check: Before finalizing your plan, ask: “Does this setup handle my loudest, hungriest tool at the farthest point?” If yes, you’ve likely avoided the major sizing mistakes.

Maintenance and Troubleshooting for Air Lines

A well-sized system still requires regular care to perform optimally. Proper maintenance prevents pressure loss and protects your investment in tools. Simple routines can extend the life of your piping for decades.

Routine Maintenance Checklist

Schedule monthly checks to keep your compressed air system healthy. This prevents small issues from becoming major failures. Consistent care ensures reliable pressure and clean, dry air.

• Drain Moisture: Open all drain valves (at the tank, drip legs, filters) daily or weekly.
• Check for Leaks: Listen for hissing and use soapy water on fittings quarterly.
• Inspect Filters: Check and replace inline air filters according to the manufacturer’s schedule.
• Monitor Pressure: Verify pressure at the end of the line matches pressure at the compressor.

Diagnosing Common Pressure Problems

If tools underperform, systematic troubleshooting finds the cause. Start at the tool and work backward toward the compressor. This method quickly isolates the problem section.

1. Test at the Source: Check pressure at the compressor tank outlet with a tool running.
2. Test at the Drop: Check pressure at the end of a drop leg, before the hose.
3. Test at the Tool: Check pressure right at the tool’s inlet while it’s operating.

A significant drop between these points indicates a restriction or leak in that section.

When to Consider a System Upgrade

Your needs may outgrow even a well-planned system. Recognize the signs that your air line piping requires an upgrade. Addressing these proactively improves shop productivity.

Key Signs for an Upgrade: Consider upsizing if you experience frequent pressure drop with multiple tools, are adding a high-CFM tool, or find your compressor cycling constantly to keep up with demand.

Upgrading might mean increasing your main line diameter or adding a secondary loop. For large shops, a loop system provides more consistent pressure by feeding air from two directions. This is often better than simply replacing a long single run with a larger pipe.

Advanced Considerations for Optimal Performance

Beyond basic sizing, several advanced factors can fine-tune your system’s efficiency. These considerations address air quality, energy use, and peak performance. Implementing them separates a good system from a great one.

Incorporating Air Treatment Components

Clean, dry air protects both your piping and your tools. Strategic placement of filters and dryers is essential. These components do create a slight pressure drop, which you must account for in your sizing.

• Aftercooler/Filter at Source: Install a coalescing filter and water separator right after the compressor.
• Regulator at Point of Use: Place a filter-regulator-lubricator (FRL) unit at each drop leg for sensitive tools.
• Desiccant Dryers: For painting or sandblasting, add a refrigerant or desiccant dryer for ultra-dry air.

Designing a Loop System for Large Shops

For shops over 100 feet in length, a loop system outperforms a single main line. Air feeds tools from two directions, minimizing pressure drop. This design provides more consistent pressure to all tools simultaneously.

In a loop, the pipe size calculation is based on the longest single path from the compressor. The loop effectively halves the distance air must travel to any given point. This often allows you to use a smaller diameter pipe than a single long run would require.

Calculating Total System Pressure Drop

Professional installers calculate the cumulative drop from every component. This ensures the pressure at the tool meets the manufacturer’s minimum requirement. A simple formula helps estimate this.

Pressure Drop Estimate: Start with your compressor’s output pressure (e.g., 150 PSI). Subtract losses: -5 PSI for the aftercooler/filter, -1 PSI per 50 ft of pipe, -2 PSI per filter-regulator, -5 PSI for the tool hose. If the result is below your tool’s required PSI, your piping is undersized.

For critical applications, use an online pressure drop calculator. Input your exact pipe material, diameter, length, and CFM. This provides a precise figure to validate your design before purchase and installation.

Final Decision Guide and Action Plan

Now that you understand the principles, it’s time to make your final choice. This actionable guide consolidates the information into a clear decision path. Follow these steps to confidently select and install your air lines.

Your Step-by-Step Sizing Decision Process

1. List Your Tools: Identify the tool with the highest SCFM (Standard Cubic Feet per Minute) requirement. Add 25% for future growth.
2. Measure Your Distance: Calculate the longest run from the compressor to the farthest tool outlet.
3. Consult the Chart: Use your CFM and distance with the table below to find your minimum pipe size.
4. Choose Your Material: Select aluminum for DIY/corrosion resistance, or black iron for budget/industrial use.
5. Plan Your Layout: Sketch a loop or single-run system with sloped piping and drop legs.

Quick-Reference Pipe Sizing Chart

This table provides a conservative starting point for most home and shop applications. It assumes a maximum pressure drop of 10%.

Maximum CFM Demand	Up to 50 ft Run	50-100 ft Run	100-200 ft Run
0-20 CFM	1/2 inch	1/2 inch	3/4 inch
20-50 CFM	1/2 inch	3/4 inch	3/4 inch
50-100 CFM	3/4 inch	3/4 inch	1 inch
100-200 CFM	3/4 inch	1 inch	1 1/4 inch

Procurement and Installation Checklist

Before you buy, ensure you have everything for a successful project. Missing one item can halt your installation. This list covers the essentials beyond just the pipe.

• Piping: Main line and drop leg material (e.g., Aluminum Kit, Black Iron).
• Fittings: Elbows, tees, couplings, and mounting straps/hangers.
• Valves: Main shut-off ball valve, drain valves for each drop leg.
• Consumables: Teflon tape/pipe dope, pipe cutter, leak detection fluid.

The Golden Rule: When in doubt between two sizes, choose the larger one. The incremental material cost is minor compared to the performance gain and future flexibility it provides.

Conclusion: Selecting the Right Air Compressor Pipe Size

Choosing the correct air compressor line size ensures maximum tool performance and energy efficiency. It prevents frustrating pressure drops and protects your investment. Proper sizing is a foundational step for any reliable shop air system.

The key takeaway is to always size for your highest CFM tool and longest air run. When uncertain, opt for the larger diameter pipe for future flexibility. This simple rule avoids the most common and costly installation mistake.

Use the step-by-step guide and sizing chart in this article to make your final decision. Then, gather your materials using the provided checklist for a smooth installation process. Your tools will thank you with consistent, powerful operation.

With the right planning, you can build a compressed air system that serves your shop reliably for years to come.

Frequently Asked Questions About Air Compressor Pipe Sizing

What is the most common pipe size for a home garage air compressor?

A 3/4-inch diameter pipe is the most common and recommended size for home garage systems. This size efficiently handles the 5-25 CFM requirements of most DIY tools like impacts and nailers. It provides an excellent balance of airflow capacity and material cost.

This diameter minimizes pressure drop over typical garage distances. It also offers valuable capacity for future tool upgrades. Choosing 3/4-inch pipe is a safe, future-proof decision for nearly all home workshops.

How do I calculate the correct pipe size for my specific compressor?

Start by identifying the SCFM requirement of your largest air tool, then add 25% for future growth. Next, measure the longest distance from your compressor to any tool outlet. Finally, use a CFM/distance sizing chart to find the corresponding minimum pipe diameter.

For example, a 15 CFM tool with a 60-foot run typically needs a 3/4-inch line. Always verify your compressor can actually deliver the required CFM at the needed pressure for this calculation to be valid.

Can I use PVC pipe for my air compressor lines?

Using PVC or CPVC pipe for compressed air is strongly discouraged and is against most building codes. PVC can become brittle over time and shatter explosively under pressure, creating dangerous shrapnel. The risk of catastrophic failure makes it a serious safety hazard.

Always choose materials rated for compressed air systems, such as aluminum, copper, or black iron. These materials are designed to safely handle the pressure and environmental stresses involved.

What happens if my air lines are too small?

Undersized air lines cause significant pressure drop, resulting in weak or stalled tools. Your compressor will cycle more frequently as it struggles to maintain system pressure, increasing wear and energy costs. Tools at the end of the line will be most severely affected.

This also increases air velocity, which can carry more moisture and contaminants to your tools. The system becomes inefficient, unreliable, and potentially damaging to expensive pneumatic equipment.

Is it better to use flexible hose or rigid pipe for main lines?

Rigid pipe (aluminum, copper, iron) is far superior for permanent main air lines. It provides smoother interior walls for better airflow and is more durable. Flexible hose should be reserved for the final connection to the tool or for temporary setups.

Flexible hose has a smaller internal diameter and creates more friction, increasing pressure drop. Use rigid piping for all fixed runs and limit flexible hose to the shortest practical length at each drop point.

How often should I drain moisture from my air lines?

You should drain moisture from your compressor tank after every use. For inline drip legs and filters in your piping system, a weekly drain is a good practice for moderate use. In humid conditions or with high usage, daily draining may be necessary.

Automated drain valves can be installed for convenience and consistency. Regular draining prevents water from accumulating, which causes corrosion in pipes and damage to air tools.

Should I install a loop system or a single main line?

For shops under 100 feet in total length, a single main line with drop legs is usually sufficient. For larger shops, or those with multiple tools running simultaneously, a loop system provides more consistent pressure. The loop feeds air from two directions, reducing pressure drop.

A loop is more expensive in materials but offers superior performance in large spaces. It effectively halves the distance air must travel to reach any given tool outlet on the network.

What is the best way to connect and seal threaded pipe fittings?

For threaded connections, use a high-quality thread sealant rated for compressed air, such as Teflon tape or liquid pipe dope. Apply Teflon tape in the direction of the threads (clockwise when looking at the male end). For dope, apply a consistent coat to the male threads only.

Avoid over-tightening, which can crack fittings. Tighten until snug, then pressurize the system and check for leaks with soapy water. Proper sealing is critical for preventing energy-wasting air leaks.
