What Fittings Do I Need for Air Compressor?

You need specific fittings to connect your air compressor to tools safely and efficiently. The right setup prevents leaks and maximizes power output. This is crucial for both performance and worksite safety.

Choosing incorrect fittings leads to pressure drops, air leaks, and tool damage. Our guide solves this by mapping out a complete connection system. You’ll achieve reliable, professional-grade results every time.

Air Compressor Fittings: Common Problems and How to Diagnose Them

If you’ve ever tried using an air compressor, you know that the wrong fittings can turn a simple task into a frustrating ordeal. Air leaks, inconsistent pressure, or attachments that don’t connect properly are often caused by incompatible or missing fittings. These issues not only slow down your work but can also risk damaging your tires or tools.

Before buying additional accessories, it’s important to identify the type of fittings your compressor uses, whether it’s quick-connect couplers, threaded adapters, or specialty nozzles. Understanding this ensures you can attach your tools safely and get consistent results every time.

Quick Fix: Essential Air Compressor Fittings and a Reliable Inflator

For most car and bike tires, a portable inflator with the right universal fittings simplifies the process. The AstroAI L7 Portable Air Compressor comes with multiple adapter fittings to cover everything from car tires to sports equipment.

Why it works:

• Digital pressure display for accurate inflation
• Includes multiple nozzle attachments for versatility
• Compact, lightweight, and easy to store

You can read the full breakdown here: → AstroAI L7 Portable Air Compressor

For additional guidance on compatible accessories, see our Best Cordless Tire Inflators buying guide.

When One Inflator Isn’t Enough: Expanding Your Setup

Sometimes, a single inflator isn’t sufficient—especially if you need faster inflation for multiple vehicles or heavy-duty tires. In such cases, pairing your compressor with additional fittings or considering higher-capacity models can save time. Check out our reviews of:

• Carsun CAP-001 Digital Air Compressor – great for quick inflation and easy-to-use digital controls
• Rocgorld R8 Tire Inflator 150PSI – compact yet powerful for SUVs and trucks

With the right fittings and a versatile inflator, you can handle any tire or inflatable with confidence, avoiding leaks and ensuring optimal performance every time.

Essential Air Compressor Fittings and Their Core Functions

Understanding each fitting’s role is crucial for building a safe system. These components work together to deliver clean, regulated air. They protect your tools and ensure consistent performance.

Quick-Connect Couplers and Plugs

These fittings allow for fast tool changes without air loss. The coupler stays on the hose end, while the plug attaches to the tool. A universal standard ensures compatibility across brands.

• Industrial Interchange (M-style): The most common type, featuring a single locking sleeve. It’s the default for most workshops and home garages.
• Automotive (T-style): Has a multi-lug collar for a more secure connection. Often used in professional automotive shops.
• High-Flow (V-style): Designed with a wider internal passage. This minimizes pressure drop for demanding tools like sanders.

Regulators, Gauges, and Filters

This trio manages your air quality and pressure. They are critical for tool safety and achieving professional results. Always install them close to the compressor outlet.

A regulator controls the PSI delivered to your tool. The gauge displays the output pressure. An inline filter removes moisture and particulates from the air stream.

Key Takeaway: Your core fitting kit must include a coupler, plug, regulator, gauge, and filter. This basic setup provides controlled, clean air and is the foundation for any project.

Hoses and Their Connectors

The hose is your system’s pipeline. Its inner diameter (ID) and length directly impact airflow and pressure. Choose based on your furthest tool distance.

• Hose Material: Rubber is durable but stiff. PVC is lightweight but can crack. Hybrid polymer offers a great balance of flexibility and durability.
• Fitting Threads: Most use NPT (National Pipe Taper) threads. Ensure your hose barbs match the coupler’s thread size (e.g., 1/4″ MNPT).
• Length vs. Diameter: Longer hoses require a larger ID to prevent significant pressure drop. For runs over 50 feet, consider a 3/8″ ID hose.

How to Choose the Right Fittings for Your Tools

Selecting fittings requires matching them to your compressor and tools. Incorrect choices cause leaks, pressure loss, and poor performance. This guide ensures you get the correct specifications.

Matching Fitting Size to Air Tool Requirements

Tool air consumption dictates your minimum hose and fitting size. Check your tool’s manual for its CFM (Cubic Feet per Minute) requirement. Then, verify your compressor can meet that demand at the required PSI.

• Light-Duty Tools (Nailers, Blow Guns): Use 1/4″ NPT fittings and 1/4″ ID hose. This is sufficient for low CFM needs.
• Medium-Duty Tools (Impacts, Ratchets): Opt for 3/8″ NPT fittings and a 3/8″ ID hose. This reduces restriction for higher air flow.
• Heavy-Duty Tools (Sanders, Grinders): Require 1/2″ NPT fittings and hose. These high-CFM tools need maximum airflow to operate correctly.

Thread Type Compatibility Guide

Using the wrong thread type is a common mistake. NPT threads are tapered and seal by thread deformation. Always use thread sealant tape or paste on male NPT threads.

Thread Type	Description	Common Use
NPT (National Pipe Tapered)	Tapered threads that create a seal when tightened.	Most air compressor outlets, regulators, and hose ends.
NPTF (Dryseal)	Similar to NPT but designed to seal without tape.	Some high-end industrial fittings.
BSPP (British Standard Parallel Pipe)	Straight threads that require a sealing washer.	Common on imported tools and compressors.

Pro Tip: Always identify your compressor’s outlet thread first. It is the starting point for your entire system. A simple thread gauge can prevent costly mismatches.

Specialty Fittings for Advanced Setups

Complex workshops may need additional components. These solve specific problems like adding drops or connecting multiple lines.

• Manifolds: Allow you to run several hose lines from one compressor outlet. Ideal for stations with multiple workbenches.
• Swivel Fittings: Prevent hose kinking by allowing rotation. Essential for tools that twist during use, like impacts.
• Check Valves: Installed in couplers to prevent air backflow. This protects your regulator when disconnecting tools under pressure.

Step-by-Step Guide to Assembling Your Air System

Proper assembly prevents leaks and ensures safety. Follow this logical sequence to connect all components correctly. A methodical approach saves time and frustration.

Preparing and Sealing Threads Correctly

Thread preparation is the most critical step for a leak-free system. Always inspect threads for damage before assembly. Clean them with a wire brush if necessary.

1. Apply Sealant: Wrap PTFE (Teflon) tape clockwise around male threads. Use 2-3 layers, keeping it off the first thread.
2. Alternative Method: For a more reliable seal, use a liquid pipe sealant paste. Apply a thin, even coat to the male threads.
3. Tighten Fittings: Hand-tighten first, then use a wrench for a final 1-2 turn snug fit. Do not overtighten, as this can crack fittings.

Connecting the Hose, Regulator, and Coupler

Assemble your main air line in this specific order. This configuration provides regulated, clean air at the point of use.

Start by screwing the regulator directly into the compressor tank outlet. Attach the pressure gauge to the regulator’s port. This lets you monitor output pressure.

• Add the Filter: Connect an inline filter to the regulator’s output port. This removes moisture and debris after pressure reduction.
• Attach the Hose: Screw one end of your air hose to the filter’s output. Use a hose clamp if it’s a barbed fitting, not NPT.
• Install the Coupler: Finally, screw the quick-connect coupler onto the free end of the hose. This is your tool connection point.

Safety Check: Before connecting any tool, pressurize the system and spray all connections with soapy water. Bubbles indicate a leak that must be resealed immediately.

Testing for Leaks and Pressure Drops

A final test confirms your system’s integrity and performance. Even small leaks waste energy and reduce tool power over time.

Close the coupler (no tool attached) and run the compressor to its cut-out pressure. Turn off the compressor and listen for hissing. Note the pressure gauge reading and wait 10 minutes.

A significant pressure drop indicates a leak. Re-check all threaded connections and the coupler valve. A perfectly sealed system will hold pressure for a long time.

Common Air Compressor Fitting Problems and Solutions

Even well-assembled systems can develop issues over time. Recognizing symptoms helps you diagnose problems quickly. Most common fitting failures have simple, effective fixes.

Diagnosing and Fixing Air Leaks

Leaks are the most frequent issue, wasting compressor cycles and energy. They often occur at threaded connections, couplers, or hose barbs. A hissing sound is the primary indicator.

• Threaded Connection Leak: Shut off air, disassemble, and reapply fresh PTFE tape or sealant. Ensure you are not cross-threading fittings during reassembly.
• Coupler Leak: Dirt or a damaged O-ring inside the coupler can cause this. Clean the internal mechanism or replace the O-ring kit.
• Hose Barb Leak: Tighten the hose clamp. If the hose is cracked or hardened near the end, cut it back and reattach it to a fresh section.

Dealing with Stuck or Cross-Threaded Fittings

Overtightening or misalignment can seize fittings. Never force a fitting that won’t thread smoothly. Cross-threading damages both components permanently.

1. Apply Penetrating Oil: Soak the stuck connection with a product like WD-40. Let it sit for 15-30 minutes to break down corrosion.
2. Use Proper Tools: Employ two wrenches—one to hold the base fitting, one to turn the stuck fitting. This prevents twisting the entire hose or pipe.
3. Assess Damage: If threads are visibly damaged or stripped, replace both fittings. Forcing damaged threads will never create a proper seal.

Prevention is Key: Always start threads by hand to ensure proper alignment. If it doesn’t turn easily, back it out and restart. This simple habit prevents most threading disasters.

Maintaining Fittings for Longevity

Routine maintenance extends the life of your fittings and ensures safety. A small time investment prevents major failures and costly downtime.

Regularly inspect hoses for cracks, bulges, or abrasions. Wipe down metal fittings with a light oil to prevent corrosion. Drain moisture from your compressor tank after every use to keep it out of the fittings.

Lubricate the internal mechanism of quick-connect couplers with a drop of pneumatic tool oil. This keeps the locking balls moving freely and prevents O-ring drying. Replace any visibly worn or damaged components immediately.

Advanced Air Compressor Fitting Setups and Accessories

Beyond the basics, specialized fittings can optimize your workflow. These setups solve specific challenges in professional or high-demand environments. Investing in the right accessories boosts efficiency.

Building a Multi-Drop Workshop System

A manifold system distributes air to several stations from one compressor. This is ideal for garages or shops with fixed workbenches. It provides dedicated, regulated air at multiple points.

Start with a brass or aluminum manifold block with multiple outlet ports. Install a main shut-off valve and regulator/filter at the compressor. Run a dedicated larger diameter supply line to the manifold location.

• Individual Drops: From each manifold port, run a hose with its own coupler to a bench. This allows simultaneous tool use without pressure interference.
• Secondary Regulators: Add a regulator at each drop for tool-specific pressure control. This is crucial for tasks like painting or inflation.
• Quick-Disconnects: Use fittings that allow you to easily reconfigure or add new drops as your shop evolves.

Essential Accessories for Improved Performance

These add-ons enhance safety, convenience, and tool life. They address common pain points in pneumatic systems.

Accessory	Primary Function	Key Benefit
In-Line Lubricator	Adds oil mist to the air stream.	Extends the life of air motors in tools like impacts and grinders.
Blow Gun with Safety Tip	Provides focused air for cleaning.	Prevents dead-end pressure, meeting OSHA safety standards.
Hose Reel	Stores and deploys hose neatly.	Prevents kinks, tripping hazards, and prolongs hose life.
Pressure Gauge Isolator	Protects gauge from vibration.	Prevents gauge failure, ensuring accurate long-term readings.

Choosing Between Brass, Steel, and Polymer Fittings

Material choice impacts durability, cost, and application. Each has ideal use cases based on environment and stress.

• Brass Fittings: The standard choice. They are corrosion-resistant, durable, and easier to thread than steel. Ideal for most workshops and general use.
• Steel Fittings: Offer maximum strength for high-pressure industrial systems (over 200 PSI). They are heavier and can rust if not maintained.
• Polymer/Composite Fittings: Lightweight, rust-proof, and often cheaper. Best for low-pressure applications or environments with constant moisture exposure.

Upgrade Path: Start with a reliable brass core system. Add a lubricator for tool-heavy shops and a hose reel for organization. These two upgrades offer the most immediate quality-of-life improvement.

Safety Guidelines for Air Compressor Fittings and Hoses

Working with compressed air involves significant force and risk. Proper safety practices prevent injury and equipment damage. These rules are non-negotiable for any workshop.

Pressure Ratings and Safe Operating Limits

Every component has a maximum PSI (pounds per square inch) rating. Exceeding these ratings can cause catastrophic failure. Always know the weakest link in your system.

Your safe operating pressure is the lowest rating among your compressor, hose, regulator, and fittings. For example, if your hose is rated for 200 PSI, never set your regulator above that, even if the compressor can go higher.

• Check Labels: Inspect all hoses and fittings for stamped or molded pressure ratings before use.
• Include a Safety Margin: Operate at least 10-20% below the component’s maximum rated pressure for longevity.
• Never Modify Fittings: Do not drill, weld, or alter fittings in any way. This compromises their structural integrity.

Proper Hose Handling and Storage

A damaged hose can whip violently if it bursts. This poses a severe laceration or impact hazard. Correct handling is a primary safety measure.

1. Inspect Before Each Use: Look for cuts, abrasions, bulges, or cracked fittings. Run your hand along the hose to feel for soft spots.
2. Avoid Tripping Hazards: Route hoses away from walkways or use a hose bridge. A hose reel is the best solution for storage and deployment.
3. Prevent Kinking: Never run over a hose with vehicles or pinch it in doors. Kinks weaken the hose wall and restrict airflow.

Critical Rule: Never use compressed air to clean clothes or skin. Even low pressure can inject air into the bloodstream, causing a fatal embolism. Always use an OSHA-compliant safety blow gun.

Personal Protective Equipment (PPE) Requirements

Always wear appropriate PPE when working with or near pneumatic systems. Airborne debris and high noise levels are constant risks.

• Eye Protection: Safety glasses or goggles are mandatory. They shield your eyes from flying debris, dust, and hose whip.
• Hearing Protection: Compressors and pneumatic tools are loud. Use earplugs or muffs to prevent long-term hearing damage.
• Footwear & Gloves: Wear sturdy, closed-toe shoes. Gloves protect your hands during assembly and from cold metal fittings.

Budgeting for Your Air Compressor Fitting Kit

Costs can range from a basic starter set to a professional-grade system. Understanding what you get at each price point ensures smart spending. Invest in quality where it matters most.

Starter Kit vs. Professional-Grade Investment

A starter kit gets you operational, while professional gear offers durability and features. The right choice depends on your usage frequency and project demands.

• Budget Starter Kit ($30-$60): Includes a 25ft PVC hose, basic coupler/plug set, and a simple regulator. Suitable for occasional home use like inflating tires or light nailing.
• Mid-Range Workshop Kit ($80-$150): Features a 50ft hybrid hose, brass fittings, a better regulator with gauge, and a filter. Ideal for frequent DIYers and hobbyists.
• Professional Kit ($200+): Contains high-flow couplers, a durable rubber or premium hybrid hose, industrial regulator/filter/lubricator combo, and swivel fittings. Built for daily commercial use.

Where to Splurge and Where to Save

Strategic spending maximizes system reliability without wasting money. Some components are worth the premium, while others offer good value at lower costs.

Component	Recommendation	Reasoning
Regulator & Filter	SPLURGE	Precise pressure control and clean air protect your expensive tools. A cheap regulator will fail or be inaccurate.
Hose	SPLURGE	A quality hose is flexible, kink-resistant, and has low pressure drop. It’s the backbone of your system.
Couplers & Plugs	MID-RANGE	Reliable brass units are essential, but you don’t need the ultra-expensive industrial brand for most shops.
Thread Sealant & Clamps	SAVE	Standard PTFE tape and worm-drive hose clamps are commodity items. Name brands offer little added benefit.

Long-Term Cost of Cheap Fittings

Initially cheap fittings often cost more over time. They lead to air leaks, which force your compressor to run longer and more frequently. This increases your electricity bill and wear on the compressor motor.

Poor-quality fittings are more prone to cracking and thread stripping. This leads to unplanned downtime and repeated replacement costs. A failed fitting can also cause a dangerous hose whip incident.

Smart Budget Tip: Build your system piece by piece. Start with a good regulator/filter and hose. Upgrade couplers and add a lubricator later. This spreads out cost while ensuring core performance.

Best Fittings for Air Compressor – Detailed Comparison

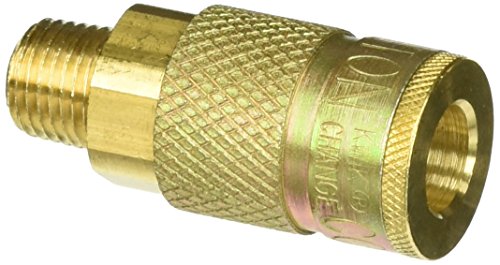

Milton S-786 1/4″ MNPT Coupler – Best Overall Choice

This industrial-grade coupler is the universal standard for most workshops. Its V-style design ensures a secure, leak-free connection with common M-style plugs. The 1/4″ MNPT threads fit most compressor outlets and hose ends directly. It’s the most reliable choice for general-purpose use with tools like nailers and impacts.

Milton 1113 1/4″ Brass Air Regulator – Best for Pressure Control

Precise pressure is key for tool longevity. This regulator features a large, easy-read gauge and a sensitive adjustment knob for fine-tuning PSI. Its all-brass construction resists corrosion, ensuring durability. It’s ideal for tasks requiring consistent pressure, such as painting or operating delicate pneumatic tools.

Flexzilla 1/4″ ID x 50′ Hybrid Air Hose – Best Premium Hose

Upgrade your air line with this flexible, lightweight hose. It remains extremely pliable in cold weather and is abrasion-resistant. The hybrid polymer material reduces pressure drop and doesn’t kink easily. This is the best option for professionals needing maximum mobility and airflow over long distances.

Conclusion: Building Your Optimal Air Compressor Setup

Choosing the right fittings transforms your air compressor from a noisy machine into a reliable tool. A proper system delivers maximum power, ensures safety, and extends tool life. It solves the common problems of leaks and pressure drop.

The key takeaway is to start with quality core components: a good regulator, filter, and durable hose. Match your fitting sizes and thread types to your specific tools. Always perform a leak test after assembly.

Now, inspect your current setup or plan your new one using this guide. Invest in the components that matter most for your projects. Your efficient, professional-grade air system is within reach.

With the right knowledge and parts, you can tackle any job with confidence and power.

Frequently Asked Questions about Air Compressor Fittings

What is the most common air compressor fitting type?

The Industrial Interchange (M-style) quick-connect is the universal standard. It features a single locking sleeve for easy one-handed operation. This style is compatible with most tools and hoses in home garages and workshops.

You can identify it by its single raised ring on the coupler body. Always ensure your plugs and couplers match the same style (M, T, or V) to guarantee a proper, leak-free connection.

How do I stop my air compressor fittings from leaking?

First, identify the leak source with soapy water. For threaded connections, disassemble and apply fresh PTFE tape clockwise. Ensure you use 2-3 layers, keeping tape off the first thread.

For leaks at quick-connects, clean the internal mechanism. Often, dirt or a worn O-ring is the culprit. Replace the O-ring kit if cleaning doesn’t solve the issue.

What size air hose fittings do I need for my tools?

Match the fitting size to your tool’s air consumption. Most common DIY tools like nailers use 1/4″ NPT fittings. Medium-duty impacts often use 3/8″ NPT for better airflow.

Check your tool’s manual for its CFM requirement. As a rule, a larger inner diameter (ID) hose and fitting reduce pressure drop, especially for tools over 50 feet from the compressor.

Can I use Teflon tape on all air compressor fittings?

Yes, PTFE (Teflon) tape is recommended for all tapered NPT threaded connections. It lubricates the threads and fills microscopic gaps to create a seal. Always wrap the tape clockwise when looking at the male threads.

Do not use tape on straight-thread fittings like BSPP, which require a sealing washer. Also, avoid getting tape inside the air passage, as it can break off and clog tools.

What is the purpose of a regulator and filter combo?

The regulator controls the output pressure (PSI) to match your tool’s requirement. This prevents tool damage from excessive force. The filter removes water, oil, and particulates from the compressed air line.

Using this combo protects your investment in pneumatic tools. Clean, dry air at the correct pressure ensures optimal performance and significantly extends tool lifespan.

Why does my air tool lose power with a long hose?

This is called pressure drop, caused by friction inside the hose. The air loses energy traveling a long distance. Using a hose with too small an inner diameter exacerbates the problem dramatically.

To fix this, use the shortest hose possible for the job. For runs over 50 feet, upgrade to a hose with a larger inner diameter, such as 3/8″ or 1/2″ ID.

What is the best way to connect multiple tools to one compressor?

Install a manifold or multi-outlet air distribution block. This allows you to run several dedicated hose lines from a single source. It is far superior to using multiple splitters or tees on one line.

For the best performance, run a large-diameter main line to the manifold. Then, install individual regulators and filters at each outlet for tool-specific control.

How often should I replace my air compressor hoses and fittings?

Conduct a visual and functional inspection before each use. Replace any hose with cracks, bulges, or significant abrasion immediately. Fittings should be replaced if threads are stripped or they show signs of corrosion.

Even with perfect care, rubber hoses degrade over time. A good practice is to consider replacing rubber hoses every 3-5 years with moderate use, depending on environmental conditions.
