An unloader valve on an air compressor releases trapped air pressure from the pump and discharge line after the motor stops. This critical component prevents the motor from struggling against backpressure during startup. It is essential for protecting your compressor and ensuring efficient operation.
Without a functioning unloader valve, your compressor motor would face immense strain. This leads to potential burnout, excessive energy use, and failed starts. The valve solves this by creating a pressure-free path for the motor to begin rotating easily.
Best Unloader Valves for Air Compressors – Detailed Comparison
Choosing the right replacement or upgrade unloader valve is crucial for system health. We recommend these three models based on reliability, compatibility, and value. Each is designed to restore safe pressure regulation and protect your compressor investment.

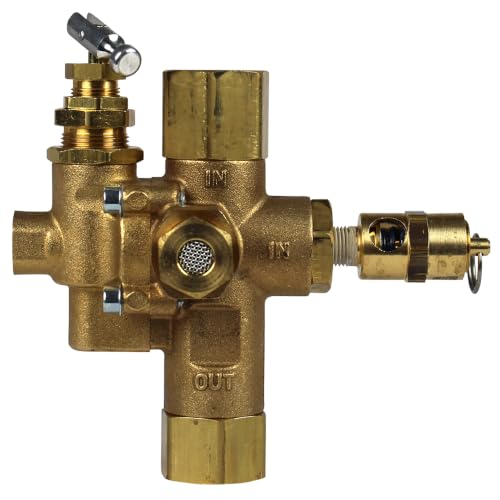

Ingersoll Rand 49816283C Unloader Valve – Best Overall Choice
The Ingersoll Rand 49816283C is a heavy-duty, brass-bodied valve known for exceptional durability. It features a simple diaphragm design for reliable pressure release and is compatible with many popular two-stage compressors. This is the best option for general workshop and industrial use requiring consistent performance.
- Brand new Ingersoll Rand in-line piloted unloader check valve combination…
- Inlet: 5/8″ Inverted Flare Tank Connection: 1/2″ Female NPT
- Solid Brass Made In USA OEM Part Number: 49816283-C
DEWALT D55168 Unloader Valve Kit – Best Direct Replacement
Specifically engineered for DEWALT portable compressors, this OEM kit ensures perfect fit and function. It includes all necessary gaskets and components for a straightforward installation. This is the ideal choice for owners of DEWALT D55168 models seeking a guaranteed, hassle-free repair to maintain original equipment performance.
- Genuine DeWalt replacement part.
- New, Bulk Packed.
- Genuine DeWalt Replacement Part.
How an Air Compressor Unloader Valve Works: Core Function Explained
Understanding the unloader valve’s operation demystifies its importance. It functions as a critical pressure management device within the compressor’s air system.
The Basic Pressure Release Mechanism
The valve activates the moment the compressor reaches its cut-out pressure and the motor shuts off. Its primary job is to vent the compressed air trapped between the pump’s outlet and the check valve at the tank. This action depressurizes the pump head and discharge line.
By releasing this “head pressure,” it eliminates the force the motor must overcome to restart. This prevents a dangerous condition known as a “hard start,” which can trip breakers or burn out the motor windings.
Key Components and Their Roles
A typical unloader valve consists of a few essential parts working in unison. Each plays a specific role in the pressure cycle.
- Diaphragm or Piston: This is the actuating component. It moves in response to pressure changes from the pressure switch to open or close the vent.
- Vent Port: The opening through which trapped air is expelled into the atmosphere, often with a distinct hissing sound after shutdown.
- Spring: Provides the default force to keep the valve closed when the system is below cut-in pressure, ensuring the pump can build pressure normally.
- Pressure Switch Connection: A small pilot tube or internal passage that delivers the control signal from the pressure switch to actuate the valve.
Key Takeaway: The unloader valve is a simple but vital safety device. It works by venting trapped air after shutdown, creating a no-load condition for the motor’s next start. This protects the motor from strain and conserves energy.
The Complete Cycle: From Shutdown to Restart
Follow this three-step cycle to see the valve in action during normal compressor operation.
- Shutdown (Cut-Out): Tank pressure reaches maximum. The pressure switch cuts power to the motor and simultaneously signals the unloader valve to open.
- Venting Phase: The valve opens, venting air from the pump cylinder and discharge line to atmosphere. The tank remains pressurized, sealed by the check valve.
- Restart (Cut-In): When tank pressure drops to the minimum, the pressure switch restores power. The valve closes, allowing the pump to immediately begin compressing air against minimal resistance.
Signs of a Failing Unloader Valve and Troubleshooting Steps
A malfunctioning unloader valve creates clear symptoms that compromise your compressor’s performance and safety. Recognizing these warning signs early can prevent costly motor or pump damage.
Common Symptoms of Unloader Valve Failure
Watch for these key indicators that your valve may need inspection, cleaning, or replacement. Multiple symptoms often appear together.
- Motor Struggles to Restart: The motor hums, trips the breaker, or fails to turn over when tank pressure is high. This indicates the valve isn’t releasing head pressure.
- Continuous Hissing After Shutdown: A brief hiss is normal. A hiss that lasts for minutes or never stops means the valve is stuck open, wasting compressed air.
- Extended Pump Run Times: The compressor takes much longer to reach cut-out pressure. A valve stuck open can prevent the pump from building pressure efficiently.
- No Hissing Sound at All: Complete silence after shutdown suggests the valve is stuck closed. This leaves pressure trapped, causing hard starts.
Basic Troubleshooting and Diagnosis Guide
Follow this logical sequence to identify if the unloader valve is the root cause of your compressor issues. Always disconnect power and release all tank pressure before inspection.
| Step | Action | What to Look For |
|---|---|---|
| 1 | Visual & Auditory Check | Listen for abnormal hissing. Look for obvious damage, corrosion, or air leaks around the valve body. |
| 2 | Check the Pilot Line | If your valve uses a small plastic tube from the pressure switch, ensure it’s not pinched, cracked, or disconnected. |
| 3 | Manual Function Test | With the tank empty and safe, try to actuate the valve mechanism by hand. It should move smoothly, not feel stuck. |
| 4 | Internal Inspection | Disassemble the valve if possible. Check for worn diaphragms, broken springs, or debris fouling the seat or vent. |
Safety Note: Never ignore a compressor that struggles to start. This forces extreme current through the motor, creating a fire hazard and guaranteeing premature motor failure. Address unloader valve issues promptly.
Repair vs. Replacement Decision
Minor issues like a clogged vent or a disconnected pilot line are simple fixes. Cleaning with compressed air or reconnecting a tube may solve the problem. However, internal components like a ruptured diaphragm or corroded spring typically require a full valve replacement.
For most users, purchasing a complete valve assembly is more cost-effective and reliable than attempting a repair. Match the new valve to your compressor’s make, model, and pressure specifications for guaranteed compatibility.
Maintaining Your Air Compressor Unloader Valve for Longevity
Proper maintenance is the most effective way to ensure your unloader valve operates reliably for years. A small amount of preventative care prevents major breakdowns and expensive repairs.
Essential Preventative Maintenance Steps
Incorporate these actions into your regular compressor care schedule. They focus on keeping the valve clean and the air system dry.
- Regularly Drain the Air Tank: Moisture accumulates in the tank. Draining it daily prevents water from traveling into the valve and causing internal corrosion or freezing.
- Check and Clean the Air Intake Filter: A dirty filter allows dust and debris into the pump. These contaminants can eventually foul the unloader valve’s internal mechanisms.
- Inspect for External Leaks: Periodically listen and feel for air leaks around the valve fittings while the compressor is pressurized. Tighten connections if needed.
- Monitor System Performance: Pay attention to the compressor’s cycle sounds and start-up behavior. Changes are often the first sign of a developing valve issue.
How to Clean an Unloader Valve
If you suspect minor sticking or debris, cleaning can restore function. Always follow your compressor’s manual and ensure the system is fully depressurized and disconnected from power.
- Remove the Valve: Carefully disconnect the valve from the pressure switch and compressor head or manifold. Note the orientation for reassembly.
- Disassemble Carefully: Take apart the valve body, keeping track of all small components like springs, diaphragms, and O-rings.
- Clean All Parts: Use a non-corrosive cleaner or compressed air to remove carbon buildup, oil residue, and debris from all components and passages.
- Inspect and Reassemble: Check parts for wear or damage. Lightly lubricate O-rings if specified by the manufacturer, then reassemble in the correct order.
Pro Tip: The best maintenance is using clean, dry air. Installing a quality in-line filter and dryer downstream of your compressor protects not only your tools but also the internal components of the compressor itself, including the unloader valve.
When Professional Service is Recommended
While many maintenance tasks are DIY-friendly, some situations call for expert help. If you are uncomfortable with mechanical repairs, seek a professional. This is also advised if the valve is integrated into a complex pressure switch or if troubleshooting does not resolve persistent hard-starting issues.
A certified technician can perform a full system diagnostic. They ensure the problem isn’t related to the pressure switch, check valve, or motor capacitor, which can mimic unloader valve failure.
Unloader Valve vs. Check Valve and Pressure Switch: Key Differences
Understanding how the unloader valve interacts with other key components clarifies your compressor’s entire pressure system. These parts work as a team but have distinct, non-interchangeable roles. Confusing them is a common source of misdiagnosis.
Primary Function and Location Comparison
Each component serves a unique purpose in the air flow and control circuit. Their placement within the system is critical to their operation.
| Component | Primary Function | Typical Location |
|---|---|---|
| Unloader Valve | Vents pump head pressure after shutdown to enable easy motor restart. | On the compressor pump head, manifold, or integrated into the pressure switch. |
| Check Valve | Allows air to flow into the tank but prevents backflow from the tank to the pump. | In the line or port connecting the pump discharge to the air tank. |
| Pressure Switch | Monitors tank pressure and turns the motor on/off at preset cut-in and cut-out points. | Mounted on the air tank or pressure line, with electrical connections to the motor. |
How These Components Work Together
The seamless operation of your compressor depends on the precise coordination of all three parts. Follow this integrated cycle.
- Motor On: The pressure switch closes the circuit. The unloader valve is closed. The pump compresses air, which passes through the open check valve into the tank.
- Cut-Out: Tank pressure hits maximum. The pressure switch cuts power to the motor and simultaneously activates the unloader valve to vent the pump. The check valve closes, sealing the tank.
- Cut-In: Tank pressure drops to minimum. The pressure switch restores power and deactivates the unloader valve (closing it). The motor starts against no pressure, and the cycle repeats.
Diagnosis Tip: If air leaks from the pump head or discharge line when the compressor is off, the check valve is likely faulty. If the motor struggles to start, the unloader valve is the prime suspect. The pressure switch controls both.
Identifying Separate Component Failures
Use these specific symptoms to pinpoint which part has failed. This saves time and money on replacements.
- Failed Check Valve: Air leaks back from the tank through the pump, often causing it to “spin down” slowly after shutdown. The tank may also lose pressure rapidly when not in use.
- Failed Pressure Switch: The motor won’t turn on or off automatically, or the unloader valve doesn’t activate. You may hear no “click” from the switch at cut-in/cut-out pressures.
- Failed Unloader Valve: The motor hums or strains on startup (stuck closed) or the compressor runs constantly but builds pressure slowly (stuck open).
Benefits of a Properly Functioning Unloader Valve
A working unloader valve delivers significant advantages beyond just allowing the motor to start. It is a cornerstone of compressor efficiency, safety, and longevity. Investing in its maintenance pays dividends across your entire system.
Extended Motor and Pump Lifespan
The most critical benefit is the protection of your compressor’s most expensive components. By eliminating hard starts, the valve drastically reduces mechanical and electrical stress.
- Reduces Start-Up Amperage: A motor starting under load draws a massive current surge (locked-rotor amperage). The unloader valve minimizes this, preventing overheating and insulation breakdown in motor windings.
- Minimizes Mechanical Shock: The pump crankshaft, connecting rods, and bearings aren’t subjected to a sudden, high-torque jolt. This leads to less wear and tear over thousands of cycles.
- Prevents Premature Failure: Protecting these components directly translates to fewer breakdowns and a longer service life for your entire compressor, safeguarding your investment.
Improved Energy Efficiency and Performance
A healthy valve contributes directly to lower operating costs and more reliable air power. It ensures your compressor runs only as hard as necessary.
Starting a motor under load consumes significantly more electricity than a no-load start. The unloader valve enables the most energy-efficient start-up sequence possible. This reduces your power bill, especially for compressors that cycle frequently.
Furthermore, consistent, easy starts mean the compressor can quickly respond to air demand. You get full system performance without lag or hesitation when tools are engaged.
Operational Benefit: Think of the unloader valve as your compressor’s essential start-up assistant. It doesn’t help during the main work cycle, but it sets the stage for safe, efficient, and repeatable performance every single time.
Enhanced Safety and Reduced Downtime
The safety implications are paramount. A failed valve creates real hazards that go beyond simple equipment damage.
- Prevents Electrical Hazards: Chronic hard starts can overheat wiring, damage contacts in the pressure switch, and repeatedly trip circuit breakers, creating potential fire risks.
- Avoids Costly Emergency Repairs: A burnt-out motor or broken pump is a major, unexpected expense. Preventative valve maintenance is a minor cost compared to these failures.
- Maintains Project Momentum: For professionals, a reliable compressor is essential. A functioning valve ensures your air supply is ready when you are, preventing frustrating and expensive work stoppages.
How to Replace an Air Compressor Unloader Valve
When troubleshooting confirms a faulty valve, replacement is often the best solution. This process is manageable for most DIY users with basic tools. Following these steps ensures a safe and correct installation.
Pre-Replacement Preparation and Safety
Proper preparation is crucial for a safe and successful repair. Never skip these initial steps.
- Disconnect Power: Unplug the compressor or turn off the circuit breaker. This is non-negotiable to prevent accidental startup.
- Depressurize the System: Drain all air from the tank using the drain valve. Trigger the tank safety valve to confirm zero pressure.
- Gather Tools and Parts: You’ll typically need wrenches, thread sealant (Teflon tape or paste), and your exact replacement valve. Have a container for small parts.
- Document Connections: Take photos or make notes of how the old valve is connected, especially any small pilot tubes or wires.
Step-by-Step Removal and Installation
Work methodically to avoid damaging threads or losing components. Patience is key during this process.
| Step | Action | Key Detail |
|---|---|---|
| 1 | Remove Old Valve | Use the correct wrench to loosen and unthread the valve body from the compressor head or manifold. Avoid excessive force. |
| 2 | Clean the Mounting Threads | Clean any old sealant, debris, or corrosion from the female threads in the compressor using a brush or rag. |
| 3 | Apply New Sealant | Wrap male threads of the new valve with Teflon tape or apply a moderate amount of pipe sealant. Do not let sealant enter internal passages. |
| 4 | Install and Tighten | Thread the new valve in by hand to prevent cross-threading, then tighten firmly with a wrench. Avoid overtightening. |
| 5 | Reconnect All Lines | Reattach any pilot tubes or wires exactly as they were on the old valve. Ensure connections are snug. |
Post-Installation Testing and Verification
Do not assume the job is complete after physical installation. A proper test cycle is essential.
First, reconnect the power. Start the compressor and let it run through a full cycle. Listen for the distinct brief hiss after the motor shuts off—this confirms the valve is activating.
Observe the pressure gauge. The motor should start easily when pressure drops to the cut-in point. Check for any air leaks around the new valve’s fittings with a soapy water solution. Bubbles indicate a need for slight tightening.
Final Check: If the compressor still struggles to start after replacement, the issue may lie elsewhere. Re-examine the pressure switch, electrical connections, or motor capacitor as potential culprits.
Conclusion: The Essential Role of Your Air Compressor Unloader Valve
The unloader valve is a small but vital guardian of your compressor’s health. It ensures easy motor starts, protects against costly damage, and promotes energy efficiency. Understanding its function is key to proper maintenance.
Remember, a functioning valve is non-negotiable for safe operation. Never ignore symptoms like hard starting or constant hissing. Address these issues promptly to avoid major repairs.
Use the troubleshooting and maintenance steps outlined here to keep your system running smoothly. Investing a little time in this component saves significant money and downtime in the long run.
With this knowledge, you can confidently maintain your compressor’s performance and reliability for years to come.
Frequently Asked Questions about Air Compressor Unloader Valves
What is the main purpose of an unloader valve on an air compressor?
The primary purpose is to release trapped air pressure in the pump and discharge line after the motor shuts off. This creates a no-load condition for the next motor startup. It prevents the motor from having to fight against backpressure.
By eliminating this strain, the valve protects the motor from burnout and reduces excessive current draw. This simple action is crucial for the longevity and safe operation of your entire compressor system.
How can I tell if my air compressor unloader valve is bad?
Listen for a continuous hiss after shutdown or notice the motor struggling to restart under pressure. If the compressor hums but won’t turn over, the valve is likely stuck closed. Extended pump run times can also indicate a problem.
Another clear sign is needing to manually bleed air from the tank to get the motor to start. These symptoms point directly to a valve failure that requires immediate inspection or replacement to prevent motor damage.
What is the difference between an unloader valve and a check valve?
An unloader valve vents pressure from the pump to the atmosphere after shutdown. A check valve prevents compressed air from flowing backward from the tank into the pump. They serve completely different functions in the air circuit.
The check valve is a one-way gate for air entering the tank. The unloader valve is a pressure relief for the pump head. A failed check valve often causes air to leak back through the pump, while a failed unloader valve causes hard starting.
How do you test an air compressor unloader valve?
First, ensure the tank is completely depressurized and the unit is unplugged. Manually try to actuate the valve mechanism if possible; it should move without sticking. Check that any small pilot tube running from the pressure switch is clear and connected.
Then, reassemble and run the compressor. Listen for the distinct, brief hiss when the motor stops. If there’s no hiss or a constant hiss, the valve is faulty. Also, observe if the motor starts easily on the next cycle.
Can you clean an unloader valve, or does it need replacement?
You can often clean a valve if the issue is debris, carbon buildup, or light corrosion. Carefully disassemble it and use compressed air or a non-corrosive cleaner on all parts. Inspect the diaphragm and spring for damage during cleaning.
If internal components are worn, torn, or broken, replacement is necessary. For most users, purchasing a complete, compatible valve assembly is more reliable and cost-effective than attempting to repair individual internal seals.
Why does my compressor unloader valve keep sticking?
Sticking is commonly caused by moisture and oil residue in the air system combining with dust to form sludge. This gunk fouls the valve’s moving parts or seat. Corrosion from water accumulation is another frequent culprit.
Regular maintenance prevents this. Always drain your air tank daily to remove moisture. Ensure your intake air filter is clean. Using an in-line air dryer significantly reduces moisture-related sticking and corrosion.
What happens if I run my compressor without an unloader valve?
Running without a functional unloader valve forces the motor to start against full pump pressure. This causes a massive current surge known as locked-rotor amperage. The motor will likely hum, trip the breaker, or fail to start entirely.
Continuing to operate this way will quickly burn out the motor windings due to overheating. It also places extreme mechanical stress on the pump’s crankshaft and bearings, leading to catastrophic and expensive failure.
Is the unloader valve part of the pressure switch?
On many smaller compressors, yes—the unloader valve is often integrated into the pressure switch assembly. This combined unit controls both electrical power and pressure release. On larger industrial units, they are frequently separate components.
You can identify an integrated type by the small vent port on the switch body. When replacing an integrated unit, you typically change the entire pressure switch. Always check your compressor’s manual or parts diagram to be sure.
