What Does a Regulator Do on an Air Compressor?

A regulator on an air compressor precisely controls the downstream air pressure. It ensures your tools receive a safe, consistent flow. This is the core function of this critical component.

Without a regulator, you risk damaging expensive tools or creating unsafe working conditions. It acts as a protective gateway, allowing you to dial in the exact pressure needed for each task. This control is essential for efficiency and safety.

The Role of a Regulator on an Air Compressor

If you’ve ever noticed inconsistent tire pressure readings or struggled with overinflated tires, the culprit may be your air compressor’s regulator.

Simply put, the regulator controls how much air pressure is delivered to your tires or tools, preventing damage from too much pressure and ensuring safe, precise inflation. Without it, you risk either underinflated tires that reduce fuel efficiency or overinflated tires that can burst or wear unevenly.

Quick Fix

For hassle-free inflation with precise control, a reliable portable air compressor with a built-in regulator is essential. The AstroAI L7 Portable Air Compressor is perfect for maintaining optimal tire pressure.

Features:

• Digital display for accurate PSI readings
• Automatic shut-off when desired pressure is reached
• Compact and easy to store in your vehicle

For a deeper breakdown of this tool, read the full review here→ AstroAI L7 Portable Air Compressor

For a broader selection, explore our Best Cordless Tire Inflators guide to find models with fast inflation and accurate regulators.

When Your Compressor Alone Isn’t Enough

Sometimes, even a high-quality inflator may struggle with very large tires or frequent use. In these cases, pairing your regulator-equipped inflator with heavy-duty options ensures consistent performance. Consider checking out detailed reviews like Milwaukee M18 Inflator Review and Ryobi RPI18 18V Cordless Inflator for robust alternatives that handle trucks, SUVs, and larger vehicles.

How an Air Compressor Regulator Works: Core Function and Components

An air compressor regulator is a precision control valve. It manages the high, fluctuating pressure from your compressor’s tank. The device then delivers a steady, lower pressure to your air tools.

This process prevents tool damage and ensures consistent performance. Understanding its internal mechanism is key to proper use and maintenance. Let’s break down the main components and their roles.

Key Components Inside the Pressure Regulator

Every regulator has several critical parts working together. Each component plays a specific role in controlling airflow. The main parts include:

• Adjustment Knob & Spring: You turn the knob to compress or relax a spring. This spring force sets your desired output pressure.
• Diaphragm: This flexible disc reacts to pressure changes. It moves in response to the spring above and the air pressure below.
• Poppet Valve: Connected to the diaphragm, this valve opens or closes. It controls airflow from the high-pressure inlet to the low-pressure outlet.
• Pressure Gauge(s): Most regulators have two gauges. One shows tank pressure, and the other displays the adjusted output pressure.

The Step-by-Step Regulation Process

The regulation cycle is a continuous feedback loop. It automatically adjusts to maintain your set pressure. Here is how it works step-by-step:

1. Setting Pressure: You turn the adjustment knob, compressing the internal spring. This force pushes down on the diaphragm.
2. Valve Opening: The diaphragm pushes the poppet valve open. High-pressure air from the tank begins to flow through.
3. Pressure Balancing: As downstream pressure builds, it pushes back on the diaphragm. This balances the spring force.
4. Automatic Adjustment: If tool use drops pressure, the spring pushes the valve open again. If pressure rises, the diaphragm closes the valve. This cycle maintains a constant output.

Key Takeaway: The regulator is an automatic balancing act. It constantly compares spring force with output pressure. This feedback loop is what gives you stable, controllable air flow for your tools.

Why a Regulator is Essential: Key Benefits and Applications

Installing a regulator is not optional for safe, effective air tool operation. It serves as a critical control point in your compressed air system. This component directly impacts tool life, work quality, and operator safety.

Understanding its core benefits helps justify this essential investment. From protecting equipment to enabling versatility, the advantages are clear. Let’s explore the primary reasons every compressor needs a quality regulator.

Protecting Your Tools and Ensuring Safety

An unregulated air supply is a major hazard. High, erratic pressure can destroy tools and create dangerous situations. A regulator provides three key protective functions:

• Prevents Over-Pressurization: Most air tools have a maximum PSI rating (e.g., 90 PSI). A regulator ensures you never exceed this limit, preventing blown seals and internal damage.
• Eliminates Pressure Spikes: Tank pressure can surge. The regulator smooths these spikes, delivering a consistent flow that prevents sudden tool kickback or failure.
• Enables Safe Operation: Consistent pressure means predictable tool behavior. This reduces the risk of accidents caused by unexpected torque or speed changes during use.

Improving Work Quality and Versatility

Beyond protection, a regulator is a precision tool for better results. Different tasks require different pressure settings for optimal performance. This control unlocks your compressor’s full potential.

Consider these common application examples:

Tool/Application	Typical PSI Range	Reason for Regulation
Framing Nailer	70-90 PSI	Ensures nails are driven flush without damaging wood.
Spray Gun	25-40 PSI	Creates a fine, even mist for a smooth paint finish.
Air Ratchet	75-90 PSI	Provides controlled torque to avoid stripping bolts.
Dust Blow Gun	15-30 PSI	Reduces force for safe cleaning without damaging components.

Practical Tip: Always start with a lower pressure setting and gradually increase it. Check your tool’s manual for its specific PSI rating. It’s easier to add pressure than to repair a tool damaged by too much.

How to Adjust and Maintain Your Air Compressor Regulator

Proper adjustment and maintenance are crucial for regulator performance. A well-maintained unit ensures accuracy, safety, and a long service life. This section provides clear, actionable steps for setup and care.

Following these simple procedures will keep your compressed air system running smoothly. Regular checks prevent sudden failures during critical projects. Let’s walk through the adjustment process and maintenance routine.

Step-by-Step Guide to Setting the Correct Pressure

Adjusting your regulator is a straightforward but important task. Always refer to your air tool’s manual for its specific PSI requirements. Follow these steps for safe and accurate pressure setting:

1. Connect and Prepare: Attach your air tool to the hose. Ensure all connections are tight. Turn on the compressor and let the tank fill completely.
2. Pull to Adjust: On most regulators, you must pull the adjustment knob outward before turning. This disengages a lock mechanism to allow rotation.
3. Set the Pressure: Turn the knob clockwise to increase pressure, counter-clockwise to decrease. Watch the output pressure gauge (not the tank gauge) as you adjust.
4. Lock and Test: Push the knob back in to lock the setting. Test the tool on a scrap material. Make fine adjustments if necessary for optimal performance.

Essential Maintenance Tips for Longevity

Regulators are durable but require occasional attention. Simple maintenance prevents common issues like creeping pressure or inaccurate readings. Incorporate these checks into your routine.

• Drain Moisture Regularly: Condensate from compressed air can collect in the regulator body. Use the drain plug (if equipped) or briefly disconnect the unit to empty water. This prevents internal corrosion.
• Check for Leaks: Apply soapy water to fittings and the adjustment knob stem with the system pressurized. Bubbles indicate a leak that needs sealing or part replacement.
• Monitor Gauge Accuracy: Compare your regulator’s output gauge with a separate, known-accurate gauge. A significant discrepancy means the internal diaphragm may be worn or the gauge is faulty.
• Clean the Air Filter: Many regulators have a built-in filter screen at the inlet. Clean this screen periodically to ensure unrestricted airflow and protect internal components.

Warning Sign: If your output pressure “creeps” upward while no tool is in use, the internal poppet valve is likely failing. This is a safety hazard. Replace the regulator or repair it with a service kit immediately.

Troubleshooting Common Air Regulator Problems

Even reliable regulators can develop issues over time. Recognizing common symptoms helps you diagnose problems quickly. Many malfunctions have simple fixes you can perform yourself.

This troubleshooting guide addresses the most frequent complaints users encounter. We’ll cover symptoms, likely causes, and practical solutions. Knowing these steps can save you time, money, and frustration on the job.

Diagnosing Pressure and Flow Issues

Inconsistent pressure or poor airflow are clear signs of trouble. These problems often stem from blockages, leaks, or component wear. Use this guide to pinpoint the cause.

Symptom	Likely Cause	Solution
Pressure drops when tool is triggered.	Inlet filter is clogged, or the regulator is undersized for the tool’s CFM demand.	Clean the inlet filter screen. Ensure your regulator’s flow capacity (CFM) exceeds your tool’s requirement.
Output pressure slowly creeps up.	Failing poppet valve or debris on the valve seat.	Replace the regulator or install a repair kit. This is a critical safety fix.
No air flows to the tool.	Kinked hose, blocked quick-connect, or a completely seized internal valve.	Check hose and fittings. If clear, tap the regulator body gently. If stuck, disassemble and clean or replace.

Fixing Leaks and Gauge Failures

Air leaks and inaccurate gauges compromise your entire system’s efficiency. These issues are often easy to resolve with basic tools. Focus on these common failure points.

• Leak at Adjustment Knob Stem: The stem seal (O-ring) is worn or dry. This is a common leak point. Fix it by replacing the O-ring or the entire stem seal assembly.
• Leak at Gauge or Fitting: Threads may be loose or the sealing tape/compound has failed. Tighten fittings carefully. If leaking persists, re-apply thread sealant made for compressed air.
• Gauge Reads Zero or is Stuck: The small port connecting the gauge to the regulator body is clogged with debris or moisture. Carefully remove the gauge and clear the port with a fine wire.
• Gauge is Inaccurate: The internal bourdon tube is fatigued or damaged. Gauges are typically not repairable. The most reliable solution is to replace the faulty gauge with a new one.

Pro Tip: Before diagnosing a complex issue, always perform a basic check. Ensure your compressor tank pressure is significantly higher than your desired output pressure. A low tank pressure will cause regulation failure.

Choosing the Right Regulator: A Buyer’s Guide

Selecting the correct regulator is vital for system performance. Not all regulators are created equal for every job. Key specifications must match your compressor and tools.

This guide helps you navigate the critical factors before purchasing. We’ll compare features, materials, and specifications. Making an informed choice ensures reliability and value for years to come.

Key Specifications to Compare

Focus on these three technical ratings when shopping. They determine if a regulator is compatible with your setup and needs.

• Maximum Inlet Pressure (PSI): This must be higher than your compressor’s maximum output. For example, a 150 PSI compressor needs a regulator rated for at least 150 PSI inlet pressure.
• Flow Capacity (CFM – Cubic Feet per Minute): This is the most overlooked spec. The regulator’s CFM must meet or exceed the air consumption of your largest tool. A restrictive regulator will starve a high-demand tool.
• Outlet Pressure Range: Ensure the adjustable range covers your required PSI. Most cover 0-120 PSI or 0-150 PSI. For fine, low-pressure work (e.g., painting), a 0-60 PSI range offers better adjustment precision.

Features, Port Sizes, and Construction

Beyond core specs, consider these practical features and build qualities. They impact usability, durability, and installation ease.

Feature	Benefit	Best For
Dual Gauges (Tank & Output)	Monitor system pressure and your set pressure simultaneously. Essential for diagnostics.	All users; a must-have for troubleshooting.
Integrated Filter/Lubricator	Combines regulation, moisture removal, and tool oiling in one unit (a “FRL”).	Shop setups with multiple tools requiring oil.
Relief Valve	Automatically vents air if downstream pressure exceeds a safe limit. A critical safety feature.	All applications, especially in shared or industrial settings.
Port Size (e.g., 1/4″ NPT)	Must match your hose and compressor fittings. Using adapters can restrict flow.	Match to your existing system to maintain CFM.

Material Matters: For general use, brass regulators offer excellent corrosion resistance and durability. For harsh environments with chemicals, consider stainless steel. Avoid cheap, all-plastic models for anything beyond very light duty.

Advanced Regulator Setups and Pro Tips

Mastering basic regulator use is just the beginning. Advanced configurations can solve specific problems and boost efficiency. These setups are common in professional shops and for complex tasks.

Implementing these pro strategies optimizes your compressed air system. They enhance control, protect sensitive equipment, and streamline workflow. Let’s explore some sophisticated applications and expert recommendations.

Dedicated vs. Centralized Regulation Systems

The location of your regulator impacts flexibility and performance. You have two main configuration options, each with distinct advantages.

• Centralized (Point-of-Entry) Regulation: A single, large regulator is installed where the air line exits the compressor tank. It sets one pressure for the entire shop air line system. This is simple but limits tool-specific pressure tuning.
• Dedicated (Point-of-Use) Regulation: Smaller regulators are installed at each workbench drop or even directly on the tool hose. This allows different pressures for different tools simultaneously. It’s the preferred method for versatile workshops.

For most DIYers, a regulator at the compressor is sufficient. Pros often use a hybrid: a master regulator at the tank and secondary units at point-of-use for critical tools like spray guns.

Enhancing Performance with Accessories

Pair your regulator with these key accessories for a superior air system. They address common issues like moisture, pulsation, and fine control.

1. Add a Secondary Filter: Install a coalescing filter before the regulator. It removes oil aerosols and fine moisture that a basic screen misses. This protects the regulator’s internal valve and your tools.
2. Use an Air Lubricator: For pneumatic tools requiring oil (e.g., impact wrenches), add a lubricator after the regulator. It injects a fine oil mist into the airstream, extending tool life dramatically.
3. Install a Pulsation Dampener: If your tool operation is jerky, a small receiver tank or pulsation dampener after the regulator smooths out remaining pressure fluctuations.

Expert Insight: For precision tasks like painting or sandblasting, use a regulator with a relief valve and a separate moisture trap at the tool. This two-stage protection guarantees the cleanest, steadiest air possible for flawless results.

Regulator Safety Guidelines and Best Practices

Safety is the paramount reason for using an air compressor regulator. Compressed air is powerful and can be dangerous if mishandled. Adhering to established safety protocols prevents accidents and equipment damage.

These guidelines are not just recommendations; they are essential rules for operation. They protect you, your tools, and anyone nearby. Integrate these practices into every project involving your air compressor.

Critical Do’s and Don’ts for Safe Operation

Follow these fundamental rules to maintain a safe working environment. They address the most common safety oversights users make.

• DO: Always wear ANSI-approved safety glasses when using or working near pressurized air systems. Flying debris or a blown hose can cause serious eye injury.
• DON’T: Never use compressed air to clean dust from your clothing or skin. Air can penetrate the skin and cause embolisms, or blow debris into eyes.
• DO: Shut off the air supply and bleed all pressure from the system (tank, hose, and tool) before making any connections, adjustments, or repairs.
• DON’T: Never exceed the maximum pressure rating of any component in your system—hose, fitting, tool, or regulator. The weakest link determines your system’s safe limit.

Pre-Use Inspection and System Checks

A brief inspection before each use can prevent catastrophic failures. Develop a quick but thorough checklist and follow it diligently.

1. Visual Inspection: Check the regulator, hose, and all fittings for cracks, deep cuts, or signs of wear. Ensure the pressure gauges’ glass is intact.
2. Leak Test: With the tank pressurized and the tool off, listen for hissing sounds. Apply soapy water to connections if you suspect a leak.
3. Gauge Verification: Confirm the tank pressure is adequate (typically 1.5x your desired output). Ensure the output gauge reads zero before adjusting.
4. Function Test: Adjust the regulator to a low pressure and briefly trigger the tool away from people and objects. Verify the pressure holds steady.

Warning – Pressure Creep: If you set the regulator to 90 PSI and it slowly climbs to 100 PSI on its own, STOP USING IT IMMEDIATELY. This indicates a failing internal valve, which can lead to over-pressurization and tool explosion. Replace the regulator.

Best Regulators for Air Compressors – Detailed Comparison

PneumaticPlus PPR2-N02BG-2 Miniature Regulator – Best Overall Regulator

This is a professional-grade regulator praised for its exceptional accuracy and durability. It features a large, easy-read gauge and a precise knob for fine-tuning pressure. Its brass construction resists corrosion, making it the best overall choice for demanding workshops and daily use.

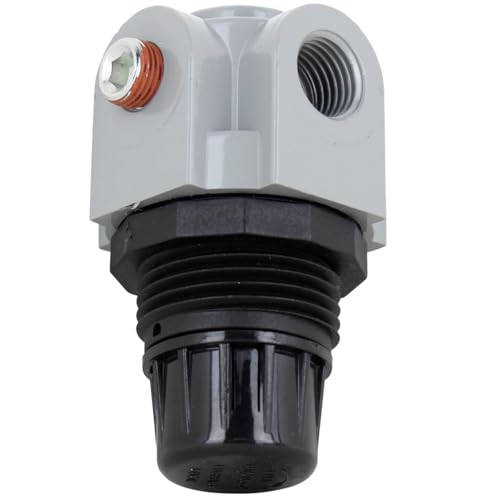

Milton S-1145 – Best Value Regulator

For reliable performance on a budget, the Milton S-1145 is the top recommended value option. It offers consistent pressure control with a built-in relief valve for safety. This model is ideal for home garages, DIY enthusiasts, and those needing dependable functionality without a high cost.

Norgren R07-200-RNEA – Best for Industrial Use

The Norgren R07-200-RNEA is a high-precision, industrial-grade regulator. It delivers superior stability under fluctuating inlet pressures, essential for sensitive pneumatic equipment. This is the ideal choice for manufacturing, automotive shops, and any professional setting requiring maximum accuracy and reliability.

Conclusion: Mastering Your Air Compressor Regulator

The regulator is the essential control center of your compressed air system. It protects your tools, improves work quality, and ensures operator safety. Proper use transforms your compressor from a simple pump into a precision instrument.

Remember to always match the pressure to your tool’s requirements. Perform regular maintenance checks and troubleshoot issues promptly. Investing in a quality regulator pays dividends in performance and longevity.

Now, apply this knowledge to your workshop. Adjust your regulator with confidence for your next project. Experience the difference that precise, controlled air pressure makes.

With the right regulator and proper practices, you can tackle any pneumatic task safely and effectively.

Frequently Asked Questions about Air Compressor Regulators

What is the main purpose of a regulator on an air compressor?

The primary purpose is to control and reduce air pressure from the compressor tank to a safe, usable level for your tools. It ensures consistent pressure delivery regardless of fluctuations in the tank. This prevents tool damage and allows for precise operation.

Think of it as a precision valve that acts as a safety buffer. It takes the high, variable pressure stored in the tank and provides a steady, adjustable output. This function is critical for both tool longevity and work quality.

How do I know what PSI to set my air compressor regulator to?

Always check the manufacturer’s specifications for your specific air tool. The required PSI is typically listed on the tool’s label or in its manual. Most common tools like nailers and impacts operate between 70 and 120 PSI.

Start at the lower end of the recommended range and test on scrap material. Gradually increase pressure until the tool performs optimally. This “start low” method prevents accidental over-pressurization and potential damage.

Why is the pressure on my regulator gauge dropping when I use my tool?

This is usually a flow capacity (CFM) issue. Your tool is consuming air faster than your compressor or regulator can supply it. The regulator is working correctly but cannot maintain the set pressure due to high demand.

Check your tool’s CFM requirement against your compressor’s output and your regulator’s flow rating. A clogged inlet filter or an undersized hose can also cause this symptom by restricting airflow to the regulator.

What is the difference between a regulator with one gauge and two gauges?

A single-gauge regulator only shows the output pressure you’ve set. A dual-gauge regulator shows both the tank pressure and the output pressure. The tank gauge is crucial for diagnostics and knowing when your compressor needs to cycle on.

The dual-gauge setup is highly recommended. It allows you to see if a pressure drop is due to low tank air or a regulator problem. This makes troubleshooting much faster and more accurate.

Can I install an air compressor regulator myself?

Yes, installation is generally straightforward for most DIY users. It typically involves threading the regulator onto the compressor’s outlet port or into the air line using appropriate fittings. Always ensure the system is completely depressurized before starting.

Use thread sealant tape or paste designed for compressed air on all connections. Tighten fittings securely but avoid over-tightening, which can crack brass components. Always perform a leak test with soapy water after installation.

What does it mean if my regulator pressure keeps creeping up?

Pressure creep is a serious warning sign of a failing internal valve. Debris may be caught on the poppet valve seat, or the seat itself may be worn. This prevents the valve from fully closing, allowing tank pressure to slowly bleed through.

This condition is a safety hazard that can over-pressurize and damage downstream tools. You should stop using the regulator immediately. Replace the unit or install a manufacturer-approved repair kit to fix the internal valve assembly.

Is it better to have one main regulator or multiple regulators in a shop?

For a single-tool setup, one regulator at the compressor is fine. For a shop with multiple air drops or tools requiring different pressures, point-of-use regulators are superior. This allows you to run a spray gun at 30 PSI and an impact wrench at 90 PSI simultaneously.

A common professional setup is a master regulator at the compressor tank to provide a general safe pressure, with secondary, finer-adjustment regulators at specific workstations for precision tasks like painting or sanding.

How often should I maintain or replace my air compressor regulator?

Perform a basic visual and functional check before each major use. Drain any accumulated moisture weekly if your compressor runs frequently. There’s no set replacement schedule; replace it when it shows signs of failure.

Indicators for replacement include persistent leaks you cannot fix, inaccurate gauges, failure to hold set pressure, or visible corrosion damage. A quality regulator with proper maintenance can last for many years of reliable service.
