What Does a Pressure Switch Do on an Air Compressor?

A pressure switch is the automatic control center of your air compressor. It monitors tank pressure and turns the motor on and off. This maintains your desired air pressure range for tools.

This crucial component prevents dangerous over-pressurization and protects your equipment. It also saves energy and extends the compressor’s lifespan by preventing constant running.

Best Pressure Switches for Air Compressors – Detailed Comparison

Square D 9013FHG42J59M Pressure Switch – Best Overall Choice

This heavy-duty, factory-set switch is a top choice for reliability. It features a 40-60 PSI range and is UL/CSA listed for safety. Its manual ON/OFF lever and durable diaphragm make it ideal for replacing switches on most standard home garage compressors.

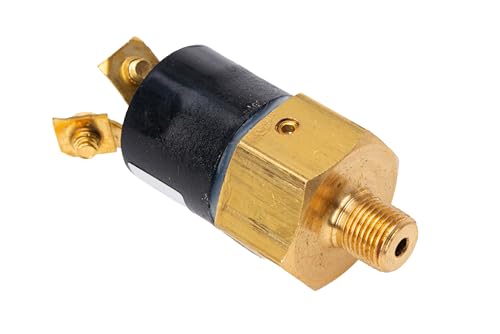

Parker Chelsea 379305 Pressure Switch – Best for Industrial Use

Designed for demanding applications, this switch offers adjustable cut-in and cut-out settings. Its robust metal construction and high electrical rating handle larger motors. This is the recommended upgrade for workshop or industrial compressors requiring precise, reliable pressure control.

Condor MDR 21/11 Pressure Switch – Best Adjustable Option

This versatile European-made switch provides fully customizable pressure settings with a clear visual scale. It includes a pressure release valve for safety. It’s the ideal for DIY enthusiasts and professionals who need to fine-tune their compressor’s performance for specific tools.

How an Air Compressor Pressure Switch Works: The Complete Breakdown

The pressure switch is a simple yet brilliant automatic control system. It constantly monitors the air pressure inside your compressor’s tank. When pressure drops too low, it activates the motor to pump more air.

Once the tank reaches the preset maximum pressure, it cuts power to the motor. This cycle repeats automatically, maintaining a ready supply of compressed air. Understanding this process is key to troubleshooting and maintenance.

Key Components Inside the Switch

Several internal parts work together to make this automatic control possible. Each has a specific role in the sensing and switching mechanism.

• Diaphragm or Piston: This flexible component reacts to tank pressure. Expanding and contracting pressure moves it, which physically triggers the electrical contacts.
• Electrical Contacts: These are the physical switch that completes or breaks the motor circuit. They are opened and closed by the movement from the diaphragm.
• Spring Mechanism: Adjustable springs determine the pressure range. The tension you set on the spring dictates the cut-in and cut-out points.
• Pressure Release Valve (Unloader): This critical part vents pressure from the pump head when the motor stops. This prevents hard starting and reduces wear.

The Cut-In and Cut-Out Pressure Cycle

This two-point cycle is the fundamental operation of the switch. The cut-out (cut-off) is the high pressure limit where the motor stops. The cut-in is the lower pressure where the motor restarts.

For a common switch set to 40-60 PSI, 60 PSI is the cut-out point. The motor will turn off once the tank hits this pressure. It will stay off until pressure drops back to the 40 PSI cut-in point, restarting the cycle.

Key Takeaway: The pressure switch is an electromechanical regulator. It uses physical pressure to open/close an electrical circuit, creating a fully automatic on/off cycle for your compressor motor based on the tank’s air pressure level.

Fixed vs. Adjustable Pressure Switches

Not all pressure switches offer the same level of control. The main types are fixed and adjustable, each suited for different needs.

Type	Description	Best For
Fixed (Preset)	Factory-set to a specific range (e.g., 40-60 PSI). No user adjustment.	Homeowners, standard tools, and applications where specific pressure tuning isn’t required.
Adjustable	Features adjustable nuts or dials to set custom cut-in and cut-out pressures.	Professionals, workshops, and users who need different pressures for various pneumatic tools.

Common Pressure Switch Problems and How to Fix Them

A faulty pressure switch can cause your air compressor to malfunction. Recognizing the symptoms early can prevent motor damage and downtime. This section covers the most frequent issues and their practical solutions.

Identifying Symptoms of a Bad Pressure Switch

Your compressor will show clear signs when the pressure switch fails. Listen and observe its behavior during the pressure cycle.

• Motor Won’t Start: The tank is empty, but the motor doesn’t activate. This often points to failed electrical contacts inside the switch.
• Motor Won’t Stop (Running Continuously): The compressor exceeds its normal cut-out pressure. This is a serious hazard indicating the switch isn’t breaking the circuit.
• Short Cycling: The motor turns on and off rapidly. This is often caused by a leaking tank check valve or a faulty unloader valve in the switch.
• Inconsistent Pressure: Your tools perform weakly or air pressure fluctuates wildly. The switch may be failing to maintain its set pressure range.

Step-by-Step Guide to Adjusting Pressure Settings

Only adjust an adjustable pressure switch. Locate the two spring-loaded nuts on the switch. The larger nut typically controls the cut-out pressure; the smaller sets the differential (range).

1. Disconnect Power: Unplug the compressor and release all air from the tank for safety.
2. Identify the Nuts: Consult your manual. Usually, the outer/larger nut is for cut-out, the inner/smaller for differential.
3. Adjust Cut-Out: Turn the larger nut clockwise to increase the shut-off pressure, counter-clockwise to decrease it.
4. Adjust Differential: Turn the smaller nut to change the pressure range between cut-in and cut-out.
5. Test: Reconnect power, run the compressor, and monitor the pressure gauge to verify your new settings.

Safety Warning: Always depressurize the tank and disconnect electrical power before servicing any compressor component. Exceeding the compressor’s maximum rated PSI can cause catastrophic tank failure.

When to Repair vs. Replace Your Switch

Some issues are fixable, while others require a full replacement. Use this simple guide to decide.

Issue	Likely Action	Reason
Stuck or pitted electrical contacts	Replace	Cleaning is temporary; worn contacts are a fire risk and cause unreliable operation.
Leaking unloader valve or diaphragm	Repair/Replace Kit	Many switches have rebuild kits. If available, this is a cost-effective fix.
Broken housing or adjustment mechanism	Replace	Physical damage compromises safety and function. A new switch is required.
Incorrect pressure range for your needs	Replace	Upgrade to an adjustable model or one with a suitable factory-set range.

Installation, Maintenance, and Safety Best Practices

Proper installation and routine care ensure your pressure switch operates reliably for years. Following these guidelines protects your investment and your safety. This section provides essential tips for setup and long-term performance.

How to Install a New Air Compressor Pressure Switch

Replacing a faulty switch is a straightforward DIY task with the right precautions. Always match the electrical specifications and pressure range of the original part.

1. Power Down & Depressurize: Unplug the compressor. Open the drain valve to release all air from the tank completely.
2. Disconnect Wires: Take a photo of the wiring for reference. Disconnect the power wires from the old switch terminals.
3. Remove Old Switch: Unscrew the switch from its mounting and disconnect the pressure tube fitting.
4. Install New Switch: Mount the new switch, reconnect the pressure tube, and reattach wires exactly as photographed.
5. Test Operation: Close the drain valve, plug in the compressor, and monitor its first cycle for proper cut-in and cut-out.

Essential Maintenance Tips for Longevity

Regular, simple maintenance prevents most common pressure switch failures. A few minutes of care can avoid hours of downtime.

• Monthly Visual Inspection: Check for oil, moisture, or corrosion around the switch. These contaminants can damage the diaphragm and electrical components.
• Drain Your Tank Daily: Prevent moisture from traveling into the switch via the pressure tube. This is the single most important habit.
• Check Electrical Connections Annually: Ensure terminal screws are tight to prevent arcing and overheating, which can melt the switch housing.
• Listen for Unloader Valve Function: When the motor stops, you should hear a brief “pssst” of air. Its absence means the valve is clogged.

Pro Tip: Use thread sealant (not tape) on the pressure tube fitting when installing a new switch. This ensures an airtight seal without risking debris entering the sensitive diaphragm chamber.

Critical Safety Precautions to Follow

The pressure switch is a safety device. Never bypass or disable it, as this removes vital protection from your compressor system.

Precaution	Purpose	Risk of Neglect
Never exceed the tank’s rated PSI	Prevents catastrophic tank rupture.	Extreme danger of explosion causing property damage or injury.
Always disconnect power before service	Prevents electrical shock and accidental motor start.	Severe electrical injury or amputation from sudden motor engagement.
Ensure proper switch electrical rating	Matches your compressor motor’s horsepower and voltage.	Switch overheating, melting, electrical fire, or switch failure.
Keep the switch clean and dry	Prevents corrosion and ensures reliable electrical contact.	Erratic operation, failure to start/stop, and reduced component lifespan.

Choosing the Right Pressure Switch for Your Compressor

Selecting a compatible pressure switch is crucial for safe and efficient operation. The wrong switch can damage your motor or fail to control pressure properly. This guide helps you match the correct switch to your specific compressor model and needs.

Key Specifications to Match When Buying

Never buy a switch based on physical size alone. You must verify several critical technical specifications for a safe replacement.

• Voltage & Horsepower (HP) Rating: This is the most important electrical spec. The switch must be rated for your compressor’s motor voltage (e.g., 120V or 240V) and horsepower.
• Pressure Range (PSI): Match the cut-in/cut-out range. A 40-60 PSI switch is common for pancake compressors, while larger tools may need 100-125 PSI.
• Port Size & Thread Type: The pressure tube connection must match. Common sizes are 1/4″ or 3/8″ NPT (National Pipe Taper).
• Terminal Type: Switches have screw terminals or quick-connect spade terminals. Ensure the new switch matches your wiring setup.

Application Guide: Matching Switch to Compressor Type

Different compressors have different demands. Use this table to find the general switch type suited for your application.

Compressor Type	Recommended Switch Type	Typical Pressure Range	Key Feature Needed
Small Portable/Pancake	Fixed (Preset)	40-60 PSI or 50-70 PSI	Compact size, often with integrated pressure release.
Home Garage Workshop	Adjustable	Adjustable up to 100-125 PSI	Higher HP rating, durable diaphragm.
Industrial/Two-Stage	Heavy-Duty Adjustable	Adjustable up to 175+ PSI	Metal housing, high amp rating, manual lever.
Oil-Free Compressor	Specific OEM Replacement	As per manufacturer	Exact model match is often critical due to unique mounting.

OEM vs. Universal Replacement Switches

You often have two choices when replacing a failed switch: the exact OEM part or a universal aftermarket model.

Decision Guide: Choose an OEM switch for a guaranteed fit on complex or proprietary mounts (common in oil-free models). Choose a high-quality universal switch for standard compressors to save cost, provided all key specs match perfectly.

OEM (Original Equipment Manufacturer) switches are made by or for your compressor’s brand. They guarantee perfect physical and electrical compatibility. The downside is they are often more expensive.

Universal replacement switches are made by third-party manufacturers like Square D or Furnas. They are cost-effective and widely available. You must carefully cross-reference the specifications to ensure a proper match for your unit.

Advanced Troubleshooting and Professional Insights

Some pressure switch issues require deeper diagnostic skills. This section covers advanced troubleshooting for persistent problems and expert insights. These tips can help you determine when a problem is truly switch-related or points to another component.

Diagnosing Complex Electrical Issues

If basic checks don’t solve the problem, systematic electrical testing is needed. Always ensure the compressor is unplugged before testing.

1. Test for Continuity: Use a multimeter on the Ohm setting. With the switch in the “ON” position (tank empty), check for continuity across the motor terminal contacts. No continuity indicates failed internal contacts.
2. Check the Unloader Valve: Listen for its hiss after shutdown. If silent, debris may be blocking it, causing hard starts and short cycling.
3. Inspect the Diaphragm: Carefully open the switch housing (if possible). Look for cracks, holes, or oil saturation in the flexible diaphragm, which will cause inaccurate pressure sensing.
4. Verify Grounding: Ensure the switch body and compressor have a proper ground connection. Poor grounding can cause erratic operation.

Switch-Related Problems vs. Other Compressor Faults

Not every compressor malfunction is the switch’s fault. Use this comparison to isolate the true cause.

Symptom	Likely Pressure Switch Cause	Likely Other Component Cause
Motor won’t start	Failed contacts, broken spring, loss of diaphragm tension.	Thermal overload tripped, faulty capacitor, bad power cord or outlet.
Motor runs but builds no/low pressure	Extremely rare for the switch to cause this.	Worn piston rings, leaking check valve, broken intake valve, or drive belt.
Compressor short cycles	Faulty unloader valve not releasing pump head pressure.	Leaking tank check valve allowing air back into the pump.
Pressure gauge reads inaccurately	Switch diaphragm issue causing wrong cut-in/out points.	Faulty or clogged pressure gauge itself.

When to Call a Professional Technician

While many switch issues are DIY-friendly, some scenarios warrant expert help. Knowing your limits ensures safety and prevents further damage.

Expert Advice: If you are uncomfortable with electrical testing, smell burning, see melted wiring, or if the compressor is under warranty, call a professional. The cost of a service call is far less than the cost of a new motor or medical bills from an accident.

Contact a certified technician if you encounter complex wiring, especially on 240V systems. They should also handle any issue where the motor hums but doesn’t start, as this often involves the start capacitor.

If repeated switch failures occur, a pro can diagnose root causes like excessive moisture, vibration, or an underlying motor problem. They have the tools and expertise for a permanent fix.

Optimizing Performance and Understanding Accessories

Beyond basic function, you can optimize your pressure switch for better tool performance and compressor health. Understanding related accessories also enhances your system’s capability. This final operational section covers fine-tuning and add-ons.

Setting the Ideal Pressure for Your Tools

Running your compressor at the correct pressure maximizes tool efficiency and lifespan. Most pneumatic tools have a recommended PSI range stamped on them.

• Check Tool Requirements: A finish nailer may need 70-90 PSI, while an impact wrench might require 90-120 PSI. Set your switch’s cut-out pressure 10-20 PSI above the tool’s requirement.
• Account for Pressure Drop: Air pressure drops through long hoses and fittings. A higher tank pressure ensures your tool still gets its needed operating PSI.
• Use a Regulator: Always use the air regulator at your workstation, not the tank switch, for final tool pressure adjustment. This protects delicate tools.

Essential Accessories for Enhanced Control

Several add-ons work with your pressure switch for better functionality and monitoring. These are worthwhile investments for frequent users.

Accessory	Primary Function	Benefit
Additional Pressure Gauge	Monitors tank pressure independently of the switch’s internal mechanism.	Provides a visual double-check of switch accuracy and tank status.
Automatic Tank Drain	Electronically releases accumulated moisture from the tank.	Prevents water from entering the pressure tube and corroding the switch diaphragm.
Digital Pressure Controller	Replaces the mechanical switch with an electronic sensor and digital display.	Offers ultra-precise pressure settings, diagnostics, and remote monitoring capabilities.

Pro Tips for Extending Switch Life

Simple habits can dramatically increase the lifespan of your pressure switch. Prevention is always easier and cheaper than repair.

Longevity Secret: The biggest killers of pressure switches are moisture and vibration</strong. Install an in-line filter/drier before the switch’s pressure port and ensure the compressor is on a stable, level surface to minimize shaking.

1. Control Moisture: Drain your tank after every use. Consider adding a refrigerated air dryer for shops in humid climates.
2. Reduce Vibration: Tighten the switch mounting bolts periodically. Use rubber washers or an anti-vibration pad under the compressor.
3. Keep it Clean: Regularly blow dust and debris off the switch with compressed air to prevent clogging of the air inlet and vents.
4. Cycle Properly: Avoid letting the compressor short cycle constantly. If you need air frequently, a larger tank may be a better solution than overworking the switch.

Conclusion: Mastering Your Air Compressor Pressure Switch

The pressure switch is the essential brain of your air compressor system. It provides automatic control, safety, and energy efficiency. Understanding its function empowers you to maintain and troubleshoot your equipment confidently.

The key takeaway is regular inspection and proper adjustment. Always prioritize safety by depressurizing the tank before any work. Match replacement switches carefully to your compressor’s specifications.

Use this guide as a reference for installation, adjustment, and problem-solving. Share your experiences or questions in the comments below to help other DIYers and professionals.

With this knowledge, you can ensure your compressor delivers reliable power for every project.

Frequently Asked Questions about Air Compressor Pressure Switches

What is the difference between cut-in and cut-out pressure?

Cut-in pressure is the low point where the compressor motor turns on to refill the tank. Cut-out pressure is the high limit where the motor shuts off. For a 40-60 PSI switch, 40 PSI is the cut-in and 60 PSI is the cut-out. This range is called the differential.

Maintaining the correct differential is crucial for efficient operation. A too-narrow range causes short cycling, while a too-wide range makes your tools perform inconsistently as tank pressure drops too low between cycles.

How do I know if my pressure switch is bad?

Clear signs include the motor failing to start when the tank is empty or running continuously without shutting off. Other symptoms are rapid short cycling or the compressor failing to reach its normal maximum pressure. A humming sound from the switch often indicates failing electrical contacts.

Before condemning the switch, perform basic checks. Ensure power is reaching the unit and that the thermal overload on the motor isn’t tripped. Visually inspect for obvious damage or severe corrosion on the switch housing.

Can I adjust any pressure switch on my compressor?

No, only switches labeled as adjustable can be safely modified. Many smaller, OEM switches are factory preset (fixed) and sealed. Attempting to adjust a fixed switch will likely break it. Check for two adjustment nuts on the switch; their presence usually indicates it’s adjustable.

If your switch is adjustable, always note the original settings before turning any nuts. Adjust in small increments and test the compressor’s cycle after each change to ensure safe and proper operation.

What causes a pressure switch to leak air?

A leak from the switch area is typically from the unloader valve. This valve’s job is to release air from the pump head after shutdown. A small, brief hiss is normal. A continuous leak indicates a dirty, worn, or damaged valve diaphragm or seat.

Moisture and oil in the air line are the primary culprits. They degrade the valve’s rubber components. Cleaning the valve with compressed air or replacing its internal kit often solves the leak. Ensure you drain your tank regularly to prevent this issue.

What is the best pressure switch for a 5 HP air compressor?

For a 5 HP compressor, you need a heavy-duty, adjustable switch with a matching horsepower and voltage rating. Look for switches specifically rated for 5 HP at your voltage (e.g., 240V). Brands like Furnas (Parker) or Square D offer reliable industrial-grade models.

These switches feature metal housings, robust diaphragms, and higher electrical amperage ratings. They are designed to handle the frequent cycling and larger motor load. Always verify the pressure range matches your compressor’s tank rating and your tool requirements.

Why does my new pressure switch keep tripping the breaker?

This usually indicates a wiring error or a mismatched switch rating. Double-check that all wires are connected to the correct terminals and are secure. A loose wire can cause a short. Most critically, ensure the switch’s horsepower (HP) rating matches or exceeds your compressor motor’s HP.

Using an under-rated switch causes it to overheat and can trip the circuit breaker. Also, check that the wire gauge from your electrical panel is sufficient for the motor’s amp draw, as an overloaded circuit will trip independently of the switch.

How often should I replace my air compressor pressure switch?

There’s no fixed timeline. A quality switch can last for many years with proper maintenance. Replace it when it shows signs of failure, such as erratic cycling, contact arcing, or physical damage. Proactive replacement is wise if your compressor is critical for business.

Extend its life through preventative care. The most effective practice is to drain moisture from the tank daily. This prevents corrosion inside the switch. Also, keep the compressor in a clean, dry environment to minimize contamination.

Is it safe to use a pressure switch with a higher PSI rating than my tank?

Using a switch with a higher maximum PSI rating is generally safe, as long as you adjust it to operate within your tank’s safe limit. The danger lies in the tank, not the switch. Never set the cut-out pressure above the maximum PSI stamped on your compressor’s tank.

The real concern is using a switch with a lower pressure rating than required. It may cycle too frequently or fail under pressure. Always match or exceed the original switch’s pressure range for reliable and safe operation.
