Why Does My Air Compressor Produce Water?

Your air compressor produces water primarily due to atmospheric condensation. This is a normal but problematic physical process. Humid air is compressed, cooled, and releases moisture inside your tank.

This water can cause rust and damage your tools and pneumatic equipment. Understanding and managing this moisture is crucial for maintaining your compressor’s performance and longevity.

Best Products for Managing Air Compressor Moisture

Motor Guard Replacement Submicronic Element- Best Overall Air Dryer

The Motor Guard is a premium coalescing filter that removes 99.9% of water and oil aerosols. It features a clear bowl for easy moisture inspection and a 5-micron filter element. This is the best option for protecting expensive air tools and paint sprayers from corrosion and contamination.

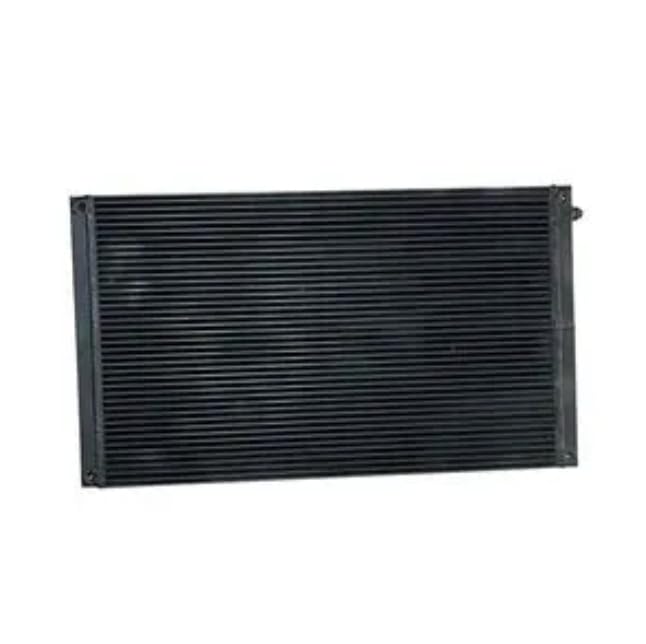

Ingersoll Rand Aftercooler – Best for High-Heat Applications

This Ingersoll Rand Aftercooler (Model varies by compressor) dramatically reduces air temperature immediately after compression. By cooling the air fast, it forces moisture to condense before entering your tank. It’s ideal for high-CFM industrial compressors operating in hot, humid environments.

THB 1/2″ Particulate Filter Water Trap Separator- Best Budget Solution

For a simple, effective solution, the THB Automatic Tank Drain Kit installs easily on your compressor’s drain valve. It automatically expels accumulated water on a set timer, preventing rust buildup. This recommended add-on is perfect for home workshop compressors where manual draining is often forgotten.

The Science Behind Water in Your Air Compressor

Understanding why compressors produce water requires basic physics. The process is called atmospheric condensation, and it’s unavoidable when compressing humid air.

How Compression Creates Condensation

Air holds invisible water vapor. When you compress air, you squeeze its molecules closer together. This action also increases the air’s temperature significantly.

As the hot, compressed air travels into your cooler storage tank, it rapidly cools down. Cool air cannot hold as much moisture as warm air. The excess water vapor is forced to change from a gas to a liquid.

• The Squeeze: Intake air is compressed, raising its pressure and temperature.
• The Cooling: Hot air moves to the cooler tank, losing heat.
• The Release: Cooling reduces air’s moisture capacity, forcing condensation.

Key Factors That Increase Water Production

Not all compressors produce equal amounts of water. Several environmental and operational factors directly influence moisture levels. Controlling these can help minimize the problem.

High ambient humidity is the primary culprit. Your compressor’s workload and the surrounding air temperature also play major roles.

Key Takeaway: Water in your tank is condensed atmospheric moisture. It’s not a leak or a malfunction, but a natural result of compressing humid air.

Factor	Effect on Moisture	Why It Matters
High Humidity	Dramatically Increases	More water vapor in intake air means more liquid output.
High Duty Cycle	Increases	Frequent compression cycles generate more heat and subsequent cooling.
Low Ambient Temperature	Increases	Cools the tank and air lines faster, accelerating condensation.
Lack of an Aftercooler	Increases	Allows hotter air into the tank, creating a steeper cooling slope.

How to Prevent Water Damage in Your Air System

Left unchecked, compressor moisture causes rust, tool damage, and ruined paint jobs. Effective prevention is essential for system longevity.

Essential Daily and Weekly Maintenance

Routine manual actions are your first defense against water accumulation. These simple habits prevent major problems. Consistency is more important than complexity.

1. Drain the Tank Daily: After use, open the drain valve at the tank’s bottom until air stops sputtering and only water flows out.
2. Check In-Line Filters: Weekly, inspect water traps and filter bowls for accumulation. Empty them before they overflow.
3. Monitor Air Tools: Occasionally spray a tool to check for water mist. This indicates a failing filter or excessive tank moisture.

Installing Effective Moisture Removal Equipment

For serious moisture control, add-on equipment is necessary. Different tools address the problem at various points in your system. A layered approach works best.

Pro Tip: Combine methods! Use a refrigerated dryer for general air, then a desiccant dryer for a specific, moisture-sensitive tool like a paint sprayer.

• Aftercoolers: Installed right after the compressor pump. They cool air before it enters the tank, causing early condensation you can drain easily.
• Refrigerated Air Dryers: These units chill compressed air to near-freezing, removing most moisture. Ideal for general shop air and multiple tools.
• Desiccant Air Dryers: Use absorbent materials like silica gel to strip water vapor. Best for achieving “bone-dry” air for painting or sandblasting.
• Coalescing Filters: Final-stage filters that capture tiny oil and water aerosols. Place them close to the point of use for maximum protection.

Troubleshooting Common Water-Related Compressor Problems

Even with prevention, water issues can arise. Recognizing the symptoms helps you diagnose and fix problems quickly. This guide addresses frequent moisture-related failures.

Identifying Signs of Excessive Moisture

Water damage often shows up in your tools and finished work. Catching these signs early prevents costly repairs. Look for these clear indicators.

• Rust in the Tank: Flakes of rust blowing from air tools or visible rust when inspecting the tank interior.
• Tool Corrosion & Failure: Pneumatic tools seizing up, losing power, or requiring more frequent oiling than normal.
• Ruined Paint Jobs: Fish eyes, blushing (a white haze), or poor adhesion in spray painting projects.
• Water in Air Lines: Seeing a mist or droplets of water spray from the air nozzle or tool exhaust.

Step-by-Step Diagnostic Checklist

Follow this logical process to find the source of your moisture problem. Start simple before investing in complex solutions.

Warning: Ignoring water in your system is the leading cause of premature air compressor and tool failure. Regular checks are non-negotiable.

1. Check the Drain Valve: Is the tank drained daily? Is the valve fully closing, or is it leaking air and moisture?
2. Inspect Filters & Traps: Are your in-line filters saturated or bypassing water? Replace clogged or old filter elements.
3. Evaluate Ambient Conditions: Has humidity spiked in your workspace? Seasonal changes greatly affect moisture production.
4. Review System Layout: Are air lines run through a cold space (like a basement), causing extra condensation?
5. Assess Equipment Scale: Is your current dryer or filter system undersized for your compressor’s CFM output?

This diagnostic path helps isolate the issue. Often, the fix is as simple as reinstating a daily drain routine or replacing a $20 filter.

Choosing the Right Air Dryer for Your Needs

Selecting an air dryer is the most effective long-term solution. The right choice depends on your climate, tools, and budget. This comparison helps you make an informed decision.

Comparing Refrigerated vs. Desiccant Dryers

These are the two main types of air dryers for workshops. They work on different principles and suit different applications. Understanding their limits is key.

Type	How It Works	Best For	Limitation
Refrigerated Dryer	Cools air to ~38°F, condensing moisture.	General shop air, multiple tools, moderate humidity.	Less effective in very cold ambient temperatures.
Desiccant Dryer	Air passes through moisture-absorbing beads (desiccant).	Critical applications: painting, sandblasting, pharmaceutical air.	Desiccant beads require periodic regeneration or replacement.

Key Specifications to Consider

Don’t just buy by dryer type. Match these critical specs to your compressor for optimal performance. An undersized dryer is a waste of money.

Rule of Thumb: Your dryer’s CFM (Cubic Feet per Minute) rating should equal or exceed your compressor’s CFM output at your working pressure (e.g., 90 PSI).

• CFM Capacity: This is the most important spec. It must meet your compressor’s output to effectively dry all the air produced.
• Maximum Operating Pressure (PSI): The dryer must withstand your compressor’s cut-out pressure, typically 125-175 PSI for many systems.
• Dew Point: This measures how dry the air is. A lower dew point (e.g., -40°F) means drier air. Desiccant dryers achieve lower dew points.
• Inlet Temperature: Ensure the dryer can handle the hot air temperature coming directly from your compressor pump.

Investing in a correctly sized dryer protects every tool downstream. It is a cornerstone of professional-grade air system maintenance.

Advanced Tips for Managing Air Compressor Condensation

Beyond basic drains and dryers, pro-level strategies can optimize your system. These advanced tips tackle moisture from installation to daily operation. Implement them for superior air quality.

Optimizing Your Air System Layout

How you pipe your shop greatly affects moisture accumulation. A poor layout creates natural water traps. Smart piping forces condensation to specific, drainable points.

• Slope Your Pipes: Install all air lines with a slight slope (1/4″ per foot) back toward the compressor or a drain leg.
• Use Drip Legs: Install T-fittings with vertical drip legs and drain valves at every drop to tools and at the end of main lines.
• Avoid Cold Zones: Route piping away from unheated spaces like basements or exterior walls where air will cool and condense.
• Loop Your System: A continuous loop main line maintains more consistent pressure and helps move moisture to central drains.

Seasonal and Environmental Adjustments

Your moisture control strategy should change with the weather. Summer humidity and winter cold present unique challenges. Be proactive, not reactive.

Expert Insight: The “dew point” is your enemy. It’s the temperature at which air condenses. Your goal is to keep your air lines and tools warmer than this point.

1. Summer (High Humidity): Increase drain frequency. Consider adding a refrigerated dryer if you don’t have one. Check filters weekly.
2. Winter (Cold Workshops): Insulate air lines in unheated spaces. Use pipe insulation to keep air temperature above the dew point. Drain tanks more often as cold metal accelerates condensation.
3. High-Use Periods: During intensive projects, install a temporary secondary filter/water trap right at the point of use for sensitive tools like paint sprayers.

Long-Term Consequences of Ignoring Compressor Water

Neglecting moisture control leads to expensive, cascading failures. The damage extends far beyond a rusty tank. Understanding these risks justifies the cost of prevention.

Direct Damage to Your Compressor and Tank

Water pooling in the tank initiates a destructive cycle. This internal corrosion weakens the entire system. The results are both dangerous and costly.

• Tank Rust and Failure: Persistent moisture causes pitting and thinning of the steel tank walls, creating a risk of catastrophic rupture under pressure.
• Pump Corrosion: Water can be drawn back into the compressor pump cylinders, washing away lubrication and causing scoring or seizure.
• Valve and Gasket Degradation: Moisture accelerates the wear on check valves, drain valves, and seals, leading to air leaks and reduced efficiency.

Downstream Tool and Application Failure

Wet air ruins your work and destroys expensive tools. The impact on your projects and equipment inventory is significant.

Cost Analysis: Replacing a ruined paint sprayer ($300+) and a corroded air tool ($150+) often exceeds the price of a quality refrigerated air dryer ($400-$600).

Application	Consequence of Wet Air	Result
Spray Painting	Water mixes with paint, causing fisheyes, blushing, poor adhesion.	Ruined finish, wasted materials, rework time.
Sandblasting	Moisture causes abrasive media to clump and clog the blast pot.	Inefficient blasting, downtime, media waste.
Pneumatic Tools	Internal rust, washed-out lubrication, seized motors.	Tool failure, expensive repairs/replacements.
Air Logic Systems	Corrosion in valves and cylinders, freezing in cold temps.	Unreliable automation, production stoppages.

Ultimately, the cost of prevention is always lower than the cost of repair. Protecting your system from water is non-negotiable for reliability and safety.

Step-by-Step Guide to Installing a Water Trap

Adding an in-line water trap is a simple, effective upgrade. It captures moisture before it reaches your tools. Follow this guide for a safe and proper installation.

Tools and Parts You Will Need

Gather all components before starting. This ensures a smooth installation without interruptions. Most items are available at hardware or automotive stores.

• In-line Filter/Water Trap: Choose a unit rated for your compressor’s PSI and CFM.
• Teflon Tape or Pipe Sealant: For sealing threaded connections to prevent air leaks.
• Adjustable Wrenches (2): To hold fittings securely while tightening.
• Extra Air Hose & Fittings: May be needed to extend your line to the trap’s location.

Installation Process in 5 Steps

Always depressurize your air system completely before beginning any work. Safety is the first priority. Then, follow this sequence.

Optimal Placement: Install the water trap as close to the point of use as possible. For whole-shop protection, place it after the regulator but before any hose splits.

1. Depressurize and Plan: Shut off the compressor, open the drain valve, and trigger a tool to bleed all pressure. Decide on the trap’s mounting location.
2. Mount the Bracket: Secure the trap’s mounting bracket to a wall or bench near your work area. Ensure it’s easily accessible for draining.
3. Connect the Inlet: Using Teflon tape on the threads, connect the trap’s INLET port to the air line coming from your compressor or regulator.
4. Connect the Outlet: Connect the trap’s OUTLET port to the air hose that runs to your tool. Double-check that flow direction is correct (marked on the trap).
5. Pressure Test: Close the trap’s drain valve. Turn on the compressor and pressurize the system. Check all connections for leaks with soapy water.

Once installed, make draining the trap part of your daily routine. This simple device dramatically extends the life of your pneumatic tools.

Conclusion: Mastering Moisture Control in Your Air Compressor

Water in your air compressor is a natural but manageable phenomenon. By understanding condensation science, you can implement effective solutions. Regular maintenance and proper equipment are your best defenses.

The key takeaway is proactive prevention over costly repair. Start by committing to daily tank drains and assess your need for a dryer or filter. Protecting your tools and projects is an investment that pays for itself.

Take action today by inspecting your system and installing a simple water trap. Share your success or questions in the comments below. Your dry, efficient air system awaits.

Frequently Asked Questions about Air Compressor Water

What is the best way to drain water from my air compressor tank?

The best method is to drain the tank daily after use. Open the manual drain valve at the tank’s bottom fully until air stops sputtering and only liquid water flows out. For convenience, install an automatic tank drain that expels moisture on a timer.

Always ensure the compressor is off and fully depressurized before draining. This prevents accidents and ensures you remove all accumulated condensate, protecting the tank from internal rust.

How can I tell if there’s too much water in my air compressor?

Clear signs include water spraying from your air tools or nozzles, rust particles in the air stream, and reduced tool performance. In spray painting, moisture causes fisheyes or a white, hazy blush on the finished surface.

Regularly check the drain valve output. If you’re releasing significant water daily, your environment is humid and you may need additional drying equipment like a refrigerated air dryer.

Is it normal for a new air compressor to produce water?

Yes, it is completely normal. Water production is not a defect but a result of physics. A new compressor will condense moisture from humid intake air just like an old one. The amount depends solely on your local humidity and compressor usage.

Focus on proper maintenance from day one. Establishing a routine to drain the new tank regularly is crucial to prevent rust from ever starting inside the pristine steel.

What is the difference between a water separator and an air dryer?

A water separator is a passive filter that removes liquid water and larger aerosols through centrifugal force or a baffle system. An air dryer actively processes the air to remove water vapor, typically by cooling (refrigerated) or absorbing it (desiccant).

Separators handle liquid water already formed. Dryers prevent the water from condensing in your lines by lowering the air’s dew point. For best results, use both in sequence.

Why does my compressor produce more water in the summer?

Summer air holds significantly more humidity, or water vapor. When this moisture-laden air is compressed and cooled inside your tank, a greater volume condenses into liquid. Higher ambient temperatures also increase the workload and heat cycle of the compressor.

This is why seasonal adjustments are key. Increase draining frequency during humid months and consider adding a dedicated dryer to handle the higher moisture load effectively.

Can water in my air compressor be dangerous?

Yes, primarily in two ways. First, internal tank rust weakens the steel, creating a risk of catastrophic tank rupture under high pressure. Second, water in air lines can freeze in cold temperatures, blocking tools and potentially causing pressure spikes.

The danger is often gradual. Consistent moisture management eliminates these safety hazards and ensures reliable, safe operation of your pneumatic system.

What is the most cost-effective solution for removing compressor moisture?

For most home shops, a combination of diligent manual draining and a quality in-line filter/water trap is the most cost-effective start. These traps are inexpensive and capture liquid water before it reaches your tools.

If humidity is consistently high, a refrigerated air dryer is the best value upgrade. It provides automatic, hands-free drying for multiple tools and pays for itself by preventing tool repairs.

How often should I replace the filters in my air system?

Inspect filter bowls monthly and replace filter elements according to the manufacturer’s schedule, typically every 6-12 months. Replace them immediately if you see water bypassing the filter or notice a pressure drop across the unit.

Usage dictates lifespan. A compressor running daily in a dusty, humid environment will require more frequent filter changes than one used occasionally. Always keep spare elements on hand.
