What To Do With Dash Cam Wire

Dash cam wires can be messy, but you don’t have to live with tangled cables. A clean setup enhances safety and keeps your car looking professional. Let’s fix this.

Many drivers ignore dangling wires, assuming they’re harmless. But loose cables can obstruct your view or damage interior panels. There’s a better way.

Best Cable Management Solutions for Dash Cam Wires

Vantrue S1 Cable Management Kit

The Vantrue S1 kit includes adhesive clips, wire channels, and trim tools for seamless dash cam wire concealment. Its low-profile design keeps cables secure without damaging your car’s interior. Ideal for routing wires along headliners and A-pillars.

Garmin Constant Power Cable (010-12494-00)

Garmin’s hardwiring kit (010-12494-00) eliminates dangling wires by connecting directly to your fuse box. It includes a mini-USB plug, fuse taps, and a 12V adapter for clean, permanent power. Perfect for parking mode compatibility.

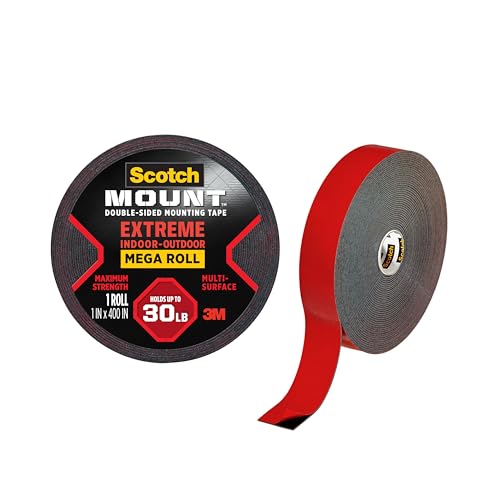

3M Scotch Extreme Mounting Tape

This heavy-duty tape (3M Scotch 414DC) securely holds dash cam wires in place without residue. It withstands heat and vibration, making it ideal for tucking cables under trim or along windshields. A budget-friendly, no-drill solution.

How to Hide Dash Cam Wires for a Clean, Professional Installation

Properly concealing dash cam wires isn’t just about aesthetics—it prevents distractions while driving and protects your car’s interior. The key is routing cables along natural pathways where they’ll stay secure and invisible. Here’s how professionals do it.

Route Wires Along the Headliner and A-Pillar

Most modern vehicles have a small gap between the headliner (ceiling fabric) and windshield where wires can be tucked. Use a plastic trim tool to gently pry the edge, then push the cable inward. For A-pillars (the vertical trim near the windshield):

• Check for airbags first – Never force wires behind panels marked with airbag symbols, as this could interfere with deployment.
• Use adhesive clips – Secure loose sections with Vantrue S1 clips, spacing them every 6–8 inches to prevent sagging.
• Avoid sharp bends – Tight kinks can damage wires over time. Maintain gentle curves for longevity.

Power Source Options and Their Trade-Offs

Where you connect your dash cam affects wire length and visibility. Here are the three most common methods:

1. Cigarette lighter (12V socket) – Easiest but leaves exposed wires. Use a coiled cable or tuck excess under the dashboard.
2. Hardwiring to the fuse box – Requires a Garmin Constant Power Cable but eliminates dangling wires completely. Best for permanent setups.
3. OBD-II port – Provides constant power without splicing wires. Some kits (like BlackVue Power Magic Pro) include voltage cutoffs to prevent battery drain.

Securing Wires in High-Vibration Areas

Areas like door frames and under dashboards experience constant movement. For these spots:

• 3M Scotch tape works for light cables, but add zip ties near connectors for strain relief.
• Split loom tubing protects wires that run near pedals or sharp metal edges.
• Test before finalizing – Move steering wheel and seats through full range to ensure no pinching occurs.

Pro tip: Leave 2–3 inches of slack near the dash cam for adjustments. Too much tension can pull the camera out of alignment over time.

Advanced Techniques for Hardwiring Your Dash Cam Safely

Hardwiring your dash cam provides the cleanest installation but requires careful planning to avoid electrical issues. This method taps into your vehicle’s fuse box for permanent power, eliminating visible wires while enabling parking mode functionality.

Step-by-Step Hardwiring Process

Follow this professional approach for reliable results:

1. Locate your fuse box – Most vehicles have one under the dashboard (driver’s side) or in the engine compartment. Consult your owner’s manual for exact location and fuse types.
2. Choose the right fuses – Use a circuit tester to identify switched (ignition-controlled) and constant power sources. Ideal candidates include:
   • Switched: Radio, power outlets, or wipers
   • Constant: Door locks or alarm system
3. Install fuse taps correctly – Insert the tap with the original fuse closest to the terminals. The dash cam fuse should be on the outward position (typically 5A for most cameras).

Essential Safety Considerations

Electrical work demands caution to prevent damage:

• Disconnect the battery before working on the fuse box to avoid short circuits.
• Use proper gauge wire – Most dash cams require 18-22 AWG. Thicker wires won’t fit fuse taps properly.
• Add an inline fuse within 12 inches of the power connection for secondary protection.

Troubleshooting Common Issues

Even proper installations can encounter problems:

• Camera won’t power on – Verify fuse tap orientation (try flipping it) and check for blown fuses.
• Parking mode not working – Ensure you’ve connected to both constant and switched power sources if using a dual-wire kit.
• Battery drain – Install a voltage cutoff device (like BlackVue Power Magic Pro) to prevent discharge below 12.4V.

Pro Tip: Label all modified fuses with washi tape for easy identification during future maintenance or troubleshooting.

Optimizing Dash Cam Wire Management for Different Vehicle Types

Vehicle design significantly impacts your wire routing strategy. What works in a compact sedan may fail in an SUV or convertible. Understanding your vehicle’s architecture ensures both safety and professional results.

Vehicle-Specific Routing Challenges and Solutions

Vehicle Type	Primary Challenge	Recommended Solution
Sedans/Compact Cars	Tight headliner gaps (often <5mm)	Use flat ribbon cables instead of round wires
SUVs/Trucks	Longer wire runs (12-18ft typically needed)	Install extension cables with solder-seal connectors
Convertibles	No permanent headliner for concealment	Route through door sills using wire channels

Special Considerations for Luxury Vehicles

Modern luxury cars present unique challenges with their advanced electronics:

• Canbus systems require specialized hardwire kits (like Thinkware iVolt) to avoid triggering error messages
• Heated windshields demand low-profile adhesive mounts to avoid damaging heating elements
• Noise-sensitive audio systems may need ferrite cores on power cables to prevent interference

Professional Installation Techniques

Auto installers use these advanced methods for flawless results:

1. Panel removal – Properly detach A-pillar trims using trim tools (not screwdrivers) to avoid broken clips
2. Wire fishing – Use glow rods or fish tape to navigate complex pathways between panels
3. Strain relief – Secure cables within 3″ of connectors using silicone adhesive or specialized clips

Climate Considerations

Extreme temperatures affect wire management:

• Cold climates: Use silicone-insulated wires that remain flexible below freezing
• Hot climates: Avoid adhesives that melt above 150°F; use mechanical clips instead
• Humid areas: Apply dielectric grease to all connectors to prevent corrosion

Pro Tip: For leased vehicles, use non-marking clips and avoid modifying factory wiring to maintain warranty compliance.

Maintaining and Troubleshooting Your Dash Cam Wiring System

Proper maintenance ensures your dash cam wiring remains functional and discreet over time. This section covers professional-grade upkeep techniques and how to diagnose common wiring issues before they become serious problems.

Routine Maintenance Schedule

Follow this quarterly checklist to maintain optimal performance:

• Visual inspection – Check for exposed wires, loose connections, or adhesive failure (especially important after extreme temperature changes)
• Connection testing – Verify power continuity using a multimeter (should show 12.4-14.4V when engine running)
• Cable flexibility test – Gently bend wires at stress points to check for insulation cracks
• Mounting hardware check – Ensure all clips and adhesives maintain full holding strength

Advanced Diagnostic Techniques

When issues arise, use this systematic troubleshooting approach:

1. Power failure diagnosis
   • Test fuse continuity with a multimeter
   • Check voltage at each connection point
   • Inspect ground connection (should show <0.5Ω resistance to chassis)
2. Video signal issues
   • Verify HDMI/USB connections aren’t pinched or kinked
   • Test with alternative cables to isolate the problem

Professional Repair Methods

For damaged wiring, use these industry-approved repair techniques:

Damage Type	Repair Method	Tools Required
Minor insulation damage	Liquid electrical tape application	Brush applicator, alcohol wipes
Broken conductor	Solder-seal butt connectors	Heat gun, wire strippers
Corroded terminals	Contact cleaner + dielectric grease	Cotton swabs, small brush

Preventative Measures

Extend your wiring system’s lifespan with these pro tips:

• Apply UV-resistant loom tubing for sun-exposed sections
• Use braided cable sleeves in high-vibration areas
• Install rubber grommets where wires pass through metal
• Label all wiring modifications with heat-shrink tags

Safety Note: Always disconnect the battery before performing any wiring repairs to prevent short circuits or accidental airbag deployment.

Future-Proofing Your Dash Cam Wiring Installation

As vehicle technology evolves, your dash cam wiring needs to accommodate both current requirements and future upgrades. This section explores advanced planning strategies to ensure your installation remains functional through vehicle changes and technological advancements.

Technology Integration Considerations

Modern vehicles increasingly incorporate advanced driver assistance systems (ADAS) that impact wiring:

• Camera integration – Many new vehicles have factory-installed cameras that may interface with aftermarket dash cams
• Power management systems – Start-stop technology requires specialized voltage regulators to prevent camera shutdown during engine restarts
• Data network integration – Some premium dash cams now connect to vehicle CAN bus for enhanced functionality

Upgrade-Ready Wiring Strategies

Component	Current Standard	Future-Proofing Upgrade
Power Cable	Standard 22AWG wire	18AWG oxygen-free copper with dual insulation
Connectors	Standard USB/Mini-USB	Waterproof IP67-rated connectors
Data Transfer	Wi-Fi only	Hardwired Ethernet with CAT6 cable

Long-Term Durability Factors

Consider these material science principles for lasting installations:

1. Thermal cycling resistance – Choose wiring with silicone insulation rated for -40°C to 105°C
2. Vibration toleranceStandard adhesive mountsMechanical clamp mounts with vibration dampenersData TransferWi-Fi onlyHardwired Ethernet with CAT6 cable


   Long-Term Durability Factors




   Consider these material science principles for lasting installations:





   1. Thermal cycling resistance – Choose wiring with silicone insulation rated for -40°C to 105°C


   2. Vibration tolerance – Use braided cable sleeves in engine compartments


   3. Chemical resistance – Select wiring resistant to oil, coolant, and cleaning products





   Emerging Technologies to Watch




   The next generation of dash cam systems will likely incorporate:





   • Vehicle-to-cloud connectivity requiring constant 5G data connections


   • AI processing modules that may need additional power circuits


   • 360° camera systems demanding multi-cable harnesses





   Pro Tip: Install a dedicated wiring conduit during initial installation to simplify future upgrades. This allows easy cable replacement without disassembling trim panels.




   Professional-Grade Cable Routing Techniques for Flawless Installations




   Achieving truly professional dash cam wiring requires mastering advanced routing techniques that account for vehicle dynamics, environmental factors, and long-term reliability. These methods go beyond basic tucking to create durable, nearly invisible installations.




   Advanced Concealment Methods




   Top installers use these specialized techniques for seamless integration:





   • Headliner channel routing – Create custom pathways using nylon fishing line to pull wires through tight spaces without damaging fabric


   • Pillar airbag avoidance – Use magnetic tracer wires to identify safe routing paths around curtain airbag deployment zones


   • Modular wiring systems – Implement Deutsch connectors for easy camera removal while maintaining hidden wiring





   Vehicle-Specific Routing Protocols



























   Vehicle Feature	Routing Challenge	Professional Solution
   Panoramic Sunroof	Limited headliner space	Route along side rail using adhesive wire channels
   Heated Steering Wheel	Clock spring interference	Use spiral wrap around existing wiring harness
   Active Noise Cancellation	Microphone interference	Install shielded cables with proper grounding




   Professional Tools and Materials




   Invest in these specialized items for superior results:





   1. Trim removal kits with nylon pry tools (avoid metal to prevent scratches)


   2. Wire lubricant for pulling through tight grommets (use silicone-based formulas)


   3. Heat-activated shrink tubing for seamless wire splices (3:1 ratio preferred)


   4. Digital multimeter with min/max recording for voltage fluctuation analysis





   Integration with Vehicle Electronics




   For advanced installations, consider these integration points:





   • Reverse camera trigger – Tap into backup light circuit for automatic view switching


   • OBD-II integration – Capture vehicle speed and GPS data through direct connection


   • Dome light circuit – Use for parking mode activation based on door opening





   Pro Tip: Always perform a “wiggle test” after installation – vigorously shake wiring runs to identify any potential chafing points before final reassembly.




   Mastering Power Management for Optimal Dash Cam Performance




   Proper power management is the cornerstone of reliable dash cam operation, affecting everything from video quality to system longevity. This section explores professional power optimization techniques that go beyond basic wiring to ensure flawless performance in all conditions.




   Advanced Power Delivery Systems




   Professional installers use these power management strategies for different use cases:



























   Usage Scenario	Power Solution	Technical Specifications
   24/7 Surveillance	Dual-battery isolator system	30A relay, deep-cycle battery, low-voltage cutoff (11.8V)
   Ride-Share Vehicles	OBD-II power with data logging	5V/2A regulated output, CAN bus integration
   Fleet Vehicles	Centralized power distribution	Waterproof enclosure, fused outputs for multiple cams




   Voltage Optimization Techniques




   Maintain stable power delivery with these professional methods:





   1. Capacitor buffering – Install 10,000μF capacitors near the camera to smooth voltage fluctuations


   2. Active voltage regulation – Use DC-DC converters to maintain steady 5V output regardless of input variations


   3. Ground loop elimination – Implement star grounding with 10AWG main ground wire to reduce electrical noise





   Comprehensive Power Diagnostics




   Professional installers perform these validation tests:





   • Voltage drop test – Maximum 0.3V drop from fuse box to camera at full load


   • Current waveform analysis – Check for alternator ripple exceeding 100mV peak-to-peak


   • Temperature monitoring – Wiring shouldn’t exceed 60°C (140°F) during continuous operation





   Future-Ready Power Solutions




   Emerging technologies require upgraded power infrastructure:





   • AI dash cams may need dedicated 12V/3A circuits for neural processing units


   • 5G uplink modules require clean power with less than 50mV noise


   • Radar integration demands isolated power supplies to prevent interference





   Pro Tip: Install a power monitoring module (like BlackVue B-124X) that logs voltage history – this helps diagnose intermittent electrical issues before they cause recording failures.




   Conclusion




   Proper dash cam wire management transforms your setup from messy to professional-grade. We’ve explored everything from basic concealment to advanced power solutions and vehicle-specific routing techniques.




   Remember, a well-installed system enhances safety, preserves your car’s interior, and ensures reliable recording. The right approach depends on your vehicle type, usage needs, and technical comfort level.




   Whether you choose simple adhesive clips or a full hardwired installation, following these professional methods guarantees optimal results. Regular maintenance checks will keep your system functioning perfectly for years.




   Ready to upgrade your setup? Start with one section of this guide and work systematically. Your future self will thank you when every drive begins with clean, uninterrupted recording.




   Frequently Asked Questions About Dash Cam Wire Management




   What’s the safest way to route wires near airbags?




   Always identify airbag locations (marked with “SRS” or “Airbag” labels) before routing wires. Use specialized airbag-compatible clips that release during deployment, keeping wires at least 3 inches from marked zones. Never wedge wires behind airbag modules or obstruct deployment paths.




   For A-pillars with curtain airbags, route wires along the outer edge using low-profile adhesive channels. Professional installers often use magnetic tracers to verify safe pathways without disassembling critical safety components.




   How can I prevent battery drain when using parking mode?




   Install a voltage cutoff device like the BlackVue Power Magic Pro, which monitors battery levels. Set the cutoff between 12.2V-12.4V (varies by climate) to maintain starting capability. Hardwire kits with built-in voltage protection are ideal for this purpose.




   For extended parking surveillance, consider a secondary battery system. Lithium iron phosphate (LiFePO4) batteries designed for dash cams provide 24+ hours of recording without risking your starter battery.




   Why does my dash cam keep losing power intermittently?




   This usually indicates a poor connection or voltage fluctuations. First check fuse taps are fully seated and wires aren’t pinched. Test voltage at the camera during operation – it should stay above 5V ±5% for USB-powered models.




   If using the cigarette lighter, try a different socket as some vehicles reduce power when off. For hardwired setups, upgrade to a regulated power supply to compensate for alternator voltage spikes common in modern vehicles.




   What’s better: adhesive clips or trim removal for wire concealment?




   Adhesive clips work well for temporary installations and leased vehicles, but may fail in extreme temperatures. 3M VHB tape lasts 2-3 years, while cheaper adhesives often fail within months. Always clean surfaces with alcohol first.




   Trim removal provides permanent, professional results but requires skill. Use nylon pry tools and study your vehicle’s service manual to avoid broken clips. For most DIYers, a hybrid approach (clips + partial trim tucking) offers the best balance.




   How do I extend dash cam wires without causing signal loss?




   For power extensions, use 18AWG or thicker copper wire and solder-seal connectors. Maintain proper polarity and add ferrite cores near the camera to reduce noise. Never extend USB cables beyond 15 feet without active repeaters.




   For rear camera connections, use RG-59 coaxial cable for video signals. This prevents interference better than standard wires. Always test extended connections before final installation to verify stable video quality.




   Can dash cam wires interfere with my car’s electronics?




   Properly installed dash cams rarely cause interference. However, avoid routing wires parallel to factory harnesses – cross them at 90° angles instead. Keep power cables at least 6 inches from radio antennas or navigation systems.




   If you notice electrical issues after installation, add ferrite chokes near both ends of the power cable. This suppresses high-frequency noise that might affect sensitive systems like TPMS or keyless entry.




   What’s the best way to manage wires in a convertible?




   Convertibles require weatherproof solutions. Route wires through door sills using waterproof wire channels, then up the windshield frame. Use marine-grade heat shrink on all connections and silicone-sealed grommets where wires enter the trunk.




   For temporary installations, consider a magnetic-mounted camera with wireless charging. Some models like the Garmin 47 use this system, eliminating wires entirely while maintaining video quality.




   How often should I inspect my dash cam wiring?




   Perform visual checks every 3 months or after extreme weather. Look for cracked insulation, loose connections, or adhesive failure. Test power delivery annually using a multimeter – voltage drop shouldn’t exceed 0.5V from source to camera.




   Before long trips, verify all connections and consider applying fresh adhesive to critical mounts. In snowy climates, check for ice damage to exposed wiring sections during winter months.
