What Size Fuse For a Car Battery Charger?

For most standard car battery chargers, a 5-amp fuse is commonly recommended. This size provides essential protection for your charger and vehicle’s electrical system. Choosing the wrong fuse can lead to equipment damage or safety hazards.

This complete guide will demystify fuse selection, ensuring your charging process is both safe and efficient. You’ll learn the proven methods to determine the perfect fuse amperage for your specific setup.

What Size Fuse Do You Need for a Car Battery Charger?

Using the wrong fuse size for your car battery charger is a common but risky mistake. If the fuse is too small, it will blow frequently and interrupt charging. If it’s too large, it may fail to protect your charger and battery from dangerous overcurrent situations, potentially causing overheating or damage. Most chargers already have internal protection, but when wiring directly to a battery or using inline setups, choosing the correct fuse rating becomes critical.

As a rule of thumb, your fuse should match or slightly exceed the charger’s maximum output current. For example, a 10A charger typically pairs with a 10A–15A fuse. Always check your charger’s manual and wiring specifications to avoid guesswork.

For a deeper breakdown of charger types and compatible setups, check this complete guide to choosing the right car battery charger for your needs.

Quick Fix

A smart charger with built-in safety protections can eliminate much of the fuse confusion. The NOCO Genius10 is a reliable option that integrates advanced safety features.

NOCO Genius10 10A Smart Battery Charger

• 10A output ideal for most automotive batteries
• Built-in overcurrent, overcharge, and spark-proof protection
• Automatically adjusts charging to prevent fuse-related issues
• Compatible with AGM, lithium, and deep-cycle batteries

Still Unsure? Here’s How to Get It Right Every Time

If you’re still uncertain, the safest approach is to match your fuse to both your charger rating and your wiring capacity—not just one or the other. Underrated wiring with an oversized fuse is just as dangerous as no fuse at all.

To make a confident choice, explore these detailed guides:

• Best 10-amp battery chargers for safe and efficient charging
• Top battery chargers for reviving completely dead batteries
• Complete NOCO Genius10 review and real-world performance insights

Choosing the right fuse isn’t just about protection—it’s about ensuring your entire charging system works safely and efficiently every time.

How to Determine the Correct Fuse Size for Your Charger

Selecting the right fuse is critical for safety. The correct size protects your charger and vehicle from electrical faults. You must consider your charger’s output and the battery’s needs.

Charger Amperage and Fuse Ratings

The fuse amperage should closely match your charger’s output. A standard trickle charger outputs 1-2 amps. For these, a 2-amp to 5-amp fuse is typically perfect.

Smart or multi-stage chargers may have higher outputs. A 10-amp charger, for example, requires a fuse rated slightly above its maximum output. This prevents nuisance blows during normal operation.

Key Takeaway: Always check your charger’s manual for its maximum output amperage. Your fuse should be rated 125% to 150% of this number for optimal protection.

Step-by-Step Fuse Selection Guide

Follow this simple process to find your ideal fuse size safely.

1. Identify Charger Output: Locate the output amperage on your charger’s label or manual. This is your key number.
2. Apply the Safety Multiplier: Multiply the output amperage by 1.25. For a 4-amp charger: 4 x 1.25 = 5 amps.
3. Choose Standard Size: Select the nearest standard fuse size (e.g., 5A, 7.5A, 10A). Round up, never down, from your calculation.

Common Fuse Types for Battery Chargers

Not all fuses are the same. Using the correct physical type is just as important as the amperage rating.

• Blade Fuses (ATO/ATC): The most common type. They plug easily into inline fuse holders on charger cables.
• Glass Tube Fuses: Often found on older charger models. They require a specific cylindrical fuse holder.
• ANL or Mega Fuses: Used for very high-amperage commercial chargers. These are for heavy-duty applications.

Charger Type	Typical Output	Recommended Fuse Size
Trickle/Maintainer	1-2 Amps	2A – 5A
Standard Smart Charger	4-10 Amps	7.5A – 15A
Heavy-Duty/Engine Start	15-50 Amps	20A – 60A

Safety Precautions and Fuse Installation Tips

Proper fuse installation prevents electrical fires and equipment damage. Safety should always be your top priority when working with car battery chargers. Following these guidelines ensures a secure and effective setup.

Essential Safety Steps Before Installation

Always disconnect power before handling any electrical components. Unplug your battery charger from the wall outlet first. Then, disconnect the charger clips from the vehicle’s battery terminals.

Work in a dry, well-ventilated area away from sparks or flames. Batteries can emit flammable hydrogen gas. This simple precaution significantly reduces the risk of an accident.

Warning: Never use a fuse with a higher amperage rating than recommended to “stop it from blowing.” This defeats its purpose and creates a serious fire hazard.

How to Install an Inline Fuse Correctly

Most modern chargers use an inline fuse holder on the positive cable. Correct placement is non-negotiable for proper circuit protection.

1. Locate the Holder: Find the inline fuse compartment on your charger’s red (positive) cable. It is usually a small, plastic box.
2. Insert the Fuse: Open the holder and insert the new fuse, ensuring it snaps firmly into the metal contacts. Match the fuse’s orientation to the diagram.
3. Secure and Test: Close the holder securely. Reconnect your charger to the battery, then plug it into the outlet to verify operation.

Troubleshooting Common Fuse Problems

Understanding why a fuse blows helps diagnose underlying issues. A blown fuse is a symptom, not just a nuisance.

• Fuse Blows Immediately: This indicates a dead short circuit. Check for pinched, frayed, or bare wires touching metal.
• Fuse Blows During Charging: Often caused by a faulty battery with an internal short. Test the battery’s health separately.
• Corroded Fuse Contacts: Corrosion increases resistance and heat. Clean contacts with electrical contact cleaner and a small brush.

Always keep spare fuses of the correct amperage in your garage. Replace a blown fuse only after identifying and correcting the root cause. This proactive approach keeps your charging system safe and reliable.

Advanced Considerations for Different Charger Types

Not all battery chargers are created equal. The ideal fuse size and type can vary based on your charger’s technology. Understanding these differences ensures optimal protection for your specific equipment.

Fuse Requirements for Smart vs. Manual Chargers

Smart chargers adjust their output dynamically, which affects fuse selection. Manual chargers provide a constant, fixed rate of charge.

• Smart/Microprocessor Chargers: These can have brief surge currents during mode changes. A slow-blow (time-delay) fuse is often better here, as it tolerates temporary surges without blowing.
• Manual/Trickle Chargers: They deliver a steady, low current. A standard fast-acting fuse is perfectly suitable and provides immediate protection.

Pro Tip: Check if your charger’s manual specifies a “T” (slow-blow) or “F” (fast-acting) fuse type. Using the wrong characteristic can lead to premature failure or inadequate protection.

Choosing a Fuse for High-Capacity and AGM Batteries

Larger batteries and advanced technologies like AGM or Lithium may use higher-amperage chargers. A 12-volt deep-cycle battery for a marine application is a common example.

Chargers for these applications often range from 15 to 40 amps. You must calculate the fuse size based on the charger’s maximum output rating, not the battery’s capacity. For a 20-amp charger, a 25-amp or 30-amp fuse is appropriate.

When to Upgrade Your Fuse and Wiring

If you consistently blow fuses at the correct rating, your setup may need an upgrade. This signals that your system is operating at its limit.

1. Assess Wire Gauge: The wire in your charger cable must be thick enough to handle the current. Undersized wires overheat, causing the fuse to blow.
2. Check Connections: Loose or corroded connections create high resistance. This generates heat and increases the current draw, blowing the fuse.
3. Consider the Duty Cycle: Continuous high-amperage charging requires robust components. Upgrading to a higher-quality fuse holder and heavier-gauge cable may be necessary.

Matching your fuse, wiring, and charger creates a harmonious and safe system. This proactive approach extends the life of all your equipment and provides peace of mind.

Maintenance and Long-Term Care for Your Charging System

Proper maintenance ensures your battery charger and its fuse operate reliably for years. A little routine care prevents most common electrical problems. This proactive approach saves time, money, and ensures safety.

Routine Inspection Checklist for Fuse and Cables

Perform a quick visual inspection every few months or before a major charging session. This simple habit catches small issues before they become big failures.

• Check for Corrosion: Look for green or white powder on fuse contacts and battery clips. Clean immediately with a wire brush and baking soda solution.
• Inspect Cable Integrity: Examine the entire length of the charger cables for cracks, cuts, or exposed wire. Frayed insulation is a shock and short-circuit hazard.
• Verify Secure Connections: Ensure the fuse sits snugly in its holder and that all cable connections are tight. Loose connections cause arcing and heat.

Maintenance Tip: Keep your charger and cables off damp garage floors. Store them coiled neatly in a dry place to prevent wire damage and corrosion.

When to Proactively Replace a Fuse

Fuses don’t last forever, even if they haven’t blown. Age and environmental factors can degrade their performance over time.

Consider replacing the fuse in your charger every 2-3 years as part of general maintenance. This is especially important if the fuse has been subjected to moisture or several minor overloads. A degraded fuse may not blow at its rated amperage, creating a risk.

Building a Simple Charger Maintenance Kit

Assemble a small kit with essential items. This prepares you for quick fixes and ensures you always have the right parts on hand.

1. Spare Fuses: Keep several spares of the correct amperage and type (e.g., 5A, 10A blade fuses).
2. Basic Tools: Include a fuse puller, small wire brush, and multimeter for testing continuity and voltage.
3. Cleaning Supplies: Pack electrical contact cleaner and a small amount of dielectric grease to protect connections after cleaning.

Regular maintenance is the key to trouble-free battery charging. By caring for the fuse and cables, you protect your investment in both the charger and your vehicle’s battery. A well-maintained system is a safe and effective one.

Expert Tips for Optimal Charger Performance and Safety

Beyond basic fuse selection, expert practices can enhance your charger’s efficiency and lifespan. These professional tips address common pitfalls and optimize the entire charging process. Implementing them ensures you get the most from your equipment safely.

Proper Charger Connection Sequence to Protect the Fuse

The order in which you connect your charger matters. A wrong sequence can cause a spark that stresses or blows the fuse instantly.

1. Connect to Battery First: Attach the red (positive) clamp to the battery’s positive terminal. Then attach the black (negative) clamp to a clean, unpainted metal point on the vehicle’s frame or engine block.
2. Plug into Wall Outlet Last: Only after the clamps are securely connected should you plug the charger into the electrical outlet. This prevents dangerous arcing at the battery terminals.
3. Reverse for Disconnection: When finished, unplug from the wall first, then disconnect the negative clamp, followed by the positive clamp.

Expert Insight: Connecting the negative cable to the chassis (instead of the battery’s negative terminal) helps prevent a spark near the battery, where flammable gases may be present.

Environmental Factors That Affect Fuse Longevity

Where and how you use your charger impacts component life. Extreme conditions accelerate wear and can cause premature failure.

• Moisture and Humidity: Causes corrosion on fuse contacts and terminals. Always store your charger in a dry place and avoid using it in the rain.
• Temperature Extremes: Very hot or cold environments can affect the fuse’s internal element. Garage use is fine, but avoid leaving the charger in direct summer sun or winter freezing temps.
• Vibration: Constant shaking can loosen connections or damage the fuse element. Secure the charger on a stable surface, not on the vehicle itself.

Signs Your Entire Charging System Needs Professional Help

While fuse issues are often DIY-friendly, some symptoms indicate a deeper problem. Recognize when it’s time to consult a professional or replace the charger.

If the charger body becomes unusually hot, emits a burning smell, or makes buzzing/humming noises, unplug it immediately. These are warning signs of internal failure. Repeatedly blowing fuses with the correct amperage after checking all connections also suggests an internal fault in the charger’s electronics.

Adopting these expert habits builds a strong foundation for safe battery maintenance. They protect your investment and give you confidence every time you connect your charger.

Final Summary and Actionable Recommendations

You now have a complete understanding of fuse selection for your car battery charger. Let’s consolidate the key information into a clear, actionable plan. This final summary helps you make the right decision quickly and confidently.

Quick-Reference Fuse Sizing Chart

Use this chart as your primary guide for selecting the correct fuse amperage. Match your charger’s type and output to the recommended fuse size.

Your Charger’s Output	Charger Type Examples	Recommended Fuse Size
1-2 Amps	Basic trickle maintainer	3A to 5A Fast-Acting Fuse
4-8 Amps	Standard smart charger	7.5A to 10A Slow-Blow Fuse
10-15 Amps	Heavy-duty/repair charger	15A to 20A Slow-Blow Fuse
15+ Amps	Commercial/engine start	Consult manufacturer’s manual

The Golden Rule: When in doubt, always refer to your charger’s user manual. The manufacturer’s specified fuse rating is the most authoritative guide for your specific model.

Your Step-by-Step Action Plan

Follow this simple, four-step plan to ensure a safe and correct setup every time.

1. Identify: Locate your charger’s maximum output amperage on its label or in the manual.
2. Calculate: Multiply that number by 1.25 to find the minimum fuse rating needed.
3. Select: Choose the closest standard fuse size, rounding up. Purchase a quality brand like Bussmann or Littelfuse.
4. Install & Inspect: Install the fuse correctly in the positive cable’s inline holder. Perform routine visual inspections as part of your maintenance.

Where to Purchase Quality Fuses and Accessories

Source your components from reputable suppliers to guarantee safety and performance. Avoid generic, no-name fuses from unknown sources.

• Automotive Parts Stores: (e.g., AutoZone, O’Reilly, NAPA) offer knowledgeable staff and reliable brands.
• Electrical Supply Houses: Ideal for finding specific slow-blow types or bulk purchases.
• Online Retailers: Verify seller ratings and stick to official brand storefronts or major retailers for authenticity.

Best Fuses for a Car Battery Charger – Detailed Comparison

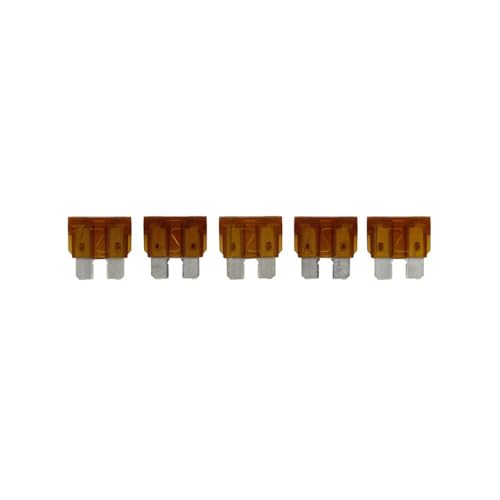

Bussmann BP/ATC-5 – Best Overall Choice

The Bussmann BP/ATC-5 5-amp blade fuse is the industry standard for most 12V trickle chargers. Its precise amperage rating ensures reliable protection against overloads. This fuse is ideal for maintaining standard car and motorcycle batteries safely over extended periods.

Littelfuse 0298300.ZXH – Premium High-Performance Option

For high-amperage smart chargers, the Littelfuse 0298300.ZXH 10-amp fuse offers robust performance. It features excellent surge protection and a ceramic construction that resists heat. This is the recommended choice for chargers used on larger batteries like those in trucks or SUVs.

ATO Inline Fuse Holder with 7.5A Fuse – Best Custom Kit

This complete ATO kit includes a water-resistant inline holder and a 7.5-amp fuse. It provides a versatile, professional-grade solution for creating or repairing your charger’s cable. It’s the ideal option for DIY enthusiasts who need a flexible and durable setup.

Conclusion: Mastering Fuse Selection for Safe Battery Charging

Choosing the correct fuse size for your car battery charger is a simple yet critical safety task. It protects your equipment and prevents electrical hazards. This guide has provided all the expert knowledge you need.

The key takeaway is to always match the fuse to your charger’s output. Use the 125% multiplier rule and select a quality fuse from a trusted brand. This small component is your first line of defense.

Check your charger’s manual today and verify your current fuse size. Order the correct replacements to build your maintenance kit. Taking this action ensures peace of mind with every charge.

You are now equipped to charge your battery safely and effectively for years to come.

Frequently Asked Questions about Car Battery Charger Fuses

What is the purpose of a fuse in a battery charger?

The fuse is a critical safety device that protects the charger and your vehicle’s electrical system. It acts as a weak link designed to fail first during an electrical overload or short circuit. This prevents excessive current from damaging expensive components or causing a fire.

When too much current flows, the thin metal strip inside the fuse melts. This breaks the circuit and stops the flow of electricity immediately. Think of it as a sacrificial component that saves your charger and battery from more serious damage.

How do I know what amp fuse my battery charger needs?

Find your charger’s maximum output amperage, listed on its label or in the manual. Multiply this number by 1.25 to calculate the minimum fuse rating. Then, select the closest standard fuse size, always rounding up to the next available value.

For example, a 6-amp charger needs a minimum 7.5-amp fuse (6 x 1.25 = 7.5). You would then install a standard 7.5-amp or 10-amp fuse. Never round down, as this will cause the fuse to blow under normal operating conditions.

Can I use a 10 amp fuse instead of a 5 amp fuse?

No, you should not substitute a 10-amp fuse for a 5-amp fuse. This practice, called over-fusing, is dangerous. The larger fuse will not blow during a moderate overload, allowing wires to overheat and potentially start an electrical fire.

The fuse amperage is precisely calibrated. Using a higher rating defeats its protective purpose. Always replace a blown fuse with one of the exact same amperage and type specified by the charger manufacturer.

What happens if my battery charger fuse keeps blowing?

A repeatedly blowing fuse indicates an underlying problem. Common causes include a short circuit in the charger cables, a faulty battery with an internal short, or corroded connections creating high resistance. The fuse is doing its job by alerting you to this fault.

Do not keep replacing the fuse without investigating. Check the entire cable for damage, clean all terminals, and test the battery’s health. If the problem persists, the charger itself may have an internal fault requiring professional repair.

Is it better to use a circuit breaker or a fuse for a battery charger?

Both provide over-current protection, but they have different advantages. A fuse is simple, cheap, and very reliable but must be replaced after it blows. A resettable circuit breaker is more convenient for frequent use, as you can simply press a button to restore power.

For most home users, a standard fuse is perfectly adequate. A circuit breaker is an excellent upgrade for a permanent charging station or if you experience nuisance trips and want the convenience of a reset without needing spare fuses on hand.

What Happens If I Use the Wrong Size Fuse?

Using an incorrect fuse compromises your entire charging system’s safety. The consequences depend on whether the fuse is too large or too small.

• Fuse Too Large (Over-fusing): This is dangerous. The fuse won’t blow during an overload, allowing wires to overheat and potentially start a fire.
• Fuse Too Small (Under-fusing): This is a nuisance. The fuse will blow repeatedly under normal operation, even though nothing is wrong with the charger or battery.

Remember: A fuse is a calibrated safety device. Its sole job is to fail predictably to protect the more expensive and dangerous components in the circuit.

Can I Use a Circuit Breaker Instead of a Fuse?

Yes, a resettable circuit breaker can be an excellent alternative to a disposable fuse. They serve the same primary function of over-current protection.

Breakers are ideal for permanent installations or if you frequently experience nuisance trips. Simply press a button to reset them after a fault is cleared. Ensure the breaker’s amperage rating matches the required fuse size.

How Do I Know If My Charger Fuse is Blown?

Diagnosing a blown fuse is usually straightforward. Follow these steps to check your charger’s fuse status.

1. Visual Inspection: Remove the fuse and look at the metal strip inside a blade fuse or the wire in a glass fuse. A broken element or discolored glass indicates it’s blown.
2. Multimeter Test: Set a multimeter to continuity mode. Touch the probes to each end of the fuse. A reading of “OL” or no beep means the fuse is blown.
3. Symptom Check: The most obvious sign is a completely dead charger that shows no power lights or display when plugged in correctly.

Always replace a blown fuse with an identical type and rating. Investigating the cause of the failure is just as important as the replacement itself for long-term safety.

Where is the fuse usually located on a car battery charger?

The fuse is typically housed in an inline fuse holder on the charger’s positive (red) cable. Look for a small, often rectangular, plastic compartment a short distance from the battery clamp. Some older or industrial models may have the fuse inside the main charger unit’s casing.

Always unplug the charger and disconnect it from the battery before attempting to access or replace the fuse. Consult your user manual for the exact location and specific replacement instructions for your model.

What is the difference between a slow-blow and fast-acting fuse for a charger?

A fast-acting fuse blows immediately when its current rating is exceeded. A slow-blow (time-delay) fuse can tolerate a brief surge of higher current for a short period before blowing. This is crucial for devices with startup surges, like some smart chargers.

Using the wrong type can cause problems. A fast-acting fuse might blow unnecessarily during a charger’s normal startup surge. Check your charger manual to see which type is recommended for your specific equipment.

How often should I replace the fuse on my battery charger?

Replace the fuse only when it has blown due to a fault. There is no scheduled replacement interval for a functioning fuse. However, you should inspect it periodically for signs of corrosion or damage as part of your regular charger maintenance.

It is wise to keep spare fuses of the correct rating in your garage. Proactively replacing a fuse that is several years old and shows signs of corrosion or heat stress is a good practice to ensure reliable protection.
