What Does a Check Valve Do on an Air Compressor?

A check valve on an air compressor is a one-way gate for air. It allows air to flow into the tank but prevents it from flowing back out. This simple component is critical for safety and efficiency.

Its main job is to stop compressed air and pressure from escaping back through the pump. This protects the motor from damage and maintains tank pressure. It ensures your compressor is ready for the next task.

Best Check Valves for Air Compressors – Detailed Comparison

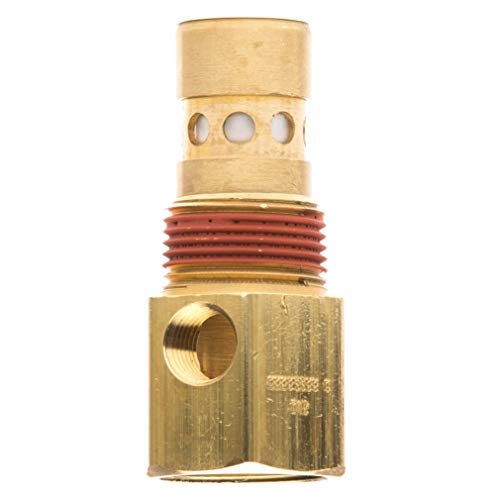

Ingersoll Rand 85582286 Check Valve – Best Overall Choice

This heavy-duty brass check valve is a direct OEM replacement for many popular compressor models. It features a durable stainless steel spring and poppet for reliable, long-term performance. Its 1/4″ NPT ports make it a versatile and easy-to-install choice for most workshop compressors.

DEWALT D55168 Check Valve Assembly – Best for DIY & Home Use

Specifically designed for DEWALT portable compressors, this assembly ensures perfect fit and function. It includes the valve, gasket, and retaining clip for a complete repair. It’s an affordable and reliable solution to restore lost pressure and protect your pump motor from backflow damage.

Milton S-684 1/4″ MPT x 1/4″ FPT Brass Check Valve – Best Universal Budget Option

Milton’s industrial-grade brass valve is ideal for general-purpose applications. It offers excellent corrosion resistance and handles pressures up to 300 PSI. Its standard 1/4″ NPT threads provide broad compatibility, making it a top recommended part for generic compressor repairs and custom air systems.

How an Air Compressor Check Valve Works: Core Function Explained

Understanding the check valve’s role is key to compressor maintenance. It operates on a simple but critical one-way principle. This mechanism is the cornerstone of system pressure and pump protection.

The One-Way Flow Principle

The valve contains a spring-loaded poppet or a ball inside a brass or stainless steel body. When the compressor pump runs, air pressure forces the internal mechanism open. This allows air to pass into the storage tank.

Once the pump cycles off, pressure in the tank immediately tries to equalize. The tank pressure pushes the poppet or ball back against its seat. This creates an airtight seal, preventing backflow.

Key Functions and Benefits

This simple action delivers several vital benefits for your air system. Each function contributes directly to performance and longevity.

• Maintains Tank Pressure: It keeps compressed air sealed in the tank after the pump stops. This ensures tools have immediate air available on demand.
• Protects the Pump Motor: By blocking reverse airflow, it prevents the pump from spinning backwards. This eliminates stressful startup loads and potential motor burnout.
• Prevents Oil Siphoning: In lubricated models, it stops oil from being sucked from the pump into the air lines. This protects your tools and air quality.

Key Takeaway: The check valve acts as a pressure-locking gate. Its primary jobs are to seal pressure in the tank and act as a protective barrier for the pump and motor, ensuring efficient and safe operation.

Visualizing the Airflow Path

Follow the air’s journey to see the valve’s role. Air enters through the intake filter and is compressed by the pump. The high-pressure air then flows through the open check valve and into the storage tank.

When the pump shuts off, the path instantly reverses direction. Tank pressure slams the valve’s internal seal shut. The air is now trapped, completing the cycle until the next tool trigger pull.

Common Check Valve Problems and Warning Signs

A failing check valve causes noticeable performance issues. Recognizing the symptoms early prevents further damage. Prompt diagnosis saves money on repairs and energy costs.

Top Symptoms of a Bad Check Valve

Watch for these clear indicators of a compromised valve. They often appear together, signaling a need for inspection.

• Air Leaking from the Unloader Valve or Pump: You’ll hear a constant hissing of air escaping near the pump head after shutdown. This is the most common and definitive sign of a failed seal.
• Compressor Struggling to Start (“Hard Starting”): The motor labors or hums because it must fight against trapped tank pressure. This puts extreme stress on the motor windings and capacitors.
• Pressure Loss When Idle: The tank gauge slowly drops to zero when the compressor is not in use. This indicates the valve cannot hold a seal, allowing air to bleed backwards.

Diagnostic Tip: To confirm a leak, listen closely to the pump head and pressure switch area after the compressor shuts off. A healthy system will be silent. A hissing sound points directly to a faulty check or unloader valve.

Primary Causes of Check Valve Failure

Understanding why valves fail helps in prevention. Most issues stem from contamination or wear.

Contamination and Corrosion

Moisture and debris are the main enemies. Over time, water from compressed air causes internal corrosion. This pits the sealing surface or gums up the moving parts.

Dirt particles from the intake or flaking tank scale can lodge in the valve. This prevents the poppet or ball from seating fully, creating a leak path.

Normal Wear and Tear

The valve’s internal spring can fatigue with thousands of cycles. A weakened spring won’t close the seal forcefully. This leads to slow leaks and pressure bleed-down.

Repeated impact from the sealing surface also causes wear. The metal-on-metal contact eventually creates grooves. These imperfections break the perfect seal needed for holding pressure.

How to Replace a Faulty Air Compressor Check Valve

Replacing a bad check valve is a straightforward repair for most DIYers. It requires basic tools and attention to safety. Following the correct steps ensures a leak-free and reliable fix.

Step-by-Step Replacement Guide

Always start by making the system safe. Then, methodically remove the old valve and install the new one.

1. Depressurize and Disconnect: Turn off the compressor, unplug it, and drain all air from the tank via the drain valve. Open a connected air tool to verify zero pressure.
2. Locate and Remove the Old Valve: Find the check valve between the pump head and the tank. Use two wrenches—one to hold the fitting, one to turn the valve—to prevent damage. Unscrew it from its ports.
3. Clean and Prepare the Threads: Inspect the male threads on the pump and tank fittings. Clean them thoroughly with a wire brush. Apply fresh Teflon tape or pipe sealant made for compressed air systems.
4. Install the New Check Valve: Screw the new valve in by hand to avoid cross-threading. Tighten with a wrench, but avoid over-torquing. Reconnect any unloader or pressure switch lines as they were.

Essential Tools and Safety Tips

Gathering the right tools before starting makes the job smoother. Safety is non-negotiable when working with pressurized systems.

Required Tools & Materials

• Adjustable Wrenches (Two): Essential for holding fittings and turning the valve without twisting pipes.
• PTFE Thread Seal Tape or Pipe Dope: Use a high-quality sealant rated for air systems to ensure an airtight connection.
• Safety Glasses: Protect your eyes from debris and any residual pressure release.

Critical Safety Precautions

Never assume the tank is empty by the gauge alone. Always use the manual drain valve to completely depressurize the system. Verify there is no pressure by triggering a connected air hose.

Ensure the compressor is unplugged or the circuit breaker is off. This prevents accidental startup while your hands are near moving parts. Double-check all connections for leaks with a soapy water solution after reassembly.

Check Valve Maintenance and Prolonging Its Lifespan

Proper maintenance drastically extends your check valve’s service life. Preventive care is simpler and cheaper than reactive repairs. A few consistent habits keep your entire air system running smoothly.

Routine Maintenance Best Practices

Incorporate these actions into your regular compressor care routine. They target the primary causes of valve failure.

• Drain the Tank Daily: Expel accumulated moisture from the tank’s drain valve after each use. This prevents corrosive water from reaching and degrading the valve’s internal components.
• Keep Intake Air Clean: Regularly inspect and clean or replace the compressor’s air intake filter. A clean filter stops abrasive dust and debris from entering the pump and valve.
• Use an Air Dryer or Filter: Install an in-line air dryer or filter downstream for demanding applications. This reduces the moisture and oil content in the air that cycles back through the system.

Pro Tip: The single most effective maintenance task is consistent tank draining. Moisture control directly combats corrosion, which is the leading cause of check valve seal failure over time.

When to Clean vs. Replace Your Valve

Not every valve issue requires a new part. Knowing the difference saves time and money.

Attempting a Cleaning

Cleaning is viable for minor contamination. If the valve is only slightly gummed up with oil or light debris, a solvent soak can help.

Disassemble the valve if possible and soak metal parts in a degreaser. Use a soft brush to clean the seat and poppet. This can restore function if the sealing surfaces are still smooth and undamaged.

Opting for Full Replacement

Replacement is necessary when wear or corrosion is present. Visible pitting on the brass body or the metal sealing seat means the valve cannot seal properly.

If the internal spring is broken or has lost its tension, cleaning is ineffective. A compromised spring cannot provide the force needed for a positive seal, leading to persistent leaks.

Situation	Action	Reason
Slow pressure leak, minor debris	Clean	Contamination may be removable without damaging seals.
Visible corrosion, pitting, broken spring	Replace	Physical damage permanently compromises the sealing ability.
Persistent leak after cleaning	Replace	Indicates worn sealing surfaces that cannot be restored.

Check Valve vs. Unloader Valve: Key Differences Explained

Check valves and unloader valves are often confused but have distinct roles. Both are located near the pump head and work together. Understanding their separate functions is crucial for accurate troubleshooting.

Primary Function and Location

Each valve serves a unique purpose in the compressor’s cycle. Their operation is sequential yet interdependent.

• Check Valve Function: Its job is purely to act as a one-way check for air. It allows flow into the tank and seals to prevent backflow. It is installed directly in the line between the pump and the tank.
• Unloader Valve Function: Its job is to relieve pressure from the pump head after shutdown. It vents the trapped air between the pump and the check valve to zero psi. It is typically part of the pressure switch assembly.

Simple Analogy: Think of the check valve as a door that locks air in the tank. The unloader valve is like a separate vent that empties the hallway (pump head) behind that locked door so the motor can restart easily.

How They Work Together in the Cycle

Their collaboration defines the compressor’s start-stop sequence. A failure in either component disrupts the entire process.

During Shutdown

When the tank reaches cut-out pressure, the pressure switch trips. This stops the motor and simultaneously triggers the unloader valve. The unloader valve opens, bleeding off the pressure trapped in the pump discharge line.

Meanwhile, the check valve has already snapped shut. It isolates the full tank pressure from this venting process. The tank remains pressurized and ready for use.

During Startup

When air is used and pressure drops, the pressure switch closes. The unloader valve closes first, sealing the pump head. The motor then starts against zero initial pressure, enabling an easy start.

The pump begins compressing air, which builds pressure against the check valve. Once pressure exceeds tank pressure, the check valve opens, and air flows into the tank, restarting the cycle.

Valve	Primary Role	Failure Symptom
Check Valve	Seals air in the tank	Constant air leak from pump, tank loses pressure when idle
Unloader Valve	Vents pump head pressure	Motor struggles/hums on startup, but tank may hold pressure

Expert Tips for Choosing the Right Replacement Check Valve

Selecting the correct replacement valve ensures a perfect fit and reliable operation. Using the wrong part can cause leaks or connection failures. Follow these expert guidelines to make an informed purchase.

Critical Specifications to Match

Never guess on these three essential specifications. Mismatches here will prevent a proper installation.

• Thread Size and Type (NPT): This is the most crucial factor. Measure the existing valve’s ports. Common sizes are 1/4″, 3/8″, or 1/2″ National Pipe Taper (NPT). Ensure you note male (MPT) or female (FPT) ends.
• Maximum Pressure Rating (PSI): The valve’s rating must meet or exceed your compressor’s cut-out pressure. A standard 200 PSI compressor needs a valve rated for at least 200-250 PSI for a safety margin.
• Port Configuration: Identify if it’s a straight-through valve or has a side port for an unloader line. The physical shape and number of ports must match your compressor’s plumbing setup.

Material and Quality Considerations

The valve’s construction directly impacts its durability and resistance to corrosion.

Body Material Choices

Brass is the most common and cost-effective material for general use. It offers good corrosion resistance and is easy to machine for precise threads. Stainless steel is superior for high-moisture environments or industrial applications.

Avoid cheap, pot-metal valves. They are prone to cracking and rapid corrosion. Investing in a quality material ensures a longer service life and fewer future problems.

Internal Seal and Spring

Look for valves with a durable poppet or ball seal. Nitrile or Buna-N rubber seals are common and effective. The internal spring should be made of stainless steel to resist fatigue and corrosion.

A robust spring ensures a positive, quick seal every time the pump cycles off. This is key to maintaining tank pressure and protecting the motor.

Buying Checklist: Before ordering, confirm 1) Thread Size & Type, 2) Pressure Rating, 3) Port Configuration, and 4) Material. When in doubt, use your compressor’s make and model number to search for an OEM (Original Equipment Manufacturer) part for a guaranteed fit.

Conclusion: The Critical Role of Your Air Compressor Check Valve

The check valve is a small but vital guardian of your air system. It efficiently seals tank pressure and protects your pump motor from damage. Understanding its function helps you maintain peak compressor performance.

The key takeaway is simple: listen for leaks and drain your tank regularly. This proactive approach prevents most valve failures. When problems arise, you can now confidently diagnose and replace it.

Use the product recommendations and step-by-step guide for your repair. Share this article with a fellow DIYer who might be troubleshooting their compressor. Your knowledge can save time and money.

With proper care, your check valve will ensure reliable air power for years to come. You now have the expertise to keep your workshop running smoothly.

Frequently Asked Questions about Air Compressor Check Valves

What is the main purpose of a check valve on an air compressor?

The primary purpose is to act as a one-way gate for compressed air. It allows air to flow from the pump into the storage tank. Once the pump stops, it instantly seals to prevent that high-pressure air from flowing backwards.

This backflow prevention is critical. It maintains tank pressure for immediate tool use and protects the pump motor from the stress of starting against pressure. Essentially, it locks the air in the tank where it belongs.

How can I test if my air compressor check valve is bad?

The most reliable test is a simple listening check after shutdown. When the compressor reaches pressure and turns off, immediately listen near the pump head and pressure switch. A distinct, continuous hissing sound indicates air escaping through a faulty valve seal.

You can also monitor the tank pressure gauge when the compressor is off. If the needle slowly drops to zero over minutes or hours, the valve is not holding a seal. These two symptoms together confirm a failing check valve.

What happens if you run an air compressor without a check valve?

Running without a check valve makes the compressor virtually useless. All the compressed air would immediately flow backwards through the pump when it cycles off. Your tank would never build or hold any meaningful pressure for tools.

More dangerously, it forces the motor to start under a full load of tank pressure. This causes hard starting, excessive amp draw, and will quickly burn out the motor’s start capacitor or windings, leading to costly repairs.

Can a check valve be repaired, or must it always be replaced?

Most check valves are sealed units and are designed as replaceable cartridges. While you can sometimes disassemble and clean one clogged with light debris, this is often a temporary fix. Internal wear or corrosion usually requires replacement.

If the brass body is corroded, the sealing seat is pitted, or the internal spring is broken, repair is not feasible. For the reliability and safety of your system, replacement with a new, high-quality valve is almost always the recommended solution.

What is the difference between a check valve and a pressure relief valve?

Their functions are completely different. A check valve controls directional airflow (one-way into the tank). A pressure relief valve is a critical safety device that vents excess tank pressure if the primary pressure switch fails.

The relief valve is set to open at a pressure far above the normal operating range (e.g., 150 PSI operating, 200 PSI relief). It is a fail-safe to prevent catastrophic tank rupture, while the check valve is a routine operational component.

How do I know what size check valve my compressor needs?

You must match three key specifications: thread size, pressure rating, and port configuration. First, identify the thread size (e.g., 1/4″ NPT) by measuring the old valve or your compressor’s manual. Second, ensure the valve’s PSI rating meets your compressor’s maximum pressure.

Finally, note the physical layout—whether it’s a straight-through valve or has a side port for an unloader line. The safest method is to use your compressor’s make and model number to find the correct OEM (Original Equipment Manufacturer) replacement part.

Why does my new check valve still leak air after installation?

A leak after installing a new valve typically points to an installation error. The most common cause is insufficient or improper thread sealing. Ensure you used high-quality PTFE tape or pipe sealant on all male threads and tightened the valve adequately.

Also, check for cross-threading during installation, which can damage the new valve’s threads or the compressor’s ports. Finally, inspect the mating surfaces on the pump and tank for old, hardened sealant that may be preventing a flat, tight seal.

What is the best way to prevent my check valve from failing prematurely?

The single best preventive practice is rigorous moisture control. Drain the air tank completely after every use to prevent corrosive water from reaching the valve. This combats the primary cause of failure: internal corrosion and seal degradation.

Additionally, maintain a clean air intake filter to keep abrasive dust out of the system. Using an in-line air dryer for painting or sandblasting tasks also significantly extends the life of all pneumatic components, including the check valve.

Can I clean a check valve instead of replacing it?

Sometimes, but it depends on the failure cause. You can attempt cleaning if the issue is minor oil gumming or light debris. Soak the disassembled valve in a degreaser and scrub gently.

However, replace the valve if you see corrosion, pitting, or a broken spring. Worn sealing surfaces cannot be restored by cleaning and will continue to leak.

Why is air still leaking after I installed a new check valve?

A post-installation leak usually points to an installation error. The most common cause is improper thread sealing. Ensure you used PTFE tape or pipe sealant on all male threads.

Also, check that the valve is fully tightened and that you didn’t cross-thread it. Finally, inspect the mating surfaces on the pump and tank for old sealant or damage.

How often should a check valve be replaced?

There’s no fixed timeline; replacement is based on performance, not age. A quality valve can last for many years with proper maintenance. The key indicator is the onset of symptoms like air leaks or pressure loss.

With excellent moisture control and clean intake air, you may never need to replace it. Neglect can cause failure in a much shorter time.

Quick Troubleshooting: Hearing a hiss after shutdown? It’s likely the check valve. Is the motor straining to start? The unloader valve may be faulty. Tank pressure dropping overnight? Confirm the check valve seal first.

Does the check valve orientation matter during installation?

Yes, absolutely. Check valves have a specific flow direction marked by an arrow on the body. The arrow must point from the pump toward the air tank. Installing it backwards will completely block airflow into the tank.

Can a bad check valve damage my compressor motor?

Yes, a failed check valve is a common cause of motor damage. If it leaks, the motor must cycle on more frequently, causing wear. If it fails completely, the motor may try to start against full tank pressure, leading to burned-out start capacitors or windings.
