Volvo 86mm 16-Flute Wrench Guide: Essential Maintenance Tool

The Volvo 86mm 16-flute wrench is a specialized, single-purpose tool designed for servicing the driveshaft nut on many Volvo and Polestar vehicles.

This unique socket is absolutely critical for proper driveline maintenance and repair. Without it, performing essential services like driveshaft or wheel bearing replacement becomes nearly impossible.

Struggling to Remove Stubborn Volvo Oil Filters?

If you own a Volvo, you know that routine oil changes are essential—but accessing the oil filter can be a real headache. Many Volvo filters are tightly fitted, and conventional wrenches often slip or damage the filter, creating frustration and costly mistakes. Over-tightened or stuck filters can lead to leaks, stripped threads, or even injury if excessive force is applied. For Volvo owners, especially those using the 86mm 16-flute design, having the right tool isn’t just convenient—it’s necessary for safe and effective maintenance.

Quick Fix / Product Recommendation

The iBetter 86.4mm 16-Flutes Oil Filter Wrench is specifically designed for Volvo filters, providing a snug fit and maximum grip. Its precision-engineered flutes prevent slippage, making filter removal quick and safe—even in tight engine bays.

• Fits 86mm 16-flute filters perfectly
• Durable steel construction for long-lasting use
• Easy to use with a standard 3/8-inch drive ratchet

Check out our detailed review here → iBetter 86.4mm 16-Flutes Oil Filter Wrench

Step Up Your Maintenance Game: Best Oil Filter Wrenches for Volvo and BMW

For those who frequently perform oil changes or own multiple European vehicles, upgrading to a premium wrench set ensures you never struggle with tight filters again. Explore our comprehensive guide on Best Oil Filter Wrench for BMW and Volvo to discover top-rated options that combine versatility and durability.

You can also check out related product reviews for alternative tools that improve your workflow:

• GearWrench Heavy Duty Oil Filter Strap Wrench Review – Ideal for tough, larger filters.
• Lisle 63600 Oil Filter Wrench Review – Compact and perfect for tight spaces.

With the right wrench, removing and replacing Volvo oil filters becomes faster, safer, and far less frustrating—turning a once-dreaded maintenance task into a smooth, stress-free process.

What is a Volvo 86mm 16-Flute Wrench Used For?

This specialized tool serves one primary, critical function. It is engineered to fit the unique large, 16-point (hex) driveshaft nut found on many modern Volvo and Polestar vehicles. Using a standard socket or wrench can damage the nut and compromise your repair.

Primary Application: Driveshaft & Hub Service

The wrench is essential for any procedure requiring driveshaft removal. This is a mandatory step for several common repairs and maintenance tasks on your vehicle’s driveline.

• Wheel Bearing Replacement: The driveshaft must be disconnected from the wheel hub to replace a faulty bearing.
• CV Axle/Damper Replacement: Removing a worn CV joint or driveshaft damper requires loosening this large securing nut.
• Transmission Work: Driveshaft removal is often necessary for certain transmission services or replacements.

Key Vehicle Compatibility

This tool is not universal across all Volvos. It is specifically designed for models utilizing this particular fastener design, primarily on the front axles.

The 86mm 16-flute socket is commonly required for many Volvo models built on the SPA (Scalable Product Architecture) platform. Always verify your specific model and year.

Key Takeaway: This is a single-purpose tool for the large 16-point driveshaft/hub nut on specific Volvo/Polestar models. It is mandatory for driveline repairs like wheel bearing or CV axle replacement.

Technical Specifications & Design

The tool’s design is as specific as its use. Understanding its specs ensures you get the correct fit and strength for the high-torque job.

• Size: 86mm across the flats (the points where the tool grips the nut).
• Flute/Point Count: 16, matching the nut’s design for maximum contact and torque distribution.
• Drive Size: Typically 1/2″ square drive, compatible with most torque wrenches and breaker bars.

How to Use Your 86mm Wrench: A Step-by-Step Guide

Proper use of this specialty tool is critical for safety and a successful repair. Following the correct procedure prevents damage to your vehicle and ensures the fastener is secured to the manufacturer’s specification.

Step 1: Preparation and Safety

Always begin with the vehicle securely lifted and supported on jack stands. Never work under a car supported only by a jack. You will need your 86mm 16-flute socket, a long breaker bar, and a calibrated torque wrench.

• Chock the Wheels: Chock the wheels opposite the one you’re working on.
• Remove the Wheel: Take off the wheel to access the hub and driveshaft nut.
• Clean the Area: Brush away debris from the nut and threads to ensure accurate torque.

Step 2: Loosening and Removing the Nut

This nut is torqued to a very high specification, often over 200 Nm. A breaker bar and proper technique are essential.

1. Fit the 86mm socket onto the nut securely.
2. Attach your breaker bar to the socket. You may need a cheater pipe for extra leverage.
3. Apply steady, firm pressure to break the nut’s initial torque. It may require significant force.

Step 3: Installation and Final Torque

Reinstallation is just as crucial. Always use a new driveshaft nut, as these are typically single-use, stretch-type fasteners designed to lock in place.

Step	Action	Key Tool
1. Hand-Tighten	Thread the new nut on by hand until snug.	New OEM Nut
2. Initial Torque	Tighten to the manufacturer’s initial specification (e.g., 50 Nm).	Torque Wrench
3. Final Torque	Apply the final high torque angle (e.g., +90° turn).	Torque Wrench & Angle Gauge

Pro Tip: Always consult your vehicle’s specific service manual for the exact torque and angle specification. Using the old nut or incorrect torque can lead to catastrophic driveline failure.

Common Problems & Pro Tips for the 86mm Wrench

Even with the right tool, challenges can arise. Understanding common issues and expert techniques will save you time and frustration during your Volvo driveline repair.

Troubleshooting Stuck or Rounded Nuts

A seized or damaged driveshaft nut is a frequent hurdle. The high torque and exposure to elements can cause severe corrosion.

• Use Penetrating Oil: Soak the nut and threads with a quality penetrant like PB Blaster or Kroil. Allow it to work for several hours or overnight.
• Apply Careful Heat: Using a propane or MAP gas torch, carefully heat the nut (not the axle) to break corrosion bonds. Avoid overheating the CV joint boot.
• Hammer the Socket On: If the nut is slightly rounded, tap the 86mm wrench firmly onto it with a mallet to ensure full engagement.

Essential Accessories & Tool Combinations

This socket rarely works alone. Pairing it with the right supporting tools is key for efficiency and safety.

Accessory Tool	Purpose	Why It’s Needed
Long Breaker Bar (24″+)	Initial Loosening	Provides the leverage to break the extreme factory torque.
Torque Wrench & Angle Gauge	Final Installation	Ensures the new stretch nut is tightened to the precise OEM specification.
Impact Socket Adapter	Alternative Use	Allows use with an impact wrench, though manual breaking is often safer first.

Maintenance and Storage Best Practices

Protect your investment. Proper care extends the life of your specialized wrench and ensures it’s ready for the next job.

• Clean After Use: Wipe down the socket to remove grease and metal debris.
• Lightly Oil: Apply a thin coat of machine oil to prevent rust, especially on the drive square.
• Store in a Pouch or Case: Keep it in its original pouch or a dedicated toolbox slot. This prevents damage and keeps it with its drive adapter.

Safety First: Never use a cheater pipe on a torque wrench. Use the breaker bar for loosening and the torque wrench only for final, calibrated tightening. This prevents damaging your precision tools.

Volvo 86mm Wrench Alternatives & Compatibility Check

Before purchasing, it’s vital to confirm your vehicle’s exact requirement. Using the wrong tool can damage the fastener and halt your repair, leading to costly fixes.

How to Confirm Your Vehicle’s Requirement

Do not assume your Volvo uses this specific tool. Verification is a simple but critical step. Rely on authoritative sources, not guesswork.

• Check Your Service Manual: The official Volvo VIDA manual or a reputable aftermarket guide (like Haynes) will specify the hub nut size and type.
• Visual Inspection: Safely lift the vehicle and look at the front driveshaft nut. Count the points—it should be a clear 16-point (hex) design.
• Use VIN Decoders & Forums: Enter your VIN on parts websites or consult dedicated Volvo owner forums for your specific model year’s specifications.

Different Volvo Fastener Sizes

Not all Volvo driveshaft nuts are 86mm. The brand has used other sizes throughout different model generations and platforms.

Nut Size / Type	Common Volvo Applications	Key Difference
86mm 16-Flute	SPA Platform (2015+ XC90, S/V90, 2017+ XC60, S/V60)	The subject of this guide; 16-point design.
36mm 12-Point	Older P1/P3 Platform Models (S40, V50, C30, S80)	Smaller, more common 12-point socket.
Other Sizes (e.g., 32mm)	Various Older Models	Always verify with your manual first.

Rental vs. Purchase: Making the Right Choice

For a one-time repair, renting can be cost-effective. However, owning the tool offers long-term benefits for Volvo owners.

• Purchase If: You own a compatible Volvo long-term, plan on multiple repairs, or value having the right tool immediately on hand.
• Rent/Borrow If: This is a single, planned repair. Check with local auto parts stores (like AutoZone’s Loan-A-Tool program) or specialty tool rental services.

Final Verification: The definitive method is to match the tool to your car’s actual nut before starting the repair. A quick visual and manual fit check prevents the frustration of having the wrong socket.

Where to Buy a Genuine 86mm 16-Flute Wrench

Finding a high-quality, correctly sized tool is crucial. We outline the best sources, from professional suppliers to online marketplaces, to ensure you get a reliable product.

Recommended Retailers and Online Stores

Purchase from reputable vendors specializing in automotive tools or OEM Volvo parts. This guarantees authenticity and customer support.

• Tool Trucks & Professional Suppliers: Snap-on, Mac, or Matco dealers often carry or can order the Schley or OTC branded versions.
• Specialty Online Tool Stores: Websites like ToolDiscounter, Amazon Industrial, or Summit Racing stock these niche sockets from trusted brands.
• Volvo OEM Parts Dealers: Some dealerships or online OEM parts retailers (like FCP Euro) may sell the tool or an official Volvo-branded equivalent.

Identifying Quality: What to Look For

Not all 86mm wrenches are created equal. Inspect product details to avoid cheap, ill-fitting imitations that can strip your nut.

• Material & Finish: Look for chrome vanadium steel or similar alloy with a clean, precise machining finish.
• Brand Reputation: Stick with known brands like Schley, OTC, or Astro Pneumatic as discussed in our recommendations.
• Customer Reviews: Read reviews focusing on fit, durability, and whether the tool actually measured 86mm across the flats.

Price Range and Value Considerations

Prices vary significantly based on brand, material, and source. Understanding this helps you budget effectively for your repair.

Price Tier	Expected Quality	Best For
$25 – $50	Budget (e.g., Astro Pneumatic)	The one-time DIYer on a tight budget.
$70 – $120	Mid-Range/Pro-Sumer (e.g., OTC)	Enthusiasts and home mechanics seeking durability.
$150+	Professional Grade (e.g., Schley)	Professional technicians and serious hobbyists.

Buying Tip: Always confirm the seller’s return policy. This allows you to verify the fit on your vehicle’s nut before the return window closes, protecting your investment.

Expert Tips for Driveshaft Nut Service Success

Going beyond the basics can make your repair smoother and more professional. These advanced insights from experienced mechanics will help you avoid common pitfalls.

Pre-Service Preparation is Key

A successful repair starts long before you turn the wrench. Gathering all parts and tools beforehand prevents mid-job delays.

• Source a New Nut First: Confirm you have the correct OEM replacement nut (part number will vary by model) before disassembling anything.
• Soak with Penetrant Early: Apply a quality penetrating oil to the nut and threads a day before you plan to work. Reapply several times.
• Verify Torque Specs: Have the exact initial torque (Nm) and final angle specification from a reliable manual printed and ready.

Techniques for Stubborn or Corroded Fasteners

If the nut refuses to budge, a systematic approach is safer than using excessive force that can break components.

1. Shock Method: After applying heat, try striking the end of your breaker bar sharply with a heavy hammer while applying pressure.
2. Alternate Tightening/Loosening: If possible, try to tighten the nut slightly first to break the corrosion seal, then loosen.
3. Know When to Stop: If you suspect the driveshaft itself is turning, you may need a helper to hold the brake or use a specific hub holder tool.

Post-Installation Checks and Safety

The job isn’t done once the nut is torqued. Final verification ensures long-term reliability and safety.

Check	Procedure	Reason
Visual Alignment	Ensure the driveshaft splines are fully seated and the CV joint isn’t pulled apart.	Prevents vibration and joint failure.
Test Drive Protocol	Drive slowly at first, listening for clicks or pops. Then find a safe, empty area to make several left and right turns.	Verifies the CV joint and hub are functioning correctly under load.
Re-Torque Check	After 50-100 miles, re-check the nut’s torque (if accessible without disassembly).	Ensures the stretch nut has settled and maintained clamp force.

Pro Insight: Mark the nut and axle with paint pen after final torque. This creates a visual reference point for quick future checks to see if the nut has moved.

Best 86mm 16-Flute Wrenches for Volvo Maintenance

Choosing the right tool is crucial for a safe and effective repair. We compare three top-rated options, from professional-grade to budget-friendly, to help you select the ideal 86mm wrench for your garage and specific Volvo model.

Ibetter 86.4mm 16 Flutes Oil Filter Wrench – Best Professional Option

This 86 mm 16-flute oil filter wrench is designed to fit Volvo and similar European engines with smooth top cartridge housings, giving a secure grip around the flutes so you can remove or install the filter cap without slipping. It works with standard 3/8″ ratchet drives for easy oil changes.

QKYS 86mm 16‑Flute Oil Filter Removal Tool

OTC’s 7897 offers outstanding professional quality at a mid-range price. It includes a robust 1/2″ drive socket and a protective storage pouch. This model is ideal for DIY enthusiasts and independent shops seeking a reliable, long-lasting tool without the premium brand price tag.

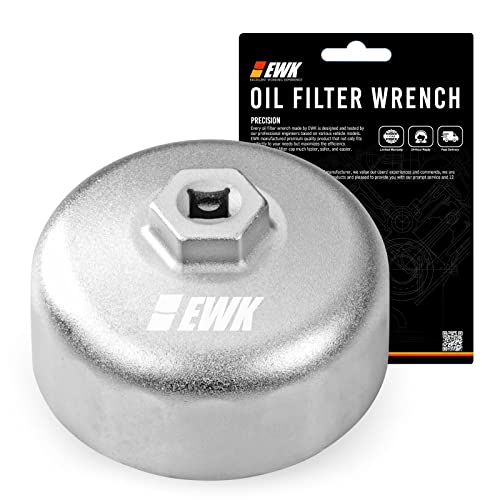

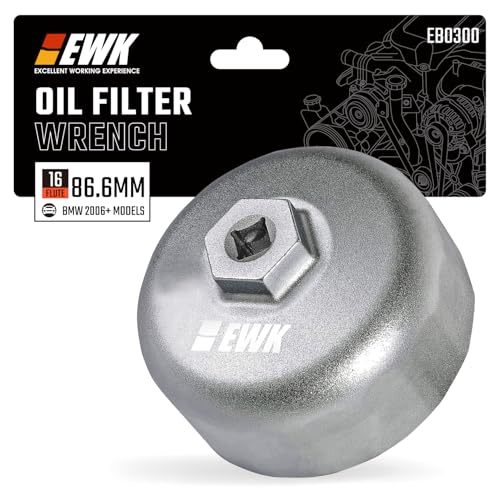

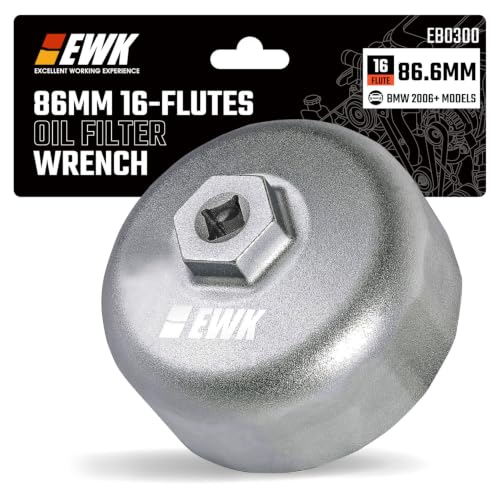

EWK 86mm 16‑Flutes Cartridge Oil Filter Wrench – Best Budget-Friendly Pick

For the occasional user, the EWK provides essential functionality. It gets the job done for one-off driveshaft services on personal vehicles. While not as heavy-duty as premium brands, it represents the best budget option for cost-conscious owners tackling a specific repair.

Conclusion: Mastering Your Volvo’s Driveshaft Service

The Volvo 86mm 16-flute wrench is the essential key to safe, professional driveline repairs. It unlocks critical maintenance like wheel bearing and CV axle replacement on modern SPA-platform vehicles.

Success hinges on using the correct tool, a new OEM nut, and precise torque specs. Investing in a quality socket saves time and prevents costly damage.

Verify your vehicle’s compatibility using our guide, then confidently tackle your repair. Share your experience or questions in the comments below to help fellow Volvo owners.

With the right knowledge and this specialized tool, you can maintain your Volvo’s performance and safety for miles to come.

Frequently Asked Questions about the Volvo 86mm 16-Flute Wrench

What is the specific purpose of a Volvo 86mm 16-flute wrench?

This is a specialized single-purpose socket designed to remove and install the large, 16-point driveshaft/hub nut on specific modern Volvo and Polestar models. It is essential for any repair requiring driveshaft disconnection, such as wheel bearing or CV axle replacement.

Using any other tool, like a standard 12-point socket, will damage the nut’s unique flutes. This makes the 86mm 16-flute wrench a mandatory tool for proper driveline maintenance on compatible vehicles.

How do I know if my Volvo needs this exact 86mm tool?

The most reliable method is to consult your vehicle’s official service manual or a reputable online database using your VIN. Visually, you can safely lift the car and inspect the front driveshaft nut—it should clearly have 16 points (not 6 or 12).

This tool is primarily for Volvos built on the SPA platform (2015+). Older models often use different sizes, like a 36mm 12-point socket. Always verify before purchasing.

Can I use an impact wrench with the 86mm socket?

For removal, you can use an impact wrench cautiously after initially breaking the nut’s torque with a breaker bar. This helps prevent sudden shock that could damage components. Ensure your socket is rated for impact use.

For installation, never use an impact wrench. Final tightening must be done with a torque wrench and angle gauge to achieve the precise OEM torque-to-yield specification, which an impact cannot control.

What should I do if the driveshaft nut is completely rounded off?

First, try tapping the 86mm socket onto the nut with a hammer for maximum grip. If that fails, you’ll need specialized extraction tools, such as a bolt extractor socket set or a nut splitter designed for large, hardened fasteners.

Applying careful heat to the nut (not the axle) can help break corrosion. As a last resort, cutting the nut off with a rotary tool is necessary, but this requires extreme care to avoid damaging the driveshaft threads.

Is it absolutely necessary to replace the driveshaft nut with a new one?

Yes, always use a new OEM replacement nut. These are torque-to-yield or stretch nuts, meaning they are designed to deform slightly when properly torqued to create a permanent lock. A used nut has already yielded and will not hold the correct clamp force.

Reusing an old nut risks it loosening during driving, which can lead to catastrophic driveline failure, wheel separation, or severe damage to your vehicle’s hub and transmission.

What is the best way to find the correct torque specification for my model?

The only authoritative source is the official Volvo service information system (VIDA) for your specific model year, engine, and drivetrain. Reputable aftermarket repair manuals from publishers like Haynes may also provide accurate specs.

Do not rely on generic forum advice. Specifications can vary. A common SPA platform spec is an initial torque (e.g., 50 Nm) followed by a precise angle turn (e.g., +90°).

Which is better: renting the tool or buying it outright?

Renting is cost-effective for a confirmed one-time repair. Many auto parts stores offer loaner-tool programs. However, if you plan to keep your Volvo long-term or perform your own maintenance, purchasing is more convenient and economical over time.

Owning the tool ensures it’s always available and allows you to invest in a higher-quality, more durable socket from a trusted brand like OTC or Schley.

What other tools are essential to use with the 86mm wrench?

You must have a long breaker bar (24″+) for leverage and a calibrated torque wrench capable of high torque for installation. An angle gauge is also highly recommended to accurately measure the final turn on the stretch nut.

Other helpful items include a quality penetrating oil, a mallet, jack stands, and a new OEM driveshaft nut. Never attempt this job with only a jack supporting the vehicle.
