Typical Socket Sizes for Alternator Removal (Step-by-Step)

Typical alternator removal requires 12mm, 13mm, 14mm, or 15mm sockets. The exact size depends on your vehicle’s make and model. This guide provides the definitive answer and a complete removal process.

Using the wrong socket can strip bolts and turn a simple job into a costly repair. Knowing the correct size saves time, prevents damage, and gets your project started right.

Can’t Find the Right Socket Size for Alternator Removal?

If you’ve started removing your alternator and suddenly hit a wall because none of your sockets seem to fit, you’re not alone. Alternator bolts typically fall within a common metric range (10mm–15mm), but depending on your vehicle make, you might also encounter tight clearances or slightly different sizes. Using the wrong socket can strip bolts, slow you down, or even damage components.

The real issue is not just size—it’s having a complete, well-organized socket set that covers both standard and metric sizes. Without that, even a simple alternator removal turns frustrating fast.

For a deeper breakdown of the exact tools you’ll need, check out this guide on choosing the best metric socket sets for car repairs.

Quick Fix

A reliable, mid-range socket set can instantly solve the guesswork and help you handle alternator bolts with confidence.

DEWALT 34-Piece Socket Set

This compact yet versatile set is ideal for alternator removal thanks to its durable construction and well-selected socket sizes.

• Covers the most common alternator bolt sizes (10mm–15mm)
• Includes a smooth ratchet for tight engine bay spaces
• Built with corrosion-resistant chrome vanadium steel
• Comes in a portable case for easy organization

Check out our detailed review here→ https://automedian.com/dewalt-socket-set-34-piece-review/

Upgrade Your Toolkit for Faster, Safer Repairs

If you’re still struggling with tight bolts or limited access, it may be time to step up your toolkit. A more comprehensive set or impact-ready sockets can make a big difference, especially for stubborn or rusted alternator bolts.

Explore this complete guide on best 3/8-inch drive socket sets with ratchets for automotive work to find more advanced options.

You can also check out these helpful resources:

• DEWALT 34-piece socket set full review and performance breakdown
• EPAuto 40-piece socket set review for budget-friendly repairs

With the right sockets in hand, alternator removal becomes a straightforward job instead of a frustrating guessing game.

Essential Tools and Socket Sizes for Alternator Replacement

Having the correct tools is critical for a successful alternator removal. The required socket size is not universal. It varies significantly based on your vehicle’s manufacturer and engine design.

Most Common Alternator Bolt Socket Sizes

The mounting and electrical connection bolts on an alternator typically require metric sockets. While you should always verify for your specific model, these are the most frequent sizes encountered.

• 12mm Socket: A very common size for the main power terminal nut (the B+ terminal) on many Asian and domestic vehicles.
• 13mm Socket: Frequently used for the adjustment bracket bolt and mounting bolts on a wide range of Ford, GM, and Chrysler models.
• 14mm Socket: Often found on the main mounting bolt or bracket bolts, especially in many Honda, Toyota, and Nissan applications.
• 15mm Socket: Common for the primary pivot bolt that holds the alternator to the engine block on several truck and SUV platforms.

Key Takeaway: Always confirm the exact size on your vehicle. A 10mm socket is also commonly needed for the serpentine belt tensioner. Having a complete set from 8mm to 19mm is highly recommended.

Complete Tool Checklist for the Job

Beyond sockets, several other tools are necessary for a safe and efficient alternator swap. Gather these items before you open the hood to ensure a smooth process.

• Ratchet and Extensions: A 3/8″ drive ratchet with a 3-inch and 6-inch extension provides necessary reach.
• Wrenches: Combination wrenches in the sizes above are crucial for holding the bolt head while turning the nut.
• Serpentine Belt Tool: A dedicated belt tensioner tool or a long breaker bar to relieve belt tension safely.
• Safety Gear: Disconnect the battery first! You’ll also need gloves and safety glasses.

Step-by-Step Guide to Removing Your Alternator

Follow this proven method to safely remove your vehicle’s alternator. This process minimizes risk and ensures you don’t damage surrounding components. Always begin by consulting your vehicle’s service manual for any model-specific instructions.

The key to success is working methodically and keeping organized. We’ll break the removal into clear, manageable phases. Let’s start with the crucial safety preparation steps.

Phase 1: Safety and Preparation Steps

Never skip these initial steps. They protect you and your vehicle’s electrical system from serious damage. Rushing here can lead to shorts, sparks, or injury.

1. Disconnect the Battery: Always disconnect the negative (-) battery terminal first. This cuts all power and prevents accidental shorts.
2. Locate the Alternator: Identify the alternator, its mounting points, and the serpentine belt path. Take a phone picture for reference during reassembly.
3. Gather Tools: Bring your socket set, wrenches, belt tool, and a container for bolts to your workspace.

Phase 2: Belt Removal and Electrical Disconnection

With the battery safe, you can now access the alternator directly. This phase involves relieving tension and disconnecting power.

First, use your belt tool or breaker bar on the tensioner pulley to slacken the serpentine belt. Slide the belt off the alternator pulley. Never pry the belt off, as this can damage it.

Next, disconnect the electrical connections. You will typically find:

• The Main Power Wire: A large red wire with a nut (often 12mm). Remove this nut and move the wire aside.
• The Plug Connector: A smaller plastic plug. Press the tab and pull it straight off.

Pro Tip: Before disconnecting the main power wire, note its exact routing. Improper routing during reassembly can cause the wire to chafe against sharp edges, leading to a future short circuit.

Phase 3: Unbolting and Removing the Alternator

Now you can unbolt the alternator from its brackets. Most units have two or three mounting points: an adjustment bolt, a pivot bolt, and sometimes a dedicated bracket.

Start by loosening the adjustment bolt and bracket bolt (often 13mm or 14mm). You may not need to remove them completely. Finally, remove the larger pivot bolt (often 14mm or 15mm).

Support the alternator with one hand as you remove the last bolt. Carefully maneuver it out of the engine bay, noting any tight clearances. The unit is now ready for testing or replacement.

Vehicle-Specific Socket Size Guide and Pro Tips

Socket requirements can vary by manufacturer and even engine type. This guide helps you predict the most likely sizes for your vehicle. Always perform a visual check before applying any tool.

Use this information as a starting point, not a definitive rule. Having a complete socket set ready is the best strategy for any DIY alternator replacement project.

Common Socket Sizes by Vehicle Manufacturer

While not guaranteed, these are the frequently reported socket sizes for alternator bolts across popular brands. This table provides a quick reference to streamline your preparation.

Vehicle Make	Common Mounting Bolt Sizes	Common Power Terminal Size
Honda / Toyota	12mm, 14mm	12mm
Ford	13mm, 15mm	10mm or 13mm
General Motors (GM)	13mm, 15mm	10mm or 12mm
Chrysler / Dodge / Jeep	13mm, 15mm	10mm

Expert Tips for a Smooth Removal Process

These professional techniques can save time and prevent common headaches. They address the typical challenges faced during alternator removal.

• Penetrating Oil is Your Friend: Apply a quality penetrant like PB Blaster to all bolts 15-20 minutes before starting. This is crucial for older or rust-prone vehicles.
• Use Six-Point Sockets: Always choose 6-point sockets over 12-point for alternator bolts. They provide a better grip and are far less likely to round off corroded bolt heads.
• Label Your Bolts and Wires: Use masking tape and a marker or place bolts in a labeled container. This guarantees a confusion-free reassembly.

Critical Safety Reminder: Even with the battery disconnected, avoid letting the disconnected main power cable touch any metal part of the chassis or engine. Insulate it with electrical tape or a zip-tie to prevent accidental contact.

Troubleshooting Stuck or Rounded Bolts

If a bolt won’t budge, don’t force it. Forcing it can shear the bolt, creating a much larger problem. Follow this escalation path instead.

First, apply more penetrating oil and let it soak. Try tightening the bolt slightly first to break the corrosion seal. If the head is rounding, switch to a bolt extractor socket set.

For severely stuck pivot bolts, a careful application of heat with a propane torch on the surrounding bracket (not the alternator) can expand the metal and break the bond. This is an advanced technique requiring extreme caution.

Reinstallation Guide and Final System Check

Proper reinstallation is just as important as removal. A mistake here can lead to noise, premature failure, or electrical issues. Follow these steps to ensure a professional-quality result.

This process essentially reverses the removal steps, with added attention to critical torque specifications and belt alignment. Take your time to get it right.

Step-by-Step Alternator Installation

Begin by maneuvering the new or tested alternator into position. Support it with one hand while you start the mounting bolts by hand to avoid cross-threading.

1. Position and Finger-Tighten Bolts: Insert the main pivot bolt and adjustment bolt, threading them by hand first.
2. Reconnect Electrical Wires: Attach the main power wire and plug connector. Ensure the plug clicks securely into place.
3. Reinstall the Serpentine Belt: Route the belt according to your reference photo. Use the tensioner tool to slide it over the alternator pulley last.

Torque Specifications and Belt Tensioning

Bolts must be tightened to the correct specification. Overtightening can crack housings, while undertightening causes movement and failure.

Consult your vehicle’s service manual for exact values. As a general guideline, most alternator mounting bolts require 30-50 ft-lbs of torque. The smaller power terminal nut typically needs 10-15 ft-lbs.

For belt tension, modern vehicles use an automatic tensioner. Simply rotate the tensioner to install the belt and release it. The spring inside provides the correct tension.

Critical Step: Do not reconnect the battery until you have double-checked every connection and bolt. Verify the belt is seated correctly in all pulleys and that no tools are left in the engine bay.

Final Testing and Verification

Your job isn’t complete until the system is verified to be working correctly. This final check confirms a successful repair and prevents being stranded.

First, reconnect the negative battery terminal. Start the engine and immediately check for unusual noises from the belt or alternator. A squeal indicates improper belt routing or tension.

Finally, test the charging system. With the engine running, use a multimeter to check voltage at the battery. You should read between 13.8 and 14.8 volts. This confirms your new alternator is charging properly.

Common Mistakes to Avoid During Alternator Removal

Knowing what not to do is as valuable as knowing the correct steps. These common errors can turn a simple job into a complex and expensive repair. Awareness is your best defense against them.

Most mistakes stem from rushing, using improper tools, or skipping safety protocols. By reviewing these pitfalls, you can work confidently and efficiently.

Tool and Technique Errors

Using the wrong approach with your tools is a fast track to damaged components. Precision is key in the confined space of an engine bay.

• Using the Wrong Socket Type: Avoid 12-point sockets on tight or corroded bolts. Always opt for 6-point sockets to maximize grip and prevent rounding.
• Applying Excessive Force: If a bolt won’t turn, don’t keep pulling on the ratchet. Stop, apply penetrating oil, and reassess. Forcing it can shear the bolt.
• Misplacing Bolts and Hardware: Throwing all bolts into one cup leads to confusion. Keep mounting bolts, bracket bolts, and electrical nuts separate and labeled.

Safety and Procedural Oversights

These mistakes compromise your safety and the vehicle’s electrical system. They are non-negotiable to avoid.

• Skipping Battery Disconnection: This is the cardinal sin of electrical work. Always disconnect the negative terminal first to eliminate the risk of a dead short or spark.
• Ignoring Belt Routing: Guessing the serpentine belt path during reinstallation can cause immediate damage. Always take a reference photo before removal or consult the under-hood diagram.
• Not Supporting the Alternator: When removing the last bolt, let the alternator fall or hang by its wires. This can damage the electrical connections or the unit itself.

Warning – Critical Mistake: Never allow the disconnected main positive cable to contact any metal surface. Always wrap the terminal end with electrical tape or secure it away from the engine block to prevent a dangerous short.

Reinstallation and Testing Pitfalls

Errors during the final stages can undo all your good work. Pay close attention to these finishing details.

Overtightening Electrical Connections: The power terminal nut needs only moderate torque. Overtightening can strip the aluminum threads on the alternator, requiring a full replacement.

Incorrect Belt Tension: On vehicles without an automatic tensioner, an overly tight belt strains the alternator bearing. A loose belt will squeal and not charge properly.

Skipping the Final System Test: Do not assume the job is done after starting the engine. You must verify charging voltage with a multimeter to confirm a successful repair.

When to Call a Professional Mechanic

While alternator replacement is a common DIY job, some situations warrant professional help. Recognizing these scenarios can save you time, money, and prevent further damage. It’s important to assess your skill level and the job’s complexity honestly.

There is no shame in seeking expert assistance. A professional mechanic has specialized tools and experience to handle complex or risky situations efficiently.

Signs This Job Is Beyond DIY Scope

If you encounter any of the following issues, it’s a strong indicator to stop and call a pro. Proceeding could lead to a breakdown or unsafe vehicle condition.

• Severely Seized or Broken Bolts: If a mounting or pivot bolt is rounded off, snapped, or won’t budge after penetrating oil and careful effort. Extraction requires advanced tools and techniques.
• Unusual Mounting Configurations: Some vehicles, particularly certain European models or transverse V6s, mount the alternator in extremely tight spaces or underneath engine mounts.
• Complex Serpentine Belt Systems: Engines with multiple belts, idler pulleys, or a difficult-to-access tensioner can complicate the job significantly.

Benefits of Professional Alternator Replacement

Hiring a certified technician offers several advantages beyond just completing the repair. These benefits provide long-term value and peace of mind.

• Access to Professional Diagnostics: A pro can perform a full charging system test to confirm the alternator is the true culprit, not just a symptom of a bad battery or wiring.
• Correct Torque and Warranty: Mechanics use calibrated torque wrenches and often provide a parts and labor warranty on the repair, which DIY work does not.
• Time and Convenience: For those without ample time or a proper workspace, a professional service is often the most practical and reliable solution.

Cost-Benefit Analysis: If you lack the core tools (socket set, torque wrench, belt tool), the cost of purchasing them may approach the labor cost of a professional installation. Factor this into your decision.

How to Choose a Reliable Repair Shop

If you decide to hire a mechanic, choosing the right shop is crucial. Look for these indicators of a trustworthy, competent service provider.

Seek out shops with ASE-Certified Technicians and positive online reviews specific to electrical work. Always ask for a detailed written estimate before authorizing any repairs.

A reputable shop will be willing to explain the problem, show you the failed part, and discuss your options. They should also test your old alternator to confirm the diagnosis.

Best Socket Sets for Alternator Removal – Detailed Comparison

GearWrench 3/8″ Drive Master Socket Set – Best Overall Choice

This 50-piece set provides every standard and metric socket you’ll need, including the crucial 12mm-15mm sizes. The 72-tooth ratchet offers excellent access in tight spaces around the engine bay. It’s the ideal kit for DIYers tackling alternator jobs and other common automotive repairs.

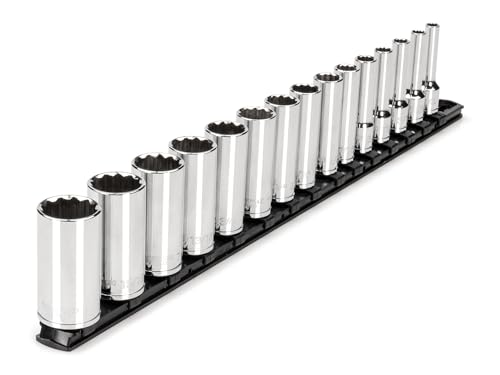

TEKTON 3/8 Inch Drive Deep Socket Set – Best Value Option

The TEKTON SKT15305 includes six-point deep sockets in all the key metric sizes (10mm-19mm). The corrosion-resistant chrome vanadium steel construction ensures durability. This focused set is perfect if you already have a ratchet and just need the specific, high-quality sockets for the job.

Neiko 02448A 1/2″ Drive Impact Socket Set – Best for Stubborn Bolts

For heavily corroded or over-tightened alternator bracket bolts, this impact-rated set is essential. Made from chrome molybdenum steel, these sockets can handle the torque of an impact wrench without cracking. It’s the recommended choice for professional mechanics or vehicles with significant rust.

Conclusion: Mastering Alternator Removal with the Right Tools

Successfully replacing your alternator hinges on using the correct socket sizes and following a safe, methodical process. This guide has provided the typical sizes, a step-by-step removal procedure, and expert tips to avoid common pitfalls.

The key takeaway is preparation. Always gather your tools, disconnect the battery, and confirm bolt sizes before starting. This prevents damage and ensures a smooth repair.

Use the vehicle-specific guide and pro tips here for your next DIY project. Share this guide with fellow enthusiasts who might find it helpful.

With the right knowledge, you can tackle this repair confidently and keep your vehicle running reliably.

Frequently Asked Questions about Alternator Socket Sizes and Removal

What is the most common socket size for an alternator bolt?

The most common alternator bolt sizes are 12mm, 13mm, 14mm, and 15mm. The 12mm socket is frequently used for the main power terminal nut. The 13mm and 14mm sizes are typical for mounting and adjustment bracket bolts.

The exact size depends entirely on your vehicle’s make, model, and engine. Always visually inspect the bolts or consult a vehicle-specific guide before starting the job to ensure you have the correct tools ready.

How do I know what size socket I need for my specific car?

The best method is a visual inspection. Before disassembly, look at the alternator mounting bolts and the power terminal nut. Compare them to your sockets to identify the correct metric size.

You can also check your vehicle’s owner’s manual or a trusted online repair database for specifications. As a general rule, most Japanese models use 12mm or 14mm, while many American models use 13mm or 15mm.

Can I remove an alternator without a serpentine belt tool?

While possible, it is not recommended. A dedicated belt tensioner tool or long breaker bar is designed to safely relieve tension on the spring-loaded automatic tensioner. Using improper tools can slip and cause injury.

In a pinch, some mechanics use a long-handled ratchet or pry bar. However, for safety and to prevent damage to the tensioner pulley, investing in the correct tool is the best practice for this critical step.

What should I do if the alternator bolt is stripped or rounded?

Stop immediately if you feel the socket slipping. Do not apply more force. First, try a high-quality six-point socket for maximum grip. Applying penetrating oil can also help loosen a corroded bolt.

If the head is already rounded, you will need a bolt extractor socket set. These tools bite into the damaged bolt for removal. For severely stuck bolts, seeking professional help may be the most time-effective solution.

Is it necessary to disconnect the battery to change an alternator?

Yes, disconnecting the battery is an absolute safety requirement. You must always disconnect the negative (-) terminal first before starting any electrical work. This prevents accidental short circuits.

A short circuit can cause sparks, damage the alternator’s internal diodes, fry other vehicle electronics, or cause personal injury. This non-negotiable step protects both you and your vehicle’s sensitive electrical system.

What are the signs of a failing alternator versus a bad battery?

A failing battery often struggles to start the car but charges normally while driving. A bad alternator fails to charge the battery, causing symptoms that worsen as you drive, like dimming lights or a dying engine.

The definitive test is a voltage check. With the engine running, a multimeter should show 13.8-14.8 volts at the battery terminals. A reading below 13V typically points to a faulty alternator.

What is the best way to organize bolts during alternator removal?

The best method is to use a labeled container or a piece of cardboard. Poke holes in the cardboard and insert each bolt, writing its location next to it (e.g., “pivot bolt,” “adjustment bolt,” “power nut”).

This simple organization system prevents confusion during reassembly. Mixing up bolts of different lengths or thread pitches can lead to cross-threading or improper clamping force on the alternator housing.

How tight should alternator bolts be when reinstalling?

Alternator bolts must be tightened to a specific torque value, not just “good and tight.” Overtightening can crack the aluminum housing, while undertightening can cause the unit to come loose.

Consult your vehicle’s service manual for exact specifications. As a general guideline, most mounting bolts require 30-50 ft-lbs, and the small power terminal nut needs only 10-15 ft-lbs. Using a torque wrench is the best practice.
