Torque Wrench for Cylinder Head Bolts Explained

A torque wrench for cylinder head bolts is a specialized, precision tool designed to apply a specific, pre-determined amount of rotational force. It is absolutely critical for a proper engine rebuild. Using the wrong tool or technique can lead to catastrophic engine failure.

This tool ensures even clamping force across the cylinder head gasket. This prevents leaks, warping, and costly damage. It is the single most important tool for this high-stakes task.

Best Torque Wrenches for Cylinder Head Bolts – Detailed Comparison

CDI Torque 6004MFRPH Micro Adjustable Torque Wrench – Best Overall Choice

The CDI 6004MFRPH is a professional-grade ½” drive micrometer-adjustable wrench. It offers ±3% accuracy and a robust, reliable click mechanism. Its fine-tooth adjustment collar allows for precise torque setting. This is the best overall choice for serious mechanics and professional engine builders who demand repeatable accuracy.

EPAuto 1/2-Inch Drive Click Torque Wrench – Best Value Option

For the DIY enthusiast, the EPAuto provides excellent performance at an affordable price. It features a reversible ratchet head and a clear, easy-to-read scale. Backed by a lifetime warranty, it delivers reliable accuracy for home garage projects. This is the ideal budget-friendly tool for occasional cylinder head work.

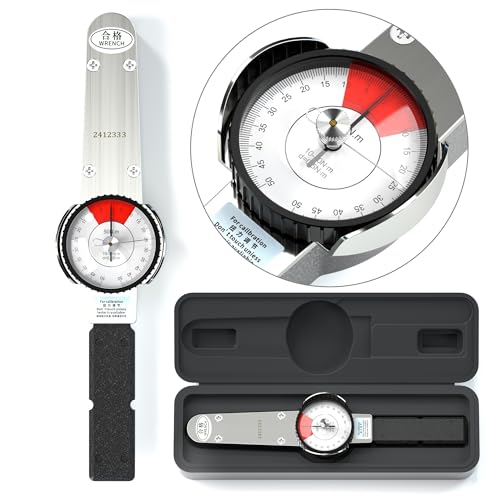

Generic 1/2″ Drive Dial Torque Wrench – Best for Precision Measurement

This Generic dial torque wrench provides visual, real-time torque reading, perfect for angle-torque procedures common on modern cylinder head bolts. It eliminates auditory guesswork. This model is the recommended option for technicians working on engines that require precise angle-to-yield tightening sequences.

Why a Proper Torque Wrench is Non-Negotiable

Using the correct torque wrench for cylinder head bolts is not a suggestion—it’s a requirement for engine integrity. The consequences of improper torque application are severe and often irreversible.

The High Cost of Improper Torque Application

Incorrectly torqued cylinder head bolts create immediate and long-term engine problems. These failures compromise the head gasket seal, leading to catastrophic performance issues. The damage often requires a complete, expensive teardown to repair.

• Under-Torquing: Creates insufficient clamping force. This allows combustion gases and fluids to leak, causing blown head gaskets, overheating, and loss of compression.
• Over-Torquing: Stretches or yields the bolt beyond its elastic limit. This can cause thread stripping in the engine block, bolt breakage, or warping of the cylinder head itself.
• Uneven Torque: Applying force in the wrong sequence or with inconsistent values warps the head. This leads to an uneven seal and guaranteed gasket failure.

Torque-to-Yield and Torque Angle

Modern engines frequently use Torque-to-Yield (TTY) bolts. These are engineered to be stretched to their yield point during installation. This method provides more consistent and accurate clamping force than torque alone.

The tightening process for TTY bolts is a two-step procedure. It requires both a specific torque value and an additional angle measurement. This is where a dial-type or electronic torque-angle wrench becomes essential.

Key Takeaway: Never use a standard wrench, impact gun, or guesswork on cylinder head bolts. The precision of a calibrated torque wrench is the only way to ensure even clamping force, a proper gasket seal, and engine longevity.

How Torque Specifications Protect Your Engine

Manufacturer torque specs are calculated to achieve optimal bolt stretch and gasket compression. This creates a perfect seal between the cylinder head and engine block. Following the exact torque sequence and specification is as important as the final value.

The specified pattern, usually starting from the center and working outward, flattens the head evenly. This prevents distortion. Always consult your vehicle’s factory service manual for the correct values and sequence.

How to Choose the Right Torque Wrench for the Job

Selecting the correct torque wrench is crucial for a successful cylinder head installation. The wrong type or size can lead to inaccurate readings and engine damage.

Drive Size, Range, and Accuracy: The Critical Specs

Cylinder head bolts typically require a ½-inch drive torque wrench. This drive size provides the necessary leverage for high-torque values. Always verify your vehicle’s specifications, as some smaller engines may use a 3/8-inch drive.

The torque range must cover your engine’s specific requirements. Most passenger vehicles need a range of 30-150 ft-lbs. Check your service manual for the exact values. Accuracy is paramount; look for a tool rated at ±3% or better.

Wrench Type	Best For	Key Consideration
Click-Type	Standard torque specifications	Audible click; must be reset to zero after use
Dial/Beam-Type	Torque-angle procedures, visual verification	Read torque in real-time; no need to reset
Digital/Electronic	High precision, TTY bolts, data logging	Most accurate; visual & audible alerts; requires batteries

Click vs. Dial vs. Digital: Which Type is Best?

Your choice depends on the engine’s requirements and your budget. Click-type wrenches are the most common and affordable for standard torque specs. They are reliable but require good hearing and proper calibration.

For modern engines with torque-to-yield bolts, a dial or digital wrench that measures angle is often necessary. Digital models offer the highest precision with visual readouts and memory functions. They are ideal for complex, multi-step procedures.

Pro Tip: Always store your click-type torque wrench at its lowest setting (usually 0 ft-lbs). This relieves tension on the internal spring, maintaining calibration and accuracy for years to come.

Step-by-Step Guide to Torquing Cylinder Head Bolts

Proper technique is as important as having the right tool. This step-by-step process ensures you apply even, accurate clamping force. Following these steps meticulously will protect your engine and guarantee a reliable seal.

Preparation and Initial Tightening Steps

Begin by ensuring all surfaces are clean, dry, and free of old gasket material. Lightly lubricate the bolt threads and washers with the manufacturer-specified engine oil or assembly lube. Friction from dry threads can cause inaccurate torque readings.

1. Hand-tighten all bolts: Start all bolts by hand to avoid cross-threading.
2. Follow the official sequence: Refer to your service manual for the correct tightening pattern. This is almost always a center-out spiral sequence.
3. Perform the first pass: Using your torque wrench, tighten all bolts in sequence to about 30-50% of the final torque value. This seats the head and gasket evenly.

The Final Torque Sequence and Angle Tightening

After the initial pass, proceed with the final torque specification. For standard bolts, follow the same pattern to reach the final value in one smooth, continuous pull. Stop immediately when the wrench clicks or signals.

For Torque-to-Yield (TTY) bolts, the process has an extra critical step. First, torque all bolts to a specific initial value (e.g., 30 ft-lbs). Then, using a torque-angle gauge or a digital wrench, turn each bolt an additional specified angle (e.g., 90 degrees).

Critical Reminder: TTY bolts are designed to be stretched once. They are typically considered single-use components and must be replaced with new bolts during every cylinder head service. Reusing old TTY bolts risks failure.

Post-Installation Checks and Best Practices

Many engines require a re-torque procedure after a heat cycle. This accounts for gasket compression and thermal expansion. Consult your manual to see if this step is necessary for your application.

Always handle your torque wrench with care. After use, clean it and store it in its protective case at the lowest setting. Consider professional calibration annually or after 5,000 cycles to maintain its critical accuracy.

Common Mistakes and Expert Troubleshooting Tips

Even with the right tools, errors in technique can compromise your work. Recognizing and avoiding these common pitfalls is key to a successful engine rebuild.

Top 5 Torque Wrench Mistakes to Avoid

Steer clear of these frequent errors that lead to inaccurate torque and engine problems. Awareness is your first line of defense against costly rework.

• Using Extensions Incorrectly: Adding a cheater bar or incorrect socket extension changes the leverage. This dramatically increases the applied torque, leading to over-tightening.
• Ignoring Calibration: Using a wrench that is out of calibration guarantees wrong readings. Wrenches can lose accuracy from drops, wear, or improper storage.
• Pulling at an Angle: The wrench must be pulled perpendicular to the bolt axis. An angled pull reduces the effective force, resulting in under-torquing.
• Rushing the Sequence: Tightening bolts in a random order or skipping the incremental steps warps the cylinder head. Always follow the pattern meticulously.
• Reusing Stretched Bolts: Installing old Torque-to-Yield bolts is a major risk. They have already been stretched to their yield point and are weaker.

How to Diagnose and Fix Torque-Related Problems

If you suspect a problem after assembly, act methodically. Symptoms like coolant in oil or compression loss point to a sealing failure.

First, verify you used the correct torque specification and sequence from a reliable service manual. If values were wrong, a complete re-torque with the correct specs may be necessary, but often the gasket is already compromised.

Troubleshooting Alert: If a bolt feels “mushy” or spins without tightening during the procedure, you may have stripped the threads in the engine block. Stop immediately. This requires thread repair with a Heli-Coil or Timesert insert, not more force.

When to Seek Professional Calibration or Help

If your wrench has been dropped, heavily used, or hasn’t been calibrated in over a year, seek professional service. Certified calibration ensures the tool’s accuracy is within its stated tolerance, which is critical for engine work.

If you are unsure about the procedure, bolt type, or specifications, consulting a professional mechanic is a wise investment. The cost of professional guidance is far less than the cost of a ruined engine block or cylinder head.

Maintenance, Calibration, and Long-Term Care

Your torque wrench is a precision instrument, not a standard hand tool. Proper maintenance ensures it delivers accurate readings for years. Neglecting care leads to calibration drift and unreliable results on critical jobs.

How to Properly Store and Handle Your Tool

Correct storage is the simplest way to preserve calibration. Always wind a click-type wrench back to its lowest setting after every use. This relieves tension on the internal spring mechanism.

Store the wrench in its original protective case in a clean, dry environment. Avoid temperature extremes and humidity. Never use the torque wrench as a breaker bar or hammer, and avoid dropping it.

• Clean After Use: Wipe down with a clean cloth to remove oil and debris.
• Never Exceed Capacity: Do not use it to apply torque beyond its maximum rated value.
• Secure the Setting: On micrometer-adjustable models, ensure the locking ring is engaged before use.

Torque Wrench Calibration Frequency

Calibration verifies and adjusts the tool’s accuracy. The need for calibration depends on usage frequency, handling, and required precision. For critical engine work like cylinder heads, annual calibration is a best practice.

You should also calibrate after any significant event. This includes if the wrench is dropped, used at its maximum capacity frequently, or after approximately 5,000 cycles. Many professional shops calibrate their tools every 6 months.

Calibration Schedule Summary:

• Annual: For typical DIY or occasional use.
• Semi-Annual: For professional or frequent use.
• Immediately: After any drop, impact, or suspected inaccuracy.

DIY Checks vs. Professional Calibration Services

You can perform simple consistency checks at home. Use a known weight and a calculation (Torque = Force x Distance) to test if the wrench clicks at the expected point. This checks repeatability, not absolute accuracy against a certified standard.

For guaranteed accuracy, use a professional calibration service. They use certified test equipment traceable to national standards. The service will provide a certificate of calibration, which is essential for professional or warranty work.

Essential Accessories and Complementary Tools

Using a torque wrench correctly requires more than just the wrench itself. The right accessories ensure accuracy, safety, and ease of use.

Must-Have Add-ons for Accurate Torquing

These tools work with your torque wrench to guarantee precise force application. Investing in quality accessories protects your engine and your expensive torque tool.

• Quality Socket Set: Use 6-point sockets for cylinder head bolts. They provide better grip and reduce the risk of rounding bolt heads compared to 12-point sockets.
• Torque Angle Gauge: A dedicated mechanical gauge is essential for TTY bolts if your wrench doesn’t have a built-in angle meter. It attaches to the wrench to measure rotation precisely.
• Thread Lubricant: Always use the lubricant specified by the manufacturer (engine oil, moly paste, or specific assembly lube). This ensures consistent friction and accurate torque readings.

The Role of Socket Extensions and Adapters

Extensions and adapters are sometimes necessary to reach bolts in deep recesses. However, they must be used correctly to avoid torque error. The key is to keep the extension as short and straight as possible.

Long extensions or universal joints can flex, absorbing some of the applied torque. If you must use an extension, ensure it is high-quality and securely seated. For critical work, consider a crowfoot wrench adapter, but be aware it requires a special torque calculation.

Accessory	Purpose	Pro Tip
Beam-Type Torque Adapter	Verifies click wrench accuracy	Use for periodic in-field verification between professional calibrations.
Magnetic Socket Holder	Holds bolt & washer assembly	Prevents bolts from falling into engine cavities during start-up threading.
Digital Torque Adapter	Converts any ratchet to a digital wrench	A cost-effective way to add digital precision and angle measurement.

Safety Gear and Workspace Setup

Never overlook personal safety. Wear safety glasses to protect from flying debris if a bolt were to fail. Good lighting is crucial for reading torque scales and verifying bolt sequences accurately.

Ensure your workspace is clean and organized. A stable, level surface prevents you from pulling at an awkward angle. Keep your service manual and torque specifications within easy reach throughout the entire process.

Advanced Techniques and Pro-Level Insights

Mastering the basics is essential, but advanced knowledge separates good work from exceptional work. These pro-level insights address complex scenarios and optimize the torquing process for maximum reliability and efficiency.

Working with Aluminum Blocks and Cylinder Heads

Aluminum engines require extra care due to the material’s higher thermal expansion rate and softer threads. Always use a thread chaser to clean threads in the block before installing new bolts. Never use a tap, as it can remove material.

Lubrication is even more critical. Use the specified lubricant to prevent galling and thread seizure. Many manufacturers recommend a specific anti-seize compound or molybdenum disulfide paste for aluminum applications.

• Cold Torquing: Always torque an aluminum engine when it is completely cold (at ambient temperature).
• Re-torque Check: A follow-up re-torque after the first heat cycle is almost always mandatory for aluminum heads.
• Torque Sequence: Follow the pattern even more meticulously, often using more incremental steps to prevent distortion.

Dealing with Stuck, Rusted, or Problem Bolts

If a bolt feels abnormally tight during initial threading, stop immediately. Forcing it can strip the threads. Back the bolt out and inspect both the bolt and the hole for debris or damage.

For rusted bolts, apply a quality penetrating fluid and allow it to soak. Use steady, even pressure rather than sudden force. If a bolt breaks, you will need specialized screw extractors and left-hand drill bits for removal.

Pro Insight: When installing new bolts in an old engine, consider using a thread insert kit (like Timesert) for critical holes. This creates a new, hardened steel thread surface, preventing future pull-out and ensuring consistent clamping force, especially in aluminum blocks.

The Importance of Bolt Stretch Measurement

For ultimate precision, especially in racing or high-performance applications, measuring actual bolt stretch is the gold standard. This method bypasses friction variables entirely. It requires bolts with measuring points and a precise micrometer.

You tighten the bolt until it reaches a predetermined stretched length, not a torque value. This ensures every bolt applies identical clamping force. While complex, it is the most accurate method for ensuring perfect cylinder head sealing under extreme conditions.

Conclusion: Mastering Cylinder Head Torque for Engine Longevity

Using the correct torque wrench for cylinder head bolts is fundamental to engine reliability. It prevents leaks, warping, and catastrophic failure. The right tool and technique ensure a perfect, lasting seal.

Remember to always follow the manufacturer’s exact specifications and sequence. Invest in a quality, calibrated wrench and proper accessories. Your engine’s performance depends on this precision.

Consult your vehicle’s service manual before starting any work. If in doubt, seek guidance from a professional mechanic.

With this knowledge, you can approach your next cylinder head job with confidence and precision.

Frequently Asked Questions about Torque Wrenches for Cylinder Head Bolts

What is the difference between a click-type and a dial-type torque wrench for cylinder heads?

A click-type wrench emits an audible “click” and a slight release when the set torque is reached. It’s ideal for standard torque specifications. A dial-type wrench shows torque on a visual gauge in real-time.

The dial type is essential for torque-to-yield (TTY) procedures that require an angle measurement. It allows you to see the exact torque value as you turn, providing more data for complex sequences.

How often should I calibrate my torque wrench for engine work?

For critical engine work like cylinder heads, annual calibration is a strong recommendation. Calibration ensures the tool’s accuracy remains within its stated tolerance, typically ±3-4%. This prevents under or over-torquing.

You should also calibrate immediately after dropping the tool or if you suspect any inaccuracy. Professional shops often calibrate every 6 months or after 5,000 cycles of use.

Can I reuse cylinder head bolts after torquing them?

It depends entirely on the bolt type. Standard, non-TTY bolts can often be reused if they are within specification and undamaged. Always inspect threads for stretching or wear.

Torque-to-yield (TTY) bolts are designed as single-use components. They are stretched to their yield point during installation. Reusing them risks breakage and engine failure. Always replace TTY bolts with new ones.

What happens if I over-torque a cylinder head bolt?

Over-torquing stretches the bolt beyond its elastic limit, causing permanent deformation or yield. This can lead to immediate thread stripping in the engine block or bolt breakage. It also creates excessive stress on the cylinder head.

The uneven clamping force can warp the head, leading to a failed head gasket seal. Repair often requires expensive thread inserts (like Heli-Coil) or, in severe cases, engine block replacement.

What is the best drive size for a cylinder head torque wrench?

For most automotive cylinder head applications, a ½-inch drive torque wrench is the standard and best choice. It provides the necessary leverage for the higher torque values typically required, which often range from 50 to 120 foot-pounds.

Always verify your vehicle’s service manual, as some smaller engines (like motorcycles or small displacement engines) may specify a 3/8-inch drive. The drive size must match the socket needed for your specific bolts.

Why is the tightening sequence so important for cylinder heads?

The sequence ensures even clamping force and gasket compression across the entire head. Tightening in a random order can warp or distort the cylinder head, as force is applied unevenly. This distortion guarantees a leak.

Manufacturers specify a sequence, usually starting from the center and spiraling outward. This method gradually flattens the head against the block, creating a uniform seal for the head gasket.

Do I need to lubricate cylinder head bolts before torquing?

Yes, lubrication is almost always required and specified. You must use the lubricant recommended by the manufacturer, which is often engine oil or a specific moly-based assembly paste. This ensures consistent thread friction.

Dry threads create higher friction, meaning more of the applied torque is used to overcome this friction rather than create clamping force. This leads to inaccurate torque readings and insufficient clamping.

What should I do if my torque wrench doesn’t click?

First, stop pulling immediately to avoid over-torquing. Verify that you have set the wrench correctly to the desired value and that the locking mechanism is engaged. Ensure you are pulling smoothly and perpendicular to the bolt.

If it still doesn’t click, the wrench may be defective or out of calibration. Do not proceed. Use a different, verified torque wrench or have the tool professionally inspected and calibrated before continuing your engine work.
