Spline Sockets vs. Hex: One Socket to Rule Them All?

Spline sockets are not a universal replacement for hex sockets. Each design serves distinct purposes in the mechanic’s toolbox. This complete guide provides the expert insights you need to choose the right tool for every job.

Understanding the key differences prevents fastener damage and saves you time and money. We break down the pros, cons, and optimal applications for both spline and hex drive systems.

Choosing Between Spline and Hex Sockets

If you’ve ever stared at a toolbox wondering whether to use a spline or hex socket, you’re not alone. Traditional hex sockets are excellent for most bolts, but they can round off fasteners under high torque, especially with impact tools. Spline sockets, on the other hand, grip more contact points, reducing slippage and damage. For DIYers and professional mechanics alike, knowing which socket type to reach for can save time, protect tools, and prevent costly bolt replacements.

Quick Fix

A versatile socket set that combines the strengths of both types is the key. The GearWrench 44-Piece Impact Socket Set is designed to handle hex, spline, and other fastener types, making it a one-stop solution for most automotive and mechanical work.

• Covers both SAE and metric sizes
• Impact-rated for heavy-duty use
• Durable chrome molybdenum steel construction
• Comes with a sturdy storage case

Check out our detailed review here → GearWrench 44-Piece Impact Socket Set

Master Your Socket Game: Expand Beyond Basic Tools

For those ready to upgrade from a basic socket set, investing in a comprehensive kit ensures you’re prepared for any fastener scenario. Explore our in-depth guide to Best 3/8-Inch Drive Impact Socket Sets to see top-rated options for durability and versatility.

Additionally, you can check out these expert reviews to fine-tune your collection:

• EP Auto Socket Set 40-Piece Review – perfect for budget-conscious users without compromising quality
• Dewalt Socket Set 34-Piece Review – a professional-grade set that handles heavy-duty tasks with ease

With the right set, switching between spline and hex fasteners becomes effortless, reducing wear on your tools and making repairs smoother.

Spline and Hex Socket Design Fundamentals

The core difference between spline and hex sockets lies in their internal geometry. This design dictates how they engage with a fastener’s head. Understanding this is key to preventing tool slippage and fastener damage.

What is a Hex Socket?

A hex socket has a six-sided internal profile. It is the traditional and most common drive type. It is designed to fit squarely onto the six flat sides of a standard hex bolt or nut.

• 6-Point Hex: Offers the strongest contact on the flats of the fastener. This provides maximum torque transfer and is best for preventing rounding on new or undamaged fasteners.
• 12-Point Hex: Allows for engagement at twice as many angles (every 30 degrees). This is convenient in tight spaces but has less contact area, increasing the risk of rounding.

What is a Spline Socket?

A spline socket features a multi-toothed, star-shaped internal pattern. This innovative design allows it to engage a fastener in a unique and versatile way. It is not just for spline fasteners.

• Multi-Point Engagement: The numerous teeth contact both the flats and the corners of a hex fastener. This distributes force more evenly.
• Dual Functionality: A single spline socket can drive multiple fastener types. It works on internal/external spline fasteners, square drives, and, most notably, hex fasteners of various sizes.

Key Design Comparison

This table highlights the fundamental engineering differences that affect performance.

Feature	Hex Socket	Spline Socket
Internal Profile	6 or 12 straight sides	Multi-toothed, star-shaped
Primary Contact Points	On the fastener’s flats	On flats AND corners
Fastener Compatibility	Specific hex size only	Hex, spline, square (multiple sizes)
Rounding Risk	Higher on worn fasteners	Significantly lower

Performance Showdown: When to Use Spline vs. Hex Sockets

Choosing the right socket is a tactical decision based on the job. Each tool excels in specific scenarios. Using the wrong one can lead to frustration, damaged tools, or stripped fasteners.

Advantages of Spline Sockets

Spline sockets are the versatile problem-solvers in your kit. Their unique design provides distinct benefits in challenging situations.

• Superior Grip on Rounded Fasteners: The multi-tooth design bites into the remaining material on a worn hex head. This makes them the best tool for removing damaged bolts where a hex socket would simply slip.
• Reduced Rounding Risk: By distributing force across more contact points, they minimize the pressure on any single corner. This dramatically lowers the chance of rounding a fastener during high-torque applications.
• Multi-Size & Multi-Format Utility: One spline socket can often fit several similar hex sizes and drive different fastener types. This can save space and simplify your toolkit for certain tasks.

Advantages of Hex Sockets

Hex sockets remain the standard for a reason. They offer precision and strength for routine, undamaged fasteners.

• Maximum Torque on New Fasteners: A 6-point hex socket provides the largest possible surface area contact on a fastener’s flats. This allows for the highest safe torque application without slippage.
• Precise Fit and Alignment: The exact size-to-size match ensures perfect alignment. This reduces wobble and the risk of off-angle force, which can shear bolt heads.
• Wider Availability and Lower Cost: Hex sockets are ubiquitous and come in every conceivable size and drive type. They are generally more affordable than their spline counterparts.

Practical Application Guide

Use this quick-reference guide to decide which socket to grab for common tasks.

Job Scenario	Recommended Socket	Primary Reason
Tightening a new cylinder head bolt	6-Point Hex	Maximum torque, precision fit, no rounding risk
Removing a rusted, rounded suspension bolt	Spline	Bites into damaged material, superior grip
General assembly in a confined space	12-Point Hex	Faster engagement at multiple angles
Field repair with a limited tool set	Spline	One tool fits multiple fastener sizes and types

How to Choose Between Spline and Hex Sockets for Your Toolbox

Building an efficient toolkit requires strategic choices. You don’t need every tool, just the right ones for your work. This decision matrix helps you invest wisely based on your primary needs.

Factors for Professional Mechanics

For daily professional use, durability, precision, and capability are paramount. Your socket choice impacts productivity and repair quality.

• Invest in Both Systems: A professional shop should stock high-quality 6-point hex sockets as the standard. Then, add a spline socket set for problem-solving on rounded or high-torque fasteners.
• Prioritize Strength and Fit: Choose impact-rated sockets for air/power tools. Look for precise machining (like from Snap-on or Mac Tools) to ensure perfect fastener engagement and long life.
• Consider Specialization: Mechanics working on older, rust-prone vehicles or heavy machinery will find spline sockets indispensable. Those in assembly or precision engine work may rely more on hex.

Guidelines for DIY Enthusiasts

Home users need versatility and value. The goal is to handle common projects without a huge investment or tool clutter.

• Start with a Quality Hex Set: A comprehensive 6-point hex socket set (like TEKTON or GearWrench) should be your foundation. It will handle over 90% of typical home and auto projects.
• Add Spline Sockets Strategically: Instead of a full set, buy individual spline sockets in common sizes (e.g., 10mm, 13mm, 15mm, 17mm, 19mm) for emergency bolt extraction. Or get a small, dedicated set for problem jobs.
• Assess Your Projects: If you mostly work on new furniture or appliances, stick with hex. If you restore old cars or farm equipment, spline sockets become more valuable.

Cost vs. Value Analysis

Understanding the long-term value prevents false economy. The cheapest tool is often the most expensive if it fails.

Consideration	Hex Sockets	Spline Sockets
Initial Investment	Generally lower cost per socket. Full sets offer excellent value.	Higher cost per socket. Often sold in smaller, specialized sets.
Long-Term Value	Essential baseline tool. Wears out with normal use on proper fasteners.	Prevents costly repairs of stripped fasteners. Pays for itself on one saved bolt.
Toolbox Space	Requires a full set of sizes for coverage.	One socket can replace several hex sizes, saving space.

Final Verdict: Hex sockets are your essential workhorses. Spline sockets are your specialized insurance policy. For a complete toolkit, plan to include both.

Pro Tips for Using and Maintaining Your Sockets

Proper technique and care extend tool life and ensure safety. These expert practices apply to both spline and hex sockets. They maximize performance and protect your investment.

Best Practices for Socket Use

How you use a socket is as important as which one you choose. Correct application prevents damage to both the tool and the fastener.

• Always Use the Correct Size: Forcing a slightly oversized socket onto a fastener is a primary cause of rounding. The socket should seat fully and snugly without play or excessive force.
• Keep Tools Clean and Dry: Wipe sockets clean after use. Debris inside the drive profile reduces contact area and can cause slippage. This is critical for maintaining a spline socket’s multi-point grip.
• Apply Steady, Axial Force: Ensure the ratchet or tool is straight in line with the fastener. Angled force creates a prying effect, dramatically increasing the risk of rounding or shearing the bolt head.

Step-by-Step for Removing a Rounded Bolt

When you encounter a damaged fastener, follow this methodical process. A spline socket is often the hero in this scenario.

1. Clean the Fastener: Use a wire brush to remove all rust, paint, and debris from the bolt head. This allows the socket to achieve maximum contact.
2. Tap the Socket On: Use a hammer to firmly seat a spline socket onto the damaged head. This ensures the teeth engage the remaining material as deeply as possible.
3. Apply Penetrating Oil: Let a quality penetrant (like PB Blaster or Kroil) soak into the threads. This can loosen corrosion while you work.
4. Use Steady Torque: With the socket fully seated, apply slow, increasing pressure with a breaker bar. Avoid sudden impacts, which can shock and break the fastener.

Socket Maintenance and Storage

Organized, well-maintained tools are reliable tools. Simple habits prevent corrosion and loss.

Task	Recommended Action	Benefit
Cleaning	Wipe with a dry cloth after use. For heavy grease, use a degreaser and dry thoroughly.	Prevents grime buildup that causes poor fit and slippage.
Corrosion Prevention	Apply a light coat of machine oil or a rust-inhibitor spray to chrome tools before long-term storage.	Protects the finish and ensures smooth operation for years.
Organization	Use a labeled socket rail or shadowed toolbox drawer. Keep spline and hex sets separate for quick identification.	Saves time on the job and prevents loss of individual sockets.

Key Takeaway: Treat your sockets with care. Clean, organized, and properly used tools are safer, more effective, and last a lifetime.

Common Myths and Misconceptions About Spline Sockets

Several persistent myths can lead users to misuse or undervalue spline socket tools. Clarifying these points ensures you get the maximum benefit and safety from your investment.

Myth 1: Spline Sockets Replace All Hex Sockets

This is the most common and potentially costly misconception. While versatile, spline sockets are not a universal substitute.

• Torque Limitations on New Fasteners: For critical, high-torque applications on new, undamaged hex fasteners, a 6-point hex socket provides superior contact area. It remains the safest choice for applying manufacturer-specified torque values.
• Potential for Over-tightening: The excellent grip of a spline socket can sometimes mask the “feel” of a fastener reaching its proper torque. This can lead to over-tightening and thread damage if a torque wrench is not used.

Myth 2: Spline Sockets Always Provide a Perfect Fit

The multi-size capability is a benefit, but it comes with an important technical caveat that users must understand.

• It’s a Compromise Fit: A single spline socket engaging multiple hex sizes does not provide the exact, precision fit of a dedicated hex socket. There is inherent, designed-in play to accommodate the range of sizes.
• Increased Wear on Fasteners: Using a spline socket as a “one-size-fits-most” tool for every job can accelerate wear on the corners of new hex fasteners over many cycles, as contact is not on the ideal flat surface.

Myth 3: All Spline Sockets Are Created Equal

Quality and design vary dramatically between manufacturers, affecting performance and safety.

Feature	Low-Quality Spline Socket	High-Quality Spline Socket
Material & Hardness	Softer alloy steel; deforms or cracks under high torque.	Chrome vanadium or S2 steel; properly heat-treated for strength.
Precision Machining	Poorly cut teeth with burrs; doesn’t seat deeply or evenly.	Precision-cut, clean teeth for maximum engagement and grip.
Safety Risk	High risk of shattering under load, especially with impact tools.	Rated for impact use; designed to handle sudden torque safely.

The Reality: Spline sockets are exceptional specialized tools for specific problems, not a magic replacement for a complete hex set. Investing in quality is non-negotiable for safety and results.

Future of Fastening: Spline, Hex, and Emerging Technologies

The tool industry continuously evolves to solve old problems and meet new demands. While hex remains the standard, innovation is shaping the next generation of fastening tools.

The Enduring Role of Hex Fasteners

Hex bolts and nuts are deeply embedded in global manufacturing and design. Their dominance is unlikely to fade completely.

• Universal Standardization: Every machine shop, vehicle, and appliance is built around hex fasteners. This creates immense backward compatibility pressure, ensuring hex tools remain essential.
• Cost-Effective Manufacturing: Hex heads are simple and inexpensive to produce at scale. This economic reality guarantees their continued use in high-volume production.
• Evolution, Not Replacement: The future is not about hex disappearing. It’s about better tools to drive existing hex fasteners, which is precisely where spline socket technology excels.

Innovations in Socket and Drive Design

Tool manufacturers are developing new systems that build on the lessons of spline and hex designs.

• Asymmetric Drive Systems: Designs like the Ribe® or others use a non-symmetrical pattern. This allows for higher torque and can only be driven by a matching tool, adding a tamper-resistant element.
• Enhanced Anti-Slip Geometries: New internal patterns focus even more on maximizing contact on rounded corners. These are often marketed as “bolt extractor” sockets and represent a direct evolution of spline principles.
• Material Science Advances: New steel alloys and treatments increase strength-to-weight ratios. This allows for thinner, stronger socket walls that can fit into tighter spaces without sacrificing durability.

What This Means for Your Toolbox Strategy

Staying effective means adapting your toolkit intelligently, not chasing every new gimmick.

Tool Type	Current Status	Future Outlook	Actionable Advice
6-Point Hex	Essential workhorse. The undisputed standard.	Will remain the foundational, must-have tool for decades.	Continue investing in high-quality sets. This is your core.
Spline	Proven problem-solver. Niche but critical.	Adoption will grow as a standard “rescue” tool alongside hex sets.	Add a quality set or key sizes. Consider it essential insurance.
New Asymmetric Drives	Emerging specialty. Limited to specific applications.	May grow in automotive/aerospace but unlikely to replace consumer hex.	Only invest when a specific project demands it. Don’t buy proactively.

Final Insight: Build your toolkit on the rock-solid foundation of hex sockets. Augment it strategically with spline technology for its proven advantages. Adopt new systems only as a specific need arises.

Safety Considerations and Potential Risks

Using the wrong socket or improper technique isn’t just inefficient—it’s dangerous. Understanding the risks protects you, your workpiece, and your tools from serious harm.

Primary Safety Hazards to Avoid

These common dangers are often the result of a poor tool-to-fastener match or tool failure.

• Socket Shattering: Using a non-impact rated socket with an air wrench or excessive force can cause it to explode. Flying metal fragments pose a severe injury risk to eyes and skin.
• Fastener Shear or Breakage: Applying torque with a poorly fitting socket (e.g., a worn 12-point on a tight bolt) can shear the head off. This creates sharp, sudden failure and can turn the remaining stud into a much harder extraction job.
• Tool Slip and Hand Injury: When a socket rounds a fastener and slips, your hand or arm can violently strike nearby objects. This is a leading cause of knuckle injuries and sprains in the shop.

How to Mitigate These Risks

Proactive safety measures are simple to implement and highly effective.

1. Always Match the Tool to the Job: Use impact sockets for power tools. Use 6-point hex or spline sockets for high-torque or damaged fasteners to prevent slippage.
2. Inspect Tools Before Use: Check for cracks, excessive wear, or rounded internal corners. Discard any damaged socket immediately; it is a liability.
3. Wear Appropriate PPE: Safety glasses are non-negotiable. Consider gloves for hand protection, but ensure they are not loose-fitting where they could get caught.
4. Secure Your Workpiece: Ensure the item you’re working on is firmly clamped or supported. A shifting part can cause loss of control and injury.

Spline vs. Hex: A Safety Perspective

Each socket type has distinct safety profiles in different scenarios.

Risk Scenario	Hex Socket Risk	Spline Socket Risk	Safer Choice
Working on a Rounded Bolt	Very High. High probability of sudden, violent slip.	Low. Designed to grip damaged heads securely.	Spline Socket
Precision Torquing to Spec	Low. Maximum flat contact allows accurate torque transfer.	Moderate. Multi-point contact can sometimes mask “feel.”	6-Point Hex Socket
General Use with Impact Wrench	Low (if impact-rated). Standard design handles shock load.	Low (if impact-rated). Must be specifically rated for impact use.	Either, if properly rated.

Safety Summary: The safest tool is the one that fits the fastener perfectly and is rated for the job. When in doubt about a fastener’s condition, a quality spline socket often provides a safer, more controlled engagement.

Best Sockets for Professional and DIY Use – Detailed Comparison

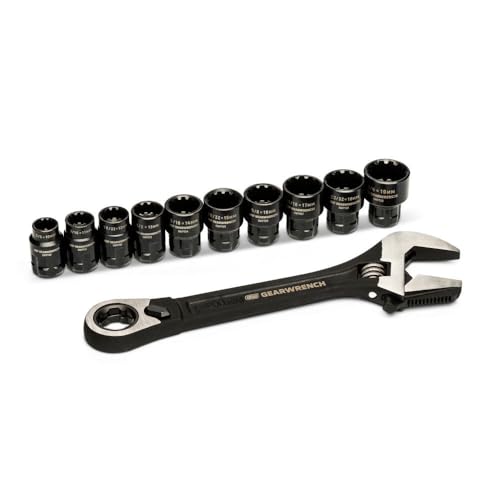

GearWrench 11-Piece Spline Socket Set – Best Overall Choice

This 11-piece spline socket set offers exceptional versatility and strength. It features a 6-point double-hex design that grips fasteners securely on both the flats and corners. Ideal for tackling rounded or damaged hex fasteners, it’s a must-have for any serious toolbox tackling stubborn bolts.

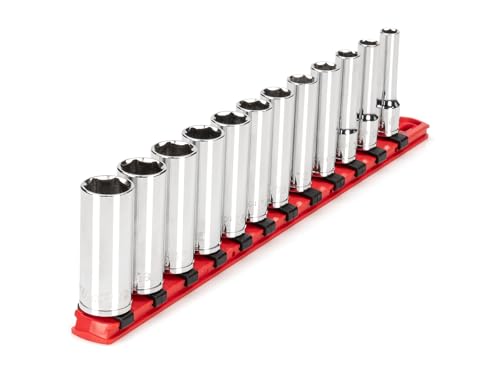

TEKTON 3/8-Inch Drive 6-Point Deep Hex Socket Set – Best Value Hex Set

The TEKTON set provides excellent value and durability for standard applications. Made from chrome vanadium steel with a corrosion-resistant finish, these 6-point sockets offer maximum contact and minimize fastener rounding. This is the ideal, reliable choice for everyday automotive and assembly work.

NEIKO 02488A 3/8″ Drive Universal 6 Point Metric Socket Set – Best Professional-Grade Option

For professionals demanding peak performance, the NEIKO 02488A is unmatched. It delivers superior torque transfer and extreme durability under heavy load. The precision machining ensures a perfect fit, making it the recommended option for high-torque applications and frequent use in demanding shop environments.

Conclusion: Choosing the Right Socket for Every Job

Hex and spline sockets are complementary tools, not rivals. Hex sockets provide precision and maximum torque on new fasteners. Spline sockets offer versatile, problem-solving grip on damaged or stubborn bolts.

The key takeaway is to build a strategic toolkit. Start with a quality 6-point hex set as your foundation. Then, add spline sockets for their specialized extraction capabilities.

Assess your next project and choose the tool that fits the fastener perfectly. This simple practice saves time, prevents damage, and ensures safety.

With the right knowledge and tools, you can confidently tackle any mechanical challenge.

Frequently Asked Questions about Spline and Hex Sockets

What is the main difference between a spline and a hex socket?

A hex socket has a six-sided internal profile designed to fit the flat sides of a hex fastener. A spline socket has a multi-toothed, star-shaped internal profile. This allows it to grip both the flats and corners of a fastener.

The spline design provides more contact points. This makes it superior for gripping rounded or damaged bolts where a standard hex socket would slip and cause further damage.

Can I use a spline socket on any hex bolt?

Technically, yes, but it is not always the best practice. A spline socket can engage a hex bolt of a similar size due to its multi-point design. It will often fit and turn the fastener.

However, for applying precise, high torque to a new, undamaged bolt, a correctly sized 6-point hex socket is safer. It provides maximum flat contact, reducing the risk of rounding the fastener during initial tightening.

Are spline sockets better for removing stripped bolts?

Yes, spline sockets are generally the best tool for removing stripped or rounded hex bolts. Their multiple internal teeth bite into the remaining material on the damaged fastener head. This provides a much more secure grip than a standard socket.

For the best results, clean the bolt head thoroughly and tap the spline socket on firmly with a hammer. This ensures the teeth engage as deeply as possible before applying torque.

Which type of socket is stronger, spline or hex?

Strength depends on the application. A 6-point hex socket is stronger for applying torque to a perfect hex fastener, as force is distributed across large, flat surfaces. The socket itself is also a robust, simple design.

A spline socket’s strength lies in its ability to grip compromised fasteners without failing. The socket must be made of high-quality, hardened steel to withstand the high stress concentrated on its many small teeth.

Why would I choose a 12-point hex socket over a 6-point?

You would choose a 12-point socket primarily for convenience in tight spaces. The double the number of drive points allows you to engage the fastener at twice as many angles (every 30 degrees instead of every 60).

The trade-off is reduced contact area on the fastener’s flats. This increases the risk of rounding, especially on tight or corroded bolts. Use 12-point sockets for assembly, not for high-torque or breakdown work.

Do I need special spline sockets for an impact wrench?

Yes, absolutely. You must use impact-rated spline sockets with an impact wrench or air tool. Impact sockets are made from a softer, more ductile steel (like chrome molybdenum) that absorbs shock without shattering.

Using a standard, non-impact chrome socket with a power tool is extremely dangerous. The socket can fracture and send high-velocity metal fragments flying, causing serious injury.

What is the best way to organize spline and hex sockets?

The best practice is to keep them on separate rails or in separate sections of your toolbox. Organize them by drive size (1/4″, 3/8″, 1/2″) and then by socket size. Clearly label the rail or drawer.

This prevents confusion on the job and ensures you can quickly find the exact tool you need. For spline sockets, consider labeling them with the equivalent hex sizes they fit for quick reference.

Can a spline socket replace my entire hex set?

No, a spline socket set should not replace your entire hex set. While versatile, spline sockets are a complementary tool. They excel as problem-solvers for damaged fasteners and offer multi-size capability.

Your primary set should be 6-point hex sockets for their precision, strength, and reliability on new fasteners. Add spline sockets as a specialized set for extraction and tricky situations.
