Locking vs. Non-Locking Extensions: Stop Losing Your Sockets

Are you constantly chasing dropped sockets? The choice between locking and non-locking extensions is the key. Using the wrong type is a major cause of frustration and lost time in any toolbox.

This complete guide delivers the proven solution to socket slippage. You will learn the core mechanics, advantages, and ideal use cases for each extension type to make an informed purchase.

Best Socket Extensions for Secure Fastening

Choosing the right extension prevents tool loss and boosts productivity. We recommend these three top-rated options based on durability, locking mechanism, and user feedback. Each serves a distinct purpose in a professional or home mechanic’s arsenal.

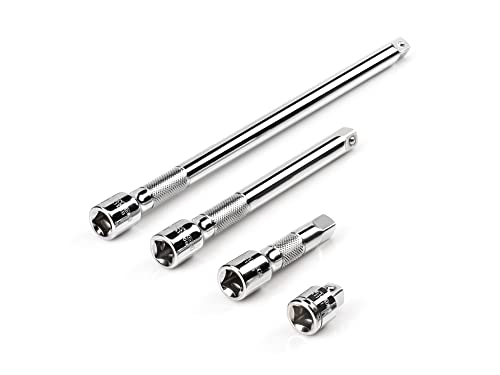

TEKTON 3/8-Inch Drive Locking Extension Bar Set – Best Overall Kit

This 4-piece set offers exceptional value and reliability. The positive pin-lock mechanism securely holds sockets with an audible click. Made from chrome vanadium steel, it’s ideal for general automotive repair and provides a complete range of lengths from 1.5 to 10 inches.

GEARWRENCH 3/8″ Drive 5-Piece Flex Locking Extension Set – Best for Tight Spaces

Conquer difficult angles with this flexible, locking set. The pivoting head locks in multiple positions, while the locking end prevents socket drop-off. It’s the perfect solution for engine compartment work where rigid extensions simply won’t fit.

Neiko Pro 1/2-Inch Drive Impact Locking Extension (00256A) – Best for Heavy-Duty Impact Use

Built for power tools, this single, rugged 10-inch extension handles high torque. Its industrial-grade locking mechanism withstands vibration from impact wrenches. This is the recommended choice for lug nuts, suspension work, and any high-torque application.

How Locking and Non-Locking Socket Extensions Work

Understanding the core mechanism is crucial for choosing the right tool. The fundamental difference lies in how the extension attaches to the socket. This simple design choice dramatically impacts security and workflow speed.

The Locking Extension Mechanism Explained

Locking extensions feature a spring-loaded mechanism at the drive end. A small pin or ball bearing protrudes and snaps into a corresponding detent on the socket. This creates a positive mechanical lock that must be manually released.

• Pin-Lock System: A small pin engages the socket’s detent. It often requires pushing a collar or sleeve to disengage, offering a very secure connection ideal for overhead work.
• Ball-Lock System: Uses a spring-loaded ball bearing. It’s engaged and released by pulling or pushing a collar. This is the most common type, providing a good balance of security and quick release.

The Simplicity of Non-Locking Extensions

Non-locking, or standard extensions, use a simple friction fit. The square drive end has a spring-loaded ball bearing, but there is no locking collar. The socket is held purely by the tension of the ball bearing against the socket’s groove.

This design allows for lightning-fast socket changes. You simply push a socket on and pull it off. However, this convenience comes with a risk. Vibration, gravity, or awkward angles can easily overcome the ball bearing’s tension.

Key Takeaway: Locking extensions use a manual collar to actively secure the socket. Non-locking extensions rely on passive friction from a spring ball. The former prioritizes security; the latter prioritizes speed.

Direct Comparison: Security vs. Speed

Choosing between the two types is a classic trade-off. Your decision should be based on the specific task at hand. The table below highlights the primary differences.

Feature	Locking Extension	Non-Locking Extension
Primary Advantage	Security & Safety	Speed & Convenience
Socket Retention	Excellent; requires manual release	Fair; can shake loose
Best Use Case	Overhead work, tight spaces, impact use	Quick, accessible jobs, frequent socket swaps
Operation	Push socket on, engage lock collar	Simply push socket on/pull off

Choosing the Right Extension: A Pro’s Guide

Selecting between locking and non-locking isn’t about finding a single winner. It’s about matching the tool to the job. This decision matrix considers safety, efficiency, and the specific challenges of your project.

When to Choose a Locking Socket Extension

Prioritize a locking mechanism when socket loss poses a major risk or frustration. These scenarios demand the extra security to keep your workflow smooth and safe.

• Overhead or Vertical Work: Any time you’re working above your head or on a vertical surface, gravity is your enemy. A locking extension prevents sockets from falling onto you or getting lost in the engine bay.
• Confined or Tight Spaces: When reaching into deep cavities or tight engine compartments, retrieving a dropped socket can cost significant time. Locking extensions ensure the socket stays put until you remove it.
• Impact Wrench Use: The intense vibration from an impact tool will quickly shake a standard socket loose. Always use impact-rated locking extensions for these high-torque applications.

When a Non-Locking Extension is Perfect

Standard extensions excel in straightforward, accessible jobs where speed is the primary goal. Their simplicity is their greatest strength for common tasks.

They are ideal for quick tire rotations, basic assembly work on a bench, or any job where you frequently change sockets on an open, level surface. The fast, one-handed operation significantly boosts efficiency when socket retention isn’t a concern.

Pro Tip: Many professionals keep both types in their toolbox. They use non-locking for speed on easy jobs and switch to locking for complex, risky, or overhead tasks. This hybrid approach maximizes efficiency and safety.

Key Factors in Your Decision

Beyond the job type, consider these three practical factors before purchasing. They will ensure you get the right tool for your long-term needs.

1. Drive Size: Consider your most-used socket sets. Ensure the extension’s drive size (1/4″, 3/8″, 1/2″) matches your sockets and ratchets.
2. Length & Flexibility: For tight spaces, a flex-head locking extension is invaluable. For general use, a set with multiple lengths provides the most versatility.
3. Build Quality: Look for chrome vanadium or chromium-molybdenum steel. For impact use, verify the extension is explicitly rated for high torque.

Maintenance and Troubleshooting for Socket Extensions

Proper care extends tool life and ensures reliable performance. Both locking and non-locking extensions require simple maintenance. Neglect can lead to poor socket retention and even tool failure.

Cleaning and Lubricating Your Extensions

Dirt and debris are the primary enemies of any extension mechanism. A clean tool is a safe and functional tool. Follow this simple process monthly or after dirty jobs.

1. Wipe Down: Use a clean, dry rag to remove loose dirt and grease from the entire extension bar.
2. Clean the Drive End: Spray a small amount of brake cleaner or degreaser into the locking collar or ball-bearing area. Use a stiff brush (like a toothbrush) to scrub away caked-on grime.
3. Lubricate Sparingly: Apply one drop of a light machine oil or dry lubricant to the moving parts of the locking mechanism. Wipe away any excess to prevent attracting more dirt.

Common Problems and Quick Fixes

Even with good care, issues can arise. Most common problems have straightforward solutions you can perform at your workbench.

• Socket Won’t Lock: This is usually caused by dirt or a broken spring. Clean the mechanism thoroughly. If it persists, the internal spring may need replacement.
• Socket Sticks or is Hard to Release: Often due to gummed-up lubricant or minor corrosion. Clean with degreaser, lightly lubricate, and work the collar back and forth.
• Wobble or Loose Fit: Excessive wear on the square drive or socket can cause play. Inspect for rounded corners. This often means the tool or socket needs replacing.

Safety Warning: Never use a damaged or excessively worn extension. A cracked extension or failed locking mechanism under torque can lead to injury. Inspect your tools regularly and replace them when worn.

Maximizing the Lifespan of Your Tools

Adopt these best practices to get the most value from your investment. Proper use is just as important as cleaning.

Always use the correct drive size adapter; never stack adapters to change sizes. For high-torque applications, ensure you are using an impact-rated extension to prevent shattering. Finally, store your extensions in a clean, dry toolbox drawer or rack to prevent rust and physical damage.

Advanced Applications and Pro Techniques

Mastering your extensions unlocks greater efficiency and capability. Beyond basic use, strategic techniques can solve complex problems. These methods are standard practice for experienced mechanics.

Using Extensions for Maximum Reach and Access

Extensions are not just for adding length. They are crucial for navigating obstacles and creating clearance for your ratchet handle. The right combination is key.

For deep-reach situations, stack multiple extensions together securely. Ensure each connection is fully seated. To work around obstructions, combine a universal joint with an extension. This creates a flexible linkage for angled fasteners.

• Rigid Stacking: Connect extensions directly for maximum reach in a straight line. Ideal for deep bolt holes.
• Flexible Solutions: Add a swivel or universal joint between extensions. This allows you to turn fasteners around corners.
• Breaker Bar Aid: Use a long extension on a breaker bar to increase leverage in tight spaces where the bar itself won’t fit.

The Role of Extensions in Impact Tool Safety

Using extensions with power tools requires specific precautions. The wrong choice can damage tools and create serious safety hazards. Always prioritize rated equipment.

Only use extensions explicitly marked as “Impact Rated.” These are made from tougher, shock-resistant alloys. Avoid using very long extensions with impact wrenches, as the increased flex can create dangerous whip or reduce torque delivery.

Expert Insight: For impact use, a single, high-quality locking extension is safer than stacking multiple shorter ones. Each connection point is a potential failure point under extreme vibration. Keep the connection chain as simple as possible.

Creative Problem-Solving with Your Toolset

Sometimes, extensions serve unconventional purposes. These clever uses can save a job when specialized tools aren’t available.

Use a non-locking extension as a makeshift alignment punch or drift for soft materials. A locking extension can temporarily hold a nut or washer in place overhead while you start threading a bolt. Always ensure the tool is suitable for the stress of the alternate use to avoid damage.

Essential Accessories to Complement Your Extensions

Building a complete socket system enhances versatility and solves more problems. These key accessories work seamlessly with both locking and non-locking extensions. They transform a simple extension into a multi-functional tool system.

Universal Joints and Swivel Adapters

These are arguably the most important companion tools. A universal joint (u-joint) attaches between your extension and socket, allowing for angle changes. This is critical for accessing fasteners that are not in a direct line of sight.

• Fixed vs. Flex-Head: Standard u-joints pivot, while some feature a locking flex-head for more controlled positioning.
• Torque Consideration: Be aware that u-joints can reduce effective torque. Use them only when necessary and apply force smoothly.
• Locking Compatibility: Pair a locking extension with a u-joint and socket for the ultimate secure, angled connection.

Impact Adapters and Drive Size Converters

These small pieces bridge different tool systems. They allow you to use sockets of one drive size with ratchets or extensions of another. This maximizes the utility of your entire socket set.

Always choose impact-rated adapters for use with power tools, even if your sockets are impact-rated. The adapter is a critical stress point. For precision work, use high-quality, machined adapters to minimize play and wobble.

Pro Setup: A versatile core kit includes: a 3/8″ drive locking extension set, a 3/8″ to 1/4″ reducer, a 3/8″ to 1/2″ adapter, and two universal joints (standard and locking flex-head). This covers 95% of common scenarios.

Specialty Extensions for Unique Jobs

Beyond standard bars, several specialized extensions exist for niche applications. Knowing about them can save hours of struggle on specific jobs.

• Magnetic Extensions: These hold ferrous fasteners (screws, bolts) in place, ideal for starting fasteners in blind holes.
• Wobble Extensions: Feature a slightly angled drive end that provides a few degrees of “wobble” for easier socket engagement in misaligned spaces.
• Extra-Long & Extra-Short: Very long extensions (24″+) for deep reaches, and stubby extensions (1″-2″) for extremely confined clearance.

Making the Final Decision: A Summary Checklist

This final guide consolidates all key information into a simple decision matrix. Use this checklist before your next purchase or when selecting a tool from your box. It ensures you choose the optimal extension for the job at hand.

Your Quick-Selection Guide

Answer these three questions to instantly narrow down your choice. This logic tree prioritizes safety and efficiency based on job parameters.

1. Is the fastener overhead, vertical, or in a deep/tight space? YES = Choose a Locking Extension. NO = Proceed to question 2.
2. Will you use an impact wrench or apply high torque? YES = Choose an Impact-Rated Locking Extension. NO = Proceed to question 3.
3. Is speed of socket changes the top priority on an accessible job? YES = Choose a Non-Locking Extension. NO = A locking extension is the safer default.

Investment Priority for Different Users

Your level of use dictates where to invest first. Allocate your budget effectively to build a practical, versatile set.

User Type	First Purchase Priority	Reasoning
Professional Mechanic	High-quality locking set & impact extensions	Daily use in risky scenarios demands reliability and safety.
Serious DIY Enthusiast	Mid-range locking set (e.g., TEKTON)	Handles complex projects safely; good value for money.
Occasional Home User	A standard non-locking set & 1 locking extension	Covers basics; the single locker is for rare tricky jobs.

Final Verdict: There is no single “best” type—only the best tool for the specific task. For most toolboxes, owning both locking and non-locking extensions provides maximum flexibility. Start with a locking set for safety, then add standard extensions for speed on simple jobs.

Next Steps After Reading

Audit your current toolbox. Identify gaps based on the jobs you do most often. Do you have a reliable locking extension for overhead work? Consider purchasing one of our recommended sets to solve your most frequent frustration.

Conclusion: Mastering Your Tools with the Right Socket Extension

The choice between locking and non-locking extensions is about control. It determines whether you work with confidence or chase lost sockets. Understanding their core functions solves a major workshop frustration.

The key takeaway is simple: match the tool to the task. Use locking for security in complex jobs and non-locking for speed in simple ones. Investing in both types creates the most versatile toolbox.

Review your common projects using our checklist. Then, upgrade your kit with a recommended set to experience the difference. Your next job will be faster, safer, and far less frustrating.

Take control of your workspace. The right extension doesn’t just hold a socket—it holds your workflow together.

Frequently Asked Questions about Locking and Non-Locking Socket Extensions

What is the main difference between locking and non-locking extensions?

A locking extension has a manual collar that actively secures the socket with a pin or ball. This prevents the socket from falling off. A non-locking extension relies on passive spring tension for a simple friction fit, allowing faster socket changes but with less security.

The choice is a direct trade-off between security and speed. Locking is essential for overhead or confined work, while non-locking excels for quick, accessible jobs on a bench.

How do you release a socket from a locking extension?

To release a socket, you must disengage the locking mechanism. This typically involves pulling or pushing a knurled collar or sleeve located near the drive end of the extension. You will feel and often hear a distinct click as the lock disengages.

Once the collar is activated, the socket should slide off easily. If it sticks, the mechanism may be dirty and require cleaning and light lubrication as outlined in our maintenance section.

Can a non-locking extension be used with an impact wrench?

It is strongly discouraged and potentially dangerous. The intense vibration from an impact tool will almost certainly shake a non-locking socket loose. This can damage the tool, fastener, or cause injury from a flying socket.

Always use an extension explicitly marked as “Impact Rated” for power tools. These are made from tougher steel and feature a robust locking mechanism designed to withstand constant vibration.

Why is my locking extension not holding sockets securely?

The most common cause is dirt, grease, or debris clogging the locking mechanism. This prevents the pin or ball from fully engaging the socket’s detent. A broken or worn-out internal spring is another frequent culprit.

First, thoroughly clean the drive end with degreaser and a brush. If the problem persists after cleaning and light oil, the internal spring likely needs replacement, or the extension should be retired for safety.

What is the best length for a socket extension?

The “best” length depends on your specific task. For general use, a set containing multiple lengths (e.g., 3″, 6″, 10″) provides maximum versatility. A 6-inch extension is often considered a good all-purpose starting point for 3/8″ drive work.

For deep engine or transmission work, longer extensions (12″+) are necessary. For extremely tight spaces, a stubby 2-inch extension or a flexible locking model is the best option to access confined fasteners.

Are wobble extensions the same as universal joints?

No, they function differently. A wobble extension has a slightly angled drive end that provides a few degrees of off-axis movement for easier socket engagement. A universal joint (u-joint) is a separate adapter that allows the socket to pivot at a full 90-degree angle or more.

Wobble extensions are simpler and stronger for mild angles. U-joints are for severe angles but can reduce torque. Many professionals use both for different scenarios in tight engine bays.

What should I look for when buying a quality extension?

Prioritize material and construction. Look for chrome vanadium or chromium-molybdenum steel. Ensure the locking mechanism (if applicable) engages with a positive, crisp click. The finish should be smooth and corrosion-resistant, like chrome plating.

For brand reliability, consider warranty length and user reviews. A reputable brand with a lifetime warranty often indicates confidence in durability, making it a smarter long-term investment.

Is it safe to connect two extensions together?

Yes, but with important caveats. Stacking extensions increases flex and can reduce the effective torque reaching the fastener. Always ensure each connection is fully seated. Use the fewest number of extensions possible to complete the reach.

Avoid using impact wrenches on long, stacked extensions due to increased whip and stress. For critical, high-torque applications, a single long extension is always safer and more effective than multiple short ones connected.

Can You Use a Locking Extension with Any Socket?

Most modern sockets are compatible, but there are important exceptions. The socket must have the standard detent groove for the locking pin or ball to engage.

• Standard Sockets: Yes, the vast majority of 1/4″, 3/8″, and 1/2″ drive sockets work perfectly.
• Impact Sockets: Yes, and this is a highly recommended combination for safety.
• Specialty Sockets: Some thin-wall or pass-through sockets may lack the necessary detent. Always check compatibility before use.

Are Locking Extensions Worth the Extra Cost?

For many users, the investment is absolutely justified. The value depends entirely on your typical projects and frustration level.

If you regularly work in challenging positions or with power tools, they are essential. The time saved not retrieving dropped sockets and the increased safety provide a high return. For casual, bench-top use, standard extensions may suffice.

Quick Answer: For professional or frequent DIY use, locking extensions are worth it. They prevent lost sockets and increase safety in awkward positions, saving time and money in the long run.

How to Safely Stack and Combine Extensions

Stacking is a useful technique but requires care. The primary risks are reduced torque, increased flex, and connection failure.

1. Minimize Connections: Use the single longest extension possible instead of multiple short ones.
2. Check Each Joint: Ensure every connection between extensions and sockets is fully seated and secure before applying force.
3. Reduce Torque Expectations: Understand that long stacks can flex, reducing effective torque at the fastener. Apply force smoothly and avoid impacts on long stacks.
