How to Fix a Broken Air Compressor?

Fixing a broken air compressor is often a straightforward DIY task. You can diagnose and repair many common failures yourself. This saves you significant time and money on costly replacements.

A malfunctioning air compressor halts projects and disrupts your workflow. Our complete troubleshooting guide provides the expert solutions you need. Get your equipment running smoothly again with proven methods.

Best Tools for Fixing a Broken Air Compressor

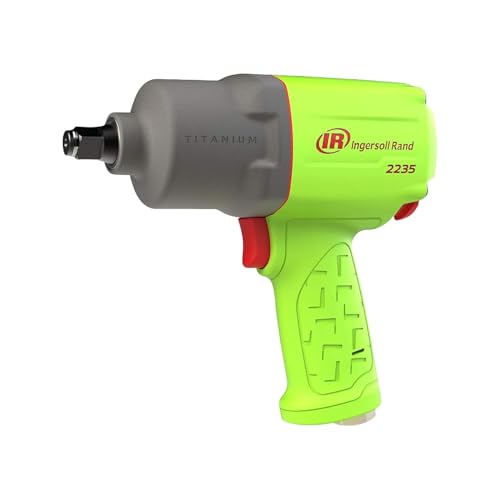

Ingersoll Rand 1/2-Inch Drive Air Impact Wrench (2235TiMAX) – Best Overall Tool

This professional-grade impact wrench delivers 1,350 ft-lbs of maximum torque for stubborn fittings. Its titanium hammer mechanism is incredibly durable. It’s the ideal tool for disassembling tight compressor pumps, flywheels, and motor mounts with ease and reliability.

Mastercool 59161 2-Way Heavy Duty Gauge Set – Best for Diagnostics

This 4-valve gauge set is essential for diagnosing pressure switch and regulator issues. It allows you to accurately monitor system pressure and perform controlled evacuations. Perfect for troubleshooting air leaks and verifying cut-in/cut-out pressures on your compressor’s tank.

JB Weld 8265S Original Cold-Weld Steel Reinforced Epoxy – Best for Quick Repairs

This two-part epoxy is a must-have for sealing hairline cracks in compressor tanks or housings. It creates a permanent, pressure-resistant bond on various metals. It’s the ideal temporary or permanent fix for minor tank leaks while you source a replacement.

Diagnosing Common Air Compressor Problems

Effective repair starts with accurate diagnosis. Many compressor failures share similar symptoms. Identifying the root cause saves you from unnecessary part replacements.

The Compressor Won’t Start

This is a frequent issue with several potential culprits. Always start with the simplest checks before moving to complex components. Ensure the unit is plugged in and the power switch is on.

• Check Power Supply: Verify the outlet works and the cord isn’t damaged. Test the circuit breaker or fuse for the circuit.
• Inspect the Pressure Switch: If the tank pressure is above the cut-in setting, the motor won’t start. Manually depress the switch contact to test it.
• Examine the Thermal Overload Protector: Motors have a reset button that trips if overheated. Let the motor cool and press the reset button.

Low or No Air Pressure Output

Your compressor runs but delivers weak or no air. This points to issues in the air path. The problem could be a simple leak or a failed pump.

Summary of Key Checks:

• Listen and feel for air leaks at connections, the tank, and the drain valve.
• Test the check valve located between the pump and tank. It should only allow air into the tank.
• If the pump runs but builds no pressure, the intake filter may be clogged or the piston rings could be worn.

Excessive Moisture in Air Lines

Water in your air tools damages them and indicates a compressor issue. Moisture is a natural byproduct of compressing air. Proper management is crucial.

Cause	Solution
Faulty or missing air dryer/separator	Replace the in-line moisture trap or install a dryer.
Drain valve left closed	Drain the tank completely after every use.
Ambient humidity is extremely high	Add a secondary filter/regulator at the point of use.

Step-by-Step Air Compressor Repair Procedures

Once you’ve diagnosed the problem, follow these proven repair steps. Always prioritize safety by disconnecting power and releasing all air pressure before starting. Gather your tools and replacement parts beforehand.

How to Fix an Air Compressor Leak

Air leaks are the most common issue and waste energy. They often occur at threaded connections, valves, or the tank itself. A simple soapy water solution is your best detection tool.

1. Pressurize the Tank: Turn on the compressor and let the tank fill to its cut-out pressure. Then, turn the power off and unplug the unit.
2. Apply Soapy Water: Mix dish soap with water in a spray bottle. Generously spray all fittings, hoses, the drain valve, and the tank welds.
3. Identify Bubbles: Watch for bubbles forming, which pinpoint the leak source. Tighten fittings or apply thread sealant (Teflon tape) as needed for connection leaks.

Replacing the Pressure Switch

A faulty pressure switch prevents the motor from starting or stopping correctly. Replacing it is a straightforward electrical and mechanical task. Ensure you buy an identical replacement switch for your model’s pressure range.

• Disconnect Power & Air: Unplug the compressor and bleed all air from the tank for absolute safety.
• Label and Disconnect Wires: Take a photo of the wiring, then carefully disconnect the wires from the old switch terminals.
• Swap the Unit: Unscrew the old switch from the tank or line. Install the new switch, reconnect wires exactly as photographed, and restore power.

Rebuilding the Pump Head

If your pump runs but builds pressure slowly, internal wear is likely. A rebuild kit with new gaskets, valves, and rings can restore performance. This is an advanced but cost-effective repair.

Key Rebuild Steps:

• Remove the pump head cover to access the cylinder, piston, and reed valves.
• Clean all parts thoroughly and inspect for scoring on the cylinder walls.
• Replace all worn components from the kit, lubricate with compressor oil, and reassemble.

Essential Air Compressor Maintenance to Prevent Future Breakdowns

Regular maintenance is the most effective way to avoid a broken air compressor. A simple routine prevents costly repairs and extends your equipment’s lifespan. Consistent care ensures reliable performance for every project.

Daily and Weekly Maintenance Checklist

These quick tasks should become a habit before and after each use. They address the most common causes of premature failure. This routine takes only minutes but saves hours of downtime.

• Drain the Tank: Open the drain valve at the bottom of the tank after every use to expel accumulated moisture and prevent internal rust.
• Check Oil Levels: For oil-lubricated models, verify the oil level in the sight glass daily. Top up with specified compressor oil as needed.
• Inspect for Leaks: Listen for hissing sounds and feel connections for air during operation. Address minor leaks immediately.

Monthly and Seasonal Maintenance Tasks

Set aside time for these slightly more involved procedures each month. They focus on key components that degrade with regular operation. Mark your calendar to stay consistent.

Critical Monthly Actions:

1. Clean or replace the intake air filter. A clogged filter makes the motor work harder and overheat.
2. Inspect all hoses and connections for cracks, brittleness, or wear. Replace damaged hoses promptly.
3. Test the safety relief valve by manually pulling the ring to ensure it opens and closes properly.

When to Call a Professional vs. DIY Repair

Knowing your limits is crucial for safety and cost-effectiveness. Some repairs require specialized tools and expertise. Use this guide to decide when to tackle a job yourself.

DIY Repair (Safe)	Professional Repair (Recommended)
Replacing filters, hoses, or fittings	Welding or repairing a cracked or severely rusted air tank
Fixing external air leaks at connections	Major internal motor or pump bearing replacement
Swapping out the pressure switch or drain valve	Complex electrical issues beyond a simple switch

Troubleshooting Specific Air Compressor Components

Some failures are tied directly to a single component. Understanding how each part functions simplifies the repair process. This section provides targeted fixes for the most critical system parts.

Check Valve Failure Symptoms and Replacement

The check valve prevents compressed air from flowing back into the pump when the motor stops. A failed valve causes air to leak from the pump head or prevents pressure buildup. You’ll often hear a hissing sound from the pump after shutdown.

• Symptom: Tank pressure leaks back through the pump, causing it to cycle on too frequently.
• Test: With the tank pressurized and power off, listen for air escaping from the pump intake filter.
• Fix: Locate the valve between the pump and tank, unscrew it, clean the seat, or install an identical replacement.

Unloader Valve Issues and Adjustments

This valve releases pressure trapped in the pump head after shutdown, allowing the motor to restart easily. If faulty, the motor will struggle or hum loudly on startup. It’s often part of or near the pressure switch.

Common Unloader Valve Problems:

1. Clogged Port: Debris blocks the small orifice. Clean it with a wire or compressed air.
2. Worn Seal: The valve fails to seal, causing a continuous air leak. The seal or entire valve assembly needs replacement.
3. Misaligned Linkage: On mechanical unloaders, ensure the linkage from the pressure switch moves freely.

Motor Capacitor Testing and Safety

Most single-phase compressor motors use a start capacitor to provide initial torque. A weak or dead capacitor is a common reason a compressor hums but won’t start. Capacitors store dangerous electrical energy even when unplugged.

Capacitor Type	Function	Failure Sign
Start Capacitor	Gives motor a boost to begin spinning	Audible hum, motor doesn’t turn
Run Capacitor	Improves running efficiency and power	Motor overheats, struggles under load

Warning: Always discharge a capacitor safely with an insulated screwdriver across the terminals before handling. Visually check for bulging, leaking, or burnt marks, then test with a multimeter.

Advanced Repair Tips and Safety Protocols

Successfully fixing a broken air compressor requires more than just parts swapping. Advanced techniques and strict safety measures ensure a lasting repair. This knowledge separates a quick fix from a professional-grade restoration.

Working with Compressed Air Tanks Safely

The air tank is a pressure vessel and poses serious risks if compromised. Never attempt to weld or modify a damaged tank. Internal rust is the primary enemy of tank integrity.

• Annual Internal Inspection: Drain the tank and use a bright light to look inside for significant rust or pitting. A tank ring test (tapping with a hammer) can reveal thin, weak spots by sound.
• Replacement Over Repair: If you find severe rust or a crack, replace the entire tank or the compressor. A failed tank can explode with catastrophic force.
• Pressure Rating: Never exceed the maximum PSI rating stamped on the tank. Always ensure the pressure switch is set correctly for your tank’s limit.

Using the Right Lubricants and Sealants

Using incorrect products is a major cause of premature component failure. Compressor systems have specific requirements for oil and thread sealing.

Product Selection Guide:

Application	Correct Product	What to Avoid
Pump Lubrication	Non-detergent, high-temperature compressor oil (e.g., ISO 100)	Motor oil, general-purpose grease
Thread Sealing	PTFE (Teflon) tape or liquid thread sealant rated for air/ fuel	Pipe dope not rated for air systems
Gasket Sealing	High-temp RTV silicone or specific gasket material	General-purpose adhesives

Calibrating the Pressure Switch and Regulator

After replacement or if performance is off, calibration is essential. This ensures your compressor cycles at the correct pressures for your tools. Incorrect settings cause short cycling or inadequate power.

1. Locate the two adjustment nuts or screws on the pressure switch. One controls cut-in pressure (motor starts), the other cut-out pressure (motor stops).
2. With the tank empty, turn on the compressor. Use a reliable gauge to observe the start (cut-in) and stop (cut-out) pressures.
3. Make small, quarter-turn adjustments to the appropriate nut. Typically, turning clockwise increases the pressure setting. Always consult your switch’s manual.

Finding Replacement Parts and Professional Resources

Locating the correct parts is often the biggest hurdle in DIY compressor repair. Using generic or incorrect parts leads to repeated failures. This guide helps you source components efficiently and know when to seek expert help.

How to Identify and Source OEM Parts

Original Equipment Manufacturer (OEM) parts guarantee fit and function. Start by finding the model and serial number plate on your compressor. This information is crucial for accurate searches.

• Manufacturer Websites: Use the model number in the “parts lookup” or “support” section of the brand’s official site (e.g., DeWalt, Porter-Cable, Campbell Hausfeld).
• Industrial Suppliers: Websites like Grainger, Zoro, or Motion Industries carry a vast inventory of common parts like pressure switches, valves, and motors.
• Cross-Reference Numbers: Many components (e.g., motor capacitors, bearings) have industry-standard numbers. Note the specs (µF, voltage) to find a universal replacement.

When to Consult a Compressor Repair Specialist

Some situations warrant professional expertise. A specialist has the tools and experience for complex diagnostics and major overhauls. Their service can be more economical than a new unit.

Signs You Need a Pro:

1. The motor seizes, smokes, or has a burned electrical smell, indicating a costly rewind or replacement.
2. The pump has catastrophic failure—a thrown rod, broken connecting rod, or severe internal damage.
3. You’ve followed all troubleshooting steps but the problem remains intermittent or unresolved.

Utilizing Online Forums and Technical Manuals

The collective knowledge of online communities is invaluable. Many common compressor models have dedicated discussion threads where users share fixes.

Resource Type	Best For	Example
Brand-Specific Forums	Model-specific wiring diagrams and common failures	Garage Journal, DIY Stack Exchange
Video Repair Channels	Visual step-by-step disassembly and repair procedures	YouTube channels like “Word of Advice TV”
Service Manual PDFs	Exploded views, part numbers, and factory torque specs	Search “[Your Model Number] service manual PDF”

Cost Analysis: Repair vs. Replace Your Air Compressor

Before investing time and money into a fix, determine if repair is economically sensible. A simple cost-benefit analysis prevents you from sinking funds into a lost cause. Consider both immediate costs and long-term reliability.

Calculating the True Cost of DIY Repair

DIY repair costs include parts, tools you may need to buy, and your time. For older or heavily used compressors, these can add up quickly. Create a simple budget before you begin.

• Parts Cost: Price all necessary replacement parts (pressure switch, check valve, rebuild kit) from reputable suppliers.
• Tool Investment: Factor in the cost of any specialty tools (torque wrench, manifold gauges) you don’t already own.
• Time Value: Estimate hours for diagnosis, part sourcing, and labor. Is your time better spent elsewhere?

When Replacement is the Smarter Financial Choice

Sometimes, buying a new unit offers better value, efficiency, and warranty protection. Modern compressors are often more energy-efficient and quieter.

Replace Your Compressor If:

1. The repair cost exceeds 50% of the price of a comparable new unit.
2. The air tank shows significant internal rust or external damage, representing a safety hazard.
3. The motor or pump is obsolete, and replacement parts are unavailable or prohibitively expensive.

Budgeting for Common Air Compressor Repairs

Understanding typical price ranges helps you plan. Costs vary by compressor size and brand. Labor is excluded, assuming a DIY approach.

Repair Type	Typical Part Cost Range	Complexity
Pressure Switch Replacement	$25 – $80	Low (Basic Electrical)
Pump Rebuild Kit	$50 – $200	Medium (Mechanical Skill)
Check / Unloader Valve	$15 – $60	Low
Motor Start Capacitor	$10 – $40	Medium (Electrical Safety)
Complete Motor Replacement	$150 – $500+	High (Often Triggers Replacement)

Use this table as a guideline. Always get exact quotes for your specific model before deciding.

Conclusion: Successfully Fixing Your Broken Air Compressor

You now have a complete roadmap to diagnose and repair a broken air compressor. From simple leaks to complex pump issues, these proven methods restore functionality. This knowledge saves you significant money on service calls.

The key to long-term reliability is consistent preventative maintenance. Regular draining, filter changes, and inspections prevent most common failures. Treat your compressor well, and it will power your projects for years.

Start by applying the diagnostic steps to identify your specific problem. Gather the recommended tools and quality replacement parts. Approach each repair methodically and safely.

You can confidently tackle this repair and get back to work. Your air compressor is now a tool you understand and can maintain for peak performance.

Frequently Asked Questions about Fixing an Air Compressor

What is the most common reason an air compressor won’t start?

The most common cause is a tripped thermal overload protector or a faulty pressure switch. The motor’s overload resets after cooling down. The pressure switch may fail if contacts are corroded or the diaphragm is damaged.

Always check the simplest solutions first. Ensure the unit is plugged in, the tank drain is closed, and the power switch is on. If the tank pressure is already above the cut-in setting, the switch won’t activate the motor.

How to fix an air compressor that won’t build pressure?

First, listen for air leaks, especially at the check valve between the pump and tank. A leaking check valve allows air to escape back through the pump. Spray soapy water on connections to identify leaks.

If no leaks exist, the pump may be failing. Worn piston rings, a stuck valve plate, or a clogged intake filter can prevent pressure buildup. An internal inspection or pump rebuild kit may be necessary.

What should I do if my air compressor is leaking water?

Water in the air lines is normal condensation from compressing humid air. The fix is to drain the tank completely after every use. Open the drain valve at the tank’s bottom until only air escapes.

If water persists, install an in-line filter/dryer or a refrigerated air dryer for your system. Ensure your compressor is in a dry, ventilated area to minimize ambient humidity intake.

Why does my air compressor run but not shut off?

A compressor that runs continuously typically has an air leak larger than the pump’s output or a failed pressure switch. The switch cannot sense the tank reaching the cut-out pressure to turn the motor off.

Conduct a thorough leak test on the entire system. If no major leak is found, test and likely replace the pressure switch. A stuck unloader valve can also cause this symptom.

How to replace a pressure switch on an air compressor?

First, disconnect power and bleed all air from the tank. Photograph the wiring configuration for reference. Disconnect the wires from the old switch terminals and unscrew it from the tank or air line.

Install the new, identical switch and reconnect the wires exactly as photographed. Restore power and test the cut-in and cut-out pressures with a gauge. Adjust the switch settings if necessary.

What is the best way to test for air compressor leaks?

The best method is the soapy water test. Mix dish soap with water in a spray bottle. Pressurize the tank, turn off the compressor, and spray the solution over all fittings, hoses, valves, and the tank itself.

Watch for the formation of bubbles, which pinpoint the leak source. Pay special attention to the drain valve, check valve, tank welds, and hose connections. Tighten fittings or apply thread sealant as needed.

When should I replace versus repair my air compressor?

Consider replacement if the repair cost exceeds 50% of a new unit’s price or if the air tank is rusted or damaged. A compromised tank is a serious safety hazard and should never be welded or repaired.

Repair is economical for common part failures like switches, valves, and belts. If the motor or pump is obsolete or costs more than a new compressor, replacement is the smarter financial choice.

How often should I perform maintenance on my air compressor?

Perform daily maintenance by draining the tank of moisture. Check oil levels in lubricated models before each use. Weekly, inspect hoses and connections for wear and listen for leaks.

Monthly, clean or replace the air intake filter and test the safety relief valve. Annually, check the inside of the tank for significant rust and change the pump oil if specified by the manufacturer.
