How To Calculate The Spanner Size

Calculating the correct spanner size is essential for any mechanical task. Using the wrong size can damage nuts, bolts, and your tools. This guide provides a direct method to determine the exact spanner you need.

Knowing how to measure accurately prevents stripped fasteners and ensures your project’s safety. A perfect fit allows for proper torque application. It saves you time, money, and frustration on the job.

Best Tool Kits for Calculating Spanner Size

Bahco 3066 S2 Socket Set – Best Overall Choice

This comprehensive 66-piece set covers both metric and SAE sizes. It eliminates guesswork with clearly marked, chrome-vanadium steel sockets. The included size chart helps you quickly calculate the right spanner for any job.

• Includes: Sockets from 4mm to 24mm and 5/32″ to 1″
• Durability: Corrosion-resistant chrome finish
• Versatility: Perfect for automotive and home use

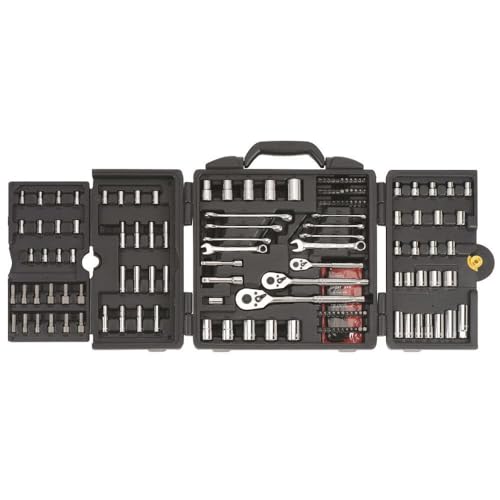

Stanley 96-011 Mechanics Tool Set – Best Value Kit

Ideal for DIY enthusiasts, this set provides a wide range of spanner and socket sizes. The molded case keeps tools organized, making size identification fast and easy. It offers exceptional value for its extensive piece count.

• Piece Count: 105 pieces for maximum coverage
• Organization: Integrated case with labeled spots
• Guarantee: Lifetime warranty for reliability

Wera 5051021001 Kraftform Kompact – Best Professional Ratchet

This compact, high-performance ratchet set is a pro’s favorite. Its laser-etched size markings are highly durable and easy to read. The bi-material handle provides a secure, comfortable grip in tight spaces.

• Precision: Laser-etched, size markings
• Design: Compact for confined spaces
• Quality: Made in Germany for professional use

Product	Piece Count	Key Feature	Best For
Bahco 3066 S2	66	Complete Metric/SAE Coverage	All-Round Use
Stanley 94-248	105	Exceptional Value	DIY Enthusiasts
Wera Kraftform Kompact	27	Professional Laser Marking	Technicians & Pros

Understanding Spanner Sizes and Measurement Systems

Knowing how to calculate spanner size starts with understanding the two main measurement systems. Most modern applications use the metric system, measured in millimeters. Imperial or SAE sizes, measured in fractions of an inch, are common in older machinery.

Using the correct system is critical for a secure fit. A mismatch can lead to a rounded nut or a damaged spanner. This section breaks down the key differences and how to identify them.

Metric vs. Imperial Spanner Sizes

Metric spanners are sized according to the distance across the flats of a nut or bolt head. Imperial sizes, often called SAE, refer to the bolt’s diameter in inches. You must identify which system your fastener uses before measuring.

• Metric (mm): Denoted by numbers like 8mm, 10mm, 13mm. Used in European and Asian cars, bicycles, and modern appliances.
• Imperial/SAE (inches): Denoted by fractions like 1/4″, 3/8″, 1/2″. Found in older American machinery, plumbing, and some automotive applications.
• Whitworth: An older British standard; identified by a “W” prefix and measured in inches, but not directly comparable to SAE.

Identifying the Correct Spanner Measurement Point

The spanner size corresponds to the distance between two parallel flats on a hex bolt or nut. This is known as the Across Flats (A/F) dimension. It is the most critical measurement for a proper tool fit.

Do not measure the bolt’s thread diameter or the distance across the nut’s corners. Using these incorrect points will guarantee you select the wrong spanner size. Always measure the flat sides.

System	Measurement Unit	Common Applications	Example Sizes
Metric	Millimeters (mm)	Modern cars, machinery, electronics	8mm, 10mm, 13mm, 17mm
Imperial (SAE)	Inches (“)	Older US vehicles, plumbing, HVAC	1/4″, 3/8″, 1/2″, 3/4″

How to Measure for the Correct Spanner Size

Finding the right spanner size is a straightforward process with the right technique. You can use simple tools like a vernier caliper or a standard ruler. This method is perfect when a spanner set is not readily available for testing.

Accurate measurement prevents slipping and potential injury. It also protects your fasteners from being rounded off. Follow this step-by-step guide for precise results every time.

Step-by-Step Manual Measurement Guide

1. Clean the Fastener: Wipe any dirt or grease from the nut or bolt head. This ensures you get a precise measurement of the flat surfaces.
2. Measure Across Flats: Using a caliper or ruler, measure the distance between two parallel flat sides. Do not measure from corner to corner.
3. Record the Measurement: Note the exact figure in millimeters or inches. This number is the spanner size you need to find in your toolkit.

Essential Tools for Accurate Sizing

While a ruler works, specialized tools provide superior accuracy. A digital caliper is the best tool for this job. It delivers a precise reading instantly.

• Digital Caliper: Provides exact measurements to 0.01mm. Ideal for professional and DIY use.
• Standard Ruler: A good backup option. Ensure you read the measurement carefully to avoid errors.
• Spanner Size Gauge: A dedicated tool with notched edges. You simply match the fastener to the correct notch.

Common Measurement Mistakes to Avoid

Avoid these frequent errors to ensure a perfect fit. The most common mistake is measuring the bolt’s thread diameter instead of the head. This will always lead to selecting a spanner that is too small.

• Measuring Thread Diameter: The spanner fits the bolt head, not the threads.
• Measuring Corner-to-Corner: This gives a larger, incorrect dimension.
• Guessing the System: Assuming a fastener is metric when it is imperial, or vice versa.

Using Thread Size to Determine Spanner Size

When you cannot measure the bolt head directly, the thread size provides a reliable alternative. This method uses standardized charts that correlate thread diameter to the corresponding spanner size. It is extremely useful for identifying replacement parts.

This approach works for both metric and imperial bolt standards. You only need to accurately identify the thread specifications. The following charts and methods will guide you through the process.

Metric Bolt Thread to Spanner Size Chart

For metric bolts, the spanner size is typically 1.5 times the thread diameter. This is a reliable rule of thumb for quick calculations. For precise matching, always consult a detailed chart.

Thread Diameter (mm)	Common Spanner Size (mm)
M6	10 mm
M8	13 mm
M10	17 mm
M12	19 mm

Imperial (SAE) Bolt Thread to Spanner Size Chart

Imperial bolts use a different correlation between thread and spanner size. The relationship is not as consistent as the metric system. Using a conversion chart is essential for accuracy.

Thread Diameter (inches)	Common Spanner Size (inches)
1/4″	7/16″
5/16″	1/2″
3/8″	9/16″
1/2″	3/4″

How to Identify Thread Pitch and Diameter

Accurate thread identification is the first step. You can use a thread pitch gauge for the most precise results. Alternatively, a simple caliper and comparison method works well.

• Use a Thread Gauge: Match the gauge teeth to the bolt threads. This gives you both diameter and pitch.
• Measure Major Diameter: Use a caliper on the outermost points of the threads. This is the bolt’s nominal size (e.g., M8, 5/16″).
• Count Threads Per Inch (TPI): For imperial bolts, count how many thread peaks fit in one inch.

Advanced Techniques and Pro Tips for Spanner Sizing

Mastering spanner sizing requires more than just basic measurement. Professional mechanics use advanced techniques to handle unique situations. These methods ensure efficiency and prevent costly mistakes on complex jobs.

Understanding these pro tips will elevate your mechanical skills. You will be able to tackle unfamiliar fasteners with confidence. This knowledge is invaluable for both DIY projects and professional work.

Dealing with Stuck or Rounded Fasteners

Rounded nuts are a common challenge that requires careful tool selection. Using the wrong technique can make the problem much worse. The right approach can save the fastener and your project.

• Use a Six-Point Socket: Provides more contact points than a 12-point, reducing slippage on damaged fasteners.
• Try a Bolt Extractor Set:


  These specialized tools bite into the rounded head, allowing you to apply torque and remove it.



• Apply Penetrating Oil: Let it soak for 15-30 minutes to loosen rust and corrosion before attempting to turn the fastener.

Specialized Spanner Types and Their Uses

Not all spanners are simple open-ended wrenches. Different jobs require specialized tools designed for specific access and torque needs. Knowing which one to use is a key professional skill.

• Combination Spanner: Open-end on one side, ring on the other. The ring provides a secure grip for breaking loose tight nuts.
• Ratcheting Spanner: Allows you to turn the fastener without removing the spanner, ideal for tight spaces.
• Adjustable Spanner: A versatile tool for various sizes, but use with caution as it can easily slip and round off nuts.

When to Use a Torque Wrench for Precision

A spanner gets the nut on, but a torque wrench ensures it is tightened correctly. Critical applications like cylinder heads, lug nuts, and suspension components require specific torque values.

• Engine Components: Prevents gasket failure and warping from uneven clamping force.
• Automotive Lug Nuts: Ensures wheels are secured safely and prevents stud damage.
• Bicycle Parts: Carbon fiber and aluminum components are easily damaged by over-tightening.

Troubleshooting Common Spanner Sizing Problems

Even with careful measurement, you may encounter sizing issues. A spanner that is slightly too tight or loose can cause significant problems. This section addresses the most common challenges and their solutions.

Learning to troubleshoot these situations will save you time and prevent damage. You will be able to identify the root cause quickly. This ensures you can complete your project safely and efficiently.

What to Do When Your Spanner is Too Big

A spanner that is too large will slip and round off the corners of the fastener. This creates a more difficult problem to solve. Stop immediately if you notice any slippage.

• Verify Your Measurement: Re-measure the across-flats dimension with a caliper. You may have misread the size.
• Check the Standard: Ensure you are using the correct system (metric vs. imperial). A 1/2″ spanner is not the same as a 13mm.
• Use the Next Size Down: If no exact fit exists, a high-quality, snug-fitting 6-point socket is your best alternative.

Solving Metric-Imperial Confusion

Mixing up metric and imperial standards is a very common error. The sizes can be deceptively close, leading to a poor fit. Knowing the close-but-not-equivalent sizes is crucial.

Metric Size	Close Imperial Size	Difference
13 mm	1/2″ (12.7 mm)	0.3 mm
19 mm	3/4″ (19.05 mm)	0.05 mm
17 mm	11/16″ (17.46 mm)	0.46 mm

Identifying Non-Standard and Whitworth Fasteners

Some older machinery, especially British, uses Whitworth standards. These fasteners have a different thread pitch and head size. They will not fit properly with standard metric or SAE tools.

• Look for “W” Markings: Fasteners may be marked with a “W” followed by a number (e.g., W5/16″).
• Check for Rounded Corners: Whitworth bolt heads often have more rounded corners than modern hex bolts.
• Use a Whitworth Gauge: The only reliable method is to use a dedicated Whitworth spanner or size gauge.

Spanner Size Charts and Quick Reference Guides

Having a reliable reference chart is essential for quick and accurate spanner selection. These guides provide instant conversions between thread size and spanner size. They are invaluable for both beginners and experienced mechanics.

This section provides comprehensive charts for the most common fastener sizes. You can use these as a permanent quick-reference guide. Keep them in your workshop or toolbox for easy access.

Comprehensive Metric Spanner Size Chart

This chart covers the most frequently used metric bolt and nut sizes. The spanner size is typically larger than the thread diameter. This relationship is consistent across the metric system.

Bolt Thread (Metric)	Standard Spanner Size (mm)	Common Application
M4	7 mm	Electronics, small appliances
M5	8 mm	Furniture, light fixtures
M6	10 mm	Bicycles, automotive interiors
M8	13 mm	General automotive, machinery
M10	17 mm	Wheel bolts, engine components
M12	19 mm	Suspension, structural parts

Essential Imperial (SAE) Spanner Size Chart

Imperial sizes follow a different logic than metric. The correlation between thread and spanner size is not a simple multiplier. This chart provides the standard pairings.

Bolt Thread (Imperial)	Standard Spanner Size (inches)	Common Application
1/4″	7/16″	Small engines, household items
5/16″	1/2″	Furniture, plumbing
3/8″	9/16″	Older US automotive
7/16″	5/8″	Medium-duty machinery
1/2″	3/4″	Heavy-duty, trailers, trucks

Printable Guides and Mobile Apps

For convenience, consider using digital tools alongside physical charts. Several excellent resources can help you calculate spanner size on the go. These are perfect for working away from your main workshop.

• Printable Wall Charts: Laminating a chart protects it from grease and dirt. Hang it in a visible spot in your garage.
• Mobile Tool Apps: Apps like “Engineering Toolbox” or “Mechanic’s Calculator” have built-in spanner size converters.
• Digital Caliper with Bluetooth: Some advanced calipers can send measurements directly to your phone for instant conversion.

Essential Spanner Size FAQs

This section answers the most frequently asked questions about spanner sizing. These are common dilemmas that both beginners and experienced users encounter. Clear answers will help you work more confidently and efficiently.

From basic identification to complex sizing issues, we cover the critical queries. Understanding these nuances prevents tool damage and ensures project success. Find quick solutions to your most pressing spanner problems here.

How Do I Know if a Spanner is Metric or Imperial?

Identifying the standard is the first step to selecting the right tool. The most reliable method is to check the markings stamped on the spanner itself. Metric tools are marked with numbers like “10”, “13”, or “17”.

• Check the Markings: Imperial spanners are marked with fractions (e.g., 1/2″, 3/4″). Metric sizes are whole numbers (e.g., 10mm, 13mm).
• Look for “MM”: Some metric spanners include “MM” after the number for clarity.
• Use a Ruler: Measure the jaw opening. A 1/2″ spanner will measure 12.7mm, while a 13mm spanner is slightly larger.

Can I Use a Metric Spanner on an Imperial Nut?

This is a common question with a critical safety answer. While some sizes are very close, they are not interchangeable. The slight mismatch can seem negligible but has significant consequences.

• Risk of Slipping: A 13mm spanner on a 1/2″ nut (12.7mm) has 0.3mm of play, which can cause slipping.
• Rounded Fasteners: The incomplete contact rounds off the corners of the nut, making it unusable.
• Tool Damage: The spanner jaws can spread or chip under the uneven pressure.

What is the Most Common Spanner Size?

Commonality depends heavily on the application and region. However, certain sizes are universal workhorses found in almost every toolkit. For automotive work, a specific set of sizes is essential.

• General/Mixed Use: 10mm, 13mm, and 17mm are extremely common for furniture, appliances, and general DIY.
• Automotive Focus: A car mechanic’s most-used sizes are typically 10mm, 13mm, 15mm, and 17mm.
• Imperial (US Focus): 1/2″, 9/16″, and 3/4″ are very common in older American machinery and plumbing.

Conclusion

Mastering how to calculate the correct spanner size is a fundamental skill. It protects your tools and fasteners from damage. This knowledge ensures every mechanical project is safer and more professional.

The most important rule is to always measure the Across Flats (A/F) dimension. Use the proper metric or imperial system. Never force a spanner that does not fit perfectly.

Bookmark this guide for future reference. Use the provided charts for quick sizing. Invest in a quality digital caliper for ultimate precision.

You now have the confidence to tackle any spanner sizing challenge. Your projects will be more successful and efficient. Apply these expert techniques on your next job.

Frequently Asked Questions about Spanner Sizes

What is the difference between a spanner and a wrench?

A spanner and a wrench are essentially the same tool for turning nuts and bolts. The term “spanner” is more common in British English, while “wrench” is used in American English. Both refer to tools that apply torque to fasteners.

Some regions use “spanner” for fixed-size tools and “wrench” for adjustables. However, the functionality is identical. The key is selecting the correct type and size for your specific fastener.

How do you measure a spanner size without a caliper?

You can use a standard ruler to measure the distance across the nut’s flat sides. Align the ruler’s metric or imperial markings carefully with the parallel flats. This gives you a close approximation of the required spanner size.

For better accuracy, compare the nut to sockets from a known set until you find a snug fit. This trial-and-error method is effective when precise tools are unavailable. Always ensure the fit is tight to avoid slipping.

Why does my spanner feel loose even though it’s the right size?

A loose feel often indicates a worn spanner or a previously rounded fastener. Over time, tool jaws can spread from misuse. Similarly, a nut that has been worked on with the wrong size may have damaged corners.

Check for visible wear on the spanner’s contact points. Inspect the nut for rounded edges. Using a six-point socket instead of a 12-point can provide a more secure grip on slightly damaged fasteners.

What is the best way to identify an unknown spanner size?

The most reliable method is to use a nut and bolt thread gauge. This tool set allows you to match the thread pitch and diameter precisely. Once you know the thread size, you can reference a standard conversion chart.

Alternatively, try the spanner on a set of known, clean nuts and bolts. Start with common sizes like 10mm, 13mm, or 1/2 inch. The one that fits perfectly without any play is the correct size.

Can you use a socket size to determine spanner size?

Yes, socket sizes directly correspond to spanner sizes for the same fastener. A 17mm socket fits the same nut as a 17mm spanner. The sizing standard is consistent across different types of turning tools.

This is helpful if you have a socket set but need an open-ended or ring spanner for a specific task. The measurement refers to the distance across the fastener’s flats, not the tool’s drive size.

What should I do if my spanner set is missing a common size?

First, verify the missing size using a caliper or a thread chart. For common metric sizes like 16mm, check if a 5/8″ imperial spanner provides a close fit. However, this is only a temporary solution.

The best long-term solution is to purchase an individual spanner to complete your set. Most hardware stores sell single spanners. This ensures you always have the correct, safe tool for the job.

How do I calculate spanner size for a bolt with no head?

For a bolt with a damaged or missing head, you must identify the nut it screws into. Measure the across-flats dimension of the nut instead. This will give you the correct spanner size needed for assembly or disassembly.

If the nut is also missing, you can measure the bolt’s thread diameter and pitch. Use a thread pitch gauge and a standard chart to find the corresponding spanner size for that specific bolt thread.

Are there any apps to help calculate spanner size?

Yes, several mobile apps can assist with spanner size calculations. Look for engineering or mechanic’s tool apps in your device’s app store. These digital tools often include thread identification guides and size conversion charts.

Many apps use your phone’s camera for augmented reality sizing. They can also store common size charts for quick offline reference. This makes them incredibly useful for on-the-go troubleshooting.
