How to Build a DIY Brake System Pressure Tester at Home

Building a DIY brake system pressure tester is a cost-effective project for diagnosing brake problems. This complete guide shows you how to create a professional-grade tool using common parts. You can save hundreds of dollars compared to buying a commercial unit.

A homemade brake pressure tester allows you to safely pinpoint issues like soft pedals or uneven braking. It helps you verify master cylinder function and check for internal leaks. This is essential for proper brake system maintenance and repair.

Why Building a DIY Brake System Pressure Tester Can Be Tricky

If you’re trying to diagnose soft or spongy brake pedals, a brake system pressure tester can help identify leaks, trapped air, or failing components in the hydraulic system. Many DIYers attempt to build a homemade tester using spare tubing, fittings, and a hand pump. While this approach can work, the biggest challenge is maintaining consistent pressure without introducing air into the system.

Brake systems rely on precise hydraulic pressure to transfer force from the pedal to the calipers. If your DIY tester leaks slightly, uses weak fittings, or cannot hold steady vacuum or pressure, your diagnosis may become unreliable. You might end up chasing a problem that doesn’t actually exist—or worse, miss a real issue.

Instead of relying entirely on improvised tools, many home mechanics combine their DIY setup with a proper vacuum or pressure brake bleeder. If you’re exploring reliable tools for this job, check out this guide to the [best brake bleeder kits for DIY mechanics] (https://automedian.com/best-brake-bleeder-kits/) to see the most dependable options.

Quick Fix: Use a Hand Vacuum Pump Tester

One of the easiest ways to simulate a brake pressure tester is by using a hand vacuum pump with gauge, which can safely check lines, valves, and seals.

A good example is the Mityvac MV8500 Silverline Elite Vacuum Pump Kit, a professional-grade diagnostic tool often used by mechanics.

Why it works well for DIY pressure testing:

• Built-in vacuum gauge for accurate pressure readings
• Multiple adapters for brake systems and vacuum lines
• Durable hand pump that maintains consistent pressure
• Ideal for bleeding brakes and diagnosing leaks

Check out our in-depth review here → https://automedian.com/mityvac-mv8500-silverline-elite-kit-review/

When a DIY Tester or Bleeding Isn’t Enough

If your brakes still feel soft after testing or bleeding, the issue may go deeper than trapped air. Problems like worn master cylinders, leaking calipers, or damaged brake hoses often require more advanced diagnostics.

In that case, it helps to explore tools designed for specific vehicles and brake systems. These resources can guide your next step:

• See our detailed [Mityvac MV8500 Silverline Elite kit review] (https://automedian.com/mityvac-mv8500-silverline-elite-kit-review/) for a full breakdown of this diagnostic tool.
• Learn about pressure-style bleeding systems in the [Motive Products Power Bleeder review] (https://automedian.com/motive-products-power-bleeder-review/).
• Or compare vacuum systems in this guide to the [best hand vacuum brake bleeder kits for home garages] (https://automedian.com/best-hand-vacuum-brake-bleeder-kits/).

Using the right bleeding or testing equipment alongside your DIY setup can make brake diagnostics faster, safer, and far more accurate.

Essential Components for Your DIY Brake Pressure Tester

Building an effective homemade brake tester requires gathering specific, reliable parts. This section details every component you need and its critical function. Sourcing quality materials ensures accurate readings and safe operation during your brake system diagnostics.

Core Pressure Gauge and Assembly

The heart of your tester is a high-quality liquid-filled pressure gauge. It must withstand the extreme pressures of a brake system. A 0-2,000 PSI or 0-3,000 PSI gauge with a 1/4″ NPT male inlet is the standard.

• Liquid-Filled Gauge: Dampens needle vibration for stable, readable measurements under pressure pulses.
• Correct Pressure Range: Brake systems can exceed 1,000 PSI; a higher max range prevents gauge damage.
• NPT Thread: The National Pipe Taper standard ensures leak-free connections with compatible fittings.

Critical Fittings and Hoses

You need fittings to connect the gauge to your vehicle’s brake bleeder valve. This requires a custom hydraulic line. Using the wrong type of hose is a major safety risk.

• Braided Steel Brake Line: Must be rated for brake fluid and high pressure. Never use air or water hose.
• Bleeder Screw Adapter: A fitting that matches your car’s bleeder valve threads (commonly 3/8″-24 or M10x1.0).
• Shut-Off Valve: Allows you to isolate pressure for a steady reading and safely release pressure after testing.

Key Takeaway: The three non-negotiable components are a liquid-filled pressure gauge (2,000+ PSI), a proper braided steel brake hose, and the correct bleeder screw adapter for your vehicle. Never compromise on hose quality.

Additional Tools and Safety Items

Beyond the core assembly, having the right support tools is crucial. This ensures a smooth build process and safe testing procedure. Prepare these items before you begin assembly.

• Thread Sealant: Use PTFE tape or hydraulic thread sealant on all NPT connections to prevent leaks.
• Wrenches: Line wrenches (flare nut wrenches) to connect to the bleeder valve without rounding it.
• Safety Glasses: Always wear eye protection when pressurizing the brake system.

Step-by-Step Assembly Guide for Your Tester

Follow this precise, numbered guide to assemble your DIY brake pressure tester safely. Proper assembly is critical for both accurate diagnostics and personal safety. We’ll walk through each connection from the gauge to the final adapter.

Preparing and Connecting the Gauge

Begin by preparing your pressure gauge for a leak-proof connection. This first step sets the foundation for a reliable tool. Ensure you have your thread sealant and wrenches ready.

1. Apply Thread Sealant: Wrap PTFE tape clockwise around the gauge’s 1/4″ NPT male threads. Use 3-4 layers for a good seal.
2. Install the Shut-Off Valve: Screw a 1/4″ NPT female-to-female shut-off valve directly onto the gauge. Tighten firmly with a wrench.
3. Attach the Hose Adapter: Connect a 1/4″ NPT male to AN-3 (or equivalent) adapter into the other side of the shut-off valve.

Building the Hydraulic Hose Line

The hydraulic hose carries pressurized brake fluid from your car to the gauge. Creating this line correctly is the most important safety step. Double-check all fittings before proceeding.

4. Connect the Braided Hose: Attach one end of your pre-made braided steel brake line to the adapter on the shut-off valve assembly.
5. Add the Bleeder Adapter: On the free end of the hose, install the fitting that matches your vehicle’s bleeder valve threads.
6. Pressure Test for Leaks: Before using on your car, connect the tester to a spare bleeder valve and pressurize it slightly with a hand pump to check for leaks.

Pro Tip: Always assemble components in this order: Gauge → Shut-Off Valve → Hose Adapter → Braided Hose → Vehicle Adapter. The shut-off valve must be directly after the gauge for safe pressure control.

Final Safety Checks Before Use

Never skip the final verification of your assembled tool. A quick pre-use inspection can prevent dangerous failures. Look for these three critical points.

• Inspect Fittings: Visually check every connection point for signs of cross-threading or improper seating.
• Verify Hose Integrity: Ensure the braided steel hose has no kinks, cuts, or frayed wires along its length.
• Function Test Valve: Open and close the shut-off valve several times to confirm it operates smoothly and holds position.

How to Use Your DIY Tester for Brake Diagnostics

Now that your tool is built, learn the professional method for testing brake system pressure. This procedure helps diagnose common problems like a spongy pedal or pulling to one side. Always work in a clean, well-lit area and wear safety glasses.

Connecting the Tester and Pressurizing the System

Proper connection is vital for safety and accurate results. You will test one brake circuit at a time, typically starting with the front passenger side. Ensure the vehicle is safely supported on jack stands.

1. Locate and Clean: Find the brake caliper or wheel cylinder bleeder valve. Clean any dirt around it with brake cleaner.
2. Attach Your Tester: Use a line wrench to connect your DIY tester’s adapter snugly to the bleeder valve.
3. Pressurize the System: Have an assistant slowly press the brake pedal while you monitor the gauge. Note the maximum pressure reached.

Interpreting Pressure Readings and Results

The pressure reading tells you the health of that specific brake circuit. Compare readings from all four wheels to identify issues. Consistent pressure is the goal.

Reading Result	Likely Diagnosis	Common Cause
Low Pressure at One Wheel	Faulty caliper or wheel cylinder	Internal seal leak
Pressure Drops When Pedal is Held	Master cylinder failure	Worn internal seals
Uneven Pressure Side-to-Side	Proportioning valve issue or hose restriction	Faulty valve or collapsed hose

Post-Testing Procedure and Safety

After testing, you must safely depressurize and disconnect the system. Never open a bleeder valve while the system is under high pressure.

• Close the Shut-Off Valve: Turn the valve on your tester to the closed position to trap pressure in the gauge.
• Slowly Release Pressure: With the brake pedal released, carefully open the bleeder valve slightly to depressurize the hose.
• Disconnect and Inspect: Remove your tester. Check for fluid leaks at the connection point and wipe away any spilled brake fluid immediately.

Critical Safety Note: Brake fluid is corrosive and hygroscopic. Always cover painted surfaces with a rag when working. Dispose of used rags properly and never reuse brake fluid that has been bled from the system.

Troubleshooting Common DIY Tester Problems

Even a well-built tool can encounter issues. This section helps you diagnose and fix common problems with your homemade brake pressure tester. Quick troubleshooting ensures accurate diagnostics and maintains safety during use.

Dealing with Leaks and Pressure Loss

Leaks are the most frequent issue, causing inaccurate readings and safety hazards. They typically occur at threaded connections. Identifying the source is the first step to a fix.

• Fitting Leaks: If fluid seeps from a threaded connection, depressurize and disassemble. Apply fresh PTFE tape, ensuring you wrap in the correct clockwise direction.
• Gauge Face Leak: Fluid behind the glass indicates a failed internal seal. The gauge must be replaced, as it cannot be safely repaired.
• Hose Connection Leak: Check if the braided hose end fittings are properly swaged. A leaking hose assembly should be replaced entirely.

Resolving Inaccurate or Fluttering Gauge Readings

An unsteady needle or consistently wrong pressure makes diagnosis impossible. This often points to problems with the gauge or air in the system.

Symptom	Probable Cause	Solution
Needle Flutters/Vibrates	Gauge not liquid-filled, or air in tester line	Bleed air from tester using the bleeder valve; ensure gauge is liquid-filled type.
Readings Consistently Low	Major internal leak in tester or vehicle brake system	Isolate by testing tester separately with a hand pump.
Needle Sticks or Doesn’t Move	Damaged gauge mechanism or blocked line	Disconnect and gently tap gauge. If stuck, replace it.

Adapter and Connection Issues

Difficulty connecting to your vehicle’s bleeder valve is a common frustration. Using the wrong adapter can damage the valve, leading to costly repairs.

• Adapter Won’t Thread: Do not force it. Verify your vehicle’s bleeder thread size (e.g., 3/8″-24 for many domestics, M10x1.0 for many imports).
• Rounded Bleeder Valve: If the valve is already damaged, use a bleeder valve extractor socket to remove it before testing. Replace it with a new valve.
• Stuck Bleeder Valve: Apply penetrating oil and let it sit. Use a proper line wrench, not a standard open-end wrench, to avoid rounding.

Remember: If you encounter persistent leaks or the gauge fails to zero, stop using the tool. A faulty DIY pressure tester can give a false sense of security and lead to incorrect, dangerous repair decisions.

Advanced Tips and Professional Techniques

Elevate your brake diagnostics with these pro-level methods. Once you’ve mastered basic pressure testing, these techniques provide deeper insights into your vehicle’s braking health. They help you diagnose intermittent or complex issues.

Testing Master Cylinder and ABS Module Function

Your DIY tester can diagnose problems beyond the wheel cylinders. Testing the master cylinder and checking for ABS module restrictions requires a specific procedure. This is key for diagnosing a brake pedal that slowly sinks to the floor.

1. Isolate the Master Cylinder: Connect your tester directly to one of the master cylinder’s outlet ports using a custom adapter.
2. Apply and Hold Pressure: Have an assistant press the pedal to a specific PSI (e.g., 500) and hold it steady for one minute.
3. Monitor for Drop: If the pressure drops more than 50-100 PSI while holding, the master cylinder’s internal seals are likely failing.

Creating a Pressure Bleeding Adapter

You can modify your pressure tester into a highly effective one-person brake bleeder. This pressure bleeding method is faster and less prone to introducing air than traditional pedal pumping.

• Add a Fluid Reservoir: Install a small, clean fluid chamber with a lid between your shut-off valve and the hose.
• Use a Spare Master Cylinder Cap: Modify an old cap to accept an air fitting, allowing you to pressurize the reservoir with 10-15 PSI of air.
• Bleed Sequentially: With the reservoir filled, open each bleeder valve (farthest from master to closest) until clean, bubble-free fluid flows.

Data Logging and Comparative Analysis

For recurring issues or performance tuning, move beyond single readings. Recording and comparing data gives you a complete picture of your brake system’s behavior.

Measurement to Record	Tool/Method	Diagnostic Value
Pressure at Each Wheel	Your DIY Tester	Identifies caliper imbalance or hose restrictions.
Pedal Force vs. Pressure	Note pedal feel at recorded PSI	Indicates booster function or pedal linkage issues.
Pressure Rise Time	Stopwatch to reach 1000 PSI	Slower times can point to a failing master cylinder or air in system.

Expert Insight: The true power of a pressure tester is in comparative analysis. Always test all four wheels under identical conditions. The difference in pressure between left and right on the same axle is often more telling than the absolute number.

Cost Analysis: DIY vs. Professional Brake Testers

Is building your own tool truly cost-effective? This detailed breakdown compares the total investment against buying a commercial unit. We’ll examine both upfront costs and long-term value for the home mechanic.

Itemized Cost of DIY Brake Pressure Tester

Building a tester requires purchasing individual components. Prices vary based on quality and source, but this provides a realistic average. These are estimated costs for new parts.

• Liquid-Filled Pressure Gauge (0-3000 PSI): $25 – $50. This is the most variable cost item based on brand and accuracy rating.
• Braided Steel Brake Hose with Fittings: $30 – $60. Custom length with correct end fittings is essential.
• Shut-Off Valve & Adapter Fittings: $15 – $25. Includes NPT brass fittings and the bleeder valve adapter.
• Estimated Total DIY Cost: $70 – $135

Comparing to Commercial Tester Prices

Professional kits offer convenience and guaranteed compatibility. Their price reflects branding, packaging, and included accessories. Here’s what you can expect in the market.

Tester Type	Average Price Range	Key Inclusions
Basic Commercial Kit	$150 – $250	Gauge, hose, a few common adapters, case.
Professional-Grade Kit	$250 – $500+	High-accuracy gauge, comprehensive adapter set, protective case.
Premium Bleeder/Tester Combo	$300 – $600+	Integrated pressure/vacuum pump, reservoir, and test capabilities.

Determining the Best Value for You

The right choice depends on your frequency of use and specific needs. Consider these factors before deciding to build or buy.

• Choose DIY if: You are on a strict budget, enjoy building tools, or only need to test one or two vehicle types. You gain deep understanding of the tool’s function.
• Choose Commercial if: You diagnose brakes frequently, work on many different car models, or value time over cost savings. The warranty and ready-to-use convenience are major benefits.
• Hidden Cost: Factor in your time. Building a DIY tester takes 1-2 hours of sourcing and assembly time, which has value.

Value Verdict: For most DIYers performing occasional diagnostics, the homemade tester offers exceptional value, saving 50-70% over a basic commercial kit. For semi-professional or frequent use, the time saved and adapter completeness of a mid-range commercial kit often justifies its higher price.

Maintenance and Calibration for Long-Term Accuracy

Your DIY brake tester is only as good as its accuracy. Proper maintenance ensures reliable readings for years. This section covers essential care routines and simple calibration checks.

Routine Cleaning and Storage Best Practices

Brake fluid is corrosive and hygroscopic, meaning it absorbs water. Preventing fluid residue from damaging your tool is crucial. Follow this post-use cleaning routine.

1. Flush After Use: After testing, disconnect the hose from the gauge. Flush residual fluid from the hose with fresh brake cleaner.
2. Wipe Down Gauge: Use a clean, dry cloth to wipe the gauge face and body. Never spray cleaner directly on the gauge glass.
3. Proper Storage: Store the disassembled or coiled tester in a sealed plastic container with a desiccant pack to control moisture.

How to Verify and Calibrate Your Gauge

Mechanical gauges can drift over time. You can perform a basic accuracy check without professional equipment. This verifies if your readings are trustworthy.

• The Zero Check: With the tester disconnected and depressurized, the needle must rest exactly at zero. If not, the gauge may need replacement.
• Comparative Test: Connect your DIY tester in series with a known-accurate gauge (like a new commercial one) and compare readings at various pressures.
• Dead-Weight Tester (Advanced): For ultimate precision, use a calibrated dead-weight tester. This is the professional standard but is costly for home use.

Replacement Parts and Service Intervals

Even with great care, components wear out. Know the signs of failure and have a plan for replacement parts. This maintains safety and functionality.

Component	Signs of Wear/Failure	Recommended Action
Braided Hose	Fraying wires, kinks, stiff flexibility, or external cracking.	Replace immediately. Do not attempt to repair a high-pressure brake hose.
Pressure Gauge	Needle sticks, won’t zero, fluid behind glass, or erratic movement.	Replace the gauge. Internal repairs are not feasible for DIYers.
O-Rings & Seals	Any visible seepage or leak at adapter connections.	Replace all O-rings and reapply thread sealant on NPT fittings.

Maintenance Schedule: Perform a visual inspection and zero check before every use. Do a full cleaning and connection check every 6 months. Plan to replace the braided hose every 3-5 years, even if it looks fine, due to internal degradation.

Best Brake Pressure Testers for DIY Mechanics – Detailed Comparison

OTC 7488-A Brake System Pressure Test Kit – Best Overall Choice

The OTC 7488-A is a professional-grade kit ideal for serious DIYers. It features a 0-3,000 PSI gauge with a protective boot and includes multiple adapters for domestic and import vehicles. This kit provides reliable, accurate readings for comprehensive brake system diagnostics, making it a top long-term investment.

Mityvac MV8000 Professional Brake Bleeder and Tester – Best Multi-Function Tool

This versatile tool combines pressure testing and brake bleeding in one unit. The MV8000 has a built-in fluid reservoir and a vacuum/pressure pump, allowing you to test system integrity and then perform one-person brake bleeding. It’s the ideal option for those seeking maximum functionality from a single purchase.

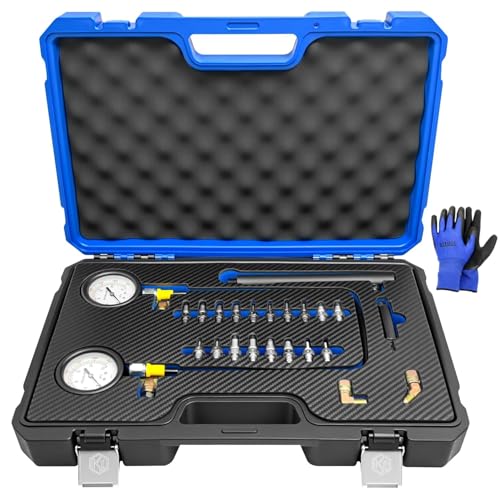

KTTOOL Brake Pressure Test Adapter Kit – Best Budget-Friendly Adapter Set

If you already own a standard pressure gauge, the KTTOOL kit is perfect. It provides a comprehensive set of metal adapters to fit virtually any vehicle’s bleeder valve. This cost-effective solution transforms your existing gauge into a specialized brake tester, offering great value.

Conclusion: Mastering Brake Diagnostics with Your DIY Tester

Building your own brake system pressure tester is a rewarding and cost-effective project. It provides professional-grade diagnostic power for a fraction of the cost. You can now accurately pinpoint issues like failing calipers or a weak master cylinder.

The key takeaway is to prioritize safety and quality components, especially the braided steel hose. Follow the assembly and testing steps precisely for reliable results. Start by testing one wheel on a vehicle you know is working properly to establish a baseline.

This skill empowers you to perform confident, accurate brake repairs. You will save money and gain a deeper understanding of your vehicle’s most critical safety system. Take pride in building a tool that enhances your mechanical capabilities.

Frequently Asked Questions about DIY Brake Pressure Testers

What is a brake system pressure tester used for?

A brake pressure tester is a diagnostic tool that measures hydraulic pressure at individual wheels. It helps identify problems like soft pedals, pulling, or uneven braking. This allows you to pinpoint faulty components without guesswork.

Technicians use it to test master cylinder function, caliper performance, and hose restrictions. It provides quantitative data, showing if pressure is low, inconsistent, or dropping when it should hold steady.

How much pressure should a brake system have?

A typical passenger vehicle brake system can generate 800 to 1,200 PSI during a normal stop. Maximum pressure during a panic stop can exceed 1,500 PSI. This is why your gauge needs a minimum 2,000 PSI range.

The critical factor is consistency, not just a high number. All wheels on the same axle should read within 50-100 PSI of each other. A significant difference indicates a problem on the low-pressure side.

Can I use a regular air pressure gauge for brake testing?

No, you must never use a standard air pressure gauge. Brake systems require a liquid-filled, high-pressure hydraulic gauge rated for brake fluid. Air gauges are not designed for the fluid’s corrosiveness or the system’s high pressure spikes.

Using the wrong gauge is dangerous. It could fail catastrophically under pressure, spraying hot, corrosive brake fluid. Always use a purpose-built hydraulic gauge for safety and accuracy.

What is the best way to connect a DIY tester to a bleeder valve?

The best method is to use a proper line wrench and the correct adapter. First, clean the bleeder valve thoroughly with brake cleaner. Then, use a line wrench (flare nut wrench) to snugly attach your tester’s adapter.

Avoid using standard open-end wrenches, as they often round off the soft brass or steel bleeder valve. Ensure the connection is tight enough to prevent leaks but do not over-tighten and strip the threads.

Why does my DIY brake tester gauge needle flutter?

A fluttering needle is usually caused by air trapped in your tester’s hose or a non-liquid-filled gauge. The pulsation from the master cylinder and ABS module (if equipped) causes the needle to bounce erratically.

To fix this, bleed the air from your tester by holding it upright and slowly opening the connection point. A quality liquid-filled gauge dampens these pulses for a stable, readable measurement.

What should I do if my tester shows low pressure at all wheels?

If all wheels show consistently low pressure, the issue is likely upstream of the wheels. The most common culprits are a failing master cylinder, a faulty brake booster, or air in the main brake lines.

Next, test the master cylinder directly by connecting your tester to its outlet port. If pressure is still low or drops when held, the master cylinder’s internal seals are probably worn and need replacement.

How often should I calibrate my homemade brake pressure tester?

Perform a basic zero-check before every use. A more thorough comparative calibration against a known-accurate gauge should be done annually for casual use. If you use the tool frequently, check it every six months.

Signs you need calibration include a needle that doesn’t return to zero, inconsistent readings, or physical damage to the gauge. When in doubt, replace the gauge for guaranteed accuracy and safety.

Is building a DIY brake tester worth it compared to buying one?

For the occasional home mechanic, building a DIY tester is often worth it for the significant cost savings (50-70%). It also provides valuable insight into how the tool functions. The project itself is educational.

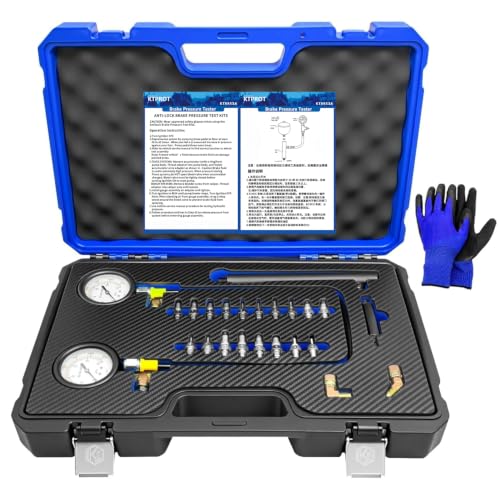

If you diagnose brakes regularly or work on many vehicle models, a commercial kit may be better. The time saved, comprehensive adapter set, and warranty often justify the higher price for semi-professional use.
