How to Access a Car Door Lock Actuator (Full Breakdown)

Accessing a car door lock actuator is a precise repair requiring careful panel removal. This guide provides the exact steps to safely reach the faulty component. You will learn the proven methods to diagnose and fix a broken power lock.

Successfully accessing the actuator saves hundreds in repair bills. It also restores security and convenience to your vehicle. Our expert tips will help you avoid common pitfalls during the process.

Best Tools for Accessing a Car Door Lock Actuator

OEMTOOLS 25313 Door Panel Removal Kit – Best Overall Choice

This comprehensive kit is the ideal for safely prying off door panels without damage. It includes multiple trim tools, a clip lifter, and a window crank tool. Its durable construction handles stubborn clips, making it the best option for beginners and pros tackling this specific repair.

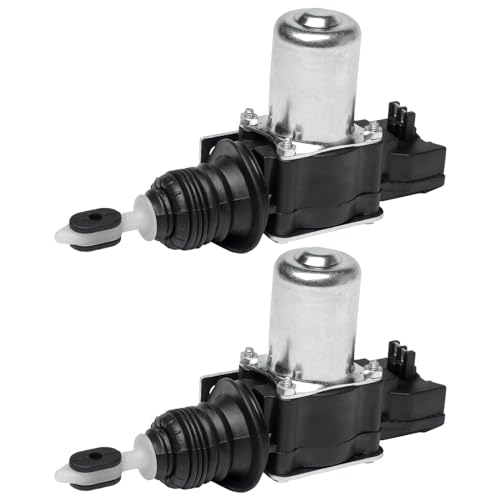

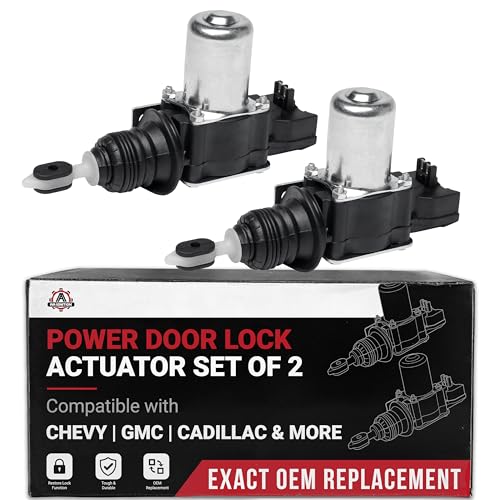

AA Ignition Power Door Lock Actuator Set – Best Replacement Parts

For a complete fix, this universal actuator set provides high-quality replacements for most vehicle makes. The rods and mounting hardware are included. It’s the recommended choice when your diagnosis confirms the actuator itself is faulty and needs swapping.

GearWrench 12-Piece Flex Head Ratcheting Wrench Set – Best for Tight Spaces

Accessing actuator mounting bolts is often challenging. These slim, flex-head wrenches provide crucial access in confined door cavities. The ratcheting action saves immense time, making them a top-rated tool for the installation and removal phase of the job.

Essential Tools and Safety Precautions for Door Panel Removal

Gathering the right tools before starting is crucial for a smooth repair. This prevents damage to your vehicle’s interior and ensures your safety. Proper preparation is the first step in successfully accessing the door lock actuator.

Required Tool Kit for the Job

You do not need professional-grade equipment, but specific tools are non-negotiable. A basic set will allow you to remove panels, disconnect electrical components, and unbolt the actuator. Avoid using screwdrivers as pry tools to prevent costly damage.

• Trim Removal Tools: Plastic pry tools or a dedicated panel removal kit to safely unclip the door panel without scratching.
• Screwdrivers & Socket Set: Phillips and flat-head screwdrivers, plus a socket set for removing the actuator mounting bolts.
• Multimeter: Essential for diagnosing electrical issues with the actuator’s power and ground before removal.

Critical Safety Steps to Follow

Your safety and the integrity of your car’s systems are paramount. Always disconnect the vehicle’s battery before beginning any electrical work. This simple step prevents short circuits and potential airbag deployment.

Key Safety Takeaway: Always disconnect the negative battery terminal. Wait 10 minutes before starting work to allow systems to fully power down. Handle the door panel and wiring harness with care to avoid breaks.

Work on a level surface and keep small parts organized. Take photos with your phone during disassembly to remember clip and connector locations. This visual guide is invaluable for reassembly.

Step-by-Step Guide to Removing the Interior Door Panel

This process is methodical and requires patience. Rushing can lead to broken clips or torn vapor barriers. Follow these steps in order to safely expose the door lock mechanism.

Locating and Removing Fasteners

First, visually inspect the entire door panel for visible screws. These are often hidden behind covers or within armrests. Use your trim tool to gently pop off any plastic covers or caps.

• Common Screw Locations: Check inside the door handle cup, under the armrest, behind the interior switch panel, and near the door’s edge.
• Remove the Window Switch: Carefully pry out the master power window switch module. Unplug its electrical connector once it’s free.
• Detach the Door Handle: Many interior pull handles have hidden screws or clips behind trim pieces that must be removed.

Unclipping and Lifting the Panel

Once all screws are removed, the panel is held by plastic clips. Start at a bottom corner and gently insert your trim tool between the panel and the metal door frame. Work your way around the perimeter, carefully popping each clip.

Pro Tip: Apply steady, even pressure directly behind each clip. A sudden jerk can break the clip or the panel’s mounting tab. Listen for a soft “pop” as each one releases.

After all clips are free, lift the panel straight up and away from the window sill. It will still be connected by wiring harnesses for lights or speakers. Support the panel with one hand to avoid straining these wires.

Disconnecting Wires and the Vapor Barrier

Locate all electrical connectors attaching the panel to the door. Press the locking tab on each connector and pull them apart. You can now set the interior panel aside in a safe place.

You will now see a large plastic or foam sheet—the vapor barrier. Peel it back slowly; it’s often held by sticky butyl tape. Try to keep it intact so you can re-seal it later to prevent water leaks.

Locating, Testing, and Removing the Faulty Actuator

With the door panel and vapor barrier removed, you can now access the internal components. The door cavity contains the window regulator, speaker, and the lock actuator assembly. Take a moment to identify each part before proceeding.

Identifying the Door Lock Actuator

The actuator is a small, rectangular black plastic motor with a metal rod attached. It is typically mounted near the door latch mechanism. The rod connects directly to the lock cylinder and exterior door handle linkage.

• Follow the Linkage: Trace the metal rods from the interior lock button and exterior door handle. They will lead you to the actuator unit.
• Check Near the Latch: In most vehicles, the actuator is bolted to the door frame close to the rear edge, adjacent to the sturdy metal latch.
• Look for the Electrical Connector: It will have a wiring harness plugged into it, which provides power for the locking and unlocking function.

How to Test the Actuator Before Removal

Before unbolting anything, confirm the actuator is the problem. Reconnect the car’s battery temporarily for this test. Have an assistant press the lock/unlock button while you listen and watch the actuator.

Diagnostic Check: A healthy actuator will make a distinct “whir” or “clunk” sound and you’ll see its rod move. If you hear a buzzing or clicking sound but no movement, the actuator gears are likely stripped and it needs replacement.

For a more advanced test, use a multimeter on the actuator’s electrical connector. Check for 12 volts when the lock/unlock switch is activated. Power without movement confirms a mechanical failure inside the actuator.

Disconnecting and Unbolting the Unit

First, unplug the electrical connector by pressing its release tab. Next, carefully detach the metal linkage rod from the actuator’s lever. This usually involves prying a small plastic retainer clip.

Finally, remove the two or three mounting bolts that secure the actuator to the door frame. Use your socket set for this. Keep the bolts safe, as you will need them to install the new unit.

Installation and Reassembly: Securing Your New Actuator

Installation is essentially the removal process in reverse, but with critical attention to detail. Proper alignment and connection ensure reliable operation and prevent future rattles. Take your time during this final phase.

Mounting the New Door Lock Actuator

Position the new actuator in place, aligning it with the bolt holes in the door frame. Hand-tighten the mounting bolts first to allow for minor adjustments. Ensure the actuator’s lever arm is oriented correctly to connect the linkage rod.

• Match the Old Unit: Compare the new actuator side-by-side with the old one before installing. Verify the mounting points and lever arm are identical.
• Reconnect the Linkage: Attach the metal lock rod to the actuator’s lever first. You should hear or feel a firm click as the plastic retainer clip snaps into place.
• Final Bolt Tightening: Once the linkage is connected, fully tighten the mounting bolts. Do not over-torque, as you could strip the threads in the thin door metal.

Reconnecting Electrical and Sealing the Door

Plug the electrical connector back into the actuator until it clicks securely. Before reassembling the panel, it’s wise to perform a function test. Reconnect the car battery and use both the interior switch and key fob to test the lock cycle several times.

Crucial Step: If the lock operation is slow or sounds strained, the linkage may be binding. Address this before sealing the door. A properly installed actuator should sound crisp and consistent.

Carefully re-adhere the vapor barrier to the door frame. Press it firmly to create a watertight seal. Any gaps can lead to moisture inside the door, causing future electrical issues or rust.

Reattaching the Interior Door Panel

Feed any wiring harnesses for speakers or lights through the panel. Align the panel with the window sill and hook the top edge over it first. Then, press firmly around the entire perimeter to snap all the plastic clips back into their holes.

Reinstall all screws and trim pieces you removed initially. Finally, plug the window switch back in and snap its module into place. Your door interior should look original, with no gaps or loose pieces.

Troubleshooting Common Issues After Actuator Access

Even with careful work, you might encounter minor issues after reassembly. These problems are usually simple to diagnose and fix. This troubleshooting guide addresses the most frequent post-repair complications.

Door Panel Rattles or Loose Fit

A rattling door panel indicates one or more clips did not re-engage properly. It can also mean a fastener was missed during reassembly. This issue compromises both comfort and the professional quality of your repair.

• Check All Clip Locations: Remove the panel again and inspect each plastic clip. Replace any that are broken or deformed.
• Verify Screw Placement: Double-check that every screw, especially hidden ones in armrests, is fully tightened.
• Inspect Alignment: Ensure the panel’s top edge is correctly hooked over the window sill before pressing the sides in.

Power Lock Still Not Functioning

If the new actuator doesn’t work, the issue may be electrical. Start by checking the simplest solutions before assuming a defective part. A systematic approach will save you time and frustration.

Quick Diagnostic Flow: 1) Verify battery is connected. 2) Check fuse for power door locks. 3) Ensure actuator connector is fully seated. 4) Test for 12V at the connector with a multimeter when the switch is pressed.

A blown fuse is a very common culprit. Consult your owner’s manual for the fuse box location and the specific fuse for the door locks. If power reaches the connector but the actuator is silent, the unit may be defective.

Window or Other Electrical Functions Failed

Sometimes, other components on the same door stop working. This almost always points to a disconnected wiring harness. The master switch panel or speaker connectors are often accidentally left unplugged.

Carefully remove the door panel again. Visually trace and confirm every electrical connector you previously disconnected is now firmly reattached. A single missed plug can affect multiple systems.

Pro Tips and Maintenance for Long-Lasting Door Locks

Following best practices extends the life of your new actuator and prevents future failures. Proper maintenance is key to reliable operation. These expert recommendations go beyond the basic repair.

Preventative Measures to Avoid Future Failure

Actuators often fail due to stress from binding components. A few simple checks can significantly increase their lifespan. Focus on ensuring smooth mechanical operation of all linked parts.

• Lubricate the Linkage: Apply a small amount of white lithium grease to the lock rods and pivot points. This reduces the strain on the actuator motor.
• Check Weather Stripping: Ensure the door seals are intact. A failed seal allows moisture into the door cavity, which can corrode electrical contacts.
• Avoid Slamming Doors: The impact from slamming can jar and damage the delicate gears inside the actuator over time.

When to Seek Professional Help

While this is a manageable DIY job, certain situations warrant a mechanic. Complex electrical issues or severe corrosion can complicate the repair. Knowing your limits saves money and prevents damage.

Call a Pro If: You find extensive rust inside the door, the central locking module is faulty, or you have a high-end vehicle with integrated side-impact airbags in the door panel. These require specialized knowledge.

If you’ve followed all steps and the system still fails, the problem may be elsewhere. A professional can diagnose issues with the body control module, wiring harness faults, or faulty door switches efficiently.

Final System Check and Verification

After a few days of use, perform a final verification. Test the lock from both the interior switch, key fob, and physical key. Listen for consistent, healthy sounds from all doors.

Visually inspect the door panel edges to ensure they remain flush with no new rattles. This confirms all clips and fasteners are secure, marking the successful completion of your repair.

Cost Analysis: DIY Repair vs. Professional Service

Understanding the financial breakdown helps justify the DIY effort. The cost difference between doing it yourself and hiring a mechanic is often substantial. This section provides a clear comparison to inform your decision.

Breakdown of DIY Replacement Costs

The DIY approach primarily involves the cost of the replacement part. Your investment in tools is a one-time expense for future repairs. This path offers significant savings if you already own basic tools.

• Replacement Actuator: $20 – $80, depending on your vehicle make and model (universal kits are cheaper than OEM).
• Basic Tools: $0 – $50 (if you need to purchase a trim tool set and sockets).
• Your Time: 1.5 to 3 hours for a first-time repair, following this guide.

Typical Professional Service Charges

Mechanic costs include parts marked up for retail and labor charged at an hourly shop rate. The total is often 3-4 times the DIY parts cost. Labor is the most significant variable.

Service Component	Average Cost Range
Parts (Actuator)	$50 – $150+
Labor (1-2 hours)	$100 – $300
Total Estimated Cost	$150 – $450+

Shop rates vary by location and dealership vs. independent mechanic. Always request a detailed estimate upfront. The job’s complexity on your specific car model greatly influences the final price.

Evaluating the Value of Your Time and Skill

The DIY savings of $200-$400 are compelling for many. Consider your comfort with mechanical tasks and the value of your personal time. The skills you gain are an intangible benefit for future vehicle maintenance.

If the repair seems daunting, getting a quote is wise. For most common vehicles, this is a highly achievable project. The financial incentive to learn and do it yourself is a major advantage.

Conclusion: Mastering Your Car Door Lock Actuator Access

Successfully accessing and replacing a door lock actuator restores security and convenience. This repair saves significant money compared to shop fees. You gain valuable DIY skills for future vehicle maintenance.

The key takeaway is methodical preparation and patience. Following each step carefully prevents damage to your door’s interior. Proper tool use and safety precautions ensure a professional result.

Use this guide as your reference for the entire process. Refer back to the troubleshooting section if you encounter any issues. Your confidence as a home mechanic will grow with this accomplishment.

You now have the knowledge to tackle this common repair with confidence. Enjoy the satisfaction of a job well done and a fully functional power lock system.

Frequently Asked Questions about Car Door Lock Actuators

What is a car door lock actuator and what does it do?

A door lock actuator is a small electric motor inside your door panel. It physically moves the locking mechanism when you press your key fob or interior switch. This component converts an electrical signal into mechanical motion to lock or unlock the door.

It is the core of your power door lock system. When it fails, you may hear a clicking sound but the door won’t lock, or the system will be completely silent. Replacing it restores automated locking functionality.

How can I tell if my door lock actuator is broken?

The most common sign is a clicking or buzzing noise from the door with no movement. Your locks may also operate intermittently or not at all from the switch or fob. Manual locking with the key might still work, as this bypasses the actuator.

You can confirm by listening at the door while someone presses the button. A healthy actuator makes a distinct, solid “clunk.” A failed one often makes a weak buzzing sound as its stripped gears spin uselessly.

What is the best way to access a door lock actuator without breaking clips?

The best way is to use dedicated plastic trim removal tools, not screwdrivers. Start at a bottom corner and gently work around the panel, applying pressure directly behind each clip. Patience is key to preventing damage to the fragile door panel and its mounting points.

Always locate and remove all hidden screws first. These are often behind covers in the armrest or door handle. Investing in a quality door panel removal kit is highly recommended for this job.

Can I replace just the door lock actuator, or do I need the whole assembly?

In most vehicles, you can replace just the actuator motor unit. It is typically bolted separately to the door frame and connected via a rod. However, some car manufacturers sell the actuator pre-attached to the door latch as one complete assembly.

Check your vehicle’s specific part diagram before ordering. For most DIY repairs, purchasing the standalone actuator is sufficient and more cost-effective than buying the entire latch mechanism.

Why does my new actuator work but the door still won’t lock properly?

If the new actuator runs but the lock doesn’t engage, the issue is likely mechanical binding. The connecting linkage rod may be bent or misaligned. The lock cylinder itself or the external door handle mechanism could also be seized or damaged.

Disconnect the rod from the actuator and manually move the lock mechanism by hand. It should move smoothly. If it’s stiff, apply lubricant to the pivot points and rods to free it up.

How long does it typically take to replace a door lock actuator?

For a first-time DIYer following a guide, budget 2 to 3 hours. This includes time for careful disassembly, diagnosis, and reassembly. The process becomes much faster with experience, potentially under an hour for subsequent repairs.

The time varies based on your vehicle’s design complexity. Cars with more integrated electronics or unique fasteners in the door panel may take longer. Always allow extra time to avoid rushing.

Is it safe to drive with a broken door lock actuator?

You can drive the vehicle, but security is compromised. The affected door may not lock, making it a theft risk. If the door cannot be unlocked electrically, you might be locked out or unable to let passengers in easily.

It is advisable to repair it promptly. You can manually lock the door from the inside by pushing the lock tab down, but this is a temporary workaround, not a fix.

What causes a door lock actuator to fail prematurely?

The primary cause is worn-out plastic internal gears that strip over time. Moisture entering the door cavity can also corrode electrical contacts or the motor. Constant strain from a binding lock linkage puts extra stress on the actuator, accelerating its failure.

To extend the life of a new actuator, ensure the lock mechanism moves freely and the door’s vapor barrier is intact. This keeps the unit dry and reduces mechanical load.
