How Air Compressor Dryer Works

An air compressor dryer works by removing harmful moisture from compressed air. This process is critical for protecting tools and equipment. It prevents costly damage caused by water vapor.

Dry air ensures your pneumatic systems operate reliably and efficiently. It eliminates problems like corrosion, freezing, and product contamination. This leads to lower maintenance costs and higher quality output.

Best Air Compressor Dryers for Reliable Operation

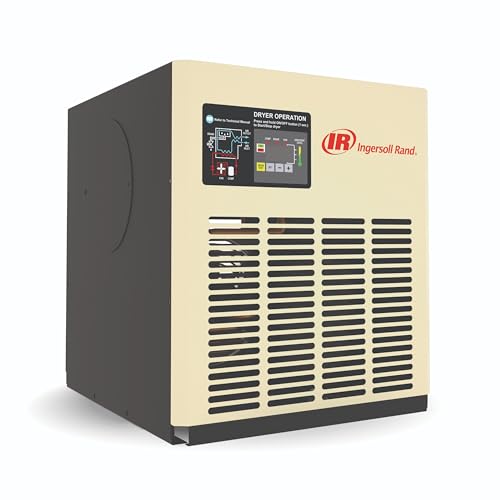

Ingersoll Rand Refrigerated Air Dryer – Best Overall Choice

The Ingersoll Rand TH10 offers exceptional performance for general shop use. It handles 10 SCFM at 100 PSIG with a 35°F pressure dew point. Its compact design and easy maintenance make it ideal for protecting tools from moisture-related wear and corrosion in automotive or woodworking shops.

Hankison Refrigerated Dryer – Best for High-Cycle Industrial Use

It features a robust aluminum heat exchanger and integrated moisture separator. This model is the recommended choice for manufacturing environments with continuous compressor operation and demanding air quality requirements.

Hankison HPR Refrigerated Cycling Dryer – Best for Energy Savings

The Hankison HPR series uses a cycling refrigeration system that significantly reduces energy costs. It modulates cooling based on actual air demand. This dryer is the ideal option for facilities with variable air usage, providing reliable dry air while minimizing operating expenses.

The Science of Moisture in Compressed Air

Compressed air naturally contains water vapor from the atmosphere. When this air is pressurized, its ability to hold moisture decreases dramatically. This causes water to condense inside your air lines, leading to system damage.

Why Moisture Removal is Critical

Liquid water in compressed air systems causes multiple operational failures. It leads to corrosion in pipes, tools, and machinery. It can also freeze in exposed lines during colder months.

Moisture contamination ruins paint jobs and pneumatic instruments. It washes away lubricants from tools, increasing wear. Ultimately, it results in downtime, product spoilage, and costly repairs.

Key Concepts: Pressure Dew Point and SCFM

Understanding dryer specifications requires knowing two key terms. Pressure Dew Point (PDP) is the temperature at which water condenses at line pressure. A lower PDP means drier air.

Standard Cubic Feet per Minute (SCFM) measures the volume of air a dryer can process. You must select a dryer with a SCFM rating that meets or exceeds your compressor’s output.

Key Takeaway: The primary goal of an air dryer is to achieve a low pressure dew point. This prevents condensation from forming within your compressed air system, protecting your investment in tools and equipment.

How an Air Compressor Dryer Works: The Basic Process

All dryers follow a core principle: cooling the air to condense moisture, then separating and removing the water. The warm, saturated air from the compressor enters the dryer unit. It is then cooled, typically well below the ambient temperature.

As the air cools, water vapor condenses into liquid droplets. These droplets are then removed from the air stream through a moisture separator. Finally, the dry air is reheated slightly to prevent external condensation before it exits to your system.

Types of Air Compressor Dryers and How They Work

Different applications require different drying technologies. The main types are refrigerated, desiccant, and membrane dryers. Each operates on a distinct principle to achieve a specific pressure dew point.

How a Refrigerated Air Dryer Works

This is the most common type for general industrial use. It works similarly to a household refrigerator or air conditioner. Warm, wet air is cooled by a refrigerant in a heat exchanger.

The cooling process condenses water vapor into liquid. The liquid is then drained away automatically. Finally, the cold, dry air is warmed in an air-to-air heat exchanger to prevent sweating.

• Best For: General manufacturing, workshops, and applications requiring a dew point of 35-50°F.
• Key Advantage: Low operating cost and minimal maintenance.
• Limitation: Cannot achieve dew points below freezing in standard models.

How a Desiccant Air Dryer Works

Desiccant dryers use a porous material like activated alumina or silica gel. This material has a strong affinity for water vapor and adsorbs moisture directly from the air stream. The process delivers extremely dry air.

These systems typically have two towers. One tower dries the air while the other regenerates the desiccant by purging it with dry air or heat.

Regeneration Type	How It Works	Best Use Case
Heatless (Purge)	Uses a portion of dry air to blow moisture out.	Lower air volumes, intermittent use.
Heated	Uses an electric heater to drive off moisture.	Higher air volumes, reduces purge air loss.
Blower Heated	Uses a blower and heater for external air regeneration.	Most energy-efficient for large, continuous demand.

Selection Tip: Choose a refrigerated dryer for most shop applications. Opt for a desiccant dryer only if your process requires a sub-freezing dew point, such as in pharmaceutical, food packaging, or outdoor winter operations.

Membrane and Deliquescent Dryer Operation

Membrane dryers use a bundle of hollow polymer fibers. Water vapor permeates through the fiber walls, leaving dry air to pass through the center. They are simple, have no moving parts, and are ideal for remote locations.

Deliquescent dryers pass air through a bed of hygroscopic salt tablets. The salt absorbs moisture and dissolves into a brine solution that must be drained. These are a low-cost option for non-critical applications with small air volumes.

How to Choose the Right Air Dryer for Your System

Selecting the correct dryer is crucial for performance and efficiency. The wrong choice leads to wasted energy or inadequate air quality. You must match the dryer to your compressor’s output and your application’s needs.

Key Factors in Dryer Selection

Start by gathering your compressor’s specifications and understanding your air quality requirements. The required pressure dew point is dictated by your most sensitive tool or process. Ambient conditions also play a major role.

• Air Flow (SCFM): Match dryer capacity to your compressor’s maximum output at working pressure.
• Inlet Temperature & Pressure: Dryers are rated for specific conditions; exceeding them reduces performance.
• Ambient Temperature: Affects refrigerated dryer efficiency and desiccant regeneration.
• Required Pressure Dew Point (PDP): Determine the driest air needed to prevent condensation in your system.

Sizing Your Air Compressor Dryer Correctly

Undersizing a dryer is a common and costly mistake. The dryer must handle the compressor’s full flow at its actual operating pressure. Always use the compressor’s actual delivered SCFM, not its horsepower rating.

Add a safety factor of 15-20% for future expansion or inlet temperature variations. Consult the dryer manufacturer’s sizing charts, which account for pressure and temperature corrections.

Pro Tip: For refrigerated dryers, the inlet air temperature is critical. If your compressor discharge air is very hot (>100°F), you may need a cycling dryer or a model with a built-in pre-cooler to handle the load efficiently.

Installation and Maintenance Best Practices

Proper installation ensures your dryer works as designed. Always install the dryer after the receiver tank and before any filters for point-of-use applications. This allows air to cool and condense initial moisture in the tank.

Routine maintenance is simple but non-negotiable. For refrigerated dryers, regularly clean the condenser coils and check the automatic drain. For desiccant dryers, monitor the desiccant bed and replace it when saturated.

1. Daily/Weekly: Verify the automatic drain is functioning.
2. Monthly: Check pressure drop across the dryer and clean pre-filters.
3. Annually: Inspect desiccant, clean heat exchangers, and check refrigerant charge.

Troubleshooting Common Air Dryer Problems

Even well-maintained dryers can experience issues that affect performance. Recognizing symptoms early prevents downstream damage to your air tools. Many common problems have simple diagnostic steps and fixes.

Identifying Symptoms of a Failing Dryer

Watch for visible signs of moisture in your air lines or tools. This is the most obvious failure indicator. Check for liquid water at drain ports, in filters, or spraying from tools.

Other symptoms include an unexplained pressure drop across the dryer or the compressor cycling more frequently. Listen for unusual noises from the refrigeration circuit or purge valves. These often point to mechanical failure.

Diagnosing High Pressure Dew Point Issues

If your air isn’t dry enough, start by checking the simplest causes first. A high outlet dew point means moisture is passing through the dryer. This compromises your entire compressed air system.

• Clogged Pre-filter: A dirty filter overloads the dryer with liquid water it can’t handle.
• Faulty Automatic Drain: The most common cause. If the drain is stuck closed, water floods the system.
• Overloaded Capacity: Air flow exceeds the dryer’s rated SCFM, or inlet temperature is too high.
• Low Refrigerant Charge: (Refrigerated dryers) The unit cannot cool the air sufficiently.
• Exhausted Desiccant: (Desiccant dryers) The material is saturated and needs replacement or regeneration.

Quick Fix: Always verify the automatic drain valve is operating first. Manually cycle it and listen for the purge sound. A malfunctioning drain is responsible for over 50% of “dryer failure” calls.

Solving Refrigerated and Desiccant Dryer Faults

For refrigerated dryers, high discharge air temperature points to a problem. Check if the condenser coils are dirty or the cooling fan has failed. Ensure the unit has adequate ventilation space around it.

For desiccant dryers, a failed switching valve can cause wet air to bypass the drying tower. Listen for the regular cycle change. Also, verify the heater and thermostat are functioning in heated models.

Persistent issues often require professional service. However, systematic troubleshooting can resolve many operational problems quickly. This restores dry air and protects your valuable equipment.

Optimizing Your Compressed Air System with a Dryer

An air dryer is one component in a larger, interconnected system. Its performance is affected by upstream and downstream equipment. Proper system design maximizes efficiency, air quality, and equipment lifespan.

Integrating Dryers with Filters and Aftercoolers

For optimal results, use equipment in the correct sequence. The standard arrangement is: Compressor > Receiver Tank > Aftercooler > Air Dryer > Point-of-Use Filter. This sequence protects the dryer and ensures clean, dry air.

An aftercooler reduces the air temperature before it enters the dryer. This removes bulk moisture and significantly reduces the dryer’s workload. It is essential for compressors that discharge very hot air.

• Pre-filtration: A general-purpose filter before the dryer removes particulates and oil aerosols.
• Post-filtration: High-efficiency filters after the dryer capture any desiccant dust or final contaminants.
• Receiver Tank: Acts as a buffer, allows air to cool, and condenses initial liquid water.

Energy Efficiency and Cost-Saving Strategies

Air compression is expensive, and dryers add to the energy load. Choosing an efficient dryer model and operating it correctly reduces your total cost of ownership. Small changes yield significant savings.

Strategy	How It Works	Potential Savings
Use a Cycling Dryer	Refrigeration cycles on/off based on air demand.	Up to 50% vs. non-cycling models.
Lower Operating Pressure	Reduce system pressure to the minimum required.	Saves 1% on energy per 2 PSI reduction.
Fix Air Leaks	Eliminates wasted compressed air before it reaches the dryer.	Can save 20-30% of total air generated.
Insulate Air Lines	Prevents re-condensation after the dryer in cold environments.	Protects air quality, reduces re-evaporation load.

System Check: Conduct a regular leak audit. A single 1/8-inch leak at 100 PSI can waste over 2.5 SCFM. This wasted air still gets processed by your dryer, consuming unnecessary energy and capacity.

When to Consider a Point-of-Use Dryer

Sometimes, a single central dryer isn’t the best solution. For facilities with one critical application needing ultra-dry air, a point-of-use desiccant dryer can be ideal. It treats only the air for that specific tool or process.

This approach saves energy compared to drying the entire facility’s air supply to a sub-freezing dew point. It is a cost-effective strategy for mixed air quality requirements within one plant.

Advanced Topics: Specialty Dryers and Future Trends

Beyond standard refrigerated and desiccant units, specialized dryers meet unique industrial demands. Understanding these options and emerging technologies helps future-proof your compressed air system. This knowledge is key for high-tech and critical applications.

How a Heat of Compression (HOC) Dryer Works

This energy-efficient design is used with oil-free rotary screw compressors. It utilizes the high-temperature heat from the compression process itself to regenerate the desiccant. No external energy source is needed for drying.

The hot air from the compressor’s second stage flows through one desiccant tower for regeneration. Meanwhile, cooled air from the first stage is dried in the other tower. This closed-loop system offers very low operating costs.

• Best Application: Large, continuous-operation oil-free air systems.
• Key Benefit: Extremely low energy consumption; uses waste heat.
• Major Limitation: Only compatible with specific two-stage compressor designs.

Dryers for Oil-Free and Medical-Grade Air

Certain industries demand the highest purity. Pharmaceutical, food and beverage, and electronics manufacturing require ISO 8573-1 Class 0 air. This standard defines air with zero oil content.

For these systems, desiccant dryers with activated alumina are standard. They are paired with absolute filtration (0.01 micron). The dryer and filters must be constructed of materials that won’t introduce contaminants.

Critical Note: For medical breathing air (e.g., in hospitals), dryers are part of a stringent purification chain. This includes monitoring for carbon monoxide and mandatory compliance with standards like NFPA 99.

Smart Dryers and IoT Integration

The future of air treatment lies in connectivity and data. Modern smart dryers feature built-in sensors and communication modules. They provide real-time data on dew point, energy consumption, and maintenance needs.

This enables predictive maintenance, preventing failures before they occur. Facility managers can monitor performance remotely and optimize the system based on actual usage patterns. This trend reduces downtime and operational costs significantly.

Look for dryers with Modbus, Ethernet, or cloud connectivity. These features transform the dryer from a simple component into a data-driven asset management tool. This is the new standard for industrial efficiency.

Conclusion: Mastering How Your Air Compressor Dryer Works

Understanding how an air compressor dryer works is essential for system reliability. It protects your tools from costly moisture damage and ensures consistent performance. Proper drying saves money on maintenance and energy.

The key takeaway is to match the dryer type to your specific air quality needs. Always size the unit correctly and perform regular, simple maintenance. This guarantees years of trouble-free operation.

Now, assess your compressed air system’s dew point requirements. Use the guidelines in this article to select the optimal dryer for your shop or facility. Investing in the right equipment pays for itself quickly.

You now have the knowledge to make an informed decision and maintain dry, clean air. Your tools and products will thank you for it.

Frequently Asked Questions about Air Compressor Dryers

What is the purpose of a pressure dew point in an air dryer?

The pressure dew point (PDP) is the temperature at which water vapor condenses into liquid at line pressure. It is the key metric for measuring how dry your compressed air actually is. A lower PDP number means drier, more reliable air for your system.

Selecting a dryer with the correct PDP prevents condensation inside your air lines. This protects tools from rust and ensures consistent operation of pneumatic instruments. Always match the PDP to your most sensitive application’s requirement.

How to tell if my air compressor dryer is working properly?

Check for visible moisture downstream from the dryer. Inspect drain ports, filters, and tool outlets for liquid water. A functioning dryer should produce air with no liquid condensation under normal operating conditions.

Use a dew point monitor for the most accurate assessment. Also, listen for the regular cycle of the automatic drain valve. A lack of draining sounds or high outlet air temperature can indicate a problem.

What is the best type of air dryer for a home garage?

For most home garage applications, a refrigerated air dryer is the best choice. It effectively achieves a dew point around 35-39°F, which is sufficient for protecting air tools, paint sprayers, and sandblasters from moisture damage.

Refrigerated dryers are cost-effective, low-maintenance, and readily available in smaller sizes. They are ideal for intermittent use and handle the air flow from typical homeowner-grade compressors reliably.

Why is there still water in my air lines after the dryer?

This usually indicates the dryer is overloaded or malfunctioning. First, verify your air consumption (SCFM) does not exceed the dryer’s rated capacity. An undersized dryer cannot process all the moisture.

Next, check the automatic drain valve is not stuck closed. A failed drain floods the system. Also, ensure inlet air temperature is within the dryer’s specified range, as excessive heat reduces drying efficiency.

What is the difference between a refrigerated and desiccant air dryer?

Refrigerated dryers cool air to condense moisture, achieving a dew point just above freezing. Desiccant dryers use an adsorbent material to pull vapor from the air, achieving sub-freezing dew points as low as -40°F.

Choose refrigerated for general industrial use. Opt for desiccant only if your process requires extremely dry air, such as in outdoor winter operations, pharmaceuticals, or sensitive instrumentation.

How often should I replace the desiccant in my dryer?

Desiccant lifespan varies based on air flow, inlet moisture, and dryer type. In heatless dryers, expect to replace it every 3-5 years. In heated or blower-purge models, it can last 5-7 years with proper maintenance.

Monitor your outlet dew point for a gradual rise, which signals exhaustion. Also, inspect the desiccant bed annually for channeling, oil contamination, or breakdown into fine powder.

Can I install an air dryer myself, or do I need a professional?

You can install smaller refrigerated dryers if you are comfortable with basic electrical and piping work. Carefully follow the manual for placement, ventilation, and drain line requirements. Ensure proper sizing and connection order.

For large industrial systems, complex piping, or desiccant dryers, hiring a professional is recommended. They ensure correct installation, safety compliance, and often preserve the equipment warranty.

What is the most energy-efficient type of compressor dryer?

For standard applications, a cycling refrigerated dryer offers the best efficiency. It turns the refrigeration circuit on and off based on air demand, saving significant energy compared to non-cycling models.

For large, oil-free systems, a Heat of Compression (HOC) dryer is extremely efficient. It uses the compressor’s own waste heat for regeneration, requiring almost no additional energy to produce very dry air.

Do I Really Need an Air Dryer for My Compressor?

This depends entirely on your application. If you use air tools for basic tasks like inflating tires, you may not need one. However, any application sensitive to moisture requires a dryer.

You definitely need a dryer for painting, sandblasting, pneumatic controls, or winter operation. Moisture will ruin paint, clog blast media, freeze valves, and corrode tools. It’s a critical component for professional and industrial use.

What is the Difference Between a Filter and a Dryer?

Filters and dryers perform distinct but complementary jobs. A filter removes solid particles, oil aerosols, and liquid water from the air stream. It is a mechanical separation device.

A dryer removes water vapor, which is an invisible gas. It changes the vapor’s state to liquid and then removes it. You typically need both: filters to protect the dryer, and the dryer to achieve the required dew point.

Simple Analogy: A filter removes the “dirt” (solids, liquid water, oil). A dryer removes the “humidity” (water vapor). For clean, dry air, you need to address both forms of contamination.

How Often Should I Service My Air Dryer?

Service frequency varies by type and usage. Always follow the manufacturer’s specific maintenance schedule. Neglecting service is the leading cause of premature dryer failure and poor air quality.

• Refrigerated Dryers: Clean condenser coils every 3-6 months. Check refrigerant and automatic drain monthly.
• Desiccant Dryers: Check desiccant bed annually. Replace desiccant every 3-5 years depending on use. Verify heater and valve operation quarterly.
• All Dryers: Inspect and replace pre-filters and post-filters as indicated by the pressure differential gauge.

Can I Install a Dryer Myself?

Many smaller refrigerated dryers are designed for straightforward installation. If you are mechanically inclined and follow the manual, it’s possible. Ensure proper electrical connections, piping, and adequate ventilation.

For large industrial units, desiccant dryers, or systems requiring special piping, hire a professional. Incorrect installation can void warranties, cause inefficiency, and create safety hazards. Always consult local codes.
