Guide to Automotive Fastener Types & How to Remove Them

This complete guide explains every automotive fastener type you’ll encounter. Knowing the difference is crucial for successful repairs and maintenance.

Using the wrong tool or technique can lead to stripped threads and damaged components. We provide the expert tips to avoid these costly mistakes.

Best Tools for Automotive Fastener Removal – Detailed Comparison

TEKTON 3/8-Inch Drive Click Torque Wrench – Best Overall Choice

This precision torque wrench ensures you never over-tighten or strip fasteners. It features a reversible ratchet head and clear scale markings for accuracy. It’s the ideal foundational tool for any garage, providing reliable performance for engine work and wheel lug nuts.

DEWALT Cordless Screwdriver – Best for Stubborn Screws

This manual impact driver is essential for removing seized Phillips and flat-head screws. You strike it with a hammer to deliver rotational force, breaking corrosion bonds without stripping the head. It’s the best option for vintage car restorations or rusted brake rotor screws.

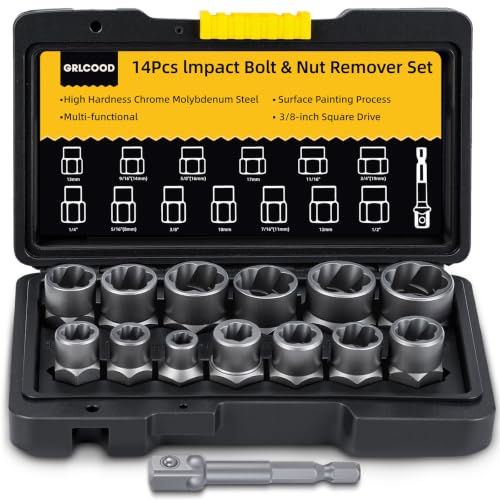

‎GRLCOOD Bolt Extractor Kit – Best for Damaged Fasteners

When a bolt head is rounded off, this extractor set is your solution. The fluted, reverse-spiral design bites into damaged metal for removal. This kit is ideal for emergency repairs, allowing you to remove broken studs and stripped bolts efficiently.

Common Automotive Fastener Types and Their Uses

Understanding fastener types is the first step to proper removal. Each is engineered for a specific purpose and load. Using the correct one is critical for vehicle safety and performance.

Threaded Fasteners: Bolts, Screws, and Studs

These create strong, removable connections through mating threads. They are categorized by their head style, drive type, and thread pitch. Always match the grade marking for strength-critical applications.

• Hex Bolts (Cap Screws): The most common type, used with a wrench. Grade markings (e.g., 8.8, 10.9) indicate tensile strength. Essential for suspension, engine, and structural components.
• Machine Screws: Typically used with a pre-tapped hole or nut. Often have Phillips or Torx drives. Common in interior panels, sensors, and electrical components.
• Wheel Studs: Pressed into the hub or brake drum, with a threaded end for lug nuts. They are critical safety components that must be replaced if damaged or cross-threaded.

Non-Threaded and Specialty Fasteners

These provide quick assembly, vibration resistance, or sealing. They often require specific tools for removal to prevent damage.

• Push Clips (Christmas Tree Clips): Used for interior trim, wheel well liners, and underbody panels. Remove with a dedicated trim tool to pry the center pin up first.
• Rivets: Permanent fasteners for body panels and frames. Require drilling out for removal. Common types include pop rivets and solid rivets.
• Body Panel Retainers: Specialized plastic clips that secure bumpers and fender liners. A trim tool kit is the best option for safe removal without breaking tabs.

Key Takeaway: Always identify the fastener type before attempting removal. Using the wrong tool on a Torx head or prying a push clip incorrectly will cause damage and complicate your repair.

Drive Type	Best For	Removal Tip
Hex (6-point)	High-torque applications (suspension, engine)	Use a 6-point socket for maximum grip and to prevent rounding.
Torx (Star)	Electronic modules, interior components	Use the exact size; a slightly worn tool will strip the head.
Phillips	General purpose, lower torque	Apply downward pressure to prevent cam-out. Consider an impact driver if stuck.

How to Remove Stuck or Rusted Automotive Fasteners

Rusted or over-torqued fasteners are a common DIY challenge. Forcing them often leads to broken bolts and costly repairs. A systematic, patient approach using the right techniques is essential for success.

Preparation and Penetrating Fluid Techniques

Never start with excessive force. Proper preparation dramatically increases your chances of removal without damage. The goal is to break the corrosion bond first.

1. Apply Penetrating Oil: Soak the fastener thoroughly with a quality product like PB Blaster or Liquid Wrench. Allow it to soak for several hours or overnight for best penetration.
2. Use Heat Carefully: For severely rusted bolts, apply targeted heat with a propane or MAP gas torch to the surrounding metal, not the bolt itself. The expansion and contraction can break the bond. Avoid heat near fuel lines, brakes, or plastics.
3. Shock the Fastener: After heating, tap the bolt head squarely with a hammer. This vibration helps the penetrating oil creep deeper and can fracture rust scale.

Advanced Removal Methods for Damaged Hardware

When a fastener head strips or a bolt snaps, you need specialized techniques. Having the right tools from our product section is critical here.

• For Rounded Bolt Heads: Use a bolt extractor socket. Hammer it onto the damaged head and turn slowly with a breaker bar. The fluted design grips the metal for removal.
• For Broken Studs: If thread is exposed, try a stud extractor or locking pliers. For flush breaks, you must center-punch and carefully drill out the stud for an extractor.
• For Stripped Screws: A manual impact driver is often the best solution. Set it to “left” for removal, insert the correct bit, and strike firmly with a hammer to break it free.

Pro Tip: Always attempt to tighten a stuck fastener slightly first, just a fraction of a turn. This can often break the corrosion seal more effectively than pulling directly in the loosening direction.

Problem	Primary Method	Alternative Method
Rusted Nut/Bolt	Penetrating Oil + Breaker Bar	Controlled Heat + Shock
Stripped Phillips Head	Manual Impact Driver	Hammer-in a larger Torx bit or use a screw extractor
Broken Flush Bolt	Left-Hand Drill Bit & Extract	Drill out completely and re-tap the thread

Essential Tools and Safety Tips for Fastener Work

Having the right tools transforms a frustrating job into a smooth process. Quality tools also prevent damage to your vehicle and ensure personal safety. This section covers the must-have items and critical safety practices.

Building Your Core Fastener Tool Kit

A basic kit handles 90% of automotive fastener tasks. Invest in quality versions of these core tools for longevity and better grip. They are the foundation for all removal and installation work.

• Socket Set: A 3/8-inch drive set with 6-point sockets in metric and SAE sizes. Six-point sockets offer superior grip on fastener heads compared to 12-point.
• Wrenches: Combination wrenches (open-end and box-end) for tight spaces. A set of ratcheting wrenches significantly speeds up work in confined areas.
• Specialty Drivers: Include Torx (T-series), Allen (hex), and security bit sets. Many modern cars use Torx fasteners extensively for interior and electronic components.
• Breaker Bar: A long-handled bar for applying high torque without damaging your ratchet. This is your primary tool for breaking loose stubborn bolts.

Critical Safety Practices to Prevent Injury

Working on vehicles involves heavy components and high forces. Ignoring safety can lead to serious injury or a failed repair. Always make safety your first priority.

1. Eye Protection is Mandatory: Always wear safety glasses. Drilling, hammering, and breaking rust can send metal shards flying towards your face.
2. Secure the Vehicle: Use jack stands on solid ground, never rely solely on a hydraulic jack. Apply the parking brake and chock the wheels that remain on the ground.
3. Beware of Heat and Chemicals: Allow heated components to cool before touching. Wear gloves when using penetrating oils and clean any spills immediately to prevent slips.

Tool Maintenance Tip: Keep your sockets and drive tools clean and lightly oiled. A rusty or greasy tool is more likely to slip off a fastener head, causing injury and damaging the bolt.

Fastener Type	Primary Tool	Backup/Specialty Tool
Standard Hex Bolt/Nut	6-Point Socket & Ratchet	Breaker Bar, Torque Wrench (for install)
Trim Panel Push Clip	Plastic Trim Removal Tool	Flat-head Screwdriver (with tape to prevent scratches)
Rusted Exhaust Bolt	Penetrating Oil, 6-Point Socket	Oxy-Acetylene Torch (for severe cases), Bolt Extractor Set

Proper Fastener Installation and Torque Specifications

Correct installation is just as important as removal. Improperly installed fasteners can loosen, break, or cause component failure. This final section ensures your repair is safe, reliable, and long-lasting.

Understanding and Applying Correct Torque

Torque is a measure of rotational force, critical for achieving proper clamp load. Under-torquing can lead to loosening; over-torquing can stretch and weaken the bolt. Always consult your vehicle’s service manual for specifications.

• Use a Quality Torque Wrench: Calibrate it regularly and always store it at its lowest setting. Click-type wrenches are ideal for most DIY applications.
• Follow the Correct Sequence: For components with multiple fasteners (like a valve cover), follow a criss-cross or star pattern. Tighten in multiple steps (e.g., 50%, 75%, 100% of final torque).
• Consider the Fastener State: Specifications are typically for clean, dry threads. If using threadlocker or anti-seize compound, you may need to adjust torque (usually reduce by 10-20%).

When to Use Threadlockers, Sealants, and Anti-Seize

These chemical aids prevent common problems like vibration loosening, fluid leaks, and corrosion seizure. Using the right product in the right place is a mark of a professional-quality repair.

1. Threadlocker (Blue/Red): Use medium-strength (blue) threadlocker on fasteners prone to vibration (e.g., caliper bolts, engine accessories). It prevents loosening but allows removal with hand tools. Reserve high-strength (red) for permanent applications.
2. Anti-Seize Compound: Apply a thin coat to the threads of fasteners exposed to heat and corrosion (exhaust, brake, suspension). This ensures future removal and prevents galvanic corrosion between dissimilar metals.
3. Thread Sealant (Teflon Tape/Paste): Use on pipe threads for fluid connections (fuel, oil, coolant). It fills microscopic gaps to create a leak-free seal, not to aid threading.

Installation Pro Tip: Always start fasteners by hand. If a bolt or nut binds immediately, the threads are likely cross-threaded. Back it out and restart to avoid destroying the threads in the component.

Component	Typical Fastener Size	General Torque Range (ft-lbs)
Wheel Lug Nuts	M12 x 1.5	80 – 100
Oil Drain Plug	M14 x 1.5	25 – 30
Spark Plug	M14 or M12	15 – 22 (or specified turn-after-seating)
Valve Cover Bolts	M6	6 – 10 (Inch-lbs often)

Troubleshooting Common Automotive Fastener Problems

Even with the right tools and techniques, you may encounter stubborn issues. This troubleshooting guide provides targeted solutions for the most common fastener headaches. A methodical approach will save you time and prevent part damage.

Solving Persistent Issues: Stripping, Breaking, and Seizing

When standard methods fail, you need a diagnostic mindset. Identify the root cause before applying more force. Often, the problem requires a shift in strategy or a specialized tool.

• Fastener Keeps Spinning: The captive nut behind the panel may have broken free. You must hold the backside with another tool or, if accessible, grip it with locking pliers.
• Threads Feel “Gritty” or Bind: The threads are likely damaged or cross-threaded. Stop immediately. Try running a proper thread chaser or tap to clean the female threads, not a cutting tap.
• Head Snaps Off Under Low Torque: The bolt was likely over-torqued previously and suffered from tension fatigue. This requires extraction of the remaining stud, as covered in advanced removal methods.

Step-by-Step Guide for a Rounded-Off Bolt

A rounded bolt head is a frequent issue, especially with cheap tools or corroded fasteners. Follow this sequence to recover the situation without drilling.

1. Attempt a Bite: Try a 6-point socket or wrench one size smaller. Hammer it onto the rounded head to create new bite points. Apply penetrating oil first.
2. Use a Bolt Extractor: Select an extractor socket that fits tightly over the damaged head. Strike it on firmly with a hammer and turn slowly with a breaker bar.
3. Cut a New Slot: If accessible, use a Dremel or hacksaw to cut a deep, straight slot across the bolt head. Then use a large, flat-head impact driver to remove it.

Diagnosis Tip: Before blaming the fastener, inspect your tools. A worn, rounded, or poor-quality socket is often the real culprit behind a stripped bolt head. Always use sharp, well-maintained tools.

Symptom	Likely Cause	Immediate Action
Bolt turns but won’t back out	Stripped threads in block/component	Apply upward prying force while unscrewing; may need to cut/grind head off.
Extreme rust with no head access	Complete corrosion fusion	Apply heat to surrounding metal (if safe), then use an air hammer with a chisel bit to shock and rotate.
Small screw head strips instantly	Wrong screwdriver bit size/type	Verify exact drive type (JIS vs Phillips, Torx size). Use an impact driver with the correct bit.

Pro Tips and Advanced Techniques for Mechanics

Elevate your skills with these professional-grade insights. These tips go beyond basics to solve complex problems efficiently. They can mean the difference between a weekend-long struggle and a one-hour fix.

Mastering the Art of Access and Leverage

Often, the challenge isn’t the fastener itself, but reaching it. Creative use of tools and leverage can solve access issues without disassembling half the car.

• Use Extensions and Universals Strategically: Combine extensions to reach deep fasteners. Place a universal joint between two extensions to maintain torque in tight angles. A wobble extension is often superior to a universal joint for avoiding slop.
• Create Custom Tools: Grind down an old socket to clear an obstruction. Weld a nut to a stripped bolt head for a new grip point. A length of pipe over your wrench handle (a “cheater bar”) adds immense leverage—use it cautiously to avoid tool breakage.
• Work from the Backside: If a bolt spins freely, can you access the nut behind it? Sometimes removing an underbody panel or wheel well liner provides the access you need to hold the backside.

Preventative Maintenance for Future Ease

A little foresight during reassembly makes the next repair infinitely easier. This is the hallmark of a thoughtful mechanic.

1. Chase All Threads: Before installing new bolts, run a thread chaser through every threaded hole to remove dirt, rust, and old threadlocker. This ensures accurate torque readings and prevents false binds.
2. Strategic Anti-Seize: Apply a thin coat of anti-seize compound to the shank (non-threaded portion) of bolts that pass through bushings or brackets. This prevents them from corroding and seizing inside the sleeve, allowing the bolt to clamp properly.
3. Document Torque Values: Keep a small notebook or digital note of specific torque specs you look up for your vehicle. This builds a personal database for future repairs, saving you research time.

Advanced Extraction Trick: For a broken stud flush with the surface, try welding a nut directly onto the stud remnant. The intense heat often breaks the corrosion bond, and the nut gives you a perfect grip for removal with a wrench.

Specialty Tool	DIY Alternative	Best Use Case
Line Wrench (Flare Nut)	6-point socket with a slit cut into it with a grinder	Brake line fittings where a standard wrench rounds the corners.
Torx Plus Socket	Standard Torx socket hammered on	Emergency use on slightly worn Torx Plus fasteners (risks damaging both).
Damper Pulley Holder Tool	Old serpentine belt wrapped around pulley and clamped in a vise	Holding the crankshaft pulley to loosen the center bolt.

Conclusion: Mastering Automotive Fasteners for Confident Repairs

This guide has equipped you with expert knowledge on automotive fastener types and removal techniques. You can now identify, tackle, and install fasteners correctly. This skill is fundamental to virtually every car repair.

Remember, patience and the right tool always beat brute force. Start with proper identification and use penetrating fluid liberally. Always finish critical jobs with a calibrated torque wrench.

Put this knowledge into practice on your next maintenance project. Refer back to our tool recommendations and troubleshooting charts when you encounter a challenge.

You now have the confidence to approach fastener-related tasks systematically, saving time, money, and frustration in your garage.

Frequently Asked Questions about Automotive Fasteners

What is the best penetrating oil for rusted automotive bolts?

Liquid Wrench, PB Blaster, and Kroil are top-rated penetrating oils. They work by creeping into microscopic spaces to break rust bonds. For severe cases, a 50/50 mix of acetone and automatic transmission fluid is a highly effective homemade solution.

Apply liberally and allow several hours to soak. Tapping the fastener with a hammer after application helps the oil penetrate deeper. Heat can be used in conjunction with oil for extremely stubborn cases.

How to remove a stripped Allen head bolt from an engine?

First, try hammering a Torx bit that is slightly larger into the stripped socket. The sharp edges may bite into the remaining material. Apply downward pressure while turning slowly with a breaker bar or impact driver.

If that fails, use a left-hand drill bit and extractor set. Carefully drill a pilot hole, then use the extractor. Applying heat to the surrounding metal (not the bolt) before drilling can greatly improve your chances of success.

What is the difference between a bolt and a screw in automotive use?

The key difference is in their application. A bolt is designed to be used with a nut to clamp parts together. A screw is designed to thread directly into a pre-tapped hole in one of the components being joined.

In practice, the terms are often used interchangeably. However, machine screws (used with nuts) are common in automotive interiors, while bolts are standard for structural, engine, and suspension components.

Can you use an impact wrench to tighten lug nuts?

You can use an impact wrench to run the lug nuts on and for initial tightening. However, you should never use it for the final torque specification. Impact wrenches are not precise and can easily over-torque or under-torque fasteners.

Always use a calibrated torque wrench for the final step. This ensures even clamping force and prevents warped brake rotors, broken studs, or wheels coming loose. It is a critical safety practice.

What to do if a brake caliper bolt keeps spinning?

If the bolt turns but won’t back out, the likely cause is a stripped thread in the mounting bracket or a seized slide pin sleeve. Try applying prying force behind the caliper or bolt head while unscrewing to create tension.

If it still spins, you may need to cut the bolt head off with a grinder or hacksaw to remove the caliper. This will then allow you to access the remaining shank with vise grips or extract the damaged threads from the bracket.

Which is better for removing fasteners: a 6-point or 12-point socket?

A 6-point socket is almost always better for removal, especially on tight or rusted fasteners. It provides more surface contact on the bolt head, distributing force more evenly and significantly reducing the risk of rounding off the corners.

Use 12-point sockets only where space constraints require them, as on some flange bolts. For installation, a 6-point socket is still preferred for critical applications to ensure proper torque application without slippage.

How to prevent exhaust manifold bolts from breaking?

Prevention starts with proper installation using a torque wrench and new, high-temperature-rated bolts if specified. During removal, soak the bolts in penetrating oil for days if possible. Apply steady, gradual heat to the manifold, not the bolts, to expand the surrounding iron.

Attempt to tighten slightly first to break the seal. Use a quality 6-point socket and a breaker bar, applying steady pressure rather than impacts. If one breaks, extract it carefully before moving to the next.

What is the best way to organize automotive fasteners during disassembly?

Use a labeled parts organizer with multiple compartments or small zip-top bags. Take a photo of the assembly before disassembly for reference. Place fasteners in the organizer in the order they are removed, or tape them to a cardboard template that outlines the part.

This method saves immense time during reassembly and ensures you use the correct length and type of fastener in each hole. It also helps you notice if any washers or spacers are missing.
