Can You Combine or Convert Air Compressors

Yes, you can absolutely combine or convert air compressors to meet your needs. This powerful technique unlocks greater flexibility and efficiency in your workshop. Our complete guide reveals expert tips and proven methods to do it safely and effectively.

Combining compressors solves common problems like insufficient airflow or pressure. It provides a cost-effective upgrade without buying a massive new unit. You can also convert a compressor for different fuels or voltages.

Best Products for Combining or Converting Air Compressors

ARES 171503 Air Compressor Manifold Kit – Best for Tandem Setups

This robust manifold kit is the ideal foundation for combining two compressors. It features a 1/2-inch NPT brass manifold, two check valves, and a pressure relief valve. This setup prevents backflow and allows for safe, simultaneous operation, creating a seamless dual-compressor system for extended tool use.

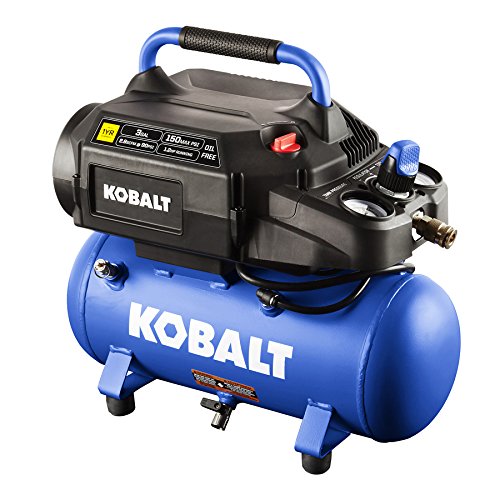

Kobalt 3-Gallon Portable 150-PSI Electric Hot Dog Air Compressor- Best Portable Option to Add

This compact, oil-free compressor is a perfect secondary unit to combine with a stationary model. Its lightweight design and 3-gallon tank make it easy to position for a tandem system or use as a dedicated backup. The universal quick-connect fittings ensure easy integration into your existing air network.

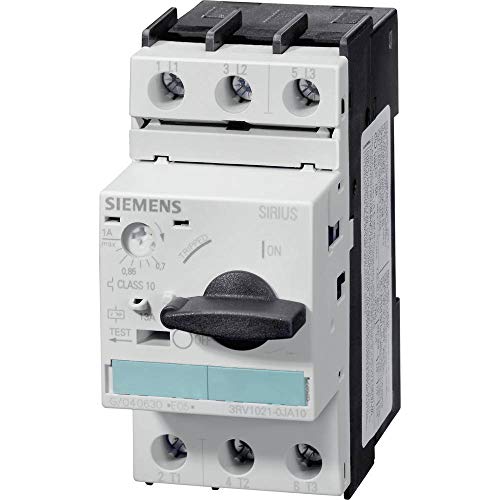

SIEMENS 3RV1021-4DA10 Motor Starter – Best for Safe Electrical Conversion

For converting a compressor to a different voltage or adding a second motor, this professional-grade motor starter is crucial. It provides reliable overload protection and safe start/stop control. This component is essential for any electrical modification, protecting your valuable compressor motors from damage during conversion projects.

Why Combine or Convert Your Air Compressor System

Understanding the core benefits helps you decide if this project is right for your shop. Combining or converting compressors solves specific limitations of a single unit. It is a strategic upgrade that enhances capability and reliability.

Key Benefits of a Combined Compressor Setup

Linking two or more compressors creates a more powerful and flexible air supply. This approach is often more cost-effective than purchasing one large industrial compressor. You gain significant advantages without a massive investment.

• Increased CFM (Cubic Feet per Minute): Combine units to power high-demand tools like sandblasters or paint sprayers that a single compressor cannot handle.
• Enhanced Duty Cycle and Recovery: While one compressor runs, the other can rest and refill its tank. This prevents overheating and provides a near-continuous air flow.
• Redundancy and Backup: If one compressor fails, the other can maintain essential operations, minimizing workshop downtime.

Common Reasons for Converting an Air Compressor

Conversion modifies an existing compressor’s fundamental operation. This is typically done to adapt to new power sources or specific applications. It extends the life and utility of your equipment.

• Voltage Conversion (e.g., 110V to 220V): Increases efficiency and power for the motor, allowing it to run cooler and handle heavier loads.
• Fuel Type Conversion: Changing a gas-powered compressor to electric (or vice versa) for indoor use or remote job site flexibility.
• Duty Upgrade: Modifying a portable compressor for more continuous use by adding better cooling or a larger auxiliary tank.

Key Takeaway: Combining compressors boosts overall system performance (CFM & duty cycle), while converting one alters its core functionality (power source, fuel type) to fit new needs. Both strategies maximize your existing equipment’s value.

Ideal Use Cases and Applications

These modifications are not for every home garage. They provide the most value in specific, demanding scenarios. Identify if your work matches these common applications.

A professional auto body shop often combines compressors to run multiple sanders and painters simultaneously. A mobile contractor might convert a compressor to dual-fuel for jobs without grid power. Home workshops upgrade for consistent air during prolonged use with tools like die grinders.

How to Combine Two Air Compressors Safely

Successfully linking compressors requires careful planning and the right components. A safe, functional tandem system prevents damage to both units and ensures reliable air delivery. Follow this structured approach for optimal results.

Essential Components and Setup Diagram

You cannot simply connect two compressors with a T-fitting. Specific parts are required to manage airflow and pressure safely. This setup protects each compressor’s pump and motor from backflow and overload.

• Dual Check Valves: Install one on each compressor’s output line. These valves prevent high-pressure air from one tank from flowing back into the other compressor’s pump, which can cause severe damage.
• Main Manifold or Coupling: A central brass or steel manifold where both air lines converge. This is the common point that feeds your air tool hose.
• Pressure Relief Valve: A critical safety device on the manifold to vent excess pressure if both compressors’ cut-out switches fail.

Step-by-Step Connection Process

Follow this sequence to build your combined system methodically. Always ensure both compressors are unplugged and tanks are fully depressurized before starting.

1. Mount and Prepare: Position both compressors on a stable, level surface. Install a check valve directly onto each compressor’s tank outlet.
2. Plumb the Air Lines: Run separate air hoses or pipes from each check valve to the inlet ports of your central manifold. Use thread sealant on all connections.
3. Connect and Test: Attach your main air hose to the manifold’s output. Plug in and start the first compressor. Once it cycles, start the second. Monitor pressure gauges for equalization and check for leaks.

Pro Tip: For best performance, use compressors with similar CFM ratings and tank sizes. Mismatched units can work, but the smaller compressor will cycle much more frequently, leading to premature wear.

Critical Safety Precautions and Common Mistakes

Ignoring safety can lead to equipment failure or hazardous bursts. Avoid these frequent errors to ensure a durable setup.

• Never Skip Check Valves: This is the most common and costly mistake. Backflow will destroy a compressor pump.
• Adequate Electrical Supply: Ensure your circuit can handle the combined amp draw of both motors starting simultaneously. Use separate dedicated circuits if possible.
• Match Pressure Settings: Set the pressure switch cut-out points on both compressors to the same PSI (e.g., 150 PSI). A significant mismatch causes one unit to do all the work.

Guide to Converting Air Compressor Voltage and Fuel Type

Converting your compressor’s fundamental power source is a more complex but highly rewarding project. It allows you to repurpose equipment for new environments or improve its efficiency. This process requires technical skill and the correct replacement parts.

Converting from 110V to 220V for Better Performance

Upgrading voltage reduces the electrical current (amps) the motor draws. This allows the motor to run cooler, more efficiently, and with more starting torque. It is ideal for heavy-duty applications.

1. Verify Motor Compatibility: Check the motor’s data plate. It must explicitly state a dual-voltage rating (e.g., 115V/230V). If it only lists 115V, it cannot be converted.
2. Rewire the Motor: Access the motor’s connection plate. Change the wire links from the parallel (110V) configuration to the series (220V) configuration as shown in the motor’s wiring diagram.
3. Update the Plug and Circuit: Install a 220V plug (like a NEMA 6-15P) and ensure you have a dedicated 220V circuit with a appropriate double-pole breaker to power it.

Switching Between Gas and Electric Power

This conversion adapts a compressor for indoor use or remote job sites. It typically involves replacing the entire power source assembly, which is a major modification.

• Gas to Electric: Remove the gas engine, fuel tank, and throttle assembly. You must mount a compatible electric motor of equivalent horsepower and connect it to the pump via a proper coupling or pulley system.
• Electric to Gas: Less common, but useful for portability. This requires mounting a gas engine with a matching RPM and shaft size, adding a centrifugal clutch or coupling, and fabricating a secure mounting plate.

Conversion Type	Primary Benefit	Key Challenge
110V to 220V	Increased efficiency & motor life	Requires a dual-voltage motor & new circuit
Gas to Electric	Quiet, indoor-safe operation	Matching motor HP/RPM to the pump
Electric to Gas	Complete job site portability	Engine mounting and drive alignment

Essential Tools and Professional Considerations

Do not attempt these conversions without the right tools and knowledge. Electrical work, in particular, carries risk of shock or fire if done incorrectly.

• Required Tools: Multimeter, wire strippers/crimpers, socket set, motor coupling puller, and basic machining tools for mounting plates.
• When to Hire a Pro: If you are unsure about electrical wiring, motor compatibility, or mechanical alignment. A professional can ensure the conversion is safe and the pump is not damaged by misalignment.

Advanced Tips, Troubleshooting, and Maintenance

Mastering the ongoing care of your modified system ensures long-term reliability. Advanced configurations can solve unique challenges, while proactive maintenance prevents failures. This section covers expert-level optimization and problem-solving.

Optimizing Performance with Staggered Pressure Switches

For a combined system, setting both compressors to the same cut-out pressure is standard. However, using staggered settings can optimize motor life and energy use in specific scenarios.

• Primary/Secondary Setup: Set your larger, more robust compressor (Primary) to your target pressure (e.g., 150 PSI). Set the smaller unit (Secondary) to kick in at a lower pressure (e.g., 140 PSI).
• Performance Benefit: The secondary unit only activates during high demand, reducing wear on the primary. This extends the duty cycle smoothly without both motors constantly cycling together.

Common Problems and How to Fix Them

Even well-built systems can encounter issues. Diagnose these common problems quickly to get back to work.

• One Compressor Not Starting: Check for a tripped circuit breaker or faulty pressure switch. In a combined setup, verify the check valve isn’t stuck closed, creating backpressure that tricks the switch.
• Excessive Moisture in Air Lines: Tandem systems move more air, producing more condensation. Install a larger aftercooler or secondary dryer downstream of the manifold to handle the increased volume.
• Uneven Wear Between Units: If one compressor cycles far more often, rebalance the system. Adjust staggered pressure settings or check for air leaks in the lines feeding from the less-used unit.

Warning: If you hear loud knocking or a compressor fails to build pressure, shut it down immediately. This indicates potential pump failure, often caused by a failed check valve allowing backflow. Do not restart until diagnosed.

Long-Term Maintenance Schedule for Modified Systems

Modified systems require diligent upkeep. Create a checklist that covers all components, both original and added.

1. Daily: Drain moisture from all tanks (primary, secondary, and auxiliary). Visually inspect hoses and connections for leaks.
2. Monthly: Test the manual release on pressure relief valves. Check and tighten all manifold and check valve connections.
3. Annually: Conduct a full system leak-down test. Inspect check valves for proper operation and replace if sluggish. Change oil in pumps (if oil-lubricated) and replace air intake filters.

Alternative Solutions and When to Choose Them

Combining or converting compressors is not the only path to more air power. Understanding all available options ensures you select the most efficient and cost-effective solution for your specific needs. Evaluate these alternatives before starting your project.

Adding a Large Auxiliary Air Receiver Tank

This is often the simplest and safest upgrade for improving air supply. Instead of adding a second compressor, you plumb a large, empty tank into your existing system.

• How It Works: Your single compressor fills both its own tank and the auxiliary tank. The larger total volume means the compressor cycles less often, providing longer tool run time and better recovery.
• Best For: Solving short-burst demand issues (like running an impact wrench) or extending the duty cycle for tools used intermittently. It requires no electrical modifications.

Upgrading to a Larger Single-Stage or Two-Stage Compressor

Sometimes, replacing your unit is more practical than modifying it. Newer compressors offer better efficiency, reliability, and built-in features.

Option	Pros	Cons	Ideal Scenario
Larger Single-Stage	Simple, cost-effective, direct replacement	May still struggle with continuous high-CFM tools	Moderate CFM increase needed; budget-conscious
Two-Stage Compressor	Higher pressure (175+ PSI), cooler air, greater efficiency	Higher upfront cost, larger footprint	Professional shops running sandblasters, plasma cutters

Decision Framework: Modify, Add, or Replace?

Use this quick guide to determine the best course of action based on your primary goal and constraints.

1. Choose to COMBINE if: You already own two compatible compressors, need significantly more CFM, or want system redundancy. This leverages existing assets.
2. Choose to CONVERT if: Your compressor is mechanically sound but needs a different power source (e.g., moving shop indoors). This preserves a quality pump.
3. Choose an AUXILIARY TANK if: You need more air volume for short bursts and have space. This is the lowest-risk, lowest-complexity upgrade.
4. Choose to REPLACE if: Your current compressor is old, inefficient, or requires major repairs. A new, properly sized unit offers warranty and modern efficiency.

Final Consideration: Always calculate your true required CFM at operating PSI for your tools first. This data, not tank size, dictates whether to combine, add a tank, or buy a larger single unit. Match the solution to the demand.

Essential Safety Checklist and Legal Considerations

Modifying pressure vessels and electrical equipment carries inherent risks. This final operational section provides a mandatory safety audit and discusses important liability issues. Prioritizing safety protects you, your equipment, and your property.

Pre-Operation Safety Audit for Modified Systems

Before first use and periodically thereafter, conduct this thorough inspection. Never bypass these checks for the sake of convenience.

• Pressure System Integrity: Inspect all tanks for rust, dents, or weld defects. Perform a leak-down test by pressurizing the system to its maximum rating, shutting it off, and monitoring for pressure drop over 30 minutes.
• Electrical Safety: Verify all wiring is properly rated, connections are tight, and cords are free of damage. For 220V conversions, ensure the correct double-pole breaker is installed and the unit is properly grounded.
• Component Verification: Confirm all safety devices—pressure relief valves, check valves, and pressure switches—are rated for your system’s maximum PSI and are functioning correctly.

ASME Codes and Pressure Vessel Laws

Air compressor tanks are regulated pressure vessels. Modifications can affect their certification and your insurance coverage.

• ASME Stamp: Most quality tanks have an ASME (American Society of Mechanical Engineers) stamp. This indicates it was built to a specific safety code. Never drill into, weld on, or physically modify a pressurized tank. This voids its certification and makes it unsafe.
• Legal and Insurance Implications: Uncertified modifications may void your equipment warranty and potentially your homeowner’s or workshop insurance if a failure causes damage. Always consult your policy.

Critical Rule: You can safely modify the air *plumbing* (hoses, manifolds, valves) and the *power source* (motor, engine). You must never modify the compressor tank itself unless performed by a certified pressure vessel welder.

Personal Protective Equipment (PPE) and Workspace Setup

The right PPE and environment are your last line of defense. Do not underestimate the force of compressed air.

1. Mandatory PPE: Always wear ANSI-approved safety glasses when operating or working near the system. Use hearing protection for extended exposure in enclosed spaces.
2. Workspace Requirements: Ensure the area is well-ventilated, especially for gas engines. Keep the compressor stable and secure to prevent vibration-induced movement or tipping.
3. Emergency Procedures: Know the location of the main power shut-off and the manual air release valve. Ensure everyone in the workspace knows the sound of the pressure relief valve activating.

Conclusion: Mastering Air Compressor Combination and Conversion

Combining or converting air compressors is a powerful strategy to enhance your workshop’s capabilities. It provides a cost-effective path to more air power, greater flexibility, and improved system reliability. You can solve specific performance gaps without a major new purchase.

The key takeaway is to prioritize safety and compatibility above all else. Always use check valves, verify motor specifications, and never modify pressure tanks. Following the structured methods outlined ensures a durable and safe setup.

Start by auditing your current tools’ CFM needs and your existing compressor’s specifications. Choose the solution—combine, convert, or add a tank—that best matches your actual demand and skill level.

With careful planning, you can successfully build a custom air system that handles any project with confidence.

Frequently Asked Questions about Combining and Converting Air Compressors

What is the best way to connect two air compressors together?

The safest method uses a dedicated manifold with individual check valves on each compressor’s output line. This prevents dangerous backflow between tanks. Connect both lines to the manifold, which then feeds your main air hose.

Always install a pressure relief valve on the manifold as a critical safety backup. Ensure both compressors have matching pressure switch settings and are on adequate electrical circuits to handle the combined load.

How to convert a 110V air compressor to 220V?

First, verify your motor’s data plate lists 220V or 230V as a compatible voltage. If it does, reconfigure the motor’s internal wiring links from parallel to series, following its specific diagram.

You must then replace the power cord with a 220V plug and connect it to a dedicated double-pole circuit breaker. This conversion reduces amperage draw, allowing the motor to run cooler and more efficiently.

Can you run two air compressors into one tank?

Yes, you can feed two compressors into a single, larger auxiliary tank. This is an effective way to increase total air storage volume. Each compressor must still have its own check valve installed at its output before the tank inlet.

This setup is excellent for improving recovery time and providing longer tool runtime. The tank acts as a common reservoir, and the compressors can cycle independently to refill it.

What are the risks of combining air compressors?

The primary risk is backflow, where high-pressure air from one tank enters the pump of the other, causing catastrophic failure. This is why check valves are non-negotiable. Electrical overload is another major hazard.

If both motors start simultaneously, they can trip a breaker or overheat wiring. Always ensure your workshop’s electrical system can handle the combined starting amperage, ideally using separate circuits.

Is it cheaper to combine compressors or buy a bigger one?

Combining is often cheaper if you already own two compatible units, as you only need plumbing parts. It leverages your existing investment. However, if you need to purchase a second compressor specifically for this purpose, calculate the total cost.

A new, larger single compressor may offer better long-term efficiency, a warranty, and a smaller footprint. For a significant, permanent CFM increase, a proper two-stage compressor is usually the superior professional investment.

Why would you convert a gas air compressor to electric?

The main reason is to enable safe indoor operation in a workshop or garage. Electric compressors produce no exhaust fumes, are generally quieter, and require less maintenance than gas engines. They also provide instant, reliable starts in any temperature.

This conversion is ideal for a stationary shop setup where portability is no longer needed. It involves removing the gas engine and mounting a correctly sized electric motor to the pump via a proper coupling.

What tools do I need to combine two compressors?

You will need basic plumbing tools: pipe wrenches, thread sealant (Teflon tape or paste), and appropriate fittings/hoses. The essential components are two check valves, a manifold, and a pressure relief valve. A good quality air hose is also required for connections.

For electrical safety, have a voltage tester and ensure you have access to sufficient circuit capacity. Always have personal protective equipment like safety glasses when testing the pressurized system.

How do I maintain a combined air compressor system?

Maintenance is crucial and includes draining all tanks daily to remove moisture. Monthly, inspect and tighten all fittings and test the pressure relief valves. Annually, check the check valves for proper operation and replace air filters.

Monitor both compressors for even wear. If one unit cycles significantly more, check for leaks in its line or consider adjusting staggered pressure switch settings to balance the workload between them.

Can I Combine Two Different Brand or Size Compressors?

Yes, but with important caveats. The key factor is compatibility in operating pressure, not necessarily brand or tank size.

• Pressure Must Match: Both compressors must be set to the same cut-out PSI (e.g., 150 PSI). A significant mismatch will cause one unit to cycle excessively.
• CFM Differences: They will work, but the unit with lower CFM will run more often to keep up. This can lead to premature wear if not managed with staggered pressure switch settings.
• Electrical Load: Ensure your circuit can handle the combined starting amperage (locked rotor amps) of two different motors.

What is the Most Common Mistake When Converting Voltage?

The single biggest error is assuming a motor is convertible. Attempting to rewire a motor not designed for dual voltage will destroy it.

1. Not Checking the Data Plate: Always look for a clear dual-voltage rating (e.g., 115/230V). If it only says 115V, stop. You cannot convert it.
2. Incorrect Wiring Configuration: Following a generic diagram instead of the specific one for your motor model. This can cause short circuits or poor performance.
3. Neglecting the Circuit: Using an undersized wire gauge or breaker for the new 220V circuit, creating a fire hazard.

Quick Answer: Yes, you can combine different compressors if their pressure settings match. No, you cannot convert a motor’s voltage unless its data plate explicitly lists the target voltage as an option.

How Do I Calculate the Total CFM of a Combined System?

Calculating combined CFM is not a simple sum. Real-world performance depends on the setup and duty cycle.

• Theoretical Maximum: In an ideal parallel setup, total CFM is roughly the sum of each compressor’s CFM rating at a given PSI. (e.g., 5 CFM + 7 CFM = ~12 CFM potential).
• Real-World Output: Friction in plumbing, check valves, and manifold restrictions will reduce this slightly. Expect 85-95% of the theoretical sum.
• Important Note: This combined CFM is only available while both compressors are actively pumping. Once they reach cut-out pressure and stop, you are drawing from tank volume only.
